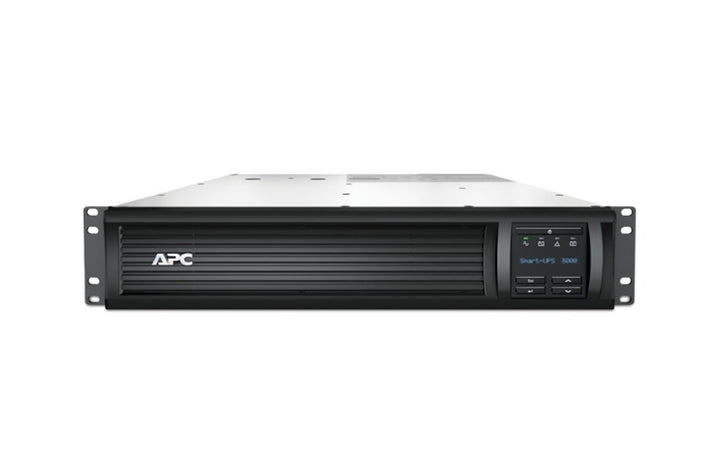

APC Smart-UPS 3000VA LCD RM 2U 230V
PRODUCT DESCRIPTION
APC Smart-UPS, Line Interactive, 3000VA / 2700W, Rackmount 2U, 230V (SMT3000RMI2U) - Local Warranty
3000 VA / 2700 W — the Highest Wattage in the 2U Smart-UPS Rack Range
The APC Smart-UPS SMT3000RMI2U delivers 3000 VA and 2700 W of pure sine wave, line-interactive output from 2U of rack space. That 2700 W is 600 W more real power than the Smart-UPS C at the same VA rating, which is why the SMT range is what goes into a serious Singapore server rack rather than a comms cupboard. Transfer to battery takes 4 ms typically and 8 ms at worst — comfortably inside what any ATX or active-PFC power supply will ride through.
AVR Across a Wide 160–286 V Input Window
Singapore runs on 230 V, 50 Hz, and the everyday threat is the sag when a PUB feeder switches or a storm hits, not a full blackout. The SMT3000RMI2U corrects across a 160 to 286 V input window — adjustable from 151 to 302 V — using Automatic Voltage Regulation, which means it holds output steady without discharging the battery. Batteries that are not cycled on every voltage dip last measurably longer in a tropical building.
Eight C13 Outlets, One C19 and Three Jumpers, All Battery-Backed
The outlet complement is eight IEC C13 sockets, one IEC C19 and three IEC jumper cords, every one on battery backup. Note that this is one C19, not two — two C19 outlets belong to the tower builds, and confusing the two is a common ordering error. The unit is fed by an IEC C20 inlet on a 2 m cord, and at 3000 VA a dedicated circuit belongs in the install plan.
SmartSlot for Network Management — Card Sold Separately
This is the non-SmartConnect build. It has no Ethernet port of its own and no bundled network card, but it does have one free SmartSlot: fit an AP9640 or AP9641 Network Management Card 3 and you get web, SNMP and EcoStruxure IT monitoring. Out of the box you have USB and RS-232 serial for host shutdown. If you would rather have cloud monitoring included, the SMT3000RMI2UC is the SmartConnect equivalent.
Rails Included, but Check the 683 mm Depth
Rack mounting support rails are supplied — unlike the Smart-UPS C rack models, which ship brackets only. What you do need to check is depth: at 683 mm this is a full-depth unit and it will not fit a shallow comms cabinet. It weighs 44.28 kg, runs at 55 dBA and dissipates 348 BTU/hr, so it belongs in a ventilated rack rather than an office cupboard. A temperature probe is included in the carton.
APC SMT3000RMI2U Datasheet — Technical Specifications
General
| Part Number (SKU) | SMT3000RMI2U |
| Product Name | APC Smart-UPS, Line Interactive, 3kVA, Rackmount 2U, 230V, 8x IEC C13 + 1x IEC C19 outlets, SmartSlot, AVR, LCD |
| Topology | Line interactive |
| Form Factor | Rackmount, 2U |
| Build Variant | Non-SmartConnect — no built-in Ethernet port; network management requires an optional SmartSlot card |
| Certifications | CE, EAC, GS Mark, IRAM, RCM, VDE; EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, WEEE |
| Manufacturer Warranty | 3 years repair or replace excluding battery, and 2 years for the battery (APC by Schneider Electric) |
| Local Warranty | Local Warranty (Singapore) |
Output
| Output Power Capacity | 3000 VA / 2700 W (2.7 kW) |
| Maximum Configurable Power | 3000 VA / 2700 W |
| Nominal Output Voltage | 230 V (configurable for 220 V or 240 V) |
| Output Frequency | 47 to 53 Hz for 50 Hz nominal; 57 to 63 Hz for 60 Hz nominal |
| Waveform | Sine wave |
| Transfer Time | 4 ms typical, 8 ms maximum |
| Output Connections | (8) IEC 320 C13 + (1) IEC 320 C19 + (3) IEC jumper cords — all battery backup |
| Surge Energy Rating | 320 Joules |
Input
| Nominal Input Voltage | 230 V |
| Input Voltage Range (mains operation) | 160 to 286 V |
| Adjustable Input Voltage Range | 151 to 302 V |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Input Connection | IEC 320 C20 (British BS1363A and Schuko CEE 7/EU1-16P cord options also listed) |
| Input Cord Length | 2 m |
| Voltage Regulation | Automatic Voltage Regulation (AVR) |
Batteries & Runtime
| Battery Type | Maintenance-free sealed lead-acid with suspended electrolyte, leakproof |
| Replacement Battery Cartridge | RBC43 (quantity 1) |
| Typical Recharge Time | 3 hours |
| Expected Battery Life | 3 to 5 years |
| Runtime at Load | Schneider Electric publishes no runtime table for this model — contact SourceIT with your load in watts for a sizing estimate |
Communications & Management
| Communication Ports | USB; RS-232 serial (Smart-UPS signalling RS-232 cable supplied) |
| SmartSlot | 1 free SmartSlot |
| SmartConnect | Not fitted on this build |
| Network Management | Optional — fit an APC Network Management Card 3 (AP9640 or AP9641) in the SmartSlot for web, SNMP and EcoStruxure IT monitoring |
| Management Software | Compatible with APC PowerChute management software for graceful shutdown over USB or serial |
Physical & Environmental
| Dimensions (H × W × D) | 86 × 480 × 683 mm (fits a standard 19-inch rack) |
| Rack Height | 2U |
| Mounting Hardware Supplied | Rack mounting support rails included |
| Net Weight | 44.28 kg |
| Shipping Weight | 51.7 kg |
| Operating Temperature | 0 to 40 °C |
| Relative Humidity | 0 to 95%, non-condensing |
| Audible Noise | 55.0 dBA at 1 m |
| Heat Dissipation | 348.0 BTU/hr |
| Package Contents | USB cable, country-specific detachable power cord, documentation CD, software CD, installation guide, rack mounting support rails, Smart-UPS signalling RS-232 cable, temperature probe |
Specifications We Have Not Published
Schneider Electric does not publish an output voltage distortion figure, AVR boost and trim step values, a battery VAh capacity, a battery bus voltage or an input current for this model, so none is stated here. The bundled PowerChute edition is not named for this SKU in any Schneider document, so we describe the software generically. No external battery pack is documented for this model, so no extended-runtime option is claimed. UL and cUL are not on the certification list for this 230 V IEC model. Barcode data for this SKU is inconsistent between sources — ask us to confirm against physical stock if you need it for goods-receipt. Where Schneider Electric does not publish a figure for this exact model, SourceIT leaves it out rather than estimate it from a similar part number.
Compatibility & Runtime
All twelve outputs — eight IEC C13, one IEC C19 and three IEC jumper cords — are battery-backed; there are no surge-only sockets. The single C19 accepts a C20-terminated cord for a heavier load such as a blade chassis or downstream PDU. Note it is one C19, not two: the two-C19 configuration belongs to the Smart-UPS tower builds.
Sizing. Size against 2700 W. Total the nameplate watts of your load and stay below about 2160 W — 80% of capacity — to leave headroom for inrush and for battery ageing. Schneider publishes no runtime table for this model, so we will not quote minutes; send us your real load and target runtime instead.
Rack fit. 2U of height and 683 mm of depth in a standard 19-inch rack, at 44.28 kg. This is a full-depth unit — measure the cabinet before ordering. Rack mounting support rails are included, unlike the Smart-UPS C rack models.
Input. IEC C20 inlet on a 2 m cord. A dedicated circuit is the right call at 3000 VA.
Management. One free SmartSlot. Fit an AP9640 or AP9641 Network Management Card 3 for web, SNMP and EcoStruxure IT monitoring, or an AP9613 Dry Contact I/O card for building-management integration. Out of the box you have USB and RS-232 serial for host shutdown. There is no built-in Ethernet on this build.
Package Contents & Smart-UPS Rackmount Ordering Information
In the Box
- APC Smart-UPS 3000VA 2U rackmount UPS (SMT3000RMI2U)
- Rack mounting support rails
- Country-specific detachable power cord
- USB cable
- Smart-UPS signalling RS-232 cable
- Temperature probe
- Software CD and documentation CD
- Installation guide
Smart-UPS Rackmount Ordering Information
The Smart-UPS rackmount range spans 750 VA to 3000 VA. Size against watts, and check depth — it varies considerably across the range:
| APC Smart-UPS 1500VA LCD RM 1U 230V | SMT1500RMI1U |
| APC Smart-UPS 750VA LCD RM 2U 230V | SMT750RMI2U |
| APC Smart-UPS 1000VA Line Interactive 2U Rackmount | SMT1000RMI2U |
| APC Smart-UPS 1500VA Rackmount 2U 230V | SMT1500RMI2U |
| APC Smart-UPS 2200VA Line Interactive Rackmount 2U | SMT2200RMI2U |
| APC Smart-UPS 3000VA LCD RM 2U 230V (this listing) | SMT3000RMI2U |
SmartConnect equivalents (built-in Ethernet and free cloud monitoring)
| APC Smart-UPS 750VA LCD RM 2U 230V with SmartConnect | SMT750RMI2UC |
| APC Smart-UPS 1000VA LCD RM 2U 230V with SmartConnect | SMT1000RMI2UC |
| APC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect | SMT1500RMI2UC |
| APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect | SMT2200RMI2UC |
| APC Smart-UPS 3000VA LCD RM 2U 230V with SmartConnect | SMT3000RMI2UC |
Replacement battery cartridge for this model
| APC Replacement Battery Cartridge #43 | RBC43 |
Network management and monitoring for the SmartSlot
| APC UPS Network Management Card 3 | AP9640 |
| APC UPS Network Management Card 3 with Environmental Monitoring | AP9641 |
| APC Dry Contact I/O SmartSlot Card | AP9613 |
| APC Temperature & Humidity Sensor | AP9335TH |
Datasheet & Downloads
Full technical documentation for the APC SMT3000RMI2U is published by Schneider Electric. The official product page below lists the Schneider Electric product data sheet and User Guide 990-3892F-001.
Schneider Electric serves its datasheet and manual PDFs through a redirecting download service that we cannot link to reliably, so we do not publish a direct PDF link that might break or return the wrong model's document. Email sales@sourceit.com.sg with the model number and we will send you the current APC SMT3000RMI2U product data sheet and user manual as PDFs, along with a quotation.
Frequently Asked Questions — APC SMT3000RMI2U
What is the difference between 3000 VA and 2700 W, and how do I size for my load?
Watts is the binding constraint. VA is apparent power; W is the real power the UPS can actually deliver. Total the nameplate watts of everything you will plug in and aim to stay below about 2160 W, which leaves 20% headroom for inrush current and for the battery losing capacity over its life. At 2700 W this is the highest-wattage 2U Smart-UPS rack model.
How long will it run for?
Schneider Electric publishes no runtime table for the SMT3000RMI2U, so we will not quote a figure. Runtime falls away steeply as load rises — a rack at 40% load runs far more than twice as long as the same rack at 80%. Send us your measured load in watts and the minutes you need and we will size it.
What does the missing “C” mean — how is this different from the SMT3000RMI2UC?
The C suffix means SmartConnect. This build has no Ethernet port and no bundled network card: remote monitoring means buying an AP9640 or AP9641 card for the free SmartSlot. The SMT3000RMI2UC has a SmartConnect Ethernet port built in with free cloud monitoring, and keeps its SmartSlot free as well. If remote visibility matters, the SmartConnect build usually works out cheaper than this unit plus a card.
Is the output a pure sine wave, and will it drive an active-PFC power supply?
Yes to both. Schneider describes it as a pure sine wave unit, and transfer to battery is 4 ms typical, 8 ms maximum — well inside the hold-up time of any ATX or active-PFC supply. Step-approximated output, common on Back-UPS and Easy UPS models, is what causes active-PFC supplies to drop the load or run hot.
How many C19 outlets does it have?
One. Eight IEC C13, one IEC C19 and three IEC jumper cords, all battery-backed. The two-C19 configuration belongs to the Smart-UPS tower builds — do not assume a rack model shares its tower sibling's outlet count.
Which replacement battery cartridge does it take, and can I fit it myself?
The genuine APC RBC43, one per unit. It is user-replaceable, with 3 to 5 years of expected service life — shorter in a warm rack, and Singapore ambient conditions are hard on sealed lead-acid. Follow the APC user guide and plan the swap into a maintenance window.
How much rack space and depth do I need, and are rails included?
2U of height and 683 mm of depth, at 44.28 kg. Rack mounting support rails are included — a genuine difference from the Smart-UPS C rack models, which ship brackets only. The depth is what usually decides whether this unit will go in: it is a full-depth chassis and will not fit a shallow comms cabinet.
Is the warranty valid in Singapore, and do I get a GST invoice?
Yes. Every APC SMT3000RMI2U sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SMT3000RMI2U with 3 years repair or replace on the electronics (excluding battery) and 2 years on the battery.
