Zebra DS2278 Barcode Scanner

Zebra DS2278 Barcode Scanner (DS2278-SR7U2100PRW) - 1 Year Local Warranty

Zebra DS2278 Barcode Scanner (DS2278-SR7U2100PRW)

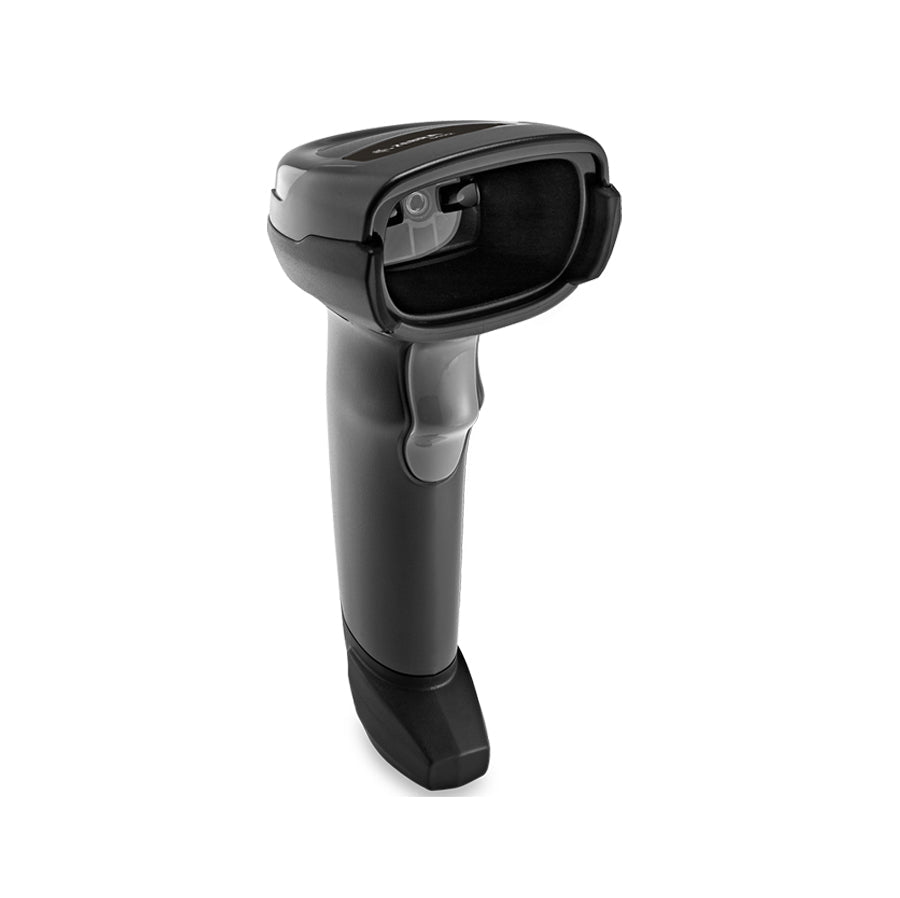

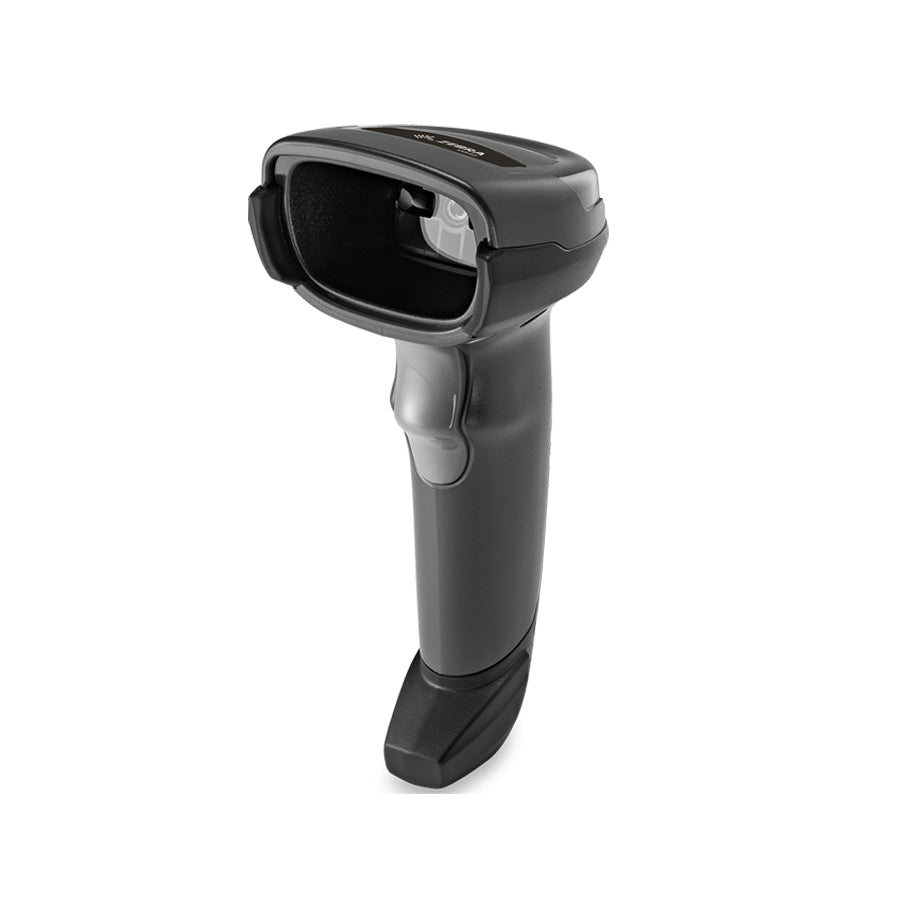

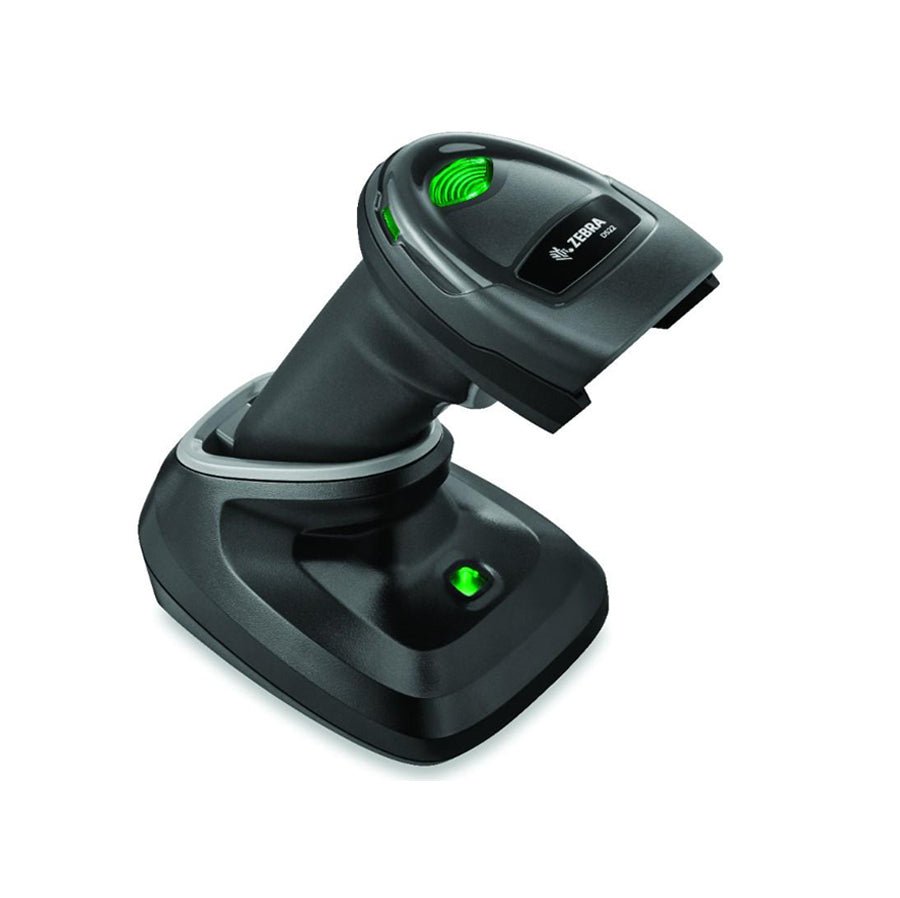

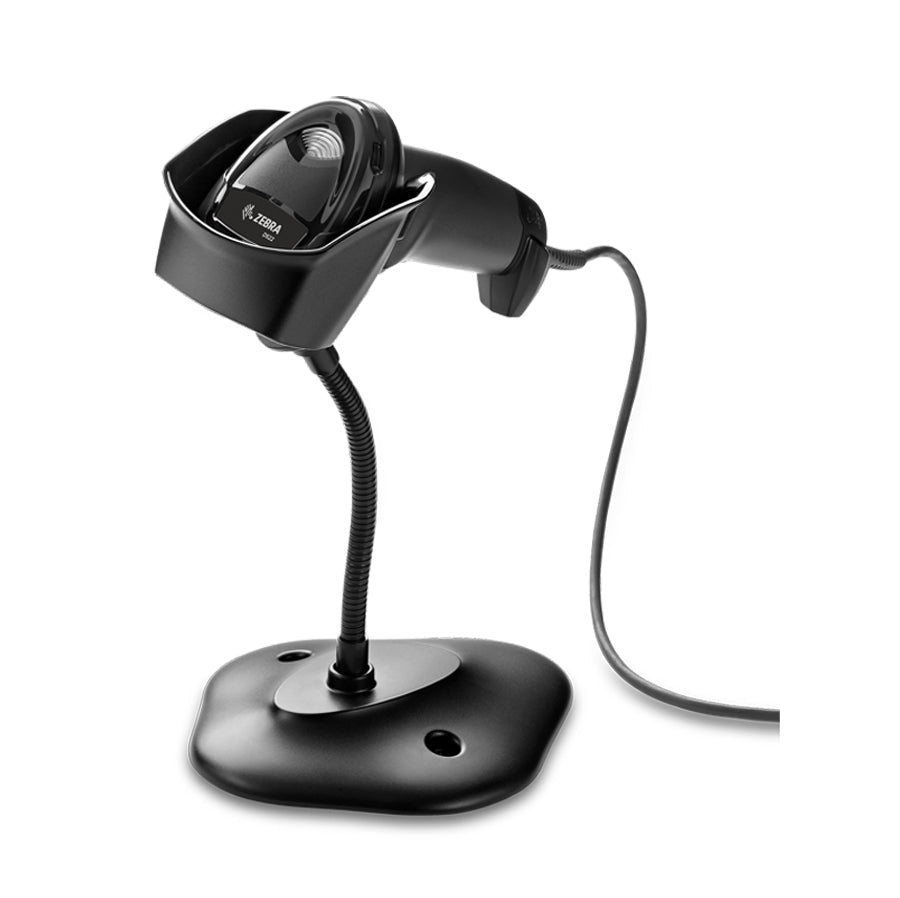

The Zebra DS2278 Barcode Scanner (model DS2278-SR7U2100PRW) is a high-performance, wireless barcode scanner that combines advanced 2D scanning technology with the freedom of Bluetooth connectivity. Designed for businesses across various industries, including retail, healthcare, and logistics, this scanner offers superior scanning capabilities for both 1D and 2D barcodes, ensuring fast and efficient data capture in high-volume environments.

Wireless Convenience with Bluetooth Technology

The Zebra DS2278-SR7U2100PRW is equipped with Bluetooth wireless technology, allowing for a cord-free scanning experience. This feature enables users to move freely around their workspace without being tethered to a computer or point-of-sale (POS) terminal. The Bluetooth connection ensures reliable performance at distances of up to 100 meters (328 feet), providing increased flexibility and productivity.

Advanced 2D Scanning Performance

With its powerful 2D imager, the Zebra DS2278 can read a wide range of barcodes, including traditional 1D, as well as newer 2D barcodes like QR codes, DataMatrix, and PDF417. Whether scanning from mobile phone screens or paper labels, this scanner provides quick and accurate results with minimal user intervention. The Zebra DS2278 is ideal for high-speed, high-accuracy applications, ensuring smooth and efficient workflows.

Durable and Ergonomic Design

The Zebra DS2278 is designed for durability and comfort. Built to withstand drops from up to 1.8 meters (6 feet) onto concrete, it is rugged enough for use in various challenging environments. Additionally, its ergonomic handheld design ensures comfort for extended periods of use, reducing user fatigue. Its lightweight and balanced form factor make it easy to maneuver, ensuring efficient scanning at checkout counters, warehouses, and other busy environments.

Easy Setup and Seamless Integration

The Zebra DS2278-SR7U2100PRW features a simple plug-and-play setup, ensuring quick and hassle-free integration with your existing systems. It works seamlessly with a wide range of devices and operating systems, including PCs, POS systems, and mobile devices. With Bluetooth connectivity, it can be paired with compatible devices in seconds, allowing for immediate use with no additional software or drivers required.

Technical Specifications

General
Model: DS2278
Part Number: DS2278-SR7U2100PRW
Product Name: Zebra DS2278 Cordless Barcode Scanner
Manufacturer: Zebra Technologies
Product Type: Cordless Handheld Barcode Scanner
Scanner Type: 1D/2D Area Imager Scanner
Scan Technology: Area Imaging
Series: Zebra DS2200 Series
Deployment: Retail, Healthcare, Hospitality, Warehousing, Logistics, Small Business
Warranty: 5 Years Standard Manufacturer Warranty
Color: White
Connectivity: Bluetooth Wireless with Cradle Included

Scanning Specifications
Scan Technology: Area Imager
Image Sensor: High-Resolution Imager
Aiming Element: LED Aiming Pattern
Illumination Type: LED Illumination
Scanning Mode: Omnidirectional Scanning
Motion Tolerance: Up to 13 cm (5 in.) Per Second for 13 mil UPC
Minimum Print Contrast: 25% Reflectance Difference
First Pass Read Rate: High Accuracy

Barcode Support

1D Barcodes:
• Code 39
• Code 128
• Code 93
• Codabar
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• GS1 DataBar
• Interleaved 2 of 5
• MSI
• ISBN
• ISSN

2D Barcodes:
• QR Code
• Micro QR Code
• Data Matrix
• PDF417
• MicroPDF417
• Aztec
• MaxiCode
• Han Xin
• Composite Codes

Scanning Performance
Scan Range: Standard Range (SR)
Minimum Resolution: 4 mil Code 39
Mobile Device Barcode Reading: Supported
Paper Barcode Reading: Supported
Damaged Barcode Reading: Supported
Poorly Printed Barcode Reading: Supported
Screen-Based Coupon Scanning: Supported
Digital Ticket Scanning: Supported

Wireless Connectivity
Wireless Technology: Bluetooth 4.0
Bluetooth Range: Up to 10 Meters (33 Feet)
Cordless Operation: Supported
Cradle Communication: Supported
Batch Mode Scanning: Supported
Offline Data Collection: Supported

Supported Interfaces
USB
RS-232
Keyboard Wedge
IBM 46XX

Battery Specifications
Battery Type: Rechargeable Lithium-Ion Battery
Battery Capacity: 2400 mAh
Scans Per Charge: Up to 100,000 Scans
Charge Time: Approximately 4 Hours
Battery Replacement: Supported
All-Day Operation: Supported

Physical Specifications
Dimensions: 175 mm x 66 mm x 90 mm
Weight: Approximately 214 g
Color: White
Form Factor: Cordless Handheld Barcode Scanner
Construction: Lightweight Enterprise Design

Durability Specifications
Drop Resistance: Multiple Drops from 1.5 m (5 ft.) to Concrete
Tumble Specification: 250 Tumbles at 0.5 m
Sealing Protection: Designed for Daily Commercial Use
Shock Resistance: Enterprise Grade Durability
Trigger Life: Long-Life Industrial Trigger Design

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 95% Non-Condensing
Ambient Light Immunity: Resistant to Indoor and Outdoor Lighting Conditions

User Interface Features
LED Indicator: Decode Status LED
Audible Beeper: Multiple Tone Options
Scan Confirmation: Visual and Audible Feedback
Direct Decode Indicator: Supported
Programmable Feedback Settings: Supported

Management & Configuration
123Scan Configuration Utility Support
Scanner Management Service (SMS) Support
Remote Configuration Support
Firmware Update Support
Host-Based Device Management
Easy Enterprise Deployment

Design & Construction
Form Factor: Cordless Handheld Scanner
Housing Material: Durable ABS Construction
Grip Design: Ergonomic Comfort Grip
Trigger Design: Industrial Grade Trigger
Usage Style: Handheld Wireless Operation
Construction: Commercial and Enterprise Grade

Features
Cordless Bluetooth Connectivity
1D and 2D Barcode Scanning
Mobile Phone Screen Barcode Reading
Paper Barcode Reading
Wireless Freedom Up to 10 Meters
100,000 Scans Per Battery Charge
Plug-and-Play Deployment
High First-Pass Read Accuracy
Lightweight Ergonomic Design
Enterprise-Grade Reliability

Performance & Features
Captures Virtually Any 1D or 2D Barcode
Reads Barcodes from Mobile Phones and Printed Labels
Ideal for Retail Checkout and Customer Service Applications
Reduces Queue Times with Fast Scanning Performance
Supports Digital Coupons, Loyalty Cards and Mobile Tickets
Reliable Wireless Operation Throughout the Workday
Easy Deployment with Minimal Configuration Required
Designed for Small Businesses and Enterprise Environments
Supports Continuous All-Day Scanning Operations

Package Contents
Zebra DS2278 Cordless Barcode Scanner
Presentation/Charging Cradle
Rechargeable Battery
USB Interface Cable
Power Supply (Configuration Dependent)
Quick Start Guide
Warranty Documentation

Key Features
Cordless Bluetooth Barcode Scanner
1D and 2D Barcode Reading
Standard Range Scanning Engine
Reads Mobile and Printed Barcodes
Bluetooth 4.0 Wireless Connectivity
Up to 10m Wireless Range
Up to 100,000 Scans Per Charge
Charging and Communication Cradle Included
Lightweight 214 g Design
5-Foot Drop Resistance
High First-Pass Read Accuracy
5-Year Manufacturer Warranty

Typical Use Cases
Retail Point-of-Sale (POS)
Inventory Management
Warehouse Operations
Asset Tracking
Mobile Coupon Redemption
Digital Loyalty Program Scanning
Healthcare Administration
Ticket Validation
Hospitality Check-In Applications
Library Management
Document Tracking
General Business Barcode Scanning
Customer Service Counters
Front Desk and Reception Operations**
