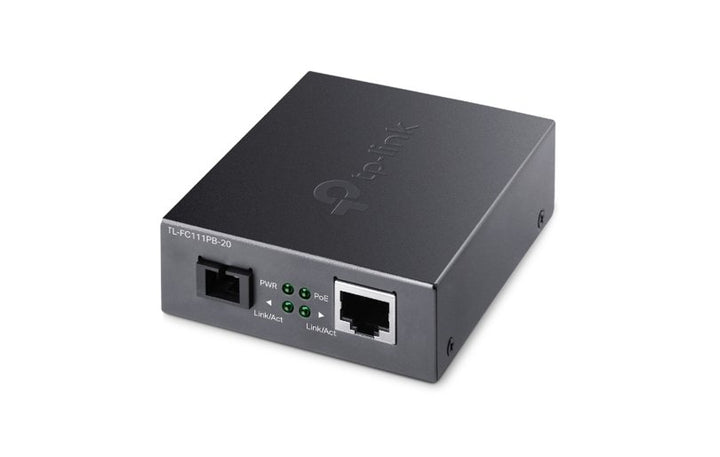

TP-Link Single-mode SC WDM Bi-Directional Fiber Converter With 1-Port PoE (TL-FC111PB-20)

TP-Link Single-mode SC WDM Bi-Directional Fiber Converter With 1-Port PoE (TL-FC111PB-20) - Advanced Fiber Networking Solution

The TP-Link Single-mode SC WDM Bi-Directional Fiber Converter with 1-Port PoE (TL-FC111PB-20) is a high-performance solution designed for extending Ethernet networks over long distances using fiber optics. Featuring Wavelength Division Multiplexing (WDM) technology, this converter enables bi-directional communication over a single fiber strand, reducing the need for additional fiber cables. With the added benefit of Power over Ethernet (PoE) support, the TL-FC111PB-20 simplifies installation by delivering both data and power to remote devices through a single Ethernet cable, making it an ideal choice for extending networks to remote locations.

WDM Technology for Cost-Effective Bi-Directional Fiber Communication

The TL-FC111PB-20 uses Wavelength Division Multiplexing (WDM) technology to facilitate bi-directional communication over a single fiber cable. By using different wavelengths for upstream and downstream signals, WDM technology allows efficient use of fiber resources, eliminating the need for two separate fiber cables. This bi-directional capability makes it a cost-effective solution for long-distance networking, reducing installation costs while maintaining high-speed data transmission. It is ideal for applications requiring reliable and efficient fiber-optic communication.

Single-Mode SC Fiber for Long-Distance Network Extension

Equipped with a single-mode SC fiber interface, the TL-FC111PB-20 can extend your network up to 20 kilometers (12.4 miles) without signal loss. Single-mode fiber offers minimal attenuation, ensuring high-quality and reliable data transmission over long distances. This makes the TL-FC111PB-20 an excellent choice for connecting remote buildings, campuses, or industrial sites, where traditional copper Ethernet cabling is not feasible due to distance limitations. The long-range capability allows for seamless connectivity even in large-scale networks.

1-Port PoE for Simplified Installation

The TP-Link TL-FC111PB-20 comes with a 1-port PoE (Power over Ethernet) feature, which enables the converter to transmit both power and data over a single Ethernet cable. This simplifies installation by eliminating the need for separate power cables or outlets at the remote end, making it ideal for hard-to-reach areas where providing power could be challenging. PoE support also makes it easier to connect devices like IP cameras, wireless access points, or VoIP phones without requiring additional power infrastructure.

Durable Design for Harsh Environments

The TL-FC111PB-20 is built with a rugged metal casing, ensuring durability and longevity in demanding environments. Its compact and robust design makes it suitable for both indoor and outdoor use, withstanding harsh conditions such as dust, heat, and moisture. The device is designed for easy installation, offering plug-and-play functionality that allows for quick deployment with minimal configuration. Whether you're upgrading your existing network or setting up a new one, this converter ensures reliable and stable performance.

Technical Specifications

• Ethernet Standard: 10/100Mbps
• Fiber Interface: Single-mode SC
• WDM Technology: Bi-directional transmission over a single fiber strand
• Max Distance: Up to 20 kilometers (12.4 miles)
• Power Supply: 5V DC, 1A (PoE Supported)
• PoE: 1-Port PoE (Power over Ethernet)
• Dimensions: 97 x 69 x 27 mm
• Operating Temperature: 0°C to 50°C
• Compliance: CE, FCC
• GTIN: 6935364094449

Detailed Specification:

10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter With 1-Port PoE
PORT: 1× 100Mbps SC Port, 1× 10/100M PoE RJ45 Port (Auto MDI/MDIX)
SPEC: 802.3af, 15.4W PoE Budget, Full-duplex, Tx:1310 nm, Rx:1550 nm, Up to 20 km.
