TP-Link Archer BE900 BE24000 Quad-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE24000 Quad-Band Wi-Fi 7 Router (Archer BE900) - 3 Years Local Warranty
The Archer BE900 is TP-Link's Wi-Fi 7 flagship: four radios totalling BE24000, sixteen streams, 320 MHz channels on 6 GHz, two 10 Gbps ports including an SFP+ combo, four 2.5 Gbps LAN ports, twelve antennas and a front touchscreen. Nothing else in the Archer range combines this wireless capacity with this much multi-gig wired capability.
BE24000 Across Four Radios
TP-Link publishes 11520 Mbps on 6 GHz, 5760 Mbps on each of two 5 GHz radios and 1376 Mbps on 2.4 GHz. The 6 GHz figure comes from 320 MHz channel width, double the 160 MHz that Wi-Fi 6 routers use, and it is available only on 6 GHz. Sixteen streams with 4×4 MU-MIMO, OFDMA, Airtime Fairness and DFS keep a very large number of clients served concurrently.

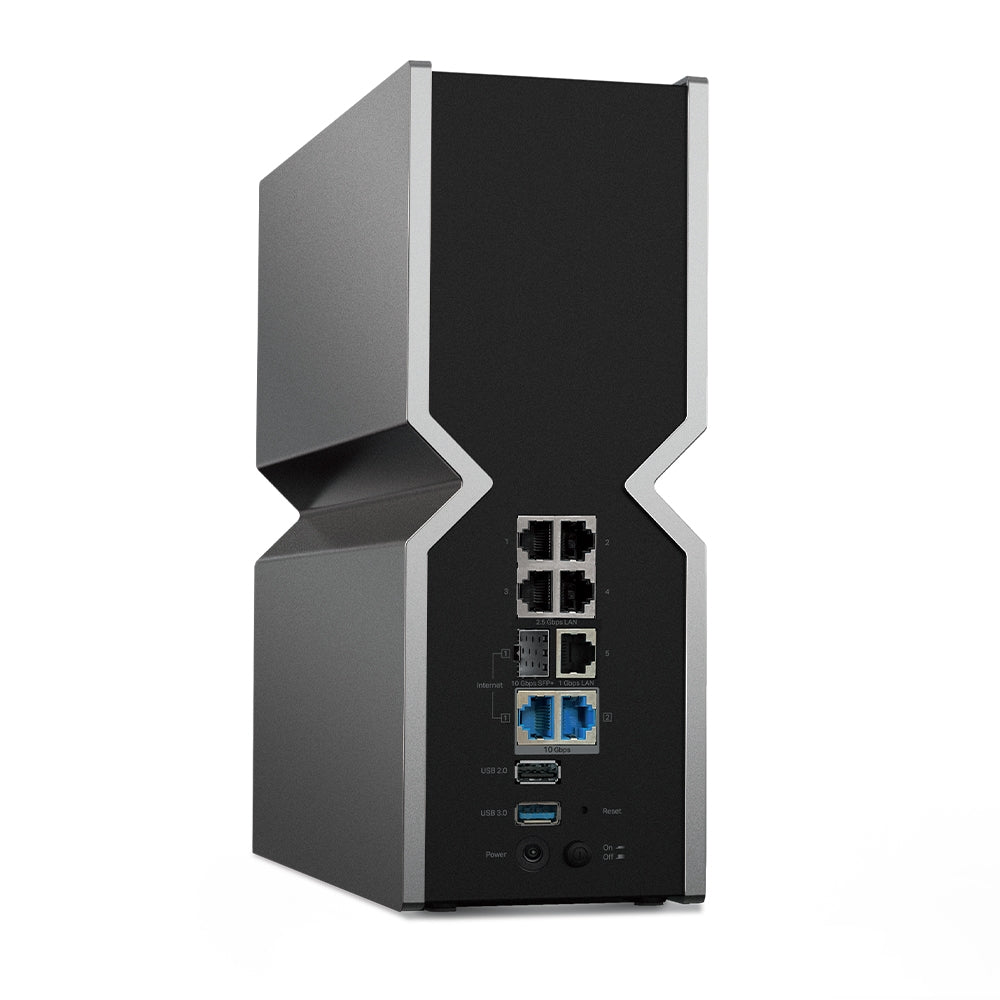

Two 10 Gbps Ports, Four 2.5 Gbps LAN Ports
Wired networking is a 10 Gbps WAN/LAN port, a 10 Gbps SFP+/RJ45 combo internet port, four 2.5 Gbps LAN ports and a 1 Gbps LAN port. The combo port takes fibre directly with a suitable SFP+ module. TP-Link notes that only one of the combo pair — SFP+ or RJ45 — can be used as the WAN port at a time, and that 10 Gbps internet speeds require a compatible service plan and equipment.

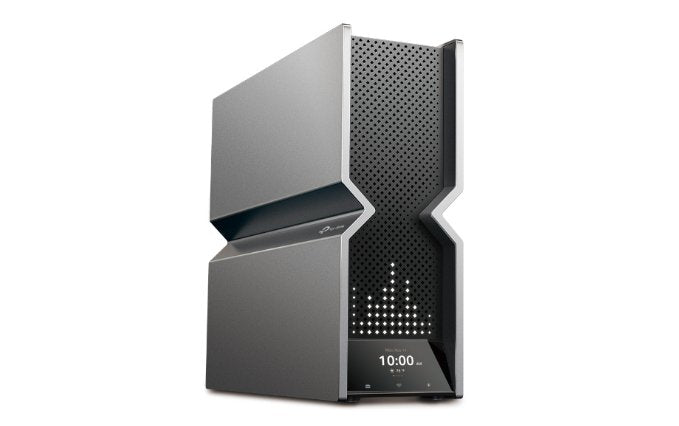

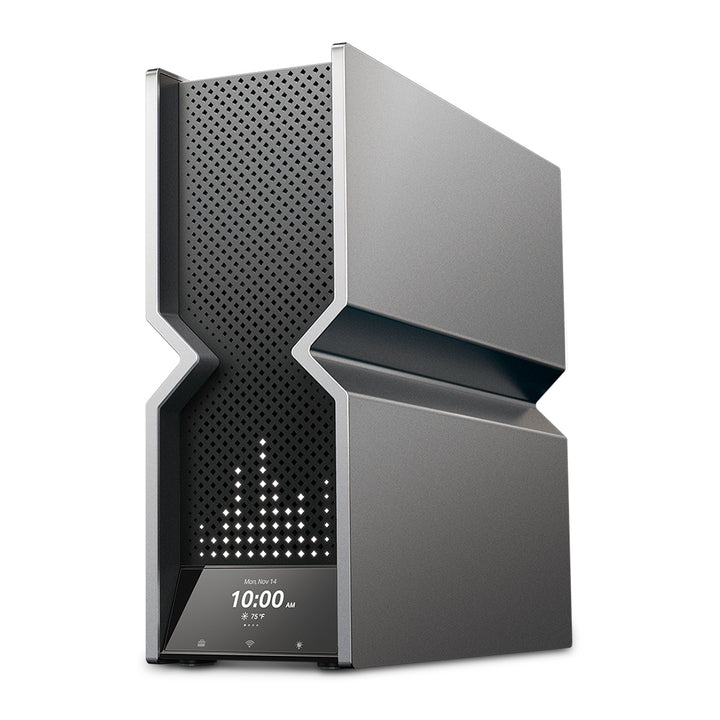

A Touchscreen and LED Screen on the Front Panel
The BE900 replaces physical Wi-Fi, LED and WPS buttons with a touchscreen; only power and reset remain as hardware buttons. A separate LED screen on the front can display status and information at a glance, which makes it more of an object to place in a living room than to hide in a cupboard. Twelve optimally positioned antennas with Beamforming and a high-power front-end module give the rated four-bedroom coverage.
WireGuard VPN, WPA3 and Four Guest Networks
OpenVPN, PPTP, L2TP and WireGuard all run as both server and client. Encryption covers WPA3, WPA2, WPA and WPA/WPA2-Enterprise with 802.1x, with a separate guest network on each of the four radios — 6 GHz, 5 GHz-1, 5 GHz-2 and 2.4 GHz — so visitors or IoT gear can be isolated on a band of their own. A dedicated IoT Network feature and Alexa and Google Assistant support are published for this model.
EasyMesh, HomeShield and Dual USB
The BE900 is EasyMesh-compatible, so it can mesh with other EasyMesh devices including other vendors' — TP-Link notes cross-vendor firmware differences can cause failed connections and that support is still being developed on some models. HomeShield adds IoT protection, malicious site blocking, intrusion prevention, DDoS prevention and a network scanner. A USB 3.0 and a USB 2.0 port serve FTP, media and Samba shares from NTFS, exFAT, HFS+ and FAT32 volumes.
Ideal For
Singapore homes and offices on 10 Gbps fibre with Wi-Fi 7 client devices, heavy multi-gig LAN use, and a router that will sit in view rather than in a cupboard. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE900 Datasheet — Technical Specifications
General
| Model | Archer BE900 |
| Official Product Name | BE24000 Quad-Band Wi-Fi 7 Router |
| Hardware Version (as published) | V2 |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE24000 — 6 GHz: 11520 Mbps; 5 GHz-1: 5760 Mbps; 5 GHz-2: 5760 Mbps; 2.4 GHz: 1376 Mbps (all 802.11be) |
| Wi-Fi Range | 4 Bedroom Houses — 12× Optimally Positioned Antennas, Beamforming, High-Power FEM |
| Wi-Fi Capacity | Very High — Quad-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 16 Streams |
| Advanced Features | 320 MHz Channel, 4K-QAM, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
| Working Modes | Router Mode, Access Point Mode |
Hardware
| Touchscreen | Yes |
| LED Screen | Yes |
| Ethernet Ports | 1× 10 Gbps WAN/LAN, 1× 10 Gbps SFP+/RJ45 WAN/LAN Internet Port, 4× 2.5 Gbps LAN, 1× 1 Gbps LAN |
| USB Support | 1× USB 3.0, 1× USB 2.0 — NTFS, exFAT, HFS+, FAT32; FTP Server, Media Server, Samba Server |
| Buttons | Power On/Off Button, Reset Button; Wi-Fi On/Off, LED and WPS are on the touchscreen |
| Power | 15 V DC, 5 A |
| Dimensions (W × D × H) | 3.8 × 11.9 × 10.3 in (96 × 302 × 262.5 mm) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1× 6 GHz, 1× 5 GHz-1, 1× 5 GHz-2, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocols | IPv4, IPv6 |
| Service Kit | HomeShield (free basic plan; Pro plan chargeable by TP-Link) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
| Services Enabled by Default | Web server (TCP 80/443), DNS (TCP and UDP 53), DHCP server (UDP 67), app management (TCP 20001 and 30001, UDP 20002) |
Environment and Certification
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
TP-Link publishes no processor row, no net weight and no storage temperature or humidity figure for the Archer BE900. Those are left out rather than taken from another model. TP-Link also notes that product images are for reference only, as the antennas may be continuously optimised, and that the actual product prevails where an image differs.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh devices, including other vendors' |
| Voice Assistants | Works with Alexa and Google Assistant |
| 10G Combo Port | SFP+ module or RJ45 — only one of the two can serve as the WAN port at a time. SourceIT can supply a matching SFP+ optic or DAC on request. |
| Wi-Fi 7 Client Requirement | 320 MHz channels, 4K-QAM, OFDMA and MU-MIMO require clients that support them; 320 MHz is available only on 6 GHz |
| USB Storage Formats | NTFS, exFAT, HFS+, FAT32 |
The 320 MHz bandwidth on 6 GHz and 160 MHz on 5 GHz may be unavailable in some regions due to regulatory restrictions. 10 Gbps internet speeds require a compatible service plan and equipment.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Router Archer BE900, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
| Not Included | SFP+ optical module or DAC cable for the 10G combo port |
Ordering Information
| Model | Archer BE900 |
| SKU | Archer BE900 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE900
Can I use both 10G ports at once?
You have a 10 Gbps WAN/LAN port and a 10 Gbps SFP+/RJ45 combo internet port. TP-Link notes that within the combo port you must choose either SFP+ or RJ45 as the WAN connection, not both.
Where are the WPS and Wi-Fi buttons?
On the touchscreen. Only power and reset are physical buttons on this model.
Do I need Wi-Fi 7 devices?
For 320 MHz channels and 4K-QAM, yes. Older devices still connect at their own standard and still benefit from the quad-band capacity and the multi-gig wired ports.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
