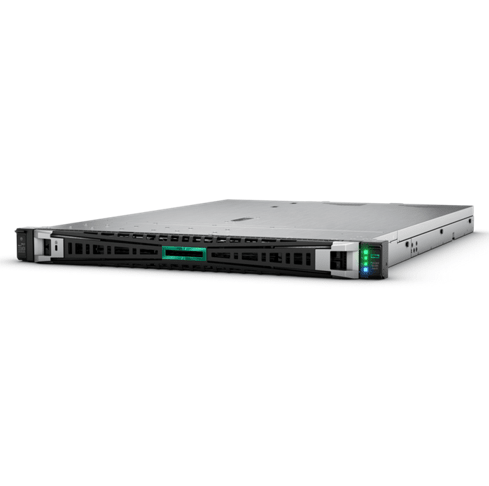

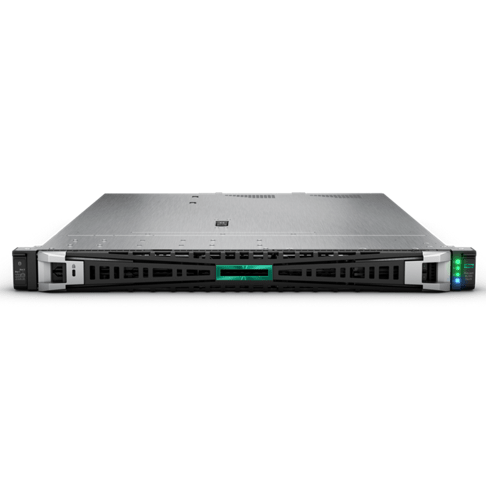

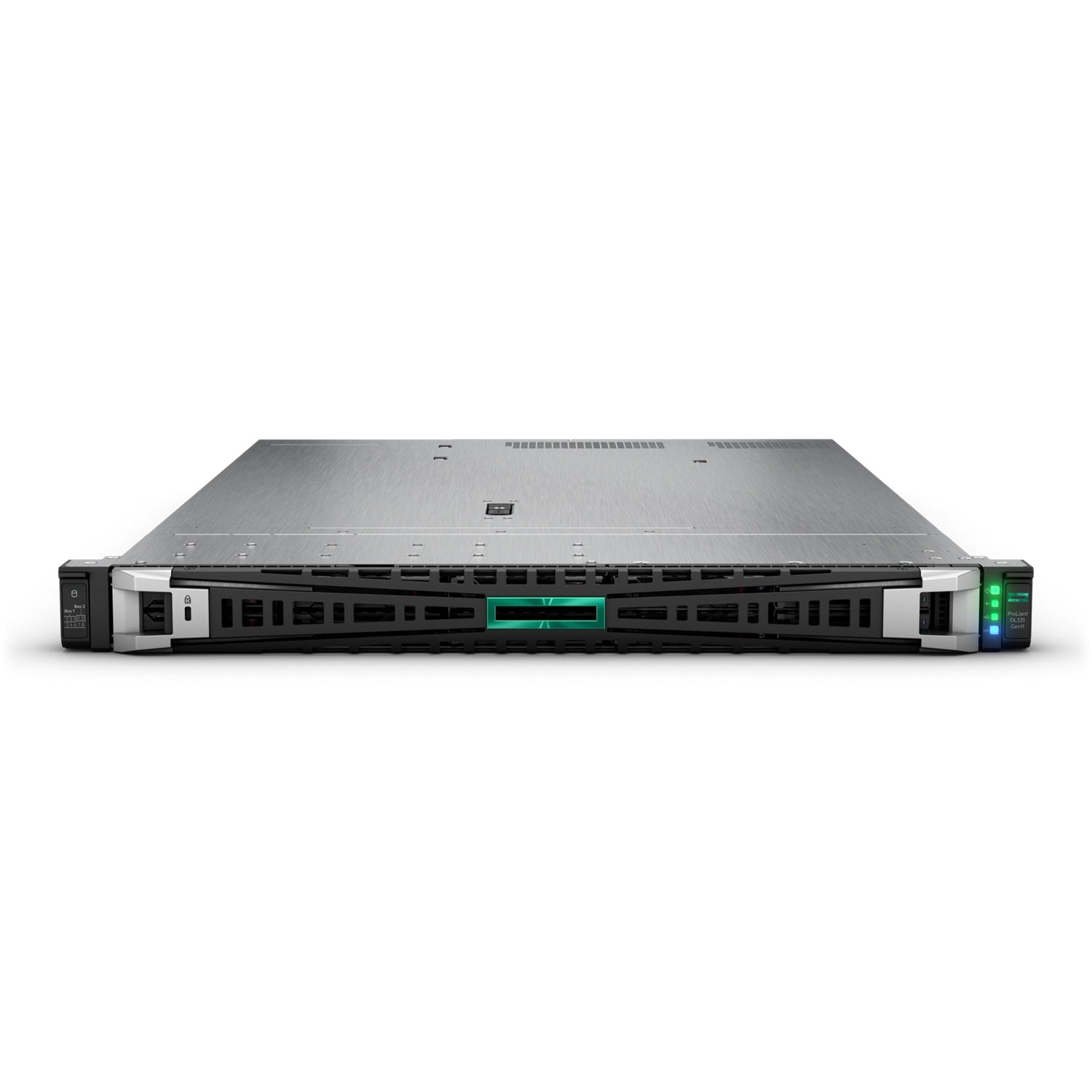

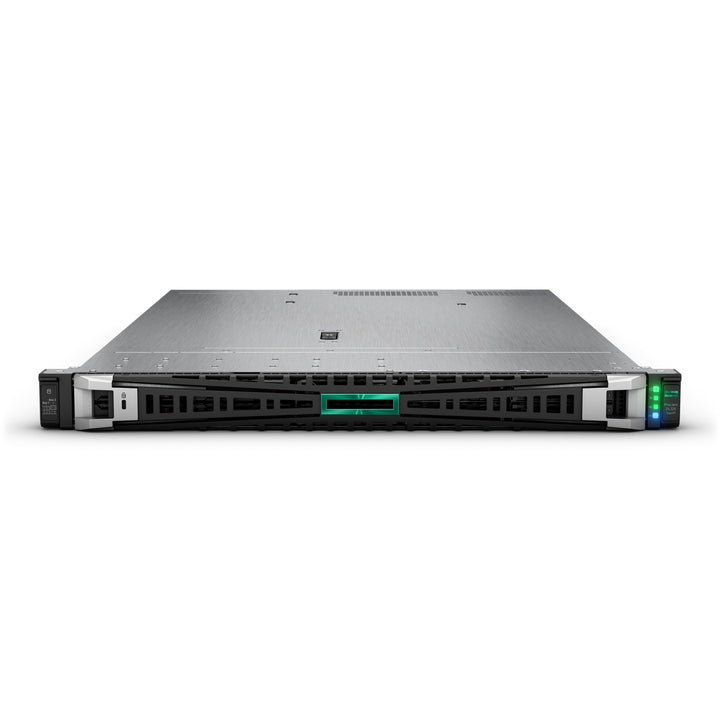

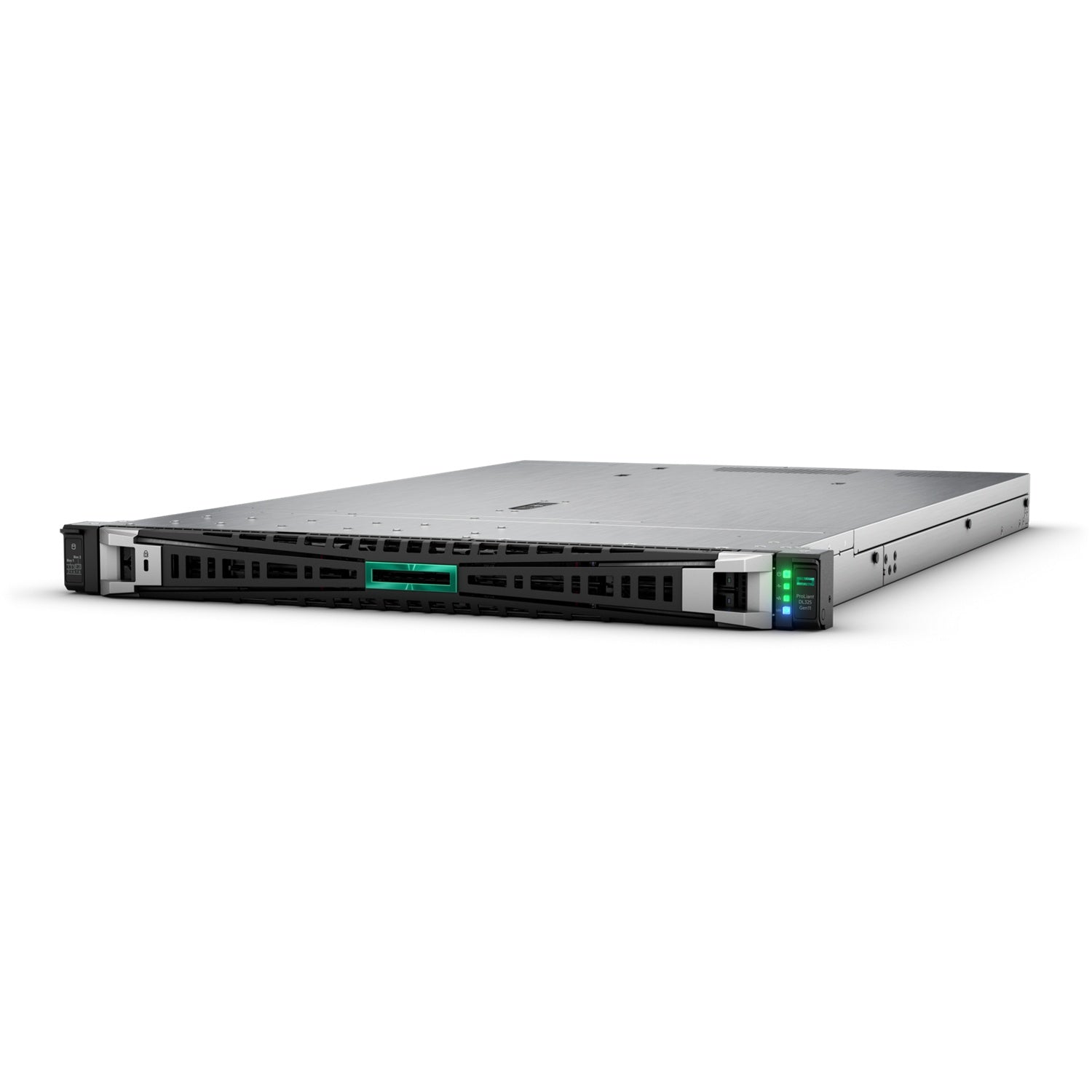

HPE ProLiant DL325 Gen11 1U Rack Server
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
HPE ProLiant DL325 Gen11 1U Rack Server (Configure-to-Order) - Local Warranty
High Core Count in 1U, Single Socket
The HPE ProLiant DL325 Gen11 runs one 4th or 5th Gen AMD EPYC 9004/9005 series processor with up to 160 cores and up to 400 W TDP, plus 12 DDR5 RDIMM slots for up to 3 TB at up to 6400 MT/s.
Flexible Storage and PCIe Gen5 I/O
Drive cages include 4 LFF, 8 SFF (with an optional 2 SFF bay) or 20 EDSFF E3.S NVMe. Two PCIe 5.0 x16 slots and two OCP 3.0 slots, with support for up to four single-wide or two double-wide GPUs, suit VDI, virtualisation and content delivery.
Secure, Cloud-Managed Infrastructure
HPE iLO 6 with silicon root of trust secures the platform from the firmware up, and HPE Compute Ops Management adds cloud-based monitoring and updates. HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day.
HPE ProLiant DL325 Gen11 Datasheet — Technical Specifications
General
| Product Name | HPE ProLiant DL325 Gen11 Server |
| Form Factor | 1U rack, 1-socket |
| Order Type | Configure-to-Order (CPU, memory, drive cage, controller, NIC, PSU and support term chosen per order) |
| HPE Standard Warranty | 3 years parts, 3 years labour, 3 years onsite, next business day |
| Local Warranty (Singapore) | Supplied by SourceIT with HPE warranty; HPE Care Pack upgrades available at configuration |
Processor & Memory
| Processors | One 4th or 5th Gen AMD EPYC 9004/9005 series processor, up to 160 cores, up to 400 W TDP |
| Memory Slots | 12 DIMM slots (12 channels), HPE DDR5 Smart Memory RDIMM |
| Maximum Memory | 3 TB |
| Memory Speed | Up to 6400 MT/s with 5th Gen; up to 4800 MT/s with 4th Gen AMD EPYC |
Storage
| Drive Cage Options | 8 x SFF (optional 2 SFF bay or optical drive); 4 x LFF (optional optical drive); 20 x EDSFF E3.S 1T NVMe; GPU configuration with 8 x EDSFF or 4 x SFF |
| RAID Controllers | HPE MR216i-p / MR216i-o, MR408i-o, MR416i-p / MR416i-o, SR932i-p Gen11 |
| Boot Device | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
Expansion & Networking
| PCIe Slots | Slot 1: PCIe 5.0 x16 full-height, full-length; Slot 2: PCIe 5.0 x16 low profile or full-height, half-length |
| OCP Slots | 2 x OCP 3.0 (PCIe 5.0 x8) |
| Embedded NIC | None; networking via OCP 3.0 or PCIe adapters |
| GPU Support | Up to four single-wide or two double-wide GPUs, such as NVIDIA L4 |
Management & Security
| Management | HPE iLO 6; HPE Compute Ops Management |
| Security | HPE iLO silicon root of trust, secure boot and firmware validation; TPM 2.0 (optional) |
Power & Cooling
| Power Supplies | HPE Flex Slot hot-plug options: 500 W, 800 W, 1000 W, 1600 W and 1800 W to 2200 W |
| Fans | 7 dual-rotor fans; standard, performance and liquid cooling fan options |
| Cooling Options | Air cooling; closed-loop liquid cooling heat sink for higher-wattage processors |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and Ubuntu. Check HPE's OS support matrix for the exact versions certified on your chosen processor.
Management Tools
HPE iLO 6 provides out-of-band remote console, monitoring and alerting. HPE Compute Ops Management adds cloud-based firmware compliance, monitoring and lifecycle management across a fleet of ProLiant servers.
Typical Workloads
VDI, content delivery networks, software-defined compute, virtualisation and containers, where a single high-core-count processor replaces a dual-socket server and saves on per-socket licensing.
Package Contents & HPE ProLiant Gen11 Ordering Information
What Is Supplied
The DL325 Gen11 is built to order: chassis with the processor(s), memory, drives, storage controller, network adapters and power supplies specified on your quotation, plus rail kit, bezel and power cords where ordered.
HPE ProLiant Gen11
| Model | Key feature |
| ProLiant MicroServer Gen11 | Ultra-compact, 1-socket Intel Xeon E-2400 |
| ProLiant ML30 Gen11 | Tower, 1-socket Intel Xeon E-2400 |
| ProLiant ML110 Gen11 | Tower, 1-socket Intel Xeon Scalable |
| ProLiant ML350 Gen11 | Tower, 2-socket Intel Xeon Scalable |
| ProLiant DL20 Gen11 | 1U, 1-socket Intel Xeon E-2400 |
| ProLiant DL145 Gen11 | Edge, 1-socket AMD EPYC 8004 |
| ProLiant DL320 Gen11 | 1U, 1-socket Intel Xeon Scalable |
| ProLiant DL325 Gen11 (this listing) | 1U, 1-socket AMD EPYC |
| ProLiant DL345 Gen11 | 2U, 1-socket AMD EPYC |
| ProLiant DL360 Gen11 | 1U, 2-socket Intel Xeon Scalable |
| ProLiant DL365 Gen11 | 1U, 2-socket AMD EPYC |
| ProLiant DL380a Gen11 | 2U, 2-socket Intel Xeon, GPU-optimised |
| ProLiant DL385 Gen11 | 2U, 2-socket AMD EPYC |
Datasheet & Downloads
| HPE QuickSpecs | HPE ProLiant DL325 Gen11 QuickSpecs |
| HPE product page | HPE ProLiant DL325 Gen11 on hpe.com |
| HPE store page | HPE ProLiant DL325 Gen11 on buy.hpe.com |
Frequently Asked Questions — HPE ProLiant DL325 Gen11
Is this a fixed configuration?
No. The DL325 Gen11 is configure-to-order. Processor, memory, drive cage, RAID controller, network adapters, GPUs, power supplies and the HPE support term are specified to your workload; use the sizing checklist above to brief us.
How many cores can one socket give me?
Up to 160 cores from a single 5th Gen AMD EPYC 9005 series processor.
How much memory can it take?
12 DDR5 RDIMM slots for up to 3 TB, at up to 6400 MT/s with 5th Gen AMD EPYC processors.
DL325 or DL365?
Choose the single-socket DL325 Gen11 for dense 1U compute with lower licensing cost. Choose the dual-socket DL365 Gen11 for up to 6 TB of memory and twice the processor capacity.
What warranty does it carry?
HPE's standard warranty is 3 years parts, 3 years labour and 3 years onsite next-business-day. Faster response and longer terms are available as HPE Care Pack upgrades.
