Epson EB-735F Projector
PRODUCT DESCRIPTION
Epson EB-735F Full HD 3LCD Ultra-Short Throw Laser Projector (V11HA00052) - 3 Years Singapore Local Warranty
Full HD Detail at 120 Inches for Classrooms and Meeting Rooms
The EB-735F is the Full HD member of Epson's 700 series ultra-short throw laser family, projecting a native 1920 x 1080 image at sizes up to 120 inches. At that size a spreadsheet, a CAD drawing or a shared document stays legible from the back of a classroom or a boardroom, which is where a WXGA projector starts to struggle. 3LCD technology gives equal white and colour brightness, so pie charts, branded slides and photographs hold their saturation instead of dimming the way single-chip designs can when colour is pushed.
3,600 Lumens and 2,500,000:1 Contrast for Rooms You Cannot Darken
Epson rates the EB-735F at 3,600 lumens with a dynamic contrast ratio of 2,500,000:1. In a Singapore classroom or a glass-walled meeting room where the blinds are rarely drawn, that combination keeps text crisp and dark scenes readable without asking anyone to switch the lights off. The high contrast figure matters most for video playback and photography, where it separates shadow detail that would otherwise collapse into flat black. Split-screen display lets two sources sit side by side for comparison work during a lesson or a review meeting.
A Laser Light Source Rated for 20,000 Hours With No Lamp to Change
The laser light source is rated for up to 20,000 hours of operation, which removes lamp purchasing, lamp changes and the mid-term brightness decline that comes with lamp-based projectors. For a school running eight hours a day through term time, or an office running a training room daily, that is many years of service with no consumable budget beyond the air filter. Laser also means the projector reaches full brightness almost immediately and shuts down without a cool-down wait, so a room can be turned over between sessions quickly.
Ultra-Short Throw Placement That Keeps Presenters Out of the Beam
The ultra-short throw lens lets the EB-735F sit immediately above the projection surface on a wall mount rather than hanging in the middle of the ceiling. A teacher or presenter can stand at the board and work on the image without casting a shadow across it and without the glare of looking into the lamp path. That also frees the ceiling void, shortens cable runs and makes the installation less vulnerable in rooms with high foot traffic. A 16 W speaker is built in, so a small room needs no separate audio system.
Epson EB-735F Datasheet — Technical Specifications
General
| Product | Epson EB-735F Full HD 3LCD Ultra-Short Throw Laser Projector |
| Part Number (SKU) | V11HA00052 |
| GTIN | 8715946687457 |
| Projector Type | Ultra-short throw laser projector |
| Projection Technology | 3LCD |
| Interactivity | Not an interactive model — no pen or finger touch |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Native Resolution | Full HD (1920 x 1080) |
| Brightness | 3,600 lumens |
| Contrast Ratio | 2,500,000:1 |
| Throw Type | Ultra-short throw |
| Maximum Image Size | Up to 120 inches |
Light Source
| Type | Laser |
| Light Source Life | Up to 20,000 hours |
Connectivity
| Inputs | HDMI, VGA, USB, LAN, audio in / audio out |
| Wireless | Screen Mirroring and wireless LAN support |
Audio & Features
| Internal Speaker | 16 W |
| Other Features | Split-screen display, wall-mount compatible, eco-friendly operation |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement

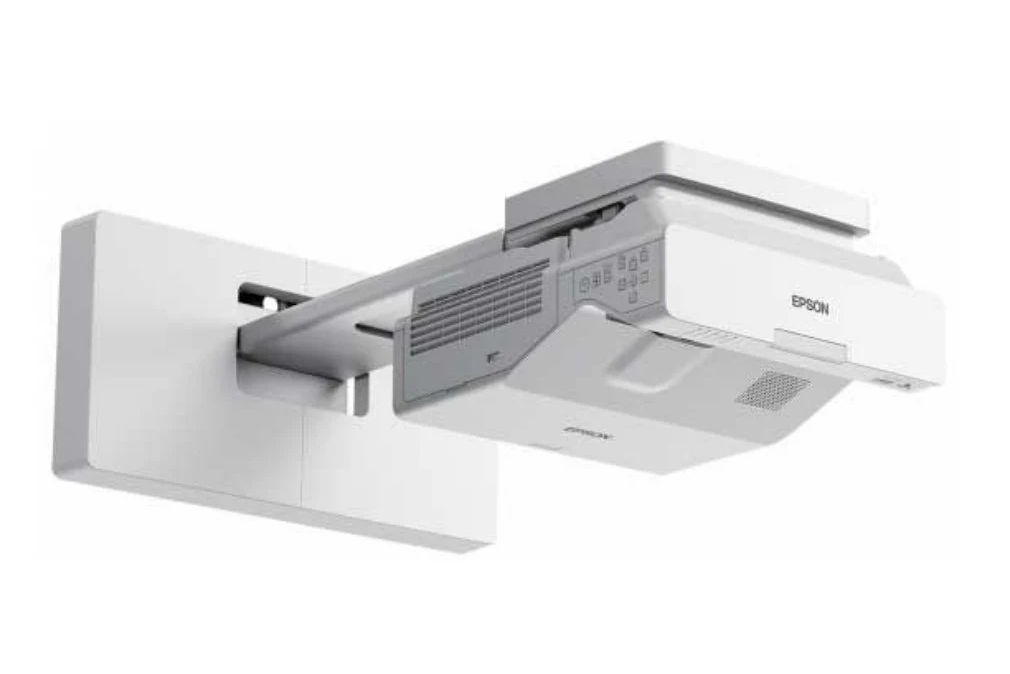

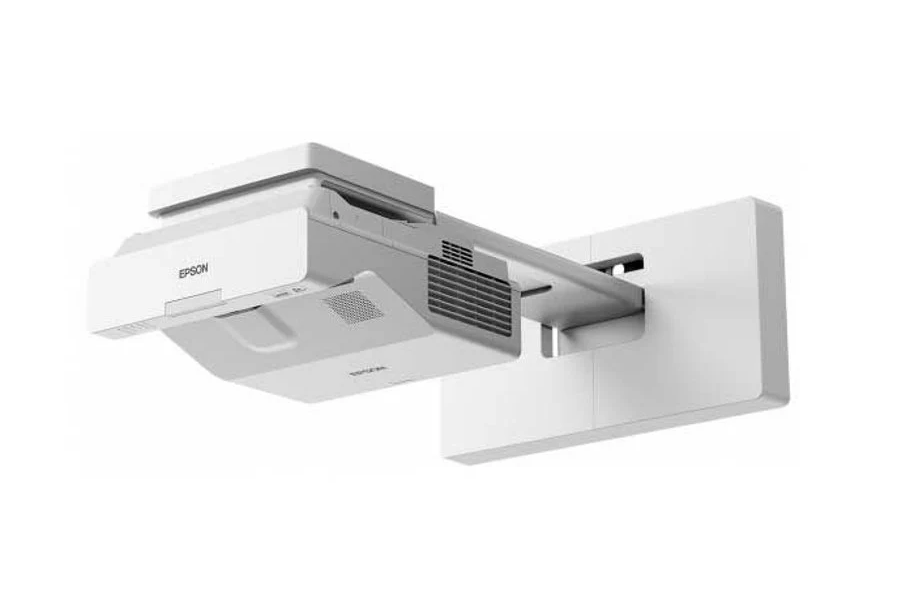

The EB-735F is intended for a wall mount immediately above the projection surface, in the manner of the rest of Epson's 700 series ultra-short throw range. It can also be table mounted for temporary or demonstration use. Because the lens sits so close to the wall, the surface itself matters: a flat, matte whiteboard or a painted projection wall will look far better than a gloss board, which will hot-spot under an ultra-short throw lens. Plan the mount so the air intake and filter remain accessible for servicing.
What it connects to

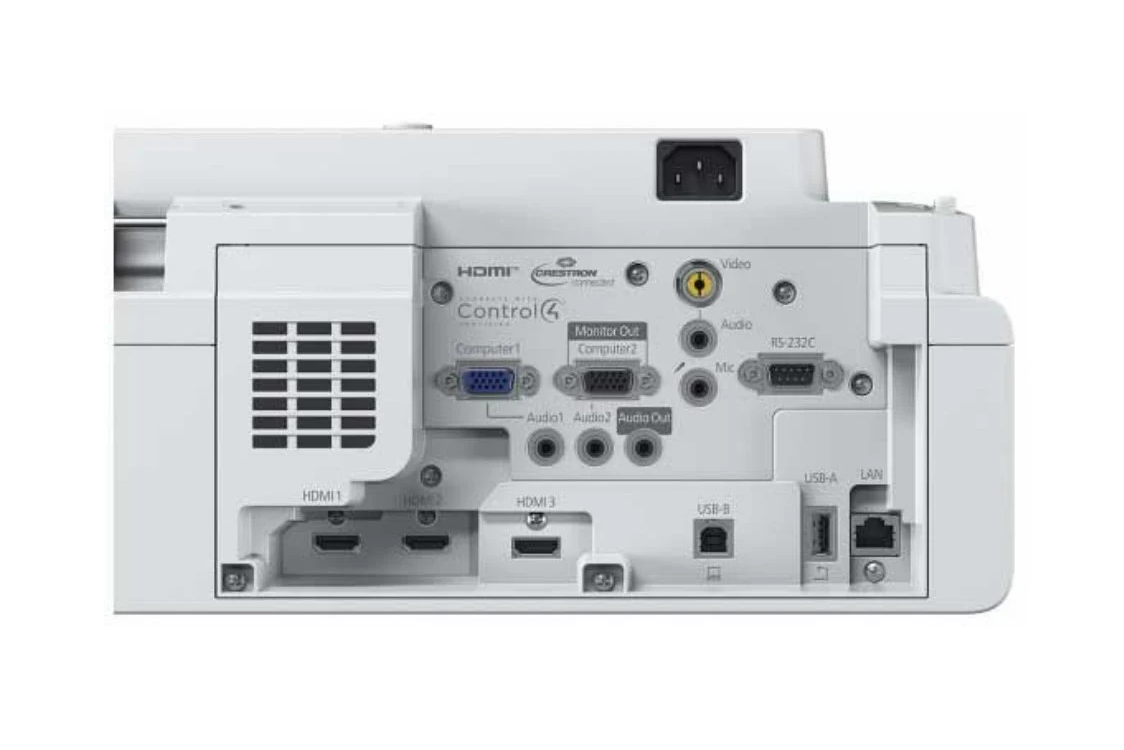

HDMI handles a room PC, a laptop, a media player or a video bar; VGA keeps older visualisers and legacy classroom PCs in service; USB supports direct playback and display over a single cable from a computer. Audio in and audio out let the projector either take sound from the source or pass it on to a room system, and the built-in 16 W speaker covers a normal classroom or meeting room without extra hardware.
Network and content management
Wired LAN allows the projector to be monitored, scheduled and controlled centrally alongside the rest of an estate, which is how most schools and corporate AV teams prefer to run a fleet. Screen Mirroring and wireless LAN support allow cable-free presenting from compatible devices, and free Epson iProjection software lets staff and students present from Windows, Mac, Chromebook, iOS and Android devices over the network. If wireless is essential to your deployment, ask us to confirm whether the Epson ELPAP11 wireless LAN module is required for your unit.
Related models on our store
The WXGA sibling in the same generation is the Epson EB-725W, and its interactive version is the Epson EB-725Wi. The next generation Full HD ultra-short throw model is the Epson EB-770F.
Package Contents & Epson Ultra-Short Throw Range
In the box
- Epson EB-735F ultra-short throw laser projector
- Power cable
- Remote control with batteries
- Printed documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here. Wall mounts and wireless LAN modules are optional accessories and are not included.
Epson 7xx and 8xx ultra-short throw laser range
| Model | Resolution, brightness and interactivity |
| EB-725W | WXGA, 4,000 lm — not interactive |
| EB-725Wi | WXGA, 4,000 lm — pen interactive, finger touch optional |
| EB-735F (this listing) | Full HD, 3,600 lm — not interactive |
| EB-760W | WXGA, 4,100 lm — not interactive |
| EB-760Wi | WXGA, 4,100 lm — interactive, Finger Touch Unit supported |
| EB-770F | Full HD, 4,100 lm — not interactive |
| EB-770Fi | Full HD, 4,100 lm — interactive, Finger Touch Unit supported |
| EB-800F | Full HD, 5,000 lm — not interactive, HDBaseT |
| EB-805F | Full HD, 5,000 lm — not interactive, HDBaseT |
| EB-810E | Full HD with 4K Enhancement, 5,000 lm — extreme short throw |
| EB-815E | Full HD with 4K Enhancement, 5,000 lm — extreme short throw |
Datasheet & Downloads
Epson Singapore hosts a support page for the EB-735F but no longer publishes a full marketing and specification page for this model, so some detailed figures are not available online. SourceIT can email the current data sheet revision on request together with a quotation.
Frequently Asked Questions — Epson EB-735F
Is the EB-735F an interactive projector?
No. The EB-735F is a straight ultra-short throw display with no pen and no finger touch. The "F" simply denotes Full HD resolution; Epson uses an "i" suffix for its interactive models. If you need to write and annotate on the projected image, look at the EB-725Wi or the Full HD EB-770Fi instead.
How does it compare with the EB-725W?
They share the same ultra-short throw laser platform. The EB-725W is native WXGA at 1280 x 800 and 4,000 lumens; the EB-735F is native Full HD at 1920 x 1080 and 3,600 lumens. Choose the EB-735F where detail matters — spreadsheets, drawings, dense documents, video — and the EB-725W where raw brightness in a bright room matters more than pixel count.
How does it compare with the newer EB-770F?
The EB-770F is the later generation of the same idea: Full HD ultra-short throw laser, but at 4,100 lumens, with a higher contrast ratio of over 5,000,000:1, three HDMI inputs and images up to 150 inches. The EB-735F remains a sound choice where 120 inches is enough and budget is the deciding factor.
Is there a lamp to replace?
No. The laser light source is rated for up to 20,000 hours, so there is no lamp to buy or change. Brightness holds far more steadily across that life than a lamp does, and the projector starts quickly and powers down without a cool-down wait.
What size room and screen does it suit?
It projects up to 120 inches diagonal, which comfortably covers a normal classroom, a training room or a mid-sized meeting room. For a large lecture theatre or a hall, or for an image beyond 120 inches, step up to the EB-770F at 150 inches or the 5,000 lumen EB-810E at 160 inches.
Do I need an external speaker?
Usually not in a normal-sized room. A 16 W speaker is built in, which is enough for classroom video and presentation audio. For a large room, or where music quality matters, use the audio output to feed a room sound system instead.
Does it need a wireless module?
The EB-735F supports Screen Mirroring and wireless LAN. Epson's wireless arrangement varies across this family — some models are built in and some use the ELPAP11 module — so if wireless network access is essential to your deployment, ask us to confirm the requirement for your unit before you order and we will quote the module if one is needed.
What warranty and paperwork comes with it?
Every unit sold by SourceIT carries local Singapore warranty and is invoiced with a GST invoice. Support and any warranty claim are handled locally rather than through an overseas grey-market channel.
