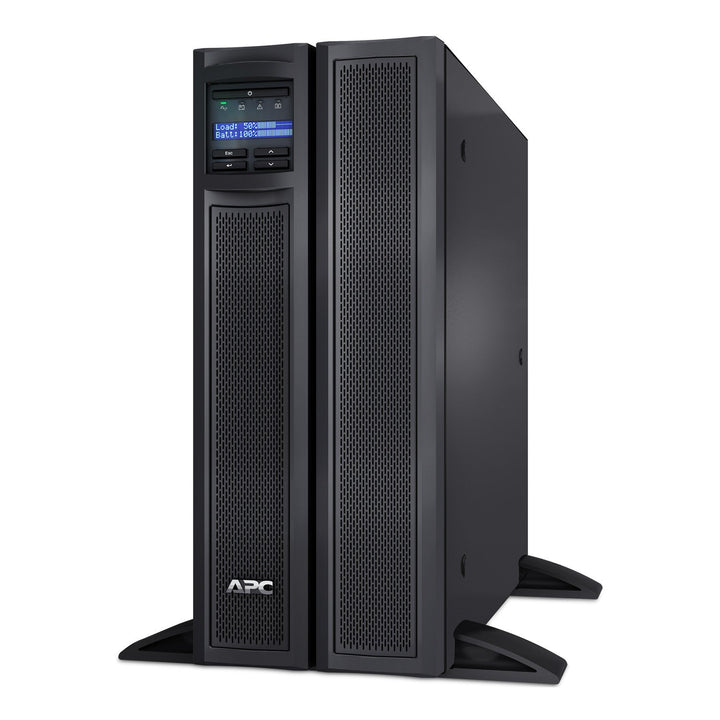

APC Smart-UPS X 3000VA Short Depth LCD UPS with Network Card

APC Smart-UPS X 3000VA Short Depth LCD UPS w/ Network Card (SMX3000HVNC) - 2 Years Local Warranty

Compact High-Capacity Backup

The APC Smart-UPS X 3000VA (SMX3000HVNC) is a high-performance 3 kVA / 2700 W line-interactive UPS designed for dense IT setups. Its short-depth 4U form factor fits standard 19″ racks, allowing room for proper airflow and easier cable management. Pure sine wave output delivers clean, consistent power to mission-critical systems.

Built-in LCD and Remote Monitoring

A front-panel LCD displays real-time information such as load percentage, battery health and estimated runtime. The pre-installed AP9631 Network Management Card supports SNMP and web-based monitoring, letting administrators remotely manage and configure the UPS to improve response time during outages.

Smart Outlet Management and Efficiency

The SMX3000HVNC features 12 total outlets — 8 x IEC C13, 2 x IEC C19 and 2 jumper ports — grouped into switchable segments for intelligent load shedding to prioritise essential equipment. Green-mode operation and advanced AVR increase energy efficiency and reduce operating costs.

Extendable Runtime and Maintenance-Ready Design

The unit supports hot-swappable batteries and is compatible with up to 10 external SMX120BP battery packs for extended runtime. Predictive battery replacement alerts, a 3-hour recharge time and Emergency Power Off (EPO) add safety and reduce downtime, making it ideal where uptime is critical.

Certified, Resilient Protection

With CE, UL 1778, RoHS, VDE, GOST and FCC Class A certifications plus 645 Joules of surge protection, the SMX3000HVNC delivers trusted, around-the-clock protection for environments where maintenance access is limited.

Technical Specifications

• Model: SMX3000HVNC
• Topology: Line-interactive, pure sine wave
• Capacity: 3000 VA / 2700 W
• Input Voltage: 200–240 V user-selectable (range: 140–280 V)
• Output Voltage: 230 V ±5%
• Outlets: 8× IEC C13, 2× IEC C19, 2× IEC jumper (3 switchable groups)
• Form Factor: 4U rack/tower convertible
• Dimensions: 430 × 178 × 483 mm
• Weight: 38.6 kg
• Battery: Sealed lead-acid, hot-swappable
• Runtime: Approx. 6 min (full load) / 18 min (half load)
• Recharge Time: Approx. 3 hours
• Transfer Time: 10 ms
• Surge Protection: 645 Joules
• Network Card: AP9631 pre-installed
• Certifications: CE, UL 1778, RoHS, VDE, GOST, FCC Class A
• Warranty: 3 years (UPS), 2 years (battery)

Ideal Use Case: Ideal for shallow racks and dense IT setups needing remotely managed 3 kVA power protection with scalable runtime for servers, storage and critical systems.

GTIN/UPC: 731304292623
