APC Smart-UPS X 2200VA LCD 200-240V with Network Card

APC Smart-UPS X 2200VA LCD 200-240V with Network Card (SMX2200R2HVNC) - 2 Years Local Warranty

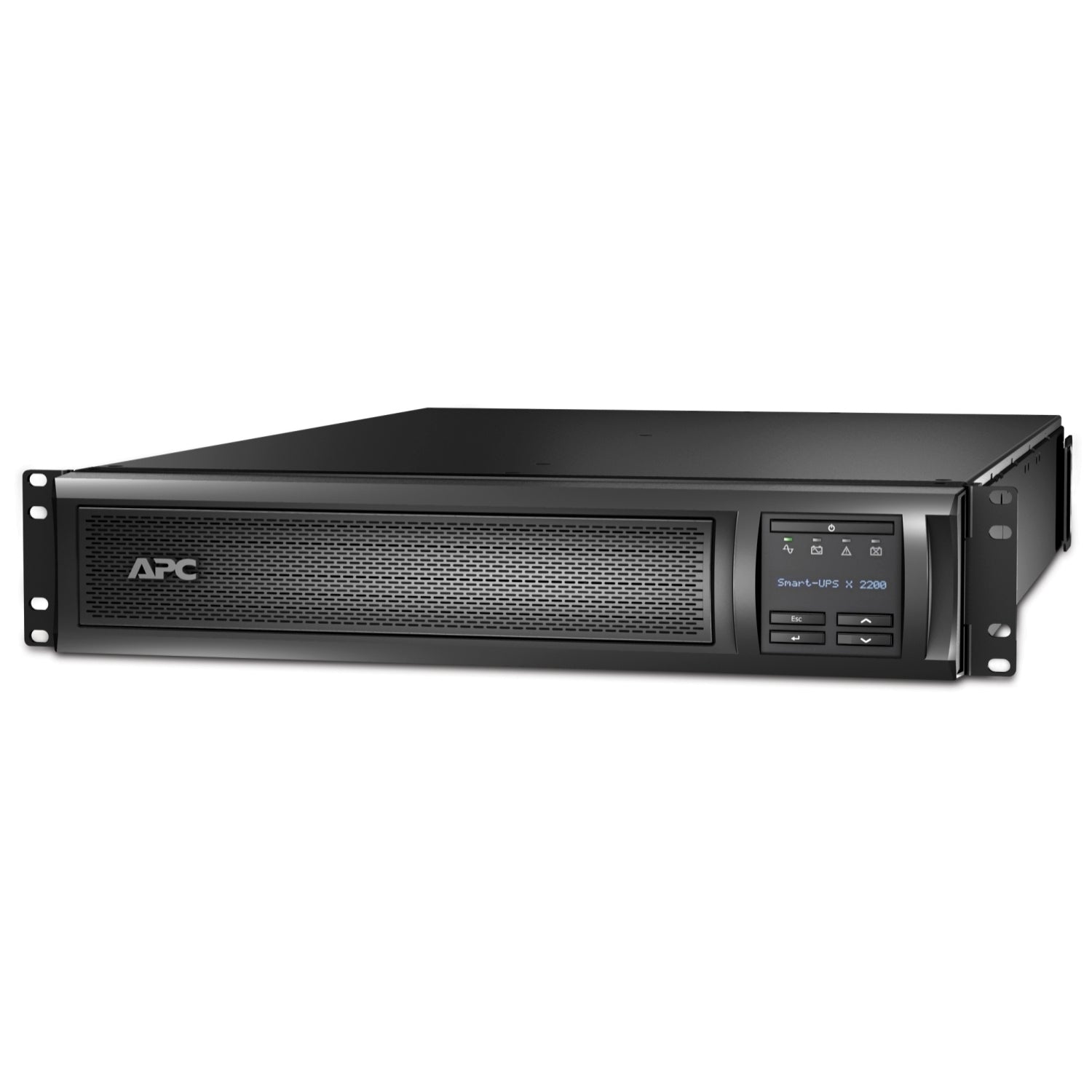

Enterprise Power in a Compact 2U Form

The APC Smart-UPS X 2200VA (SMX2200R2HVNC) delivers enterprise-grade backup in a slim 2U rack/tower chassis. Rated at 2200VA / 1980W with pure sine wave output and 200-240V operation, it is ideal for data centres, networking rooms and high-density edge environments, providing clean, consistent power to servers, firewalls and storage arrays.

Visual and Remote Management

An integrated LCD panel gives quick access to real-time diagnostics such as load level, battery status and runtime estimation. The pre-installed AP9631 Network Management Card enables SNMP, web-based access and integration with remote monitoring tools, so admins can configure, receive alerts and control the UPS without physical access.

Smart Power Distribution and Efficiency

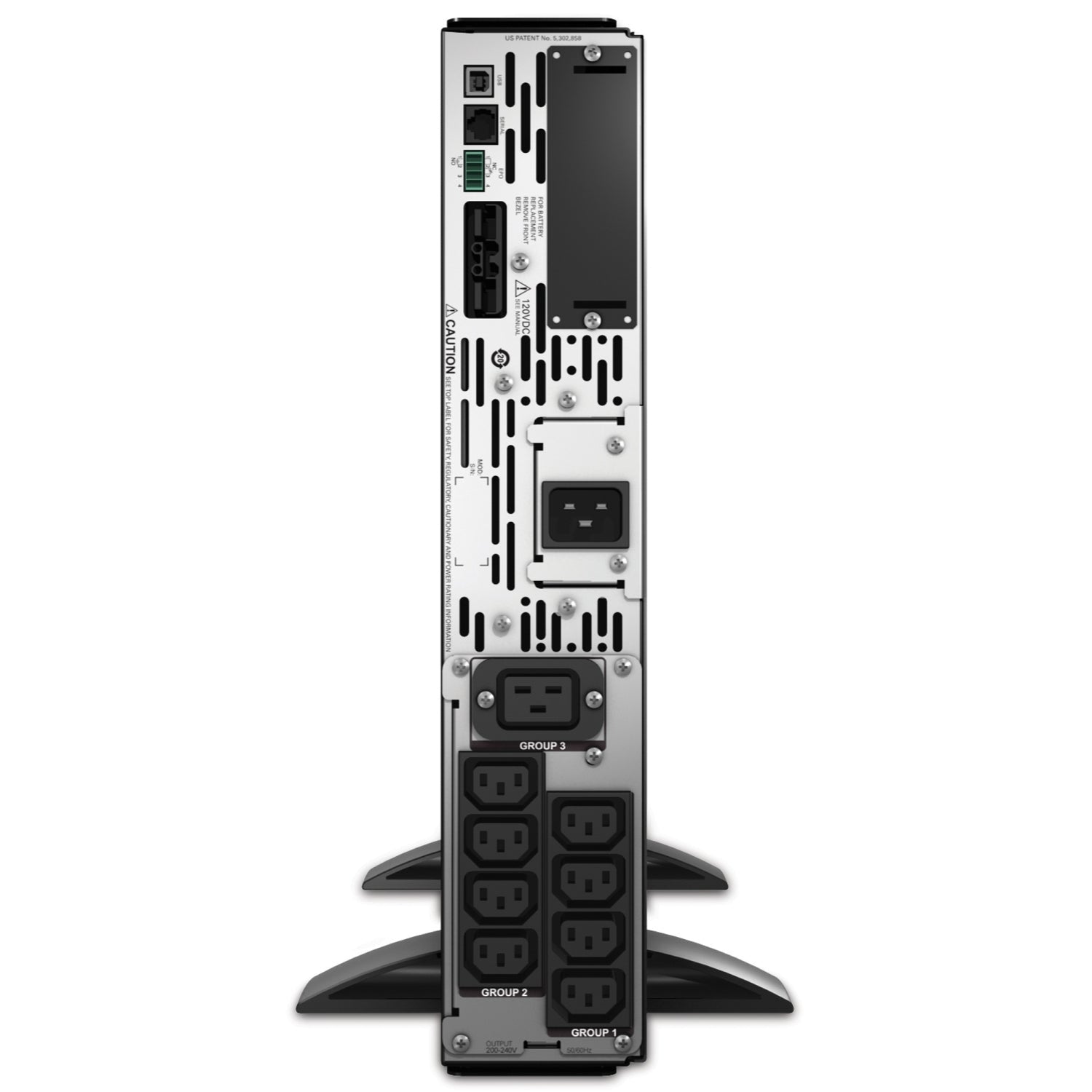

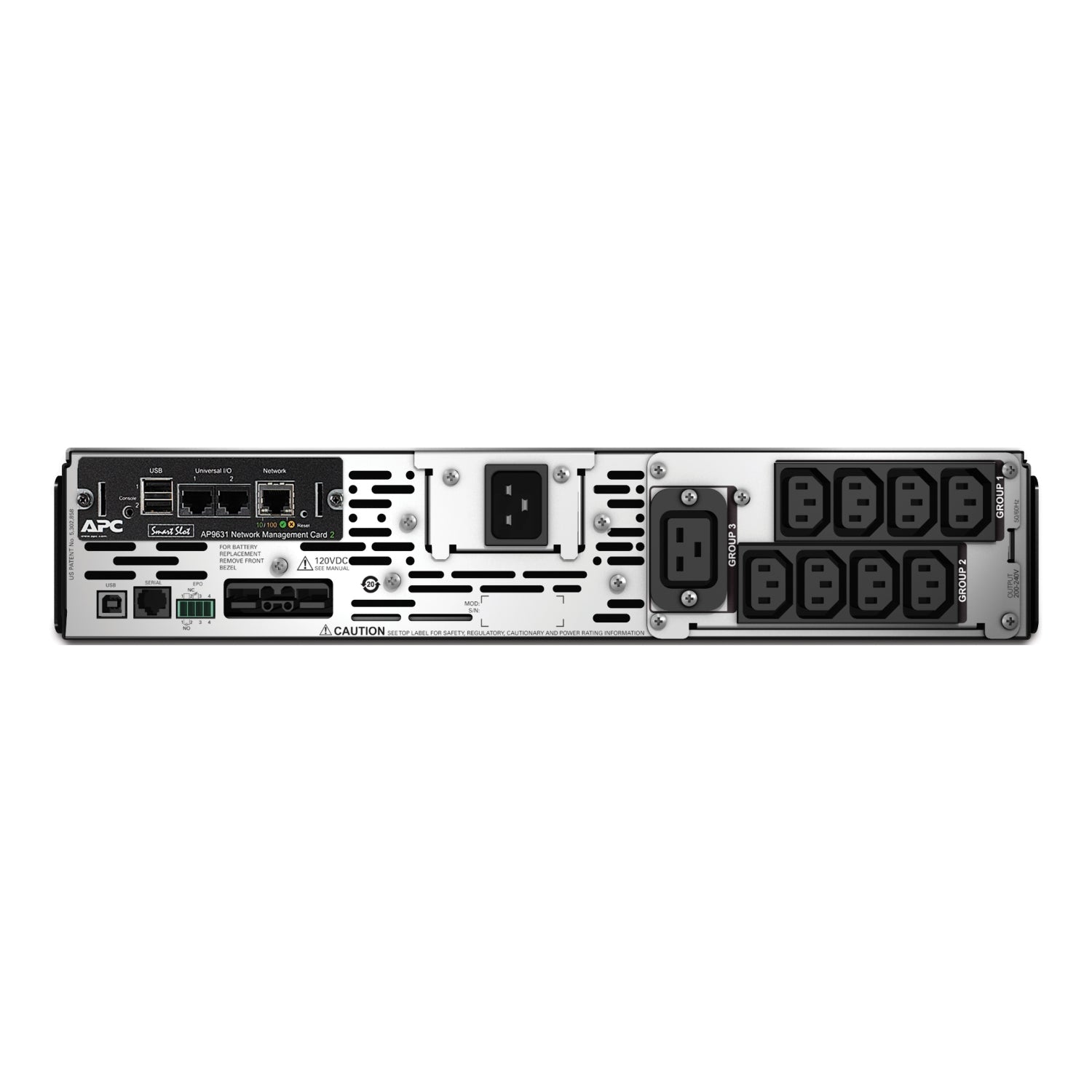

With eight IEC C13, one IEC C19 and two jumper ports across three switchable outlet groups, the SMX2200R2HVNC offers flexible connectivity and intelligent load control during power events. High operating efficiency reduces energy use and heat output, helping cut utility costs while keeping equipment protected.

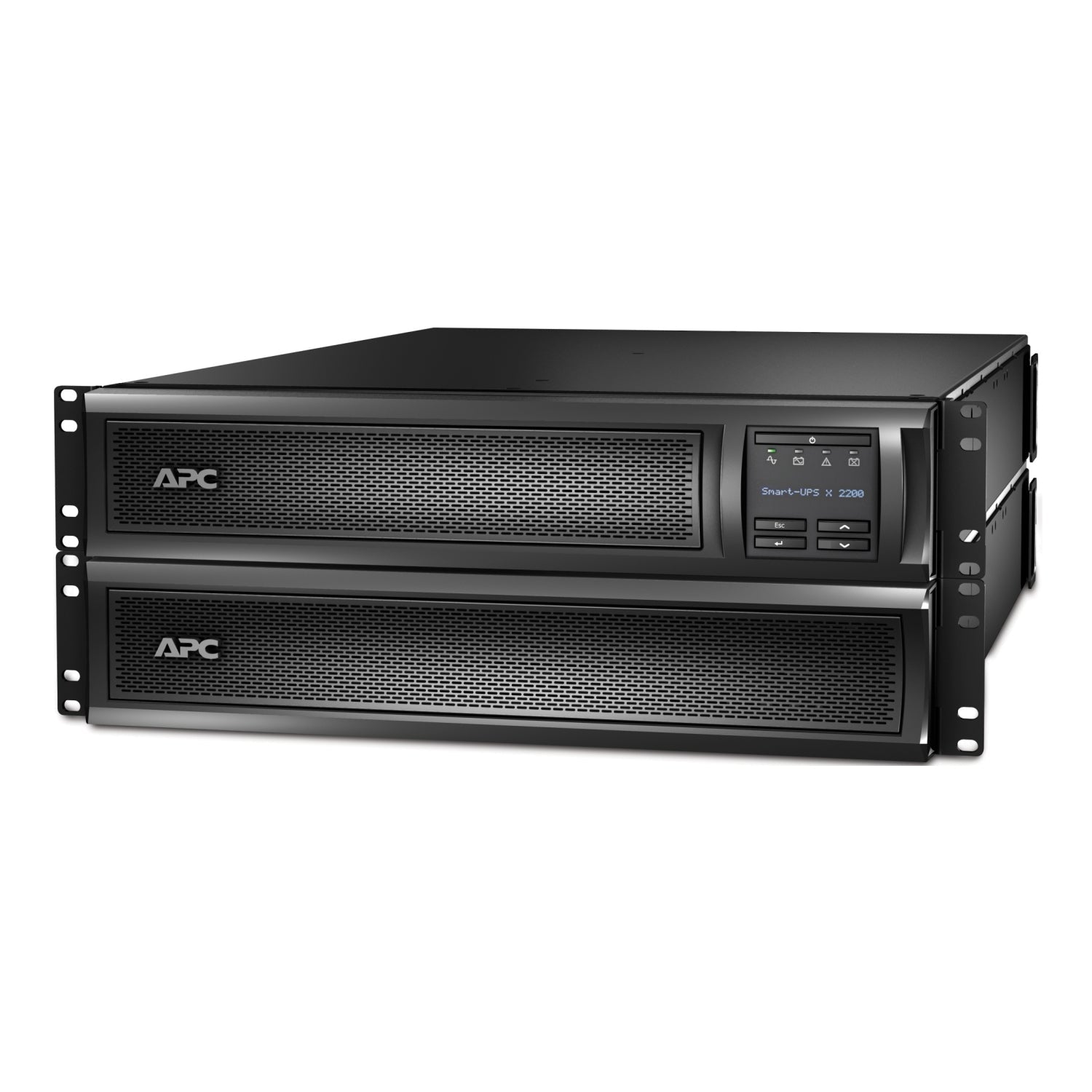

Expandable Runtime and Battery Management

The unit supports hot-swappable internal batteries and is compatible with external SMX120RMBP2U battery packs for extended uptime. Battery management features include predictive replacement alerts, temperature-compensated charging and fast recharge cycles, while Emergency Power Off (EPO) support adds an extra layer of safety.

Dependable, Certified Protection

Built to RoHS, CE and UL 1778 standards with 645 Joules of surge protection, the SMX2200R2HVNC safeguards critical infrastructure around the clock. It combines clean power, remote manageability and scalable runtime in one resilient enterprise solution.

Technical Specifications

• Model: SMX2200R2HVNC
• Topology: Line-interactive, pure sine wave
• Capacity: 2200 VA / 1980 W
• Input Voltage Range: 200–240V
• Output Voltage: Selectable 208V or 230V ±5%
• Outlets: 8 x IEC C13, 1 x IEC C19, 2 x IEC jumper (3 switchable groups)
• Form Factor: 2U rack/tower convertible
• Dimensions: 87 x 440 x 610 mm
• Weight: 28.6 kg
• Battery: Sealed lead-acid, hot-swappable
• Full Load Runtime: Approx. 9.8 minutes
• Recharge Time: Approx. 3 hours
• Transfer Time: 10 ms typical
• Surge Protection: 645 Joules
• Network Card: AP9631 pre-installed
• Certifications: RoHS, CE, UL 1778
• Warranty: 3 years (UPS), 2 years (battery)

Ideal Use Case: Ideal for data centres and networking rooms needing remotely managed, high-density 200-240V power protection for servers, firewalls and storage with switchable outlet control.

GTIN/UPC: 731304327738
