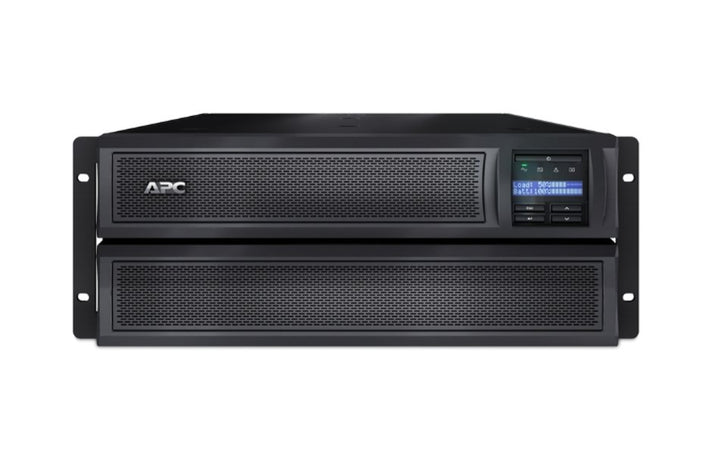

APC Smart-UPS X 2200VA LCD 200-240V Tower/Rack

APC Smart-UPS X 2200VA Short Depth Tower/Rack LCD 200-240V (SMX2200HV) - 2 Years Local Warranty

Reliable Backup in a Compact Footprint

The APC Smart-UPS X 2200VA Short Depth (SMX2200HV) is a line-interactive UPS rated at 2200VA / 1980W, engineered for both tower and rack configurations. Its short-depth chassis is ideal for tight spaces and shallow enclosures where floor or rack depth is limited, delivering dependable protection without compromising on capacity.

Clear LCD Monitoring

A convenient LCD display provides real-time status information and customisable settings at a glance. The wide 200-240V input range ensures compatibility with a broad range of equipment, making the SMX2200HV well suited to IT environments with varying power requirements.

High Capacity, Clean Power

With 2200VA of capacity and clean, regulated output, the SMX2200HV provides ample runtime to keep critical systems running during outages. Its consistent power delivery protects sensitive electronics, servers and networking gear from disturbances that can cause data loss or hardware damage.

Versatile Tower or Rack Deployment

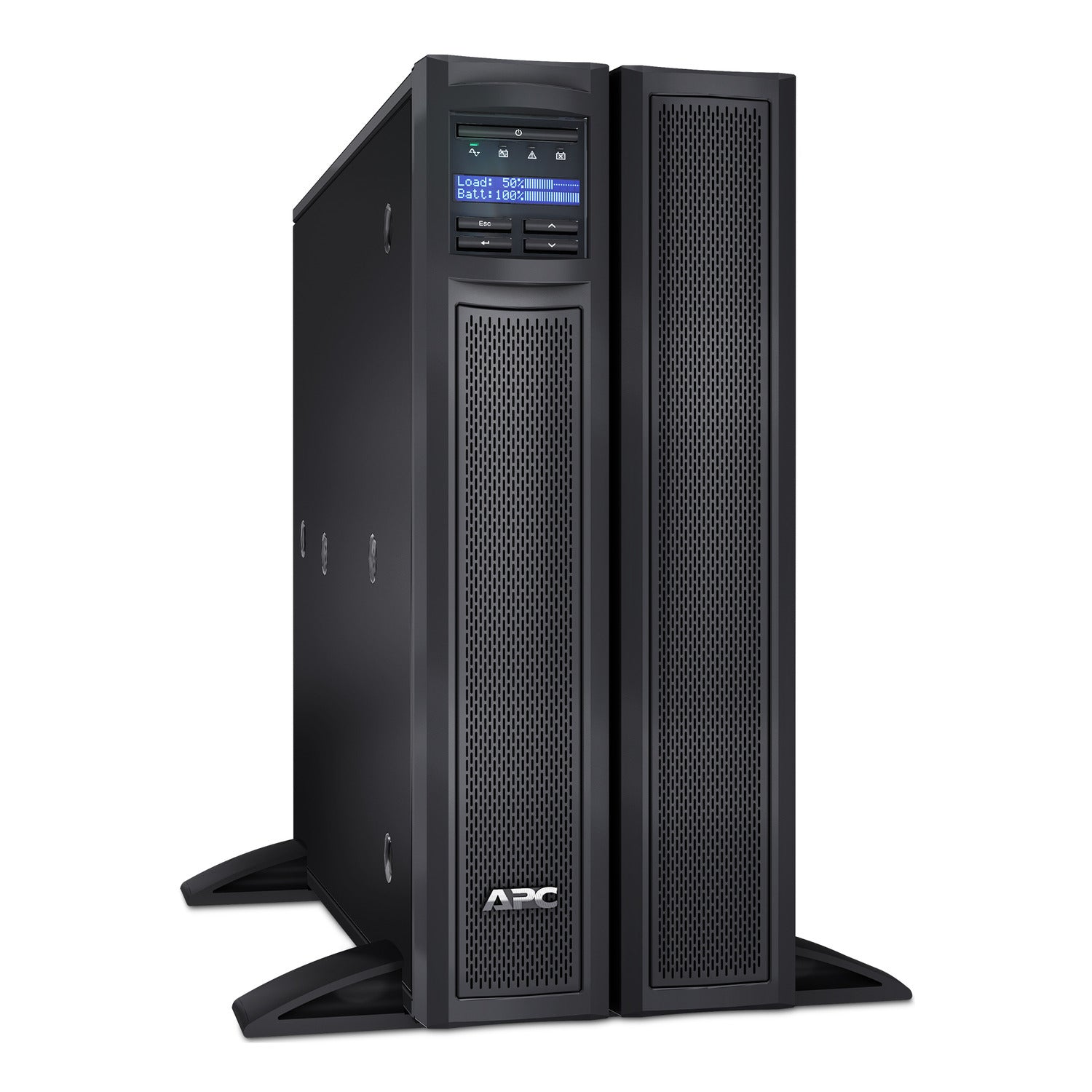

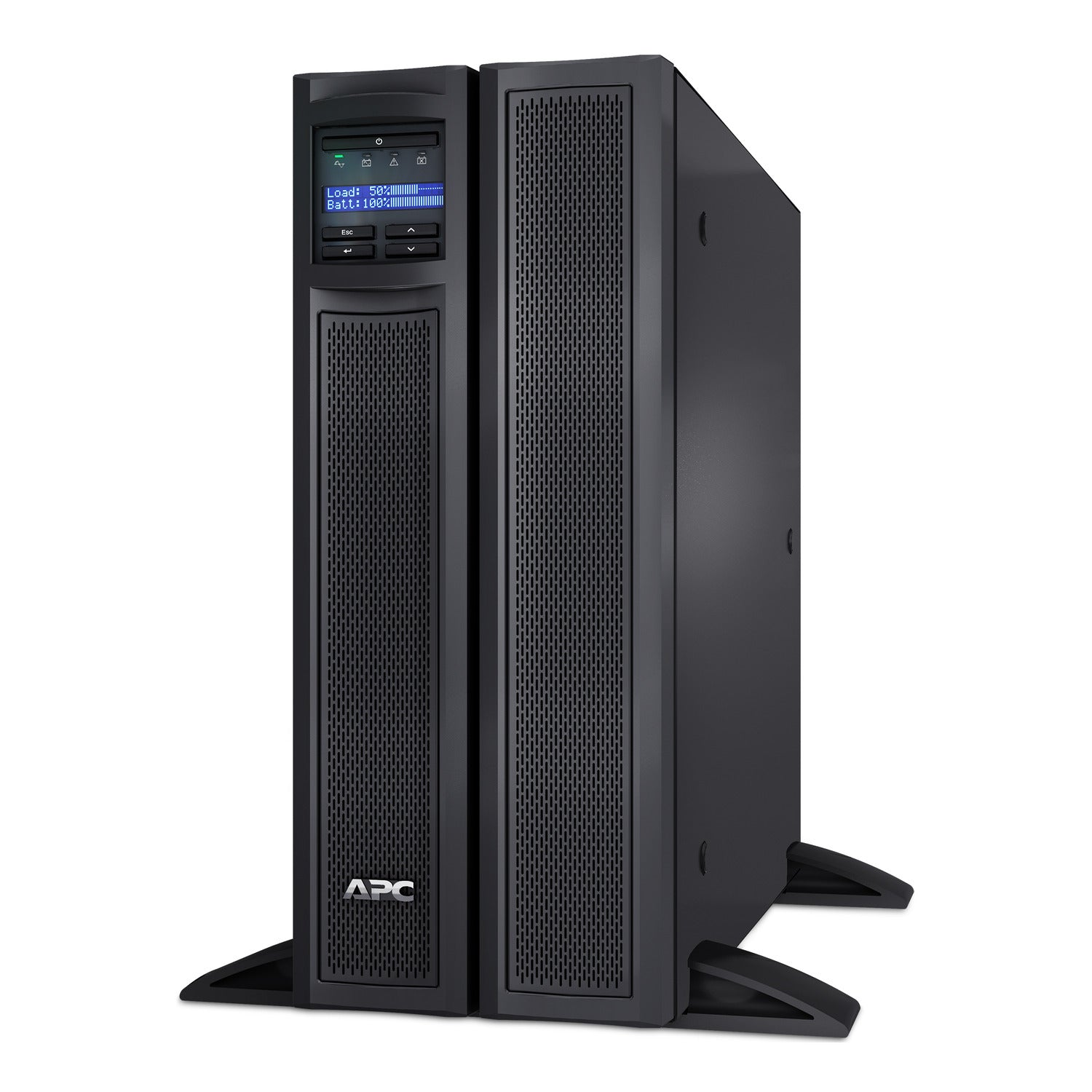

Whether used as a tower or 2U rackmount, the Smart-UPS X 2200VA offers flexible power protection for servers, networking devices and other critical equipment. Hot-swappable batteries ensure minimal downtime during maintenance, keeping protection continuous.

Dependable, Certified Protection

Backed by UL, cUL, CE and RoHS compliance, the SMX2200HV is a dependable choice for organisations safeguarding valuable equipment from power disturbances. Its advanced features and user-friendly interface deliver peace of mind in any environment.

Technical Specifications

• Type: Line-Interactive UPS System
• Model Number: SMX2200HV
• Power Capacity: 2200VA / 1980W
• Form Factor: Tower / Rackmount (2U)
• Input Voltage: 200-240V AC
• Input Frequency: 50/60Hz ± 3 Hz (auto-sensing)
• Output Voltage: 200-240V AC

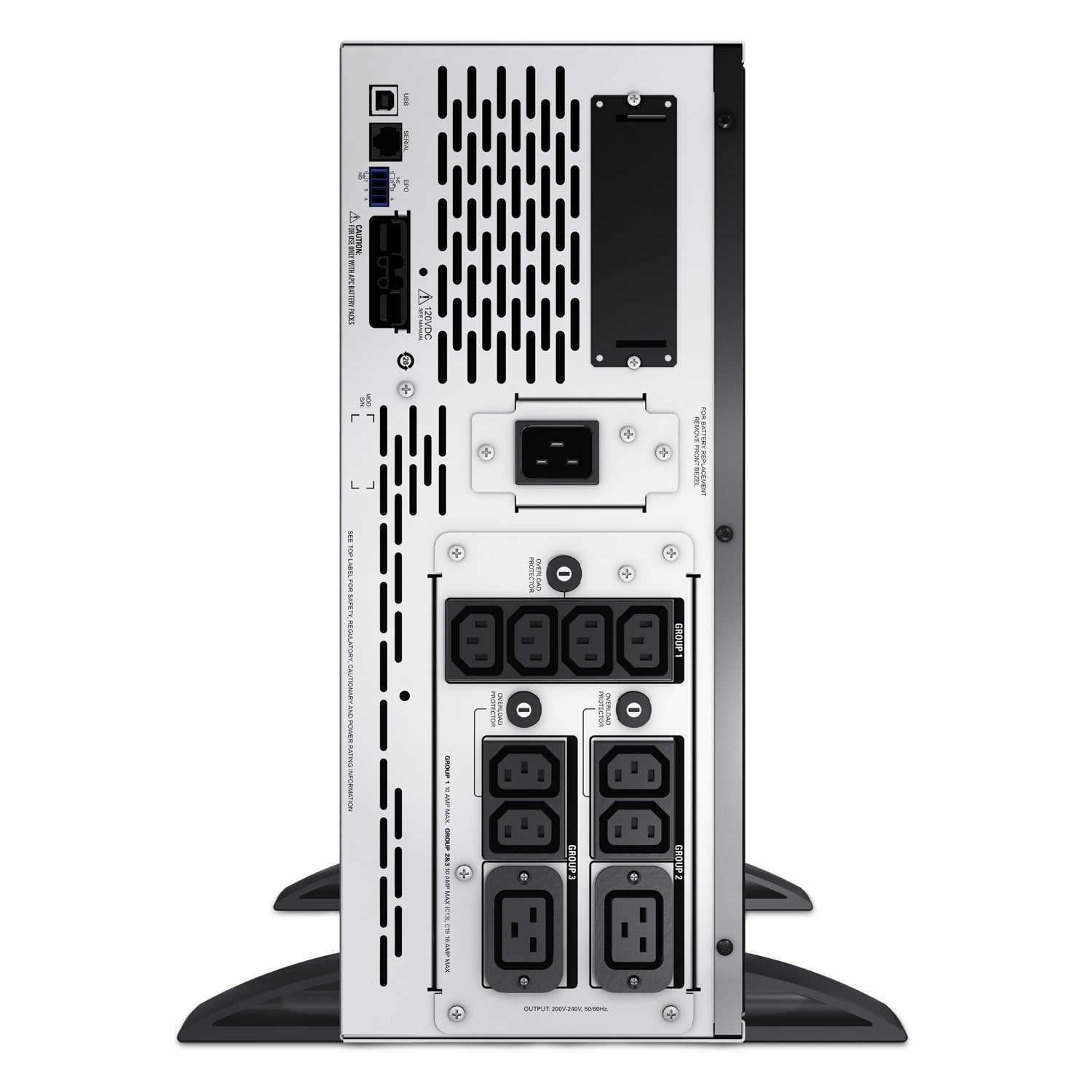

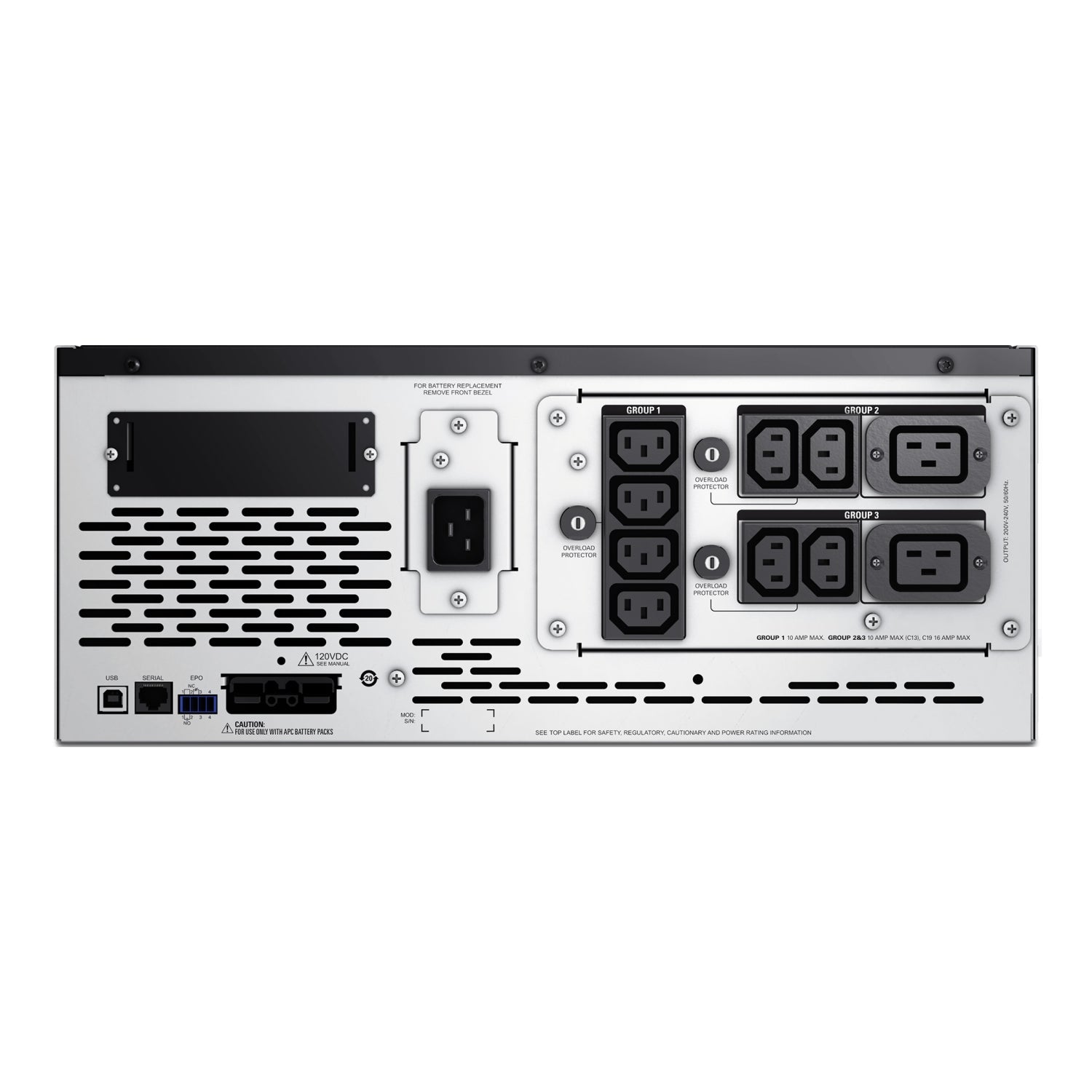

• Outlets: (8) x IEC C13 outlets, (2) x IEC C19 outlets
• Battery Type: Sealed Lead-Acid (SLA), VRLA (Valve Regulated Lead Acid)
• Battery Runtime: Extended runtime with optional external battery packs (exact runtime varies based on load)
• Transfer Time: 2-4 milliseconds typical
• Surge Protection: Yes, for connected devices
• Monitoring: LCD display with real-time status and battery condition monitoring; USB, Serial and SmartSlot communication
• Compatibility: Designed for 200-240V applications; ideal for servers, network equipment and critical devices
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Humidity: 0% to 95% non-condensing
• Certifications: UL, cUL, CE, RoHS compliant
• Dimensions (H x W x D): 3.5 in (88.9mm) x 17.3 in (438mm) x 17.5 in (444mm)
• Weight: Approximately 15.9 kg (35 lbs)

Ideal Use Case: Ideal for space-constrained server rooms and shallow racks needing high-capacity 200-240V power protection for servers, networking and critical equipment.

GTIN/UPC: 731304283301
