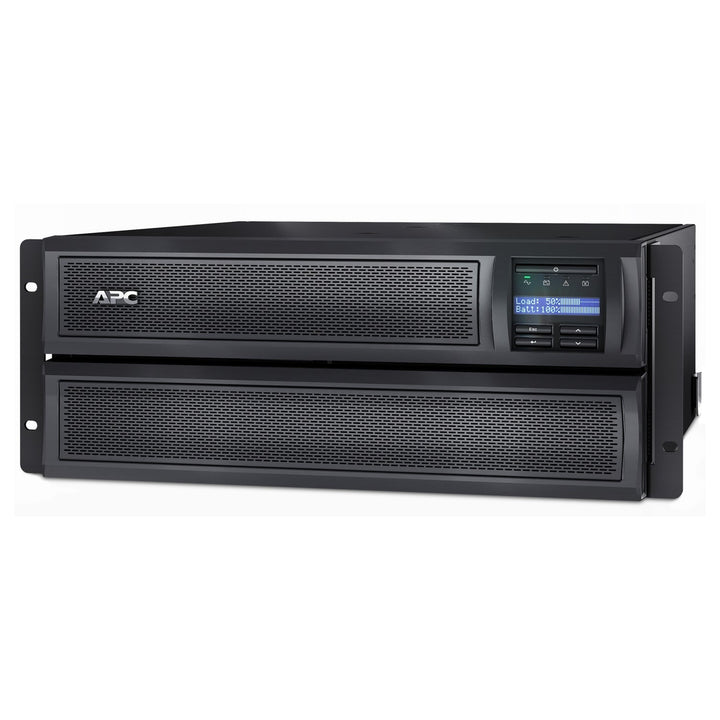

APC Smart-UPS 2200VA Short Depth LCD UPS with Network Card

APC Smart-UPS 2200VA Short Depth LCD UPS with Network Card (SMX2200HVNC) - 2 Years Local Warranty

Industrial-Grade Power Protection

The APC Smart-UPS X 2200VA (SMX2200HVNC) delivers premium power continuity for servers, storage, and critical network devices in compact spaces. Its short-depth, 4U rack/tower convertible design is ideal when rack space is tight or cable management needs to be efficient. With pure sine wave output and a robust 2200 VA / 1980 W capacity, this UPS supplies clean, reliable power during outages and voltage fluctuations, keeping vital equipment protected.

LCD Interface and Remote Monitoring Built-In

A front-panel LCD offers real-time data on load, battery status, and voltage at a glance. The unit includes a preinstalled Network Management Card for remote monitoring via SNMP and PowerChute software. IT teams can manage and configure the UPS from anywhere, minimizing downtime and reducing the need for onsite visits, which is especially valuable for distributed or unattended sites.

Flexible Power Distribution and Cable-Friendly Design

The unit provides 8 IEC C13 outlets, 2 IEC C19 outlets, and 2 IEC jumper ports to support a wide range of equipment. The short-depth chassis gives more room behind racks, simplifying cable routing and improving airflow. Three switchable load segments let you prioritize critical devices and shed non-essential loads during extended outages, extending available runtime where it matters most.

Expandable Runtime and Smart Battery Features

It supports up to 10 hot-swappable external battery packs (SMX120BP), allowing scalable runtime as requirements grow. Smart features include predictive battery replacement, temperature-compensated charging, and Emergency Power Off (EPO) support. Together these capabilities ensure long-term reliability, simplified maintenance, and confidence that your infrastructure stays online.

Technical Specifications

• Model: SMX2200HVNC
• Topology: Line-interactive, pure sine wave
• Capacity: 2200 VA / 1980 W
• Input Voltage: 140-280 V (nominal 208/230 V)
• Output Voltage: 208/230 V +/-5%
• Outlets: 8 x IEC C13, 2 x IEC C19, 2 x IEC jumper ports
• Form Factor: 4U rack/tower convertible
• Battery: Sealed lead-acid (VRLA), hot-swappable
• Network Card: Preinstalled
• Waveform: True sine wave
• Transfer Time: 10 ms typical
• Surge Protection: 645 J
• Warranty: 3 years (UPS), 2 years (battery)
• Dimensions: 432 x 178 x 483 mm
• Weight: 38.6 kg

Ideal Use Case: Server rooms, network closets, and edge sites with limited rack depth that need pure sine wave protection and built-in remote monitoring for servers, storage, and networking equipment.

GTIN/UPC: 731304327158
