APC Smart-UPS X 3000VA Rack/Tower LCD UPS with Network Card
APC Smart-UPS X 3000VA Rack/Tower LCD UPS w/ Network Card (SMX3000RMHV2UNC) - 2 Years Local Warranty
APC Smart‑UPS X 3000VA: Built for High-Density Installations
The APC Smart‑UPS X 3000VA (SMX3000RMHV2UNC) delivers a robust 3 kVA / 2700 W power backup in a compact 2U rack/tower form factor, ideal for space-constrained racks.
With pure sine wave output and selectable 200–240 V input/output settings, it's optimized for protecting servers, storage units, and critical IT infrastructure.
Integrated Monitoring via LCD & Network Card

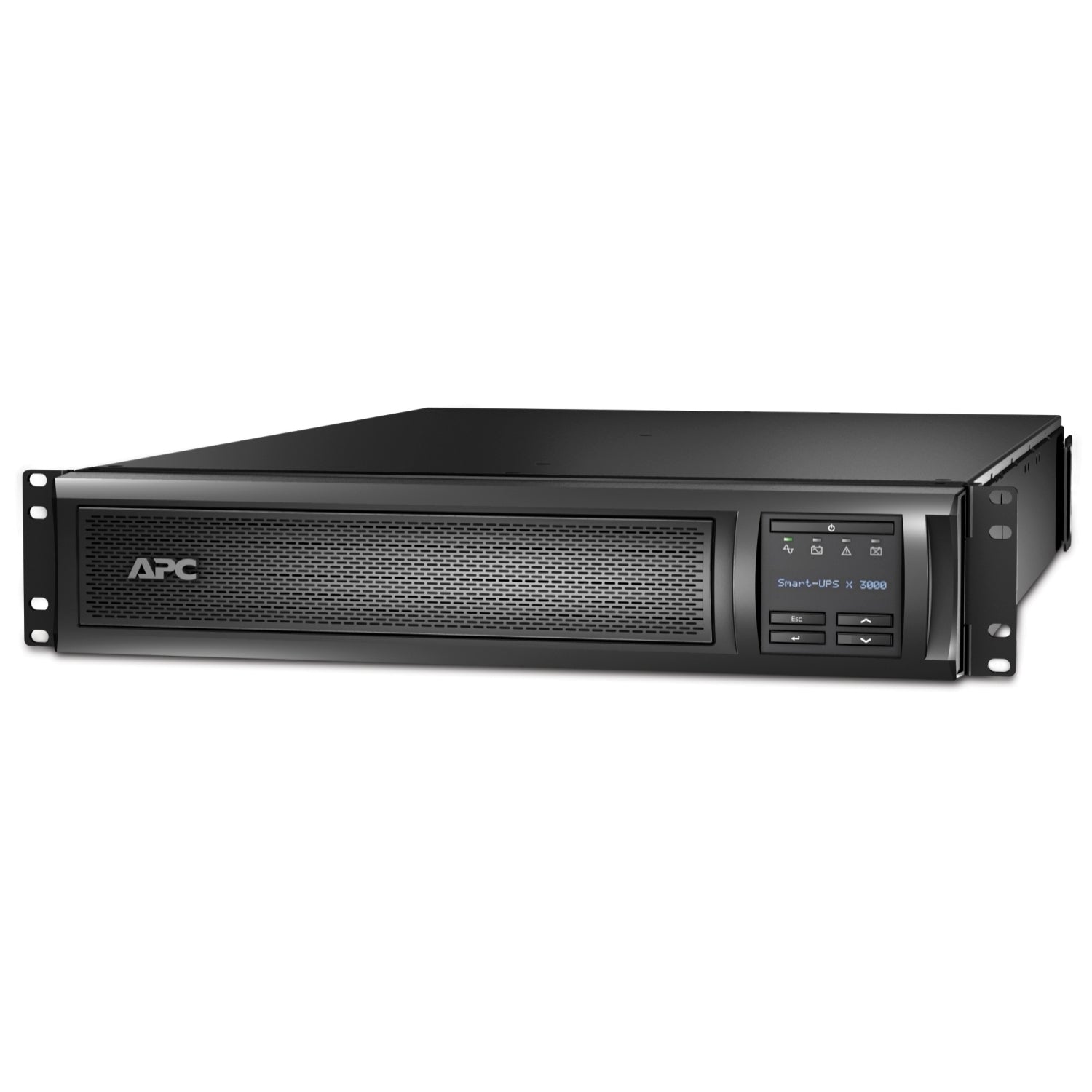

It includes a front-panel LCD that displays load %, battery health, runtime estimates, and system alerts.
Equipped with a pre-installed Network Management Card (AP9631), it supports SNMP, web access, and integration with remote management tools for seamless control.
Smart Power Outlets & AVR Efficiency

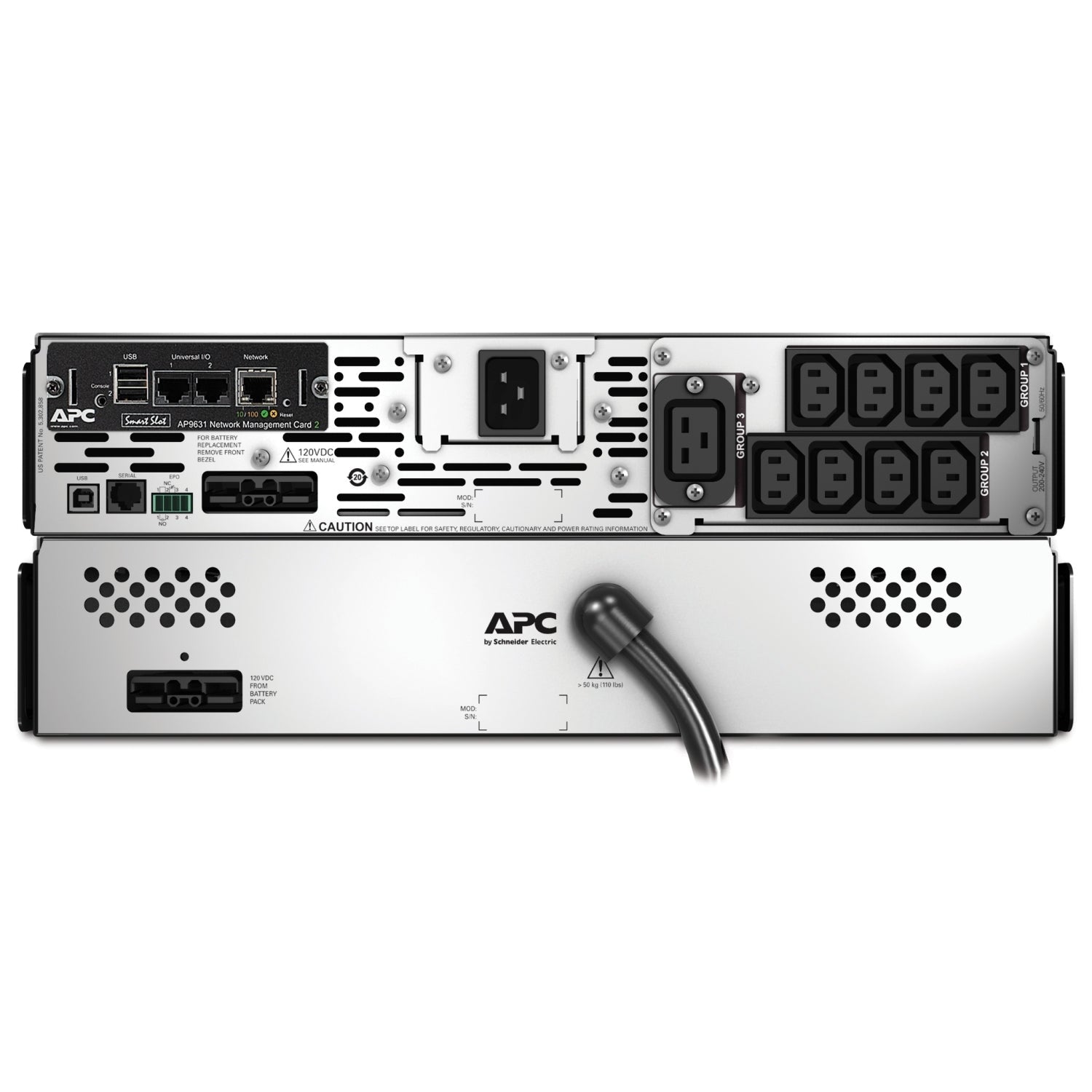

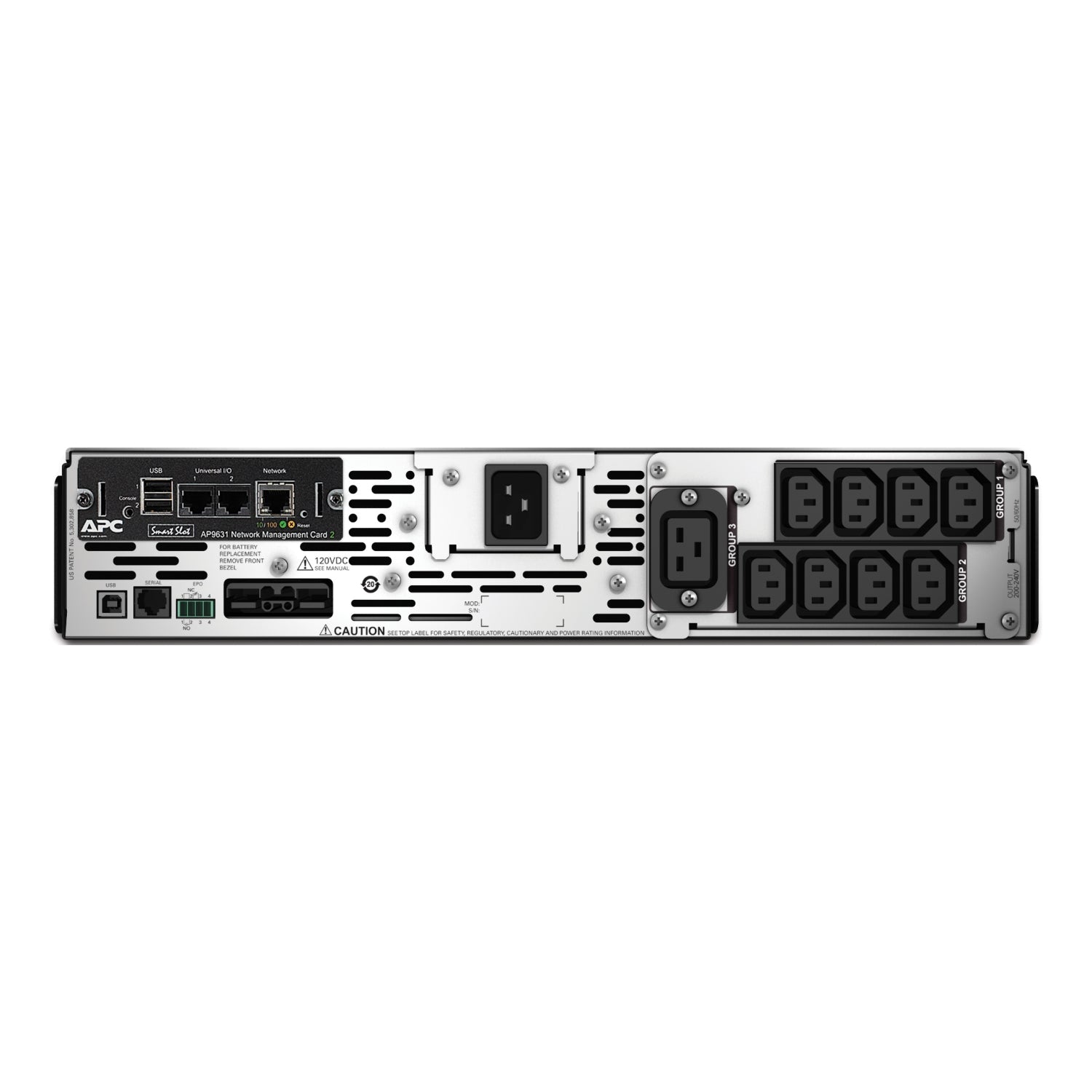

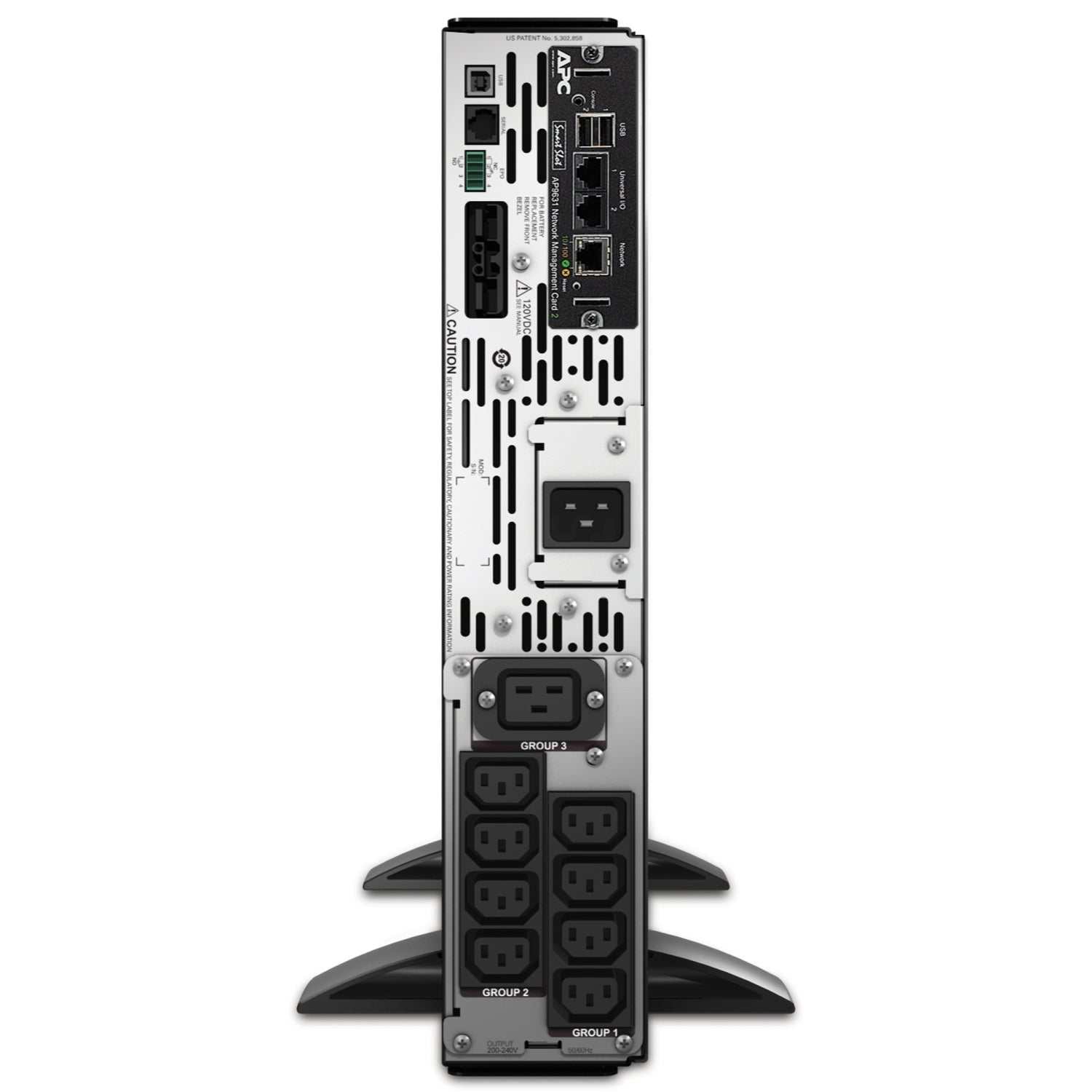

The unit includes eight IEC C13 outlets, one IEC C19, plus two jumper ports grouped into switchable segments—ideal for intelligent load shedding and rebooting hung devices.
Automatic Voltage Regulation and green-mode operation deliver high energy efficiency, reducing power consumption and heat output.
Scalable Runtime & Maintenance Features
Hot-swappable internal batteries and compatibility with external SMX120RMBP2U battery packs enable flexible runtime expansion.
Predictive battery replacement, temperature-compensated charging, fast recharge, and Emergency Power Off (EPO) support ensure operational resilience.
Technical Specification
Model: SMX3000RMHV2UNC
Capacity: 3000 VA / 2700 W
Topology: Line‑interactive, pure sine wave
Input Voltage: 208/230 V (selectable 200–240 V; range: 141–280 V)
Output Voltage: 230 V ±5%
Outlets: 8 x IEC C13, 1 x IEC C19, 2 x jumper ports (3 switchable groups)
Form Factor: 2U rack/tower convertible
Dimensions: 432 x 85 x 667 mm
Weight: 37.3 kg
Battery: Maintenance-free VRLA, hot-swappable
Runtime: Approx. 6 min full load / 18 min half load
Recharge Time: Approx. 3 hours
Transfer Time: 2–4 ms typical, max 10 ms
Surge Protection: 645 Joules
Efficiency: Up to 98.5% at full load
Noise Level: 55 dBA
Heat Dissipation: 184 BTU/hr
Communication Ports: AP9631 NMC, USB, serial, EPO
Certifications: CE, UL 1778, RoHS, VDE, GOST, FCC
Warranty: 3 years (UPS), 2 years (battery)
GTIN: 731304272694
