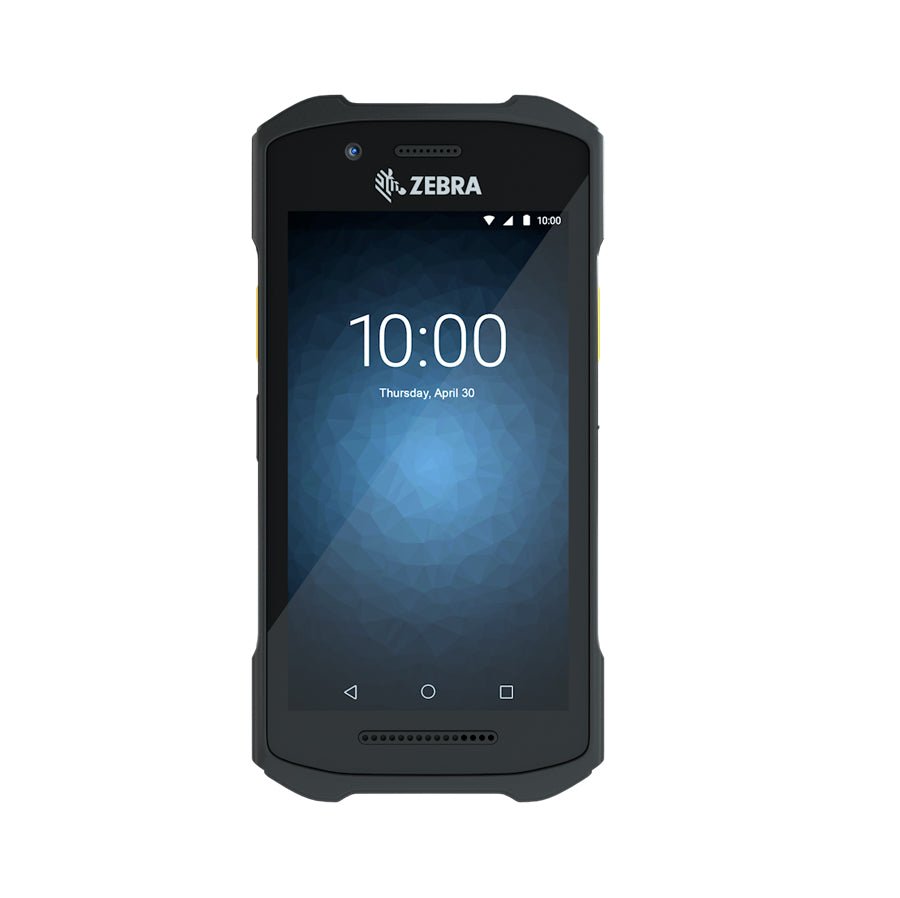

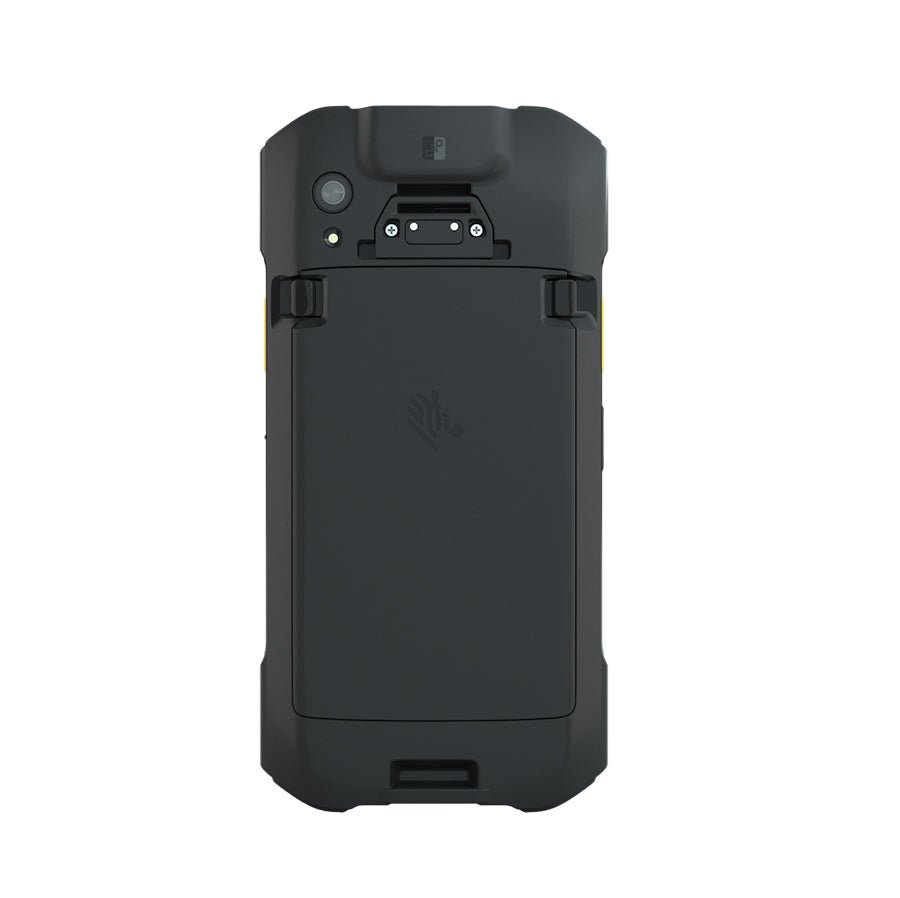

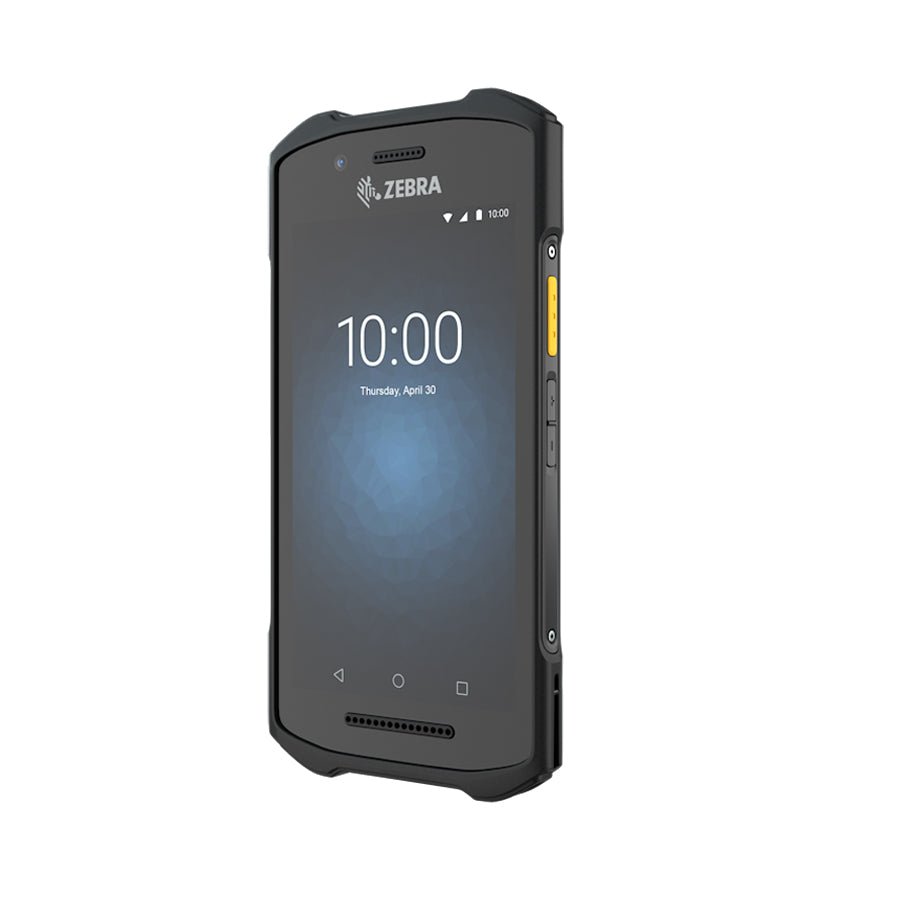

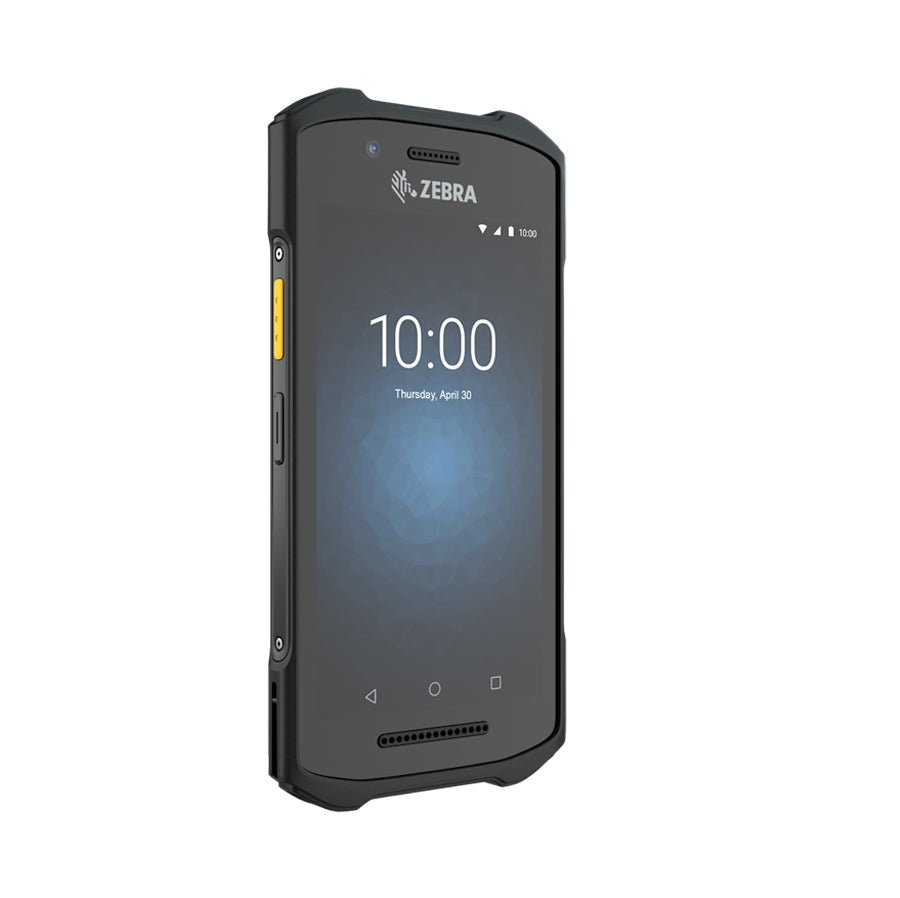

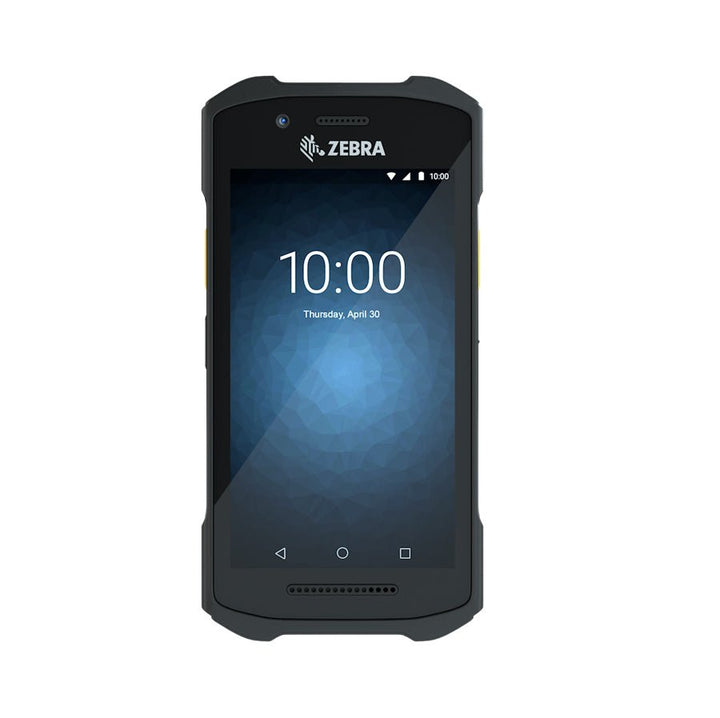

Zebra TC26 Mobile Handheld Computer

Zebra TC26 Mobile Handheld Computer (TC26BK-11A222-A6) - 1 Year Local Warranty

Enterprise Mobility Designed for Frontline Workers

The Zebra TC26 Mobile Handheld Computer (TC26BK-11A222-A6) is a rugged enterprise-grade mobile device built to enhance productivity for field workers, delivery personnel, retail staff, warehouse operators, and logistics teams. Combining smartphone-like usability with business-class durability, the TC26 helps organizations improve operational efficiency through real-time data access and mobile workforce enablement.

Powerful Connectivity for Mobile Operations

Designed for today's connected workforce, the Zebra TC26 supports advanced wireless communication technologies that enable seamless access to cloud applications, inventory systems, proof-of-delivery platforms, and enterprise business software. Employees can stay connected and productive whether working in retail stores, warehouses, transportation hubs, or customer locations.

Rugged Construction for Demanding Environments

Unlike consumer smartphones, the Zebra TC26 is engineered to withstand challenging work environments. Its durable design helps protect against drops, bumps, dust, and everyday workplace hazards, making it suitable for demanding industries such as logistics, field service, transportation, warehousing, and retail operations.

Optimized for Barcode Scanning and Enterprise Applications

The Zebra TC26 supports a wide range of enterprise mobility applications including barcode scanning, inventory management, asset tracking, field service automation, mobile workforce management, and electronic proof of delivery. Running on the Android platform, it offers a familiar user experience while providing the security and management capabilities required by businesses.

Technical Specifications

General
Model: TC26
Part Number: TC26BK-11A222-A6
Product Name: Zebra TC26 Mobile Handheld Computer
Manufacturer: Zebra Technologies
Product Type: Rugged Mobile Handheld Computer
Series: TC2x Series
Form Factor: Touch Mobile Computer
Operating System: Android
Deployment: Retail, Field Service, Transportation, Logistics, Warehousing, Hospitality
Warranty: 1 Year Standard Manufacturer Warranty
Google Mobile Services (GMS): Included
Mobility DNA: Supported

Display Specifications
Display Size: 5.0 Inches
Display Type: HD Color Display
Resolution: 1280 x 720 (HD)
Touch Technology: Capacitive Multi-Touch
Display Protection: Corning Gorilla Glass
Brightness: Up to 450 Nits
Outdoor Readability: Supported
Touch Operation with Gloves: Supported

Processor Specifications
Processor Manufacturer: Qualcomm
Processor Model: Snapdragon 660
Processor Type: Octa-Core
Processor Speed: Up to 2.2 GHz
Architecture: 64-Bit
Performance Optimization: Enterprise Mobile Computing Platform

Memory & Storage
Installed Memory: 4 GB RAM
Memory Type: LPDDR4X
Internal Storage: 64 GB Flash Memory
Storage Expansion: MicroSD Card Support
Maximum Expansion Capacity: Up to 128 GB

Barcode Scanning Specifications
Scan Engine: SE4100 Enterprise Imager
Scanner Type: Integrated 1D/2D Barcode Scanner
Barcode Support:
• 1D Barcodes
• 2D Barcodes
• QR Codes
• PDF417
• Data Matrix

Scanning Performance: Enterprise-Grade Fast Barcode Capture
Image Capture: Supported

Wireless Connectivity
Wi-Fi Standard: Wi-Fi 5 (802.11ac)
Cellular Connectivity: 4G LTE
Bluetooth Version: Bluetooth 5.0
NFC: Supported
Voice Calling: Supported
Push-to-Talk: Supported
SIM Card Support: Nano SIM

Supported Wireless Standards
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Location Services
GPS
GLONASS
Galileo
BeiDou
A-GPS Support

Camera Specifications
Rear Camera Resolution: 13 MP
Rear Camera Features: Autofocus with LED Flash
Front Camera Resolution: 5 MP
Video Calling: Supported
Photo Capture: Supported

Audio Specifications
Speaker Type: Front-Facing Speaker
Microphones: Dual Noise-Cancelling Microphones
Audio Jack: USB-C Audio Support
Voice Communications: Supported
VoIP Applications: Supported

Battery Specifications
Battery Type: Rechargeable Lithium-Ion Battery
Battery Capacity: 3300 mAh Standard Battery
Battery Replacement: User Replaceable
Shift Operation: Full-Day Usage Supported
Charging Method: USB-C and Charging Cradle Compatible

Durability Specifications
Ingress Protection Rating: IP67
Drop Resistance: Up to 1.2 m (4 ft.) to Concrete
Tumble Specification: 300 Tumbles at 0.5 m
Sealing Protection: Dustproof and Water Resistant
MIL Standard Compliance: Designed for Enterprise Rugged Environments

Environmental Specifications
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 95% Non-Condensing
Electrostatic Discharge Protection: Supported

Ports & Interfaces
USB Type-C Port
Charging Contacts
Accessory Connector
Docking Support
Enterprise Charging Accessories Supported

Sensors
Ambient Light Sensor
Proximity Sensor
Accelerometer
Magnetometer (eCompass)
Motion Detection Support

Management & Security
Android Enterprise Recommended
Mobility DNA Professional
Enterprise Mobility Management (EMM) Support
Remote Device Management Support
Secure Enterprise Deployment Support
OS Update Support Through Zebra Lifecycle Programs

Design & Construction
Color: Black
Form Factor: Rugged Handheld Mobile Computer
Construction: Enterprise-Grade Rugged Design
One-Handed Operation: Supported
Lightweight Design: Supported
Field Service Ready: Supported

Physical Specifications
Dimensions: 158 mm x 79 mm x 13.7 mm
Weight: Approximately 236 g
Display Size: 5 Inches
Form Factor: Handheld Rugged Computer
Color: Black

Package Contents
Zebra TC26 Mobile Handheld Computer
Standard Battery
USB Charging Accessories (Configuration Dependent)
Documentation
Quick Start Guide

Key Features
5-Inch HD Touch Display
Android Operating System
4GB RAM and 64GB Flash Storage
Integrated SE4100 1D/2D Barcode Scanner
4G LTE Connectivity
Wi-Fi 5 Wireless Networking
Bluetooth 5.0 Support
13MP Rear Camera
5MP Front Camera
IP67 Rugged Protection
User-Replaceable Battery
NFC Support
Mobility DNA Enterprise Tools
Google Mobile Services Included

Performance & Features
Enterprise-Class Mobile Computing Platform
Fast and Accurate Barcode Scanning
Reliable Indoor and Outdoor Connectivity
Designed for Frontline Workers
Supports Mobile Workforce Productivity
Secure Enterprise Device Management
Ideal for Inventory and Asset Tracking
Optimized for Retail and Logistics Applications
Compact and Lightweight for All-Day Use
Built to Withstand Demanding Business Environments

Typical Use Cases
Retail Inventory Management
Warehouse Operations
Asset Tracking
Field Service Management
Proof of Delivery Applications
Transportation and Logistics
Hospitality Operations
Mobile Point of Sale (mPOS)
Healthcare Inventory Tracking
Enterprise Data Collection
Barcode Scanning Applications
Mobile Workforce Enablement
