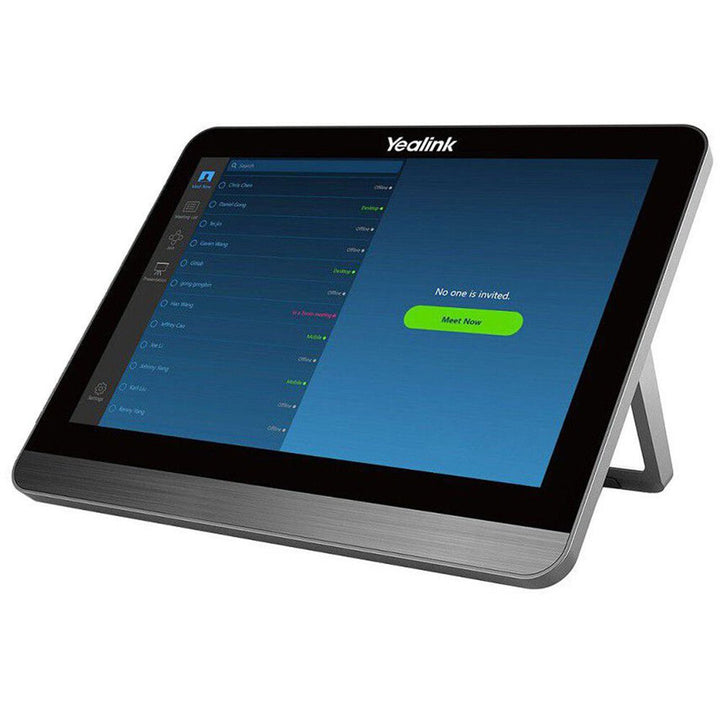

Yealink CTP18 Collaboration Touch Panel
PRODUCT DESCRIPTION
Yealink CTP18 Collaboration Touch Panel (CTP18) - 2 Years Local Warranty
8-Inch Touch Console for Yealink Meeting Rooms
The Yealink CTP18 is an 8-inch collaboration touch panel that gives meeting rooms a dedicated, tactile control surface. Placed on the meeting table or mounted on the wall, it puts one-touch join, call control, camera adjustment, volume and content sharing at everyone's fingertips — so meetings in Singapore offices start on time, every time.
One-Cable PoE Deployment
The CTP18 supports Power over Ethernet (IEEE 802.3af), so a single cable carries both data and power — a PoE adapter is included in the box. It pairs with the room system over Ethernet or Wi-Fi, eliminating tricky wiring runs between the TV area and the conference table for a clean, fast installation.
Sharp 1280 x 800 IPS Display with 10-Point Touch
The 8-inch IPS capacitive screen delivers a crisp 1280 x 800 (16:10) picture with 10-point multi-touch, and the integrated stand adjusts steplessly from 28° to 50° for a comfortable viewing angle at any seat.
Familiar Interface for MeetingBar and MeetingEye Rooms
Running Android, the CTP18 presents the same meeting interface as the paired room device — Microsoft Teams or Zoom on a MeetingBar A10, or Yealink MeetingEye video conferencing endpoints — so users control the room with an interface they already know.
Yealink CTP18 Datasheet — Technical Specifications
| Model | Yealink CTP18 |
| Part Number (SKU) | CTP18 |
| Product Type | 8-inch collaboration touch panel |
| Operating System | Android 9.0 |
| Warranty | 2 Years Local Warranty (Singapore) |
| Display | 8-inch IPS capacitive touch screen |
| Resolution | 1280 x 800, 16:10 |
| Touch | 10-point multi-touch |
| Ethernet | 1 x RJ45 with PoE (IEEE 802.3af, 48 V / 0.27 A) — single cable for data and power |
| Wi-Fi | Built-in dual-band 2.4 GHz / 5 GHz |
| USB | 1 x USB 2.0 port |
| Pairing | Via Ethernet (same LAN) or Wi-Fi to the room endpoint |
| Dimensions | 202 x 151 x 100 mm (at 50° stand angle) |
| Mounting | Integrated stand, steplessly adjustable 28°–50°; desktop or wall placement |
| Security | Security lock slot |
| Power Consumption | Approx. 7 W normal, 8 W max |
Compatibility & Software Support
The CTP18 is the touch controller for the Yealink MeetingBar A10 (available bundled as the A10-020 kit) and for Yealink MeetingEye 400/600 video conferencing endpoints (up to 4 panels per endpoint). It mirrors the Microsoft Teams or Zoom interface of the paired MeetingBar, or the MeetingEye meeting UI, and works with the WPP20 wireless presentation pod ecosystem on MeetingEye rooms.
For the newer MeetingBar A25, A40 and A50, the matching controller is the CTP25 touch console.
Package Contents & CTP18 Ordering Information
Inside the box: CTP18 touch panel, 7.5 m Ethernet cable, 3 m Ethernet cable, PoE adapter, cable lock box, mounting bracket and accessories, Quick Start Guide.
| CTP18 (this listing) | Standalone touch panel for MeetingBar A10 / MeetingEye rooms |
| A10-020 (1203684) | MeetingBar A10 + CTP18 bundle |
| CTP25 (1303132) | CTP25 touch console for MeetingBar A25/A40/A50 |
Datasheet & Downloads
Frequently Asked Questions — Yealink CTP18
Which Yealink devices does the CTP18 work with?
The MeetingBar A10 (and the earlier A20/A30 bars) plus Yealink MeetingEye 400/600 endpoints — up to 4 panels on a MeetingEye system.
What is the difference between the CTP18 and the CTP25?
The CTP18 is an 8-inch PoE panel for the A10 and MeetingEye endpoints. The CTP25 is a 10.1-inch console for the A25/A40/A50 that adds single-cable direct connection to the bar, wired BYOD, 4K content sharing and up to 45 W laptop charging.
How is the CTP18 powered?
Over PoE (IEEE 802.3af) — one Ethernet cable carries power and data, and a PoE adapter is included for networks without PoE switches.
Can the CTP18 connect wirelessly?
Yes — it can pair with the room endpoint over dual-band Wi-Fi as an alternative to the wired connection.
Is it easier to buy the CTP18 bundled with the MeetingBar A10?
Yes — the A10-020 bundle packages the bar and panel together at a better price than buying separately.
Does the CTP18 come with local warranty in Singapore?
Yes. Every CTP18 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
