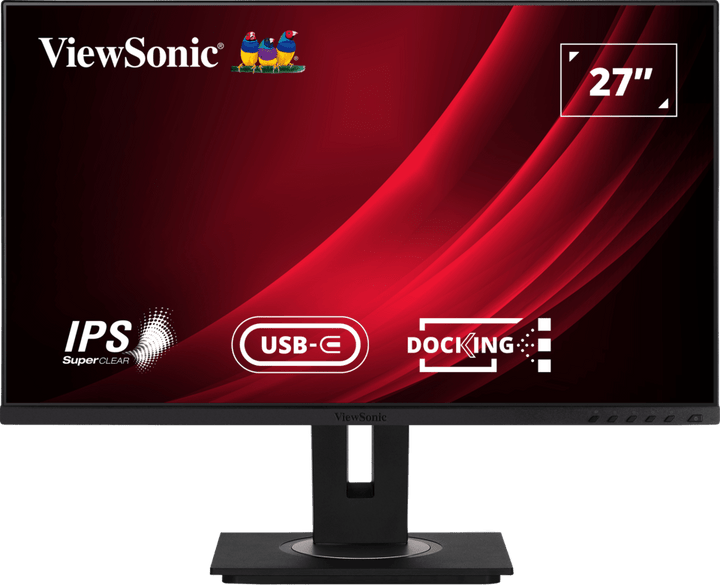

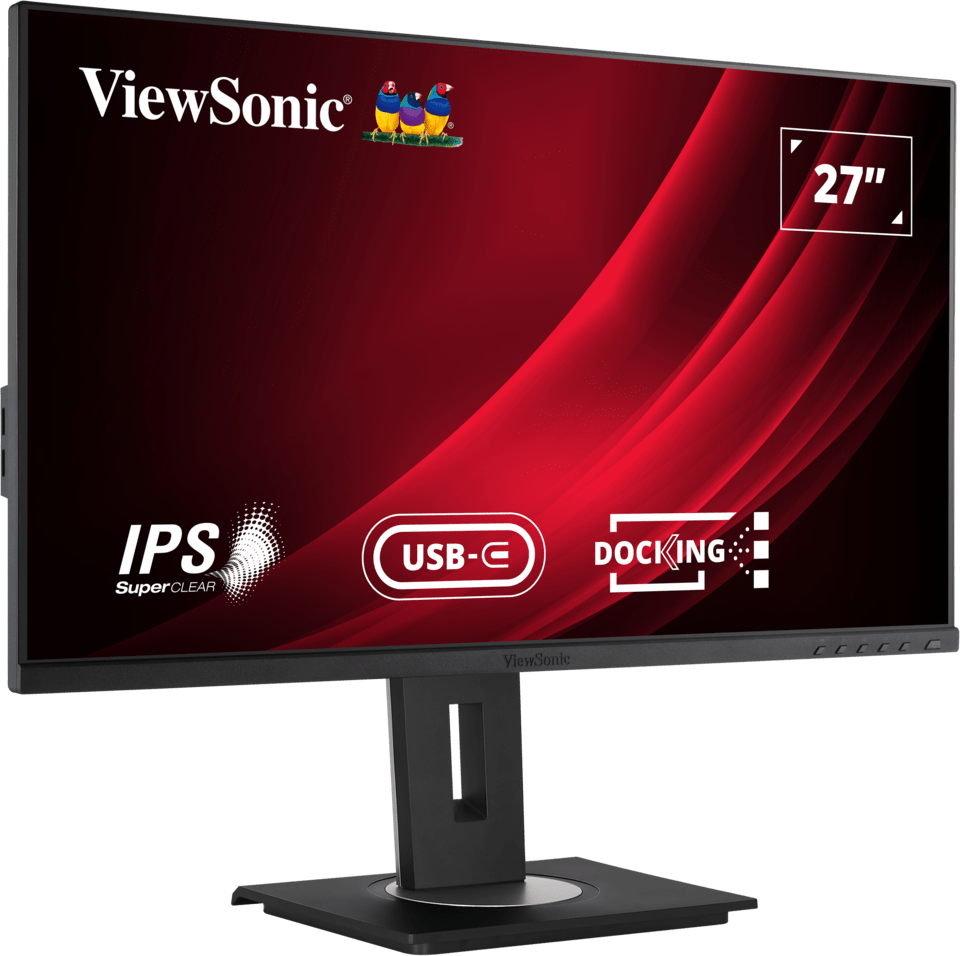

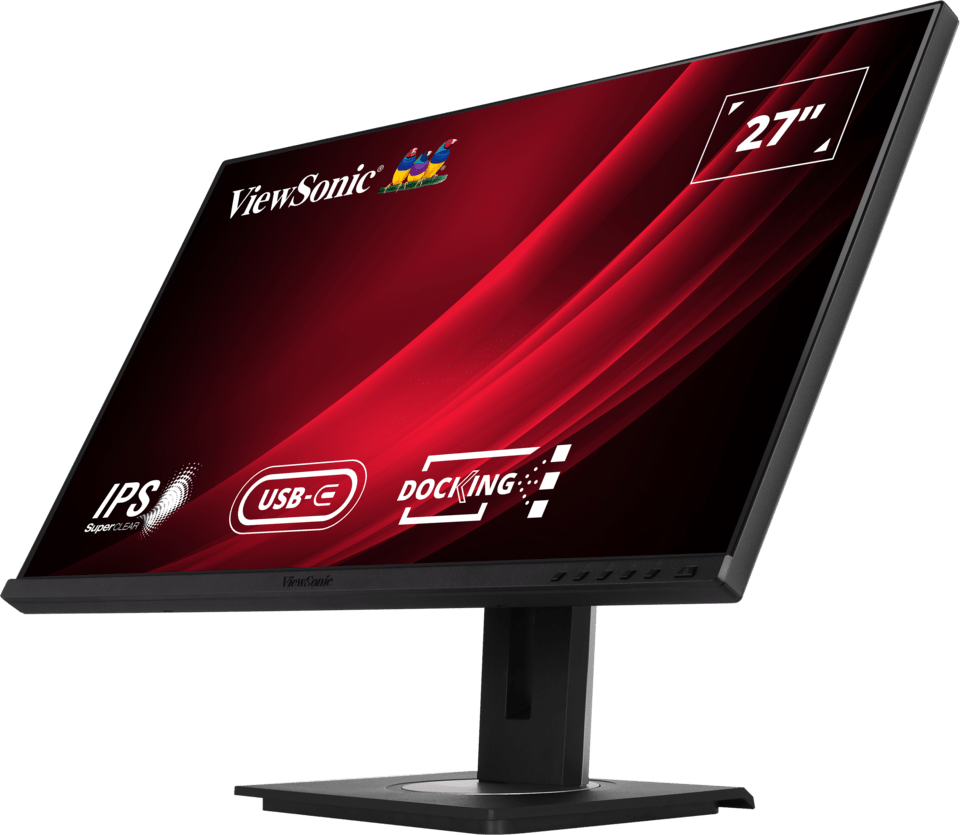

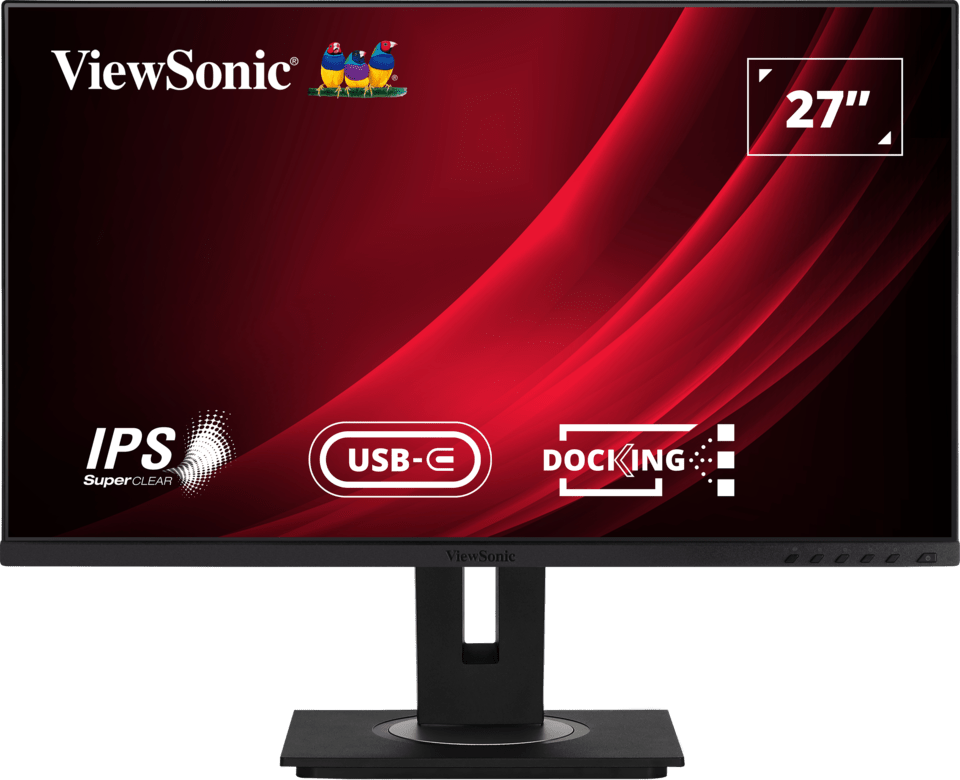

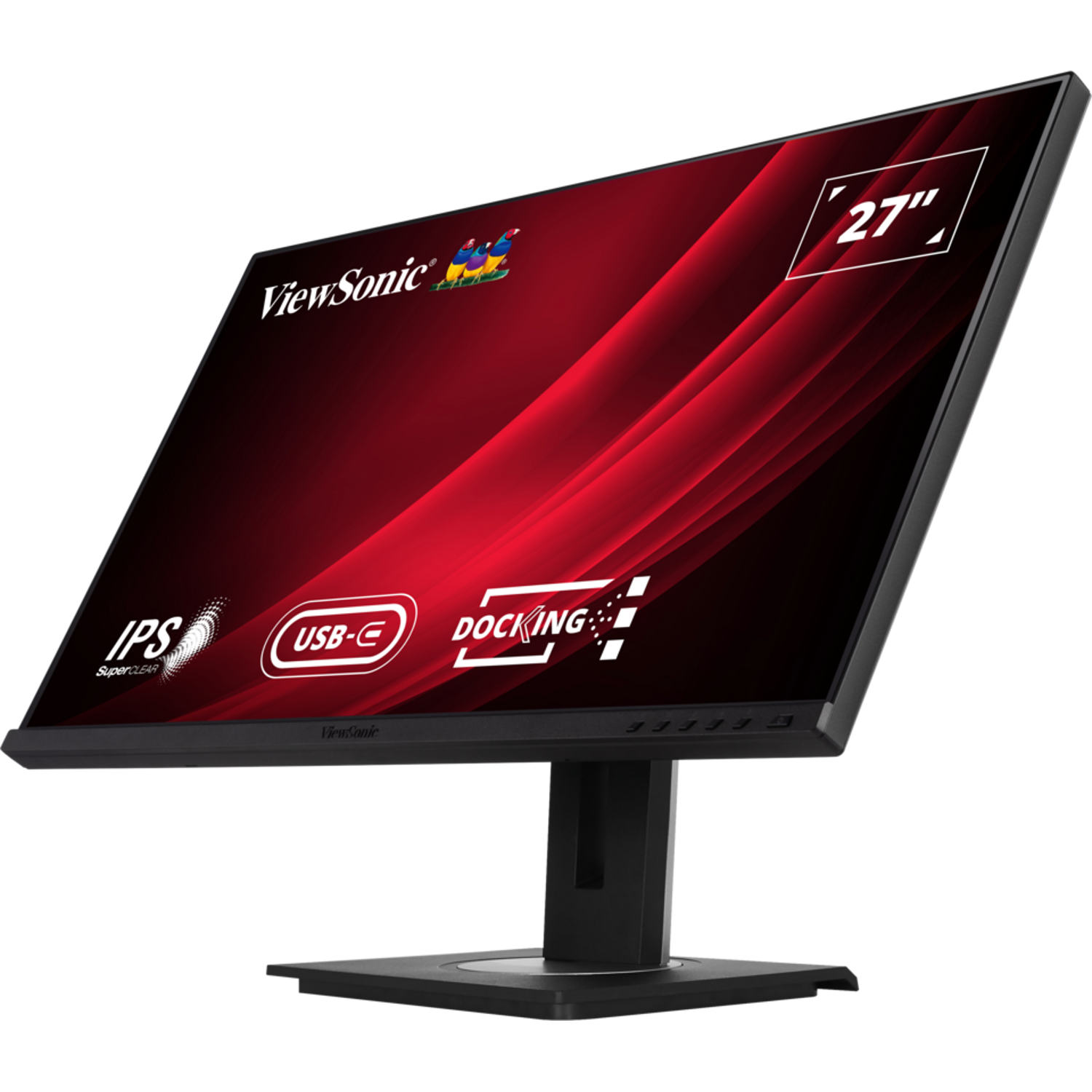

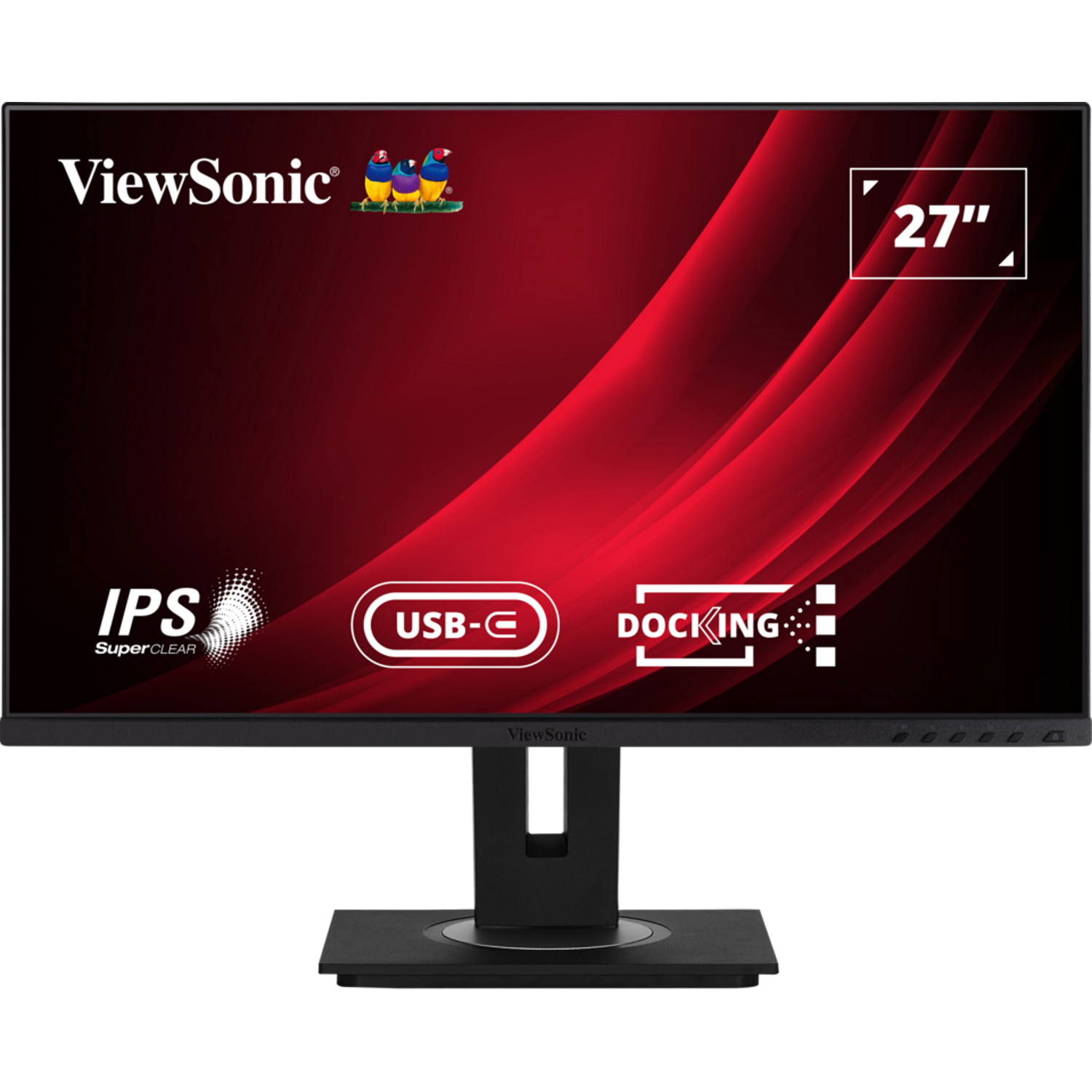

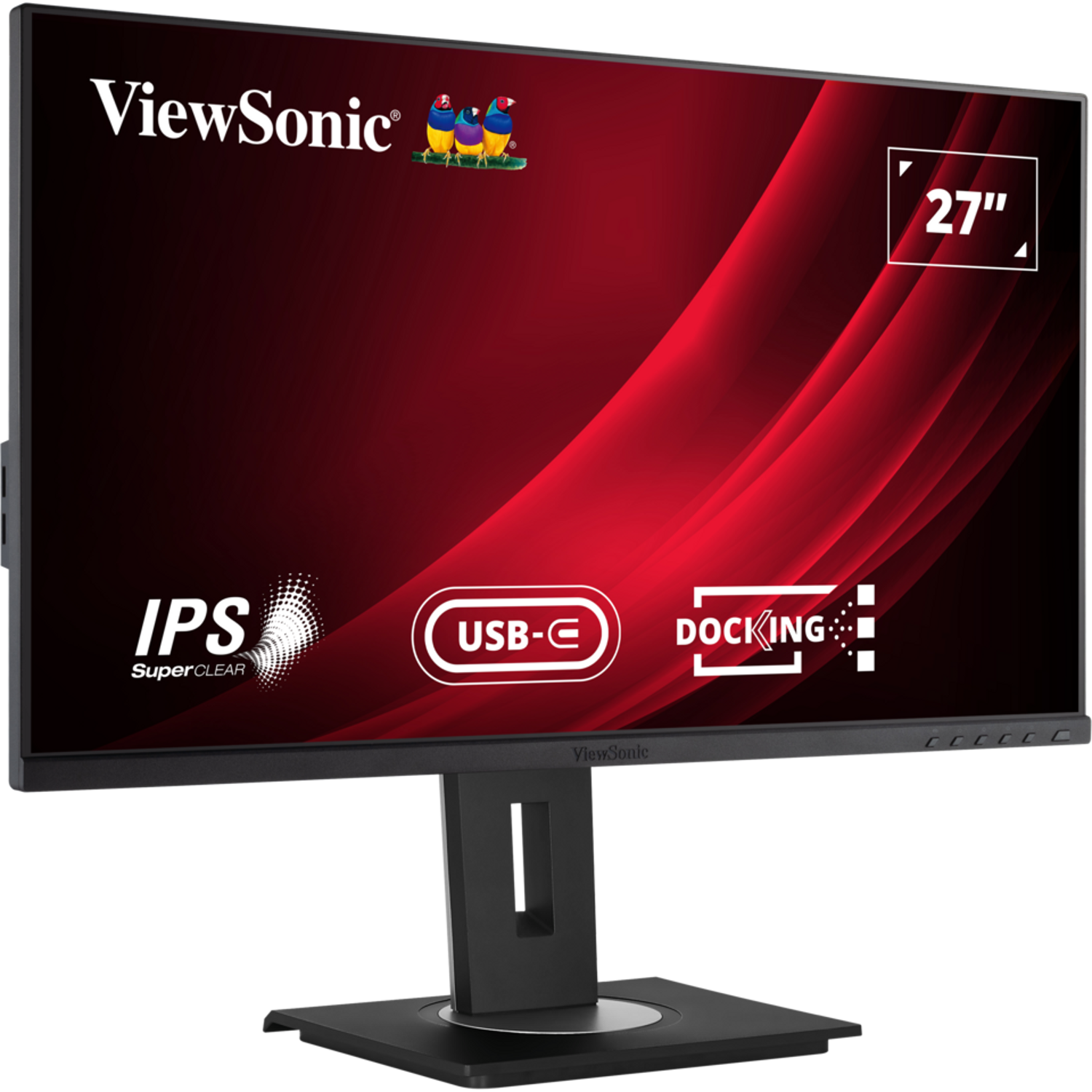

ViewSonic VG2756-2K 27" QHD IPS USB-C Docking Monitor with RJ45
PRODUCT DESCRIPTION
ViewSonic VG2756-2K 27" QHD IPS USB-C Docking Monitor - 3 Years Local Warranty
Integrated Docking Station
USB-C and RJ45 connectivity charges your laptop up to 90 W, provides wired internet and carries data, audio and video over one cable.

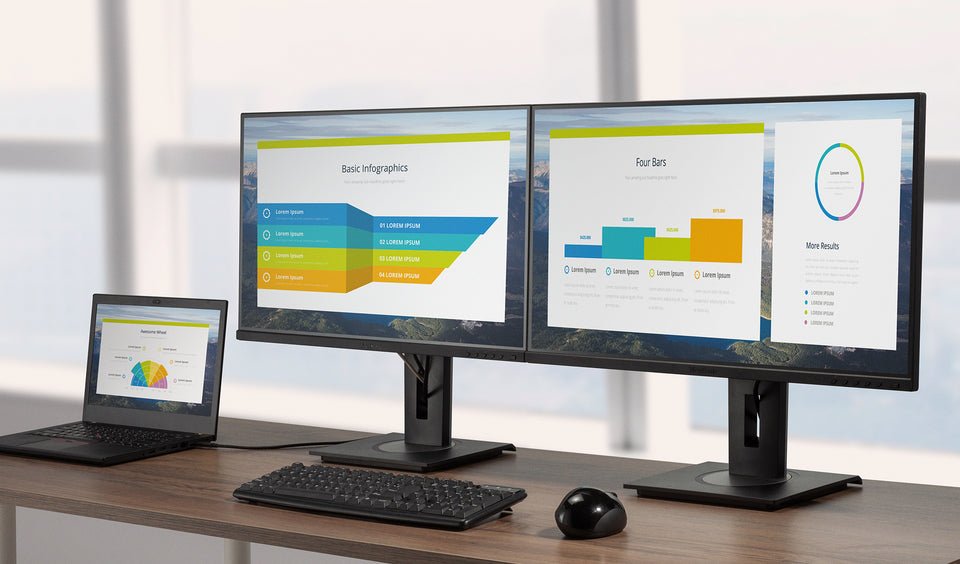

Daisy Chain Monitors
USB-C plus DisplayPort Out lets you daisy chain another monitor for a productivity-boosting dual-screen setup.
QHD SuperClear® IPS
27" 2560 x 1440 resolution with sRGB 100% coverage and 178° viewing angles for detail-minded professionals.

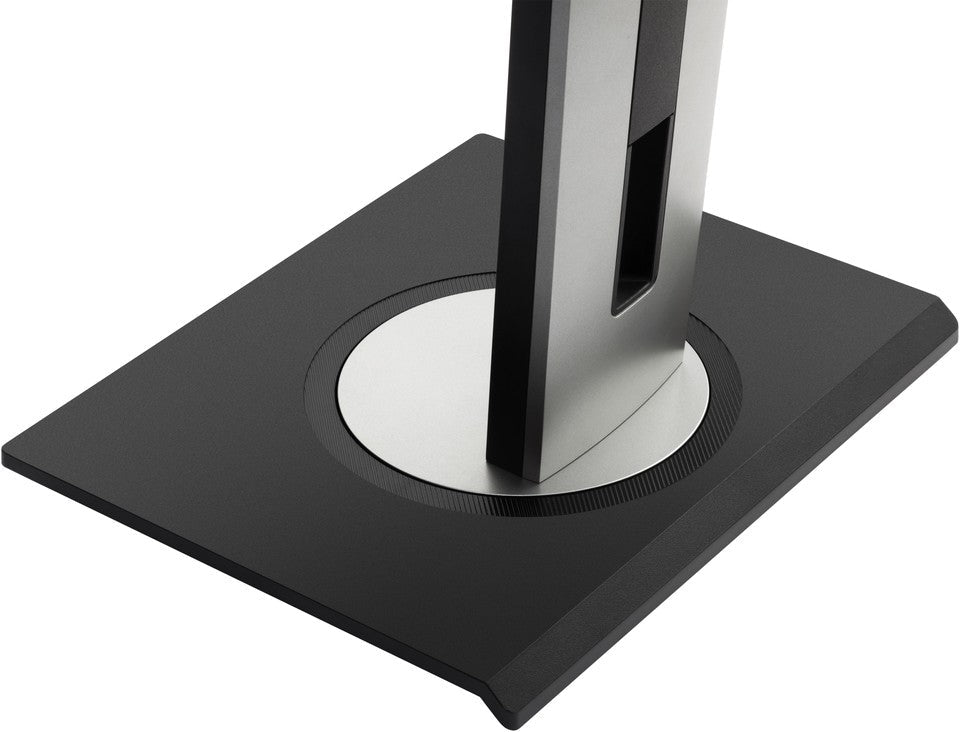

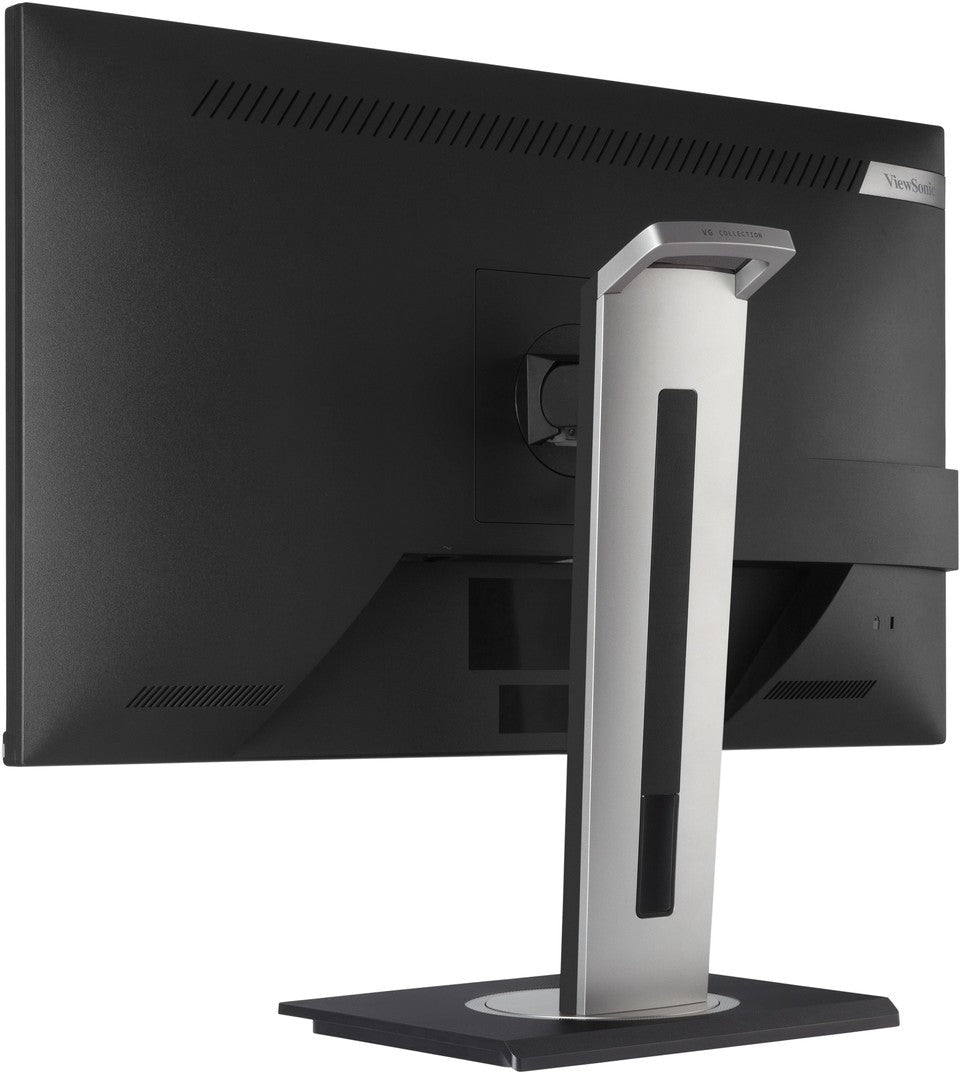

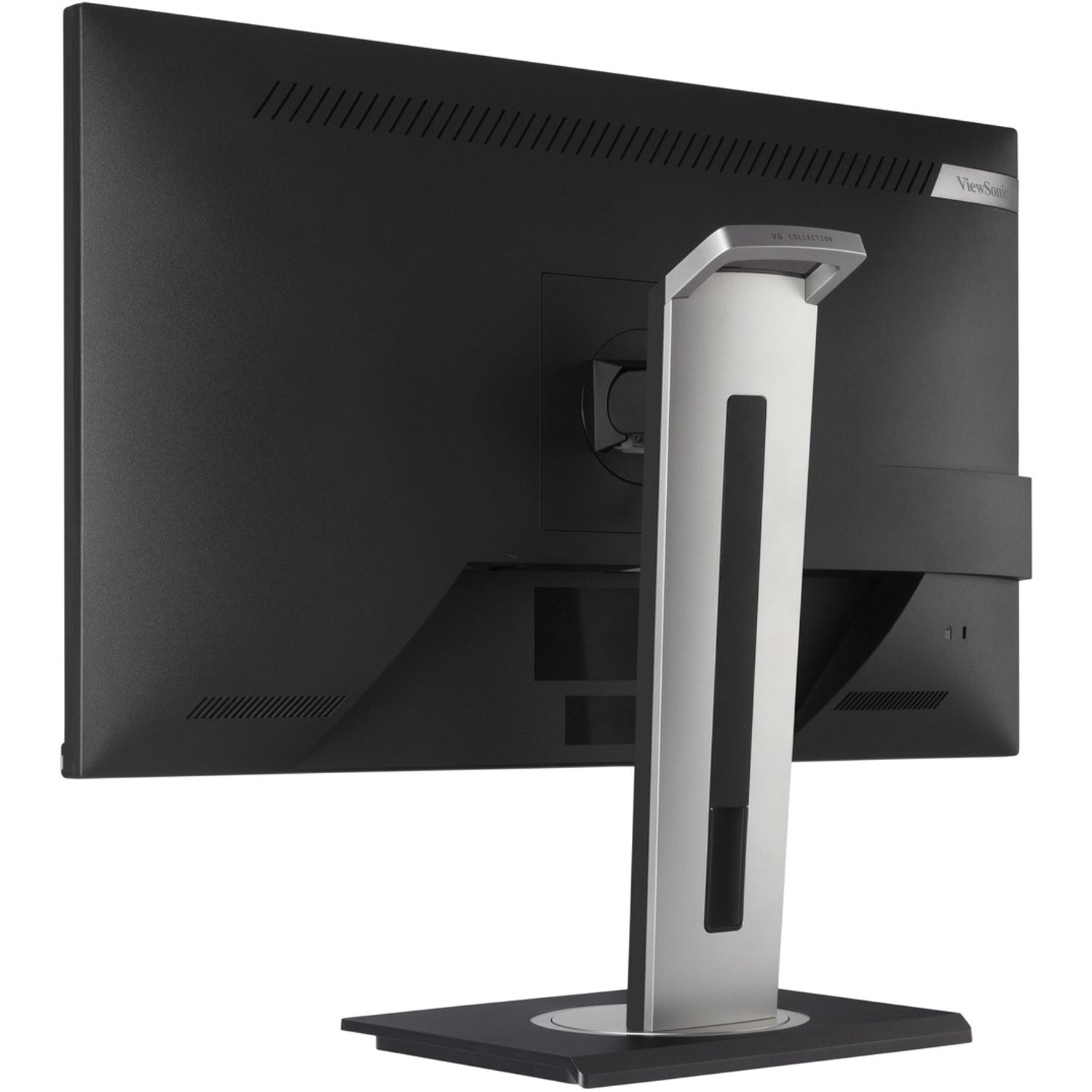

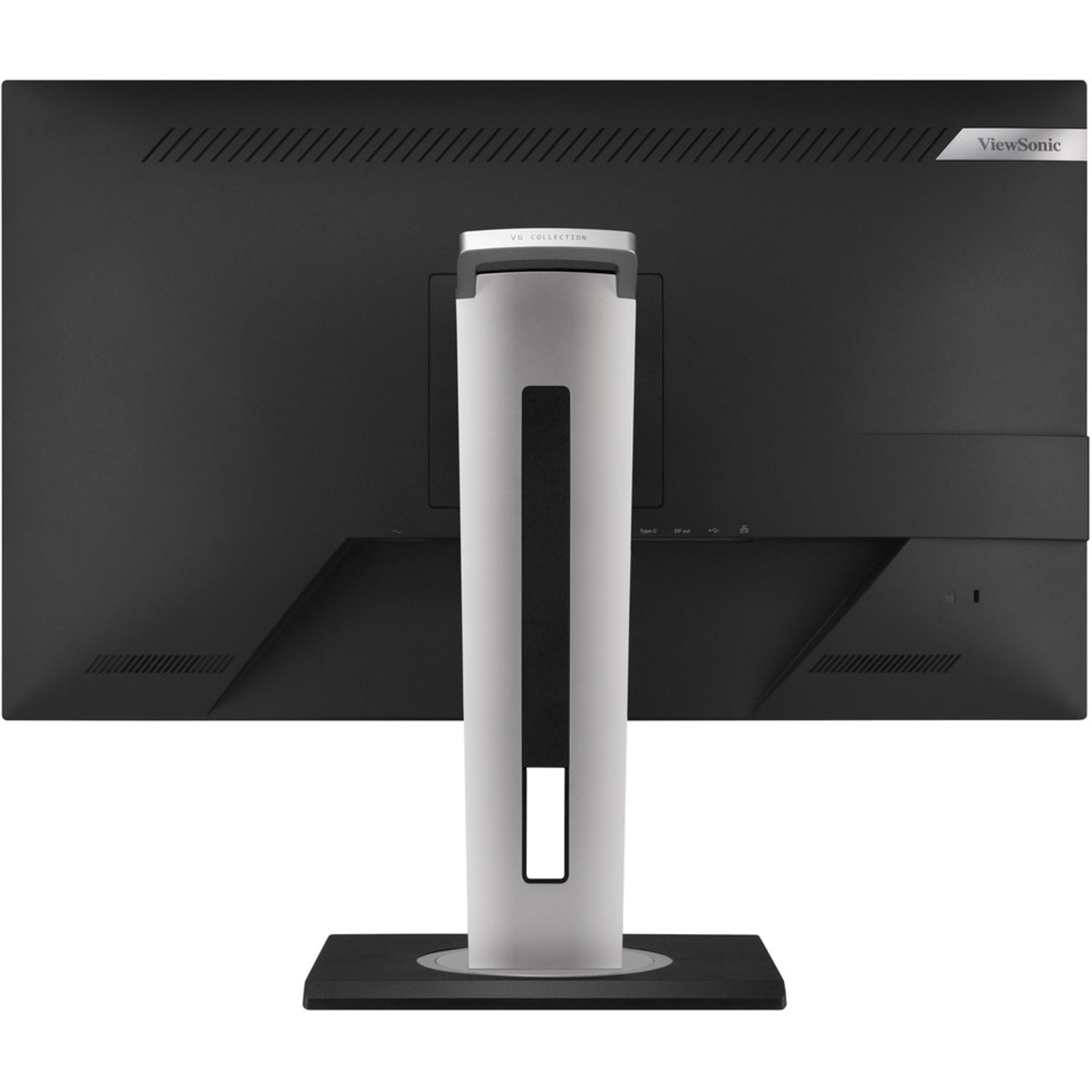

Ergonomic Workstation

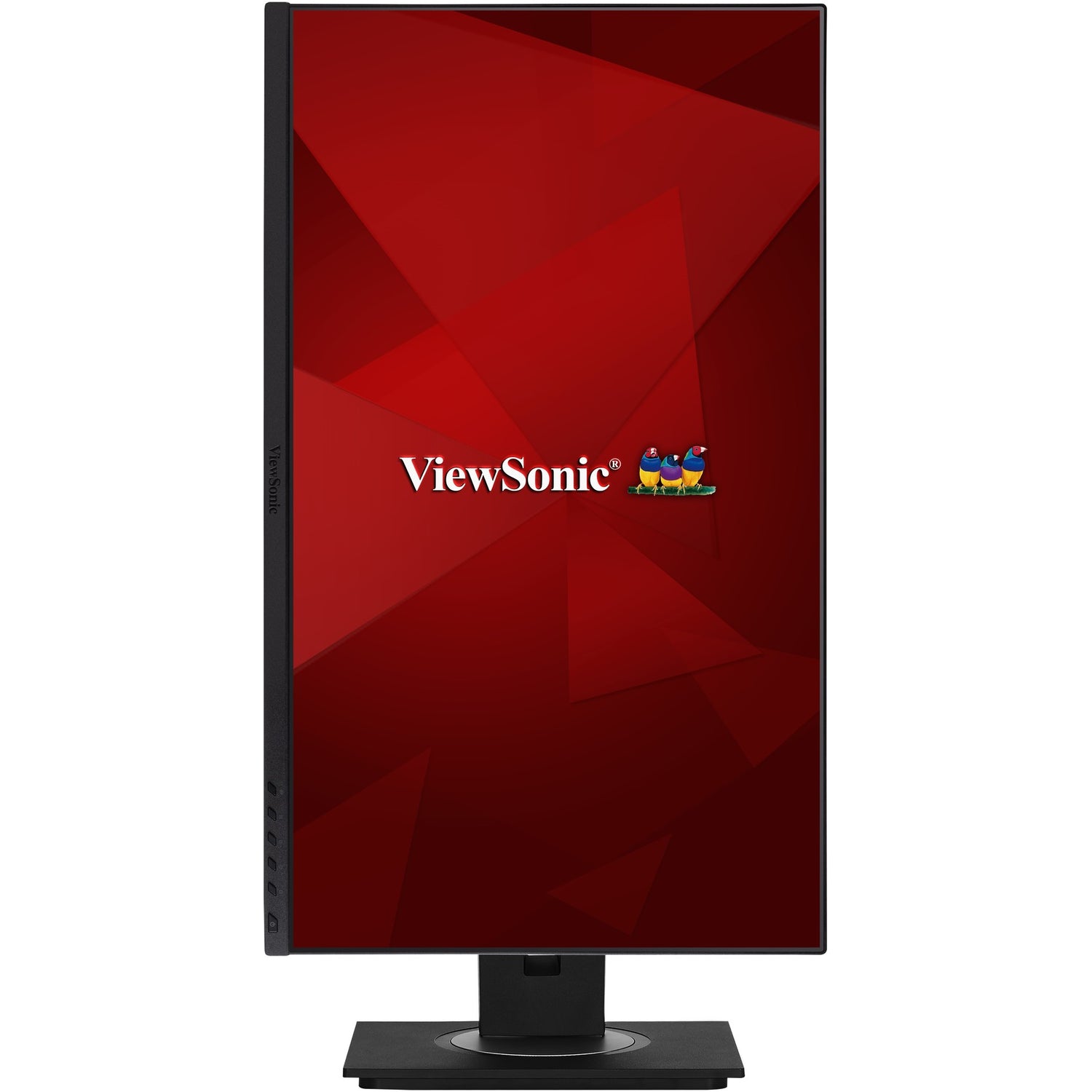

40° tilt, 120° swivel, 130 mm height adjustment and 90° pivot, with cable management, Flicker-Free and Blue Light Filter.
Need monitors for a whole office, classroom or meeting rooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VG2756-2K Datasheet — Technical Specifications
General
| Product Name | ViewSonic VG2756-2K 27" QHD IPS USB-C Docking Monitor |
| Model | VG2756-2K |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 27" |
| Panel Type | IPS |
| Resolution | 2560 x 1440 (QHD) |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms (GTG) |
| Brightness | 350 cd/m² (typ) |
| Contrast Ratio | 1,000:1 static (typ); 80M:1 dynamic |
| Colours | 16.7M, true 8-bit |
| Colour Gamut | sRGB 110% size / 100% coverage; NTSC 78% (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.233 x 0.233 mm |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |
Connectivity
| USB-C | 1 x USB 3.2 Type-C upstream (DisplayPort Alt Mode, 90 W power charger) |
| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 1 x DisplayPort 1.2 in, 1 x DisplayPort out |

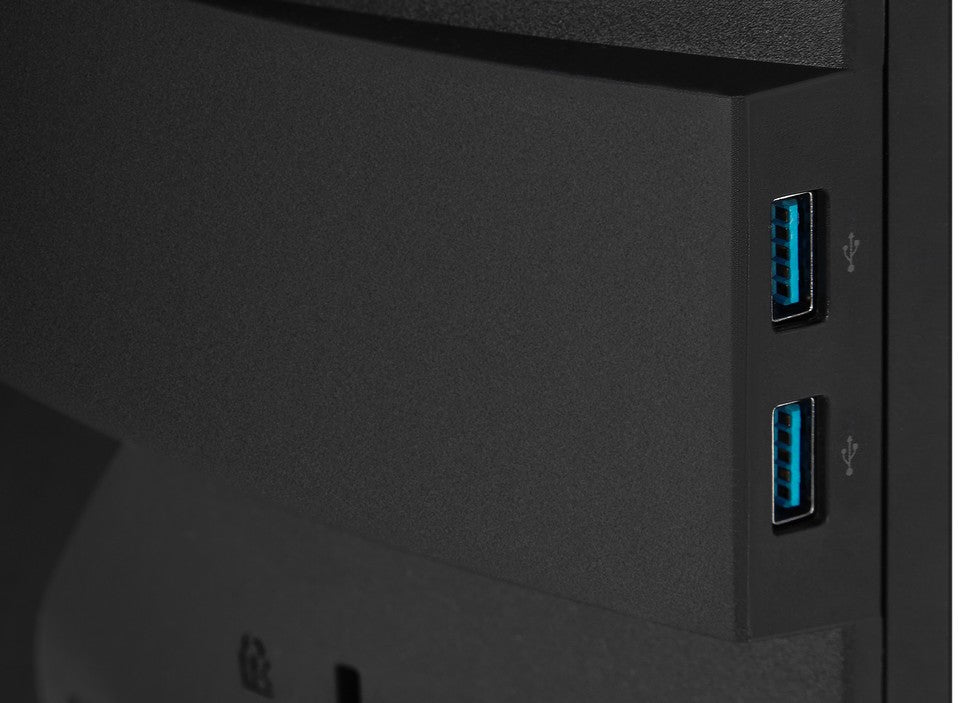

| USB Hub | 2 x USB 3.2 Type-A downstream, 1 x USB 3.2 Type-B upstream |
| Ethernet | 1 x RJ45 LAN |
| Speakers | 2 x 2 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 26.35 W typical; 35.94 W max; 0.5 W standby |
| Eco Mode | 16.81 W (conserve) / 21.12 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions with Stand (W x H x D) | 612 x 406.19–533.24 x 202 mm |
| Dimensions without Stand | 612 x 362 x 52 mm |
| Net Weight | 6.9 kg (4.5 kg without stand) |
| Packaging (W x H x D) | 692 x 430 x 218 mm |
| Gross Weight | 10.2 kg |
| Height Adjustment | 130 mm |
| Swivel | 120° |
| Tilt | -5° / 40° |
| Pivot | 90° / 90° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Windows 11 certified and macOS tested. USB-C laptops with DisplayPort Alt Mode get QHD video, audio, data, Ethernet and up to 90 W charging on one cable; other PCs connect by HDMI or DisplayPort.
Typical Use
Hybrid offices, finance and design teams that want a 27" QHD docking workstation with wired LAN and optional daisy-chained second screen.
Package Contents & ViewSonic VG Series Ordering Information
In the Box
VG2756-2K monitor, power cable (IEC C13), DisplayPort cable (v1.2), USB-C cable, USB A/B cable (v3.2), quick start guide.
ViewSonic VG Series Monitors
| Model | Key feature |
| VG1655 | 16" FHD IPS portable, dual USB-C |
| VG2409-MHU | 24" FHD IPS, USB-C 65 W, speakers |
| VG2409U-2 | 24" FHD IPS 100 Hz, USB-C 65 W docking, RJ45 |
| VG2439 | 24" FHD VA ergonomic, HDMI/DP/VGA |
| VG2440V | 24" FHD IPS, 2MP webcam + mic |
| VG2441V | 24" FHD IPS 120 Hz, 5MP Windows Hello webcam, USB-C |
| VG2448-I | 24" FHD IPS, 40° tilt ergonomic, USB hub |
| VG2709U-2K | 27" QHD IPS 100 Hz, USB-C 98 W docking, RJ45 |
| VG2740V | 27" FHD IPS, 2MP webcam + mic |
| VG2756-2K (this listing) | 27" QHD IPS, USB-C 90 W docking, RJ45 |
| VG2757V-2K | 27" QHD webcam docking |
| VG3419C-2 | 34" WQHD curved USB-C docking |
| VG3456 | 34" WQHD docking |
Datasheet & Downloads
| ViewSonic datasheet | VG2756-2K Datasheet |
| User guide | VG2756-2K User Guide (PDF, English) |
| Quick start guide | VG2756-2K Quick Start Guide (PDF) |
| ViewSonic product page | VG2756-2K on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VG2756-2K.
Frequently Asked Questions — ViewSonic VG2756-2K
Will it charge my laptop?
Yes, up to 90 W over USB-C, if your laptop supports USB-C charging and DisplayPort Alt Mode.
Can I connect a second monitor?
Yes, daisy chain a second compatible monitor from the DisplayPort Out.
Does it have wired network?
Yes, a built-in RJ45 Ethernet port served over the USB-C connection.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
