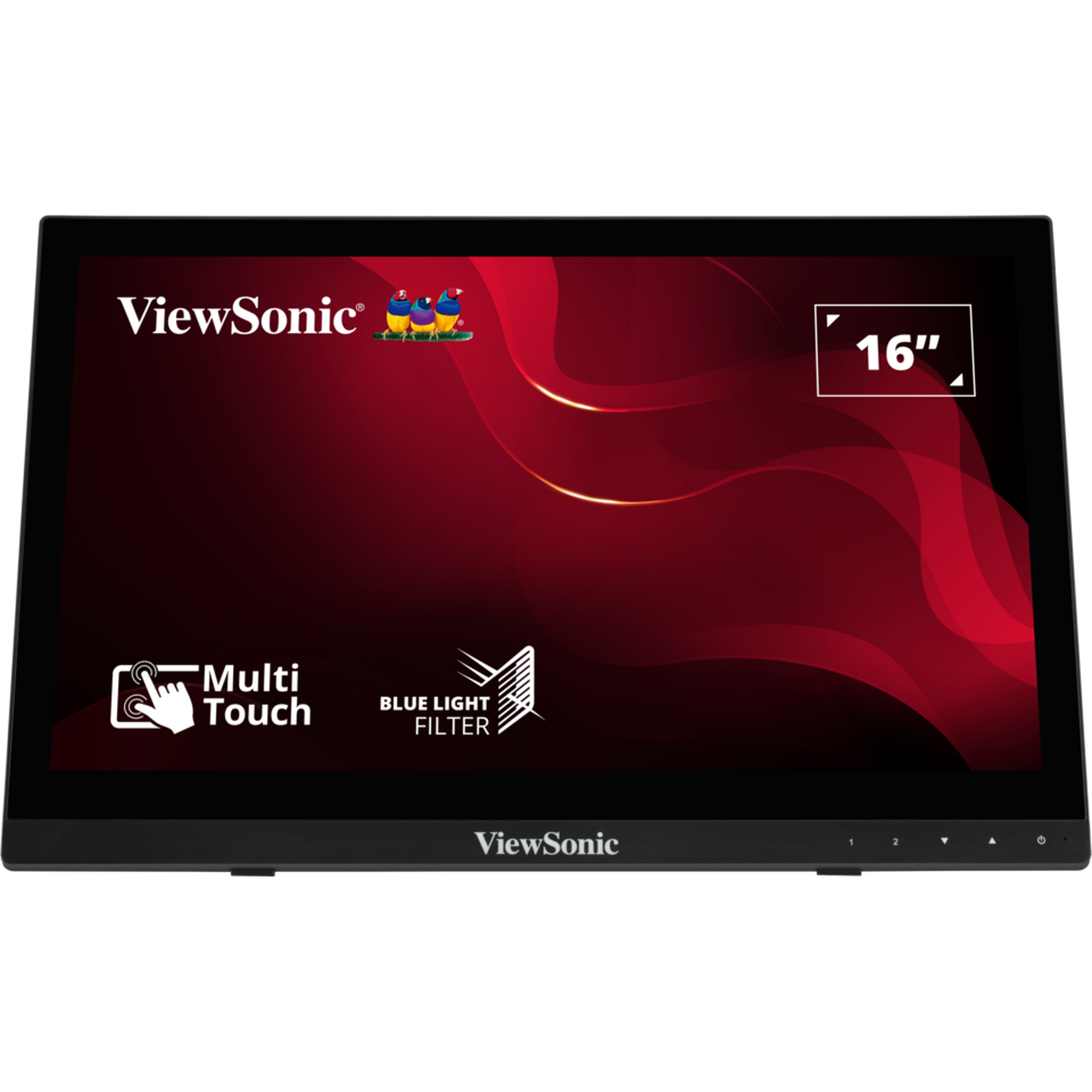

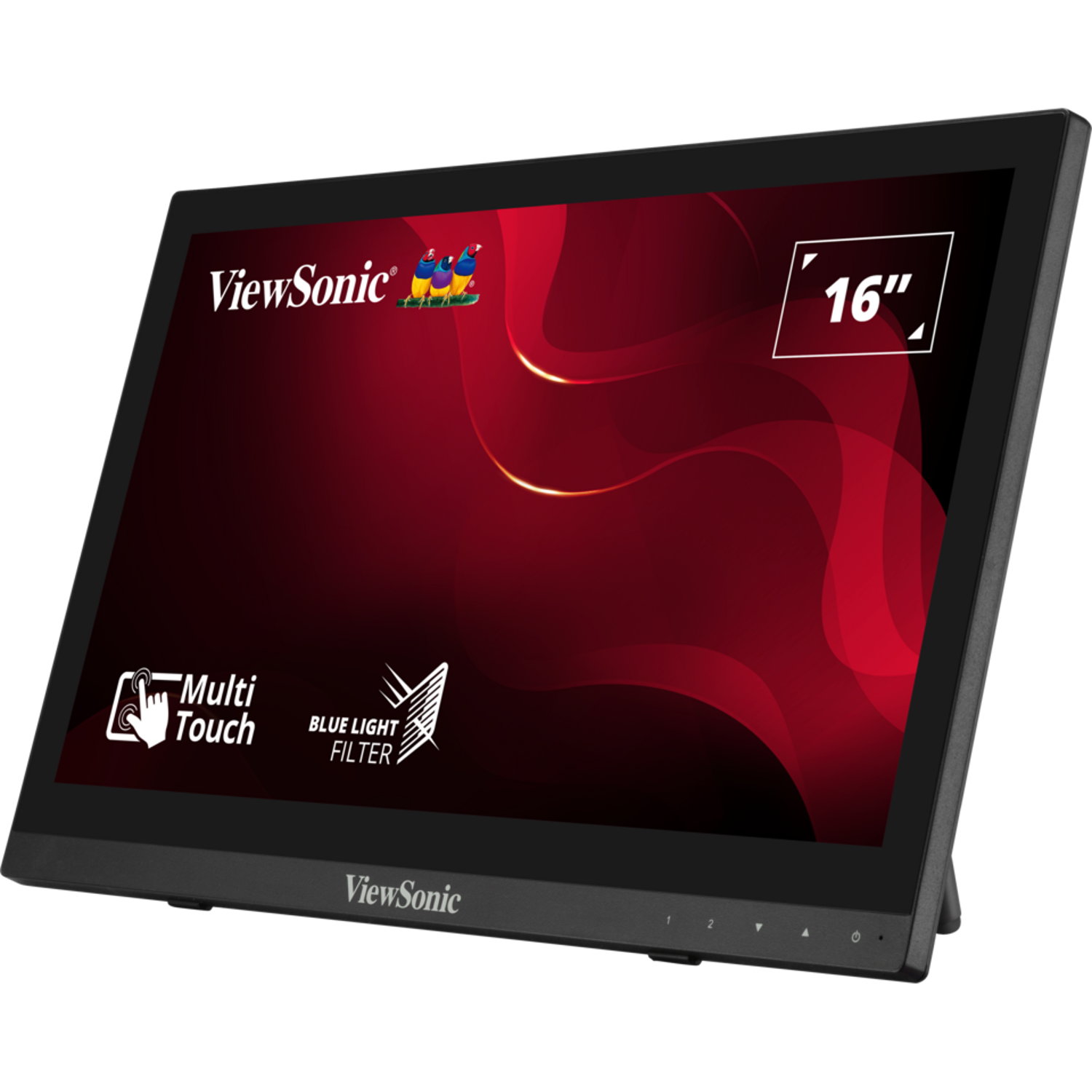

ViewSonic TD1630-3 16" 10-Point Touch Screen Monitor
PRODUCT DESCRIPTION
ViewSonic TD1630-3 16" 10-point Touch Screen Monitor - 3 Years Local Warranty
10-Point Projected Capacitive Touch
Recognises up to 10 simultaneous touch points for an accurate, responsive experience.

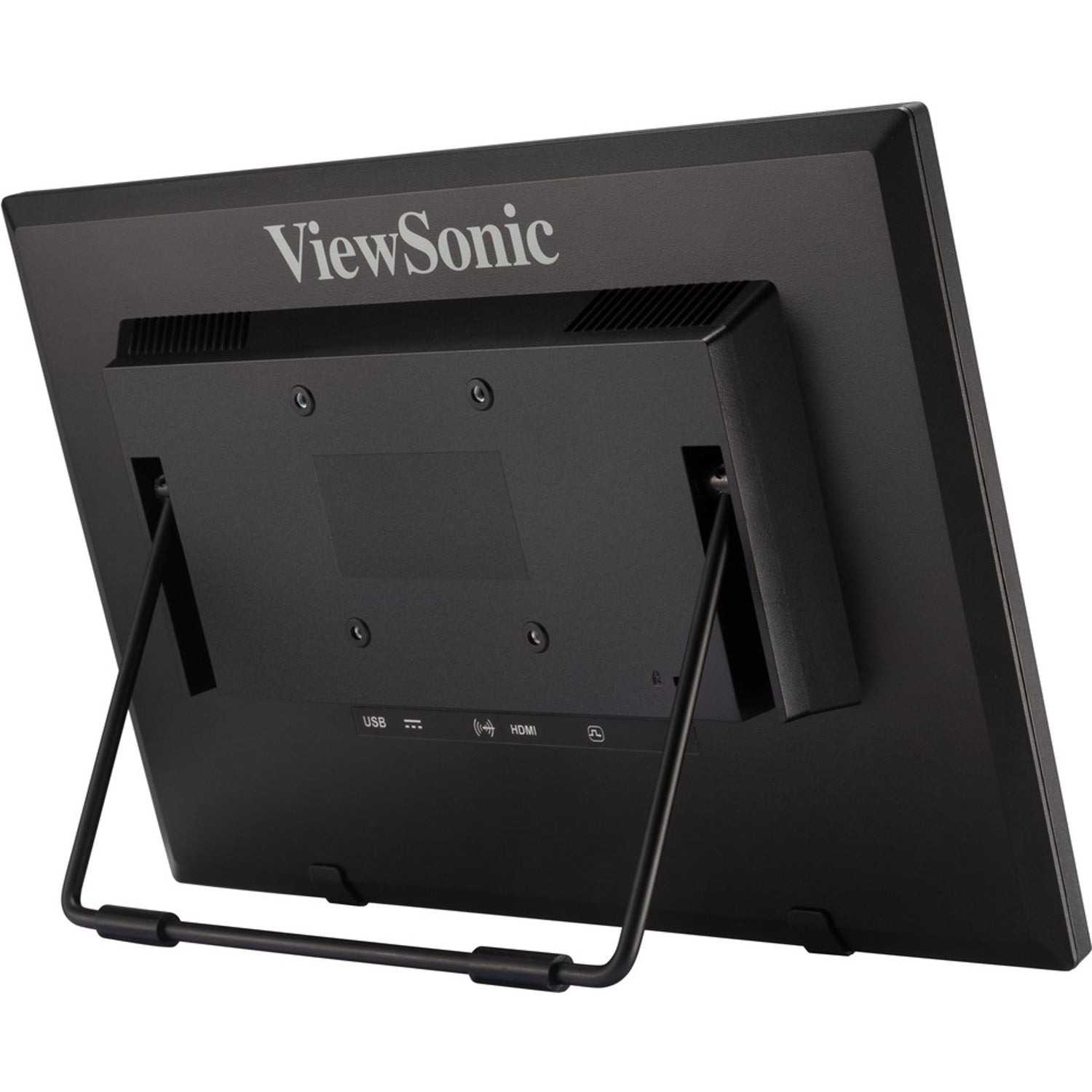

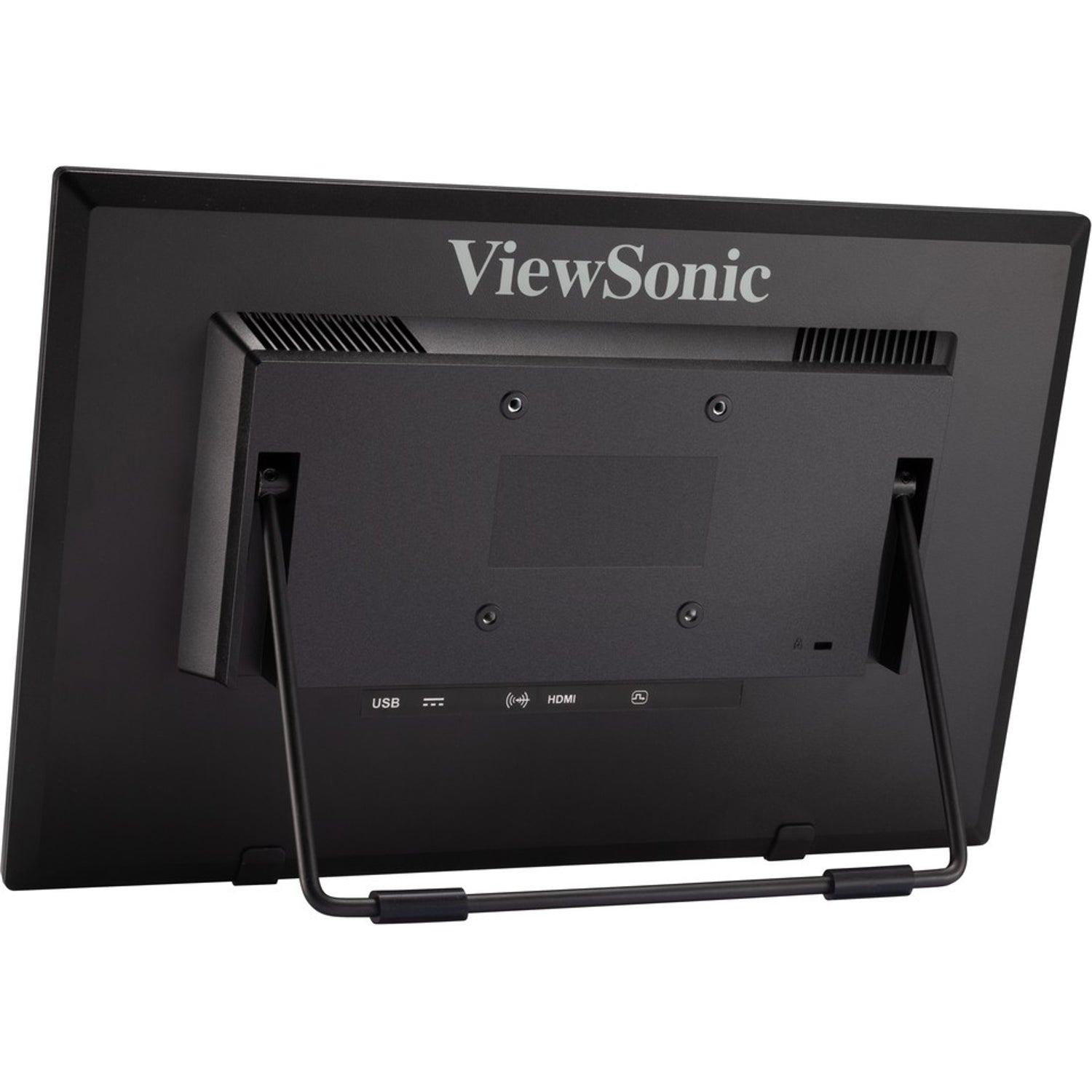

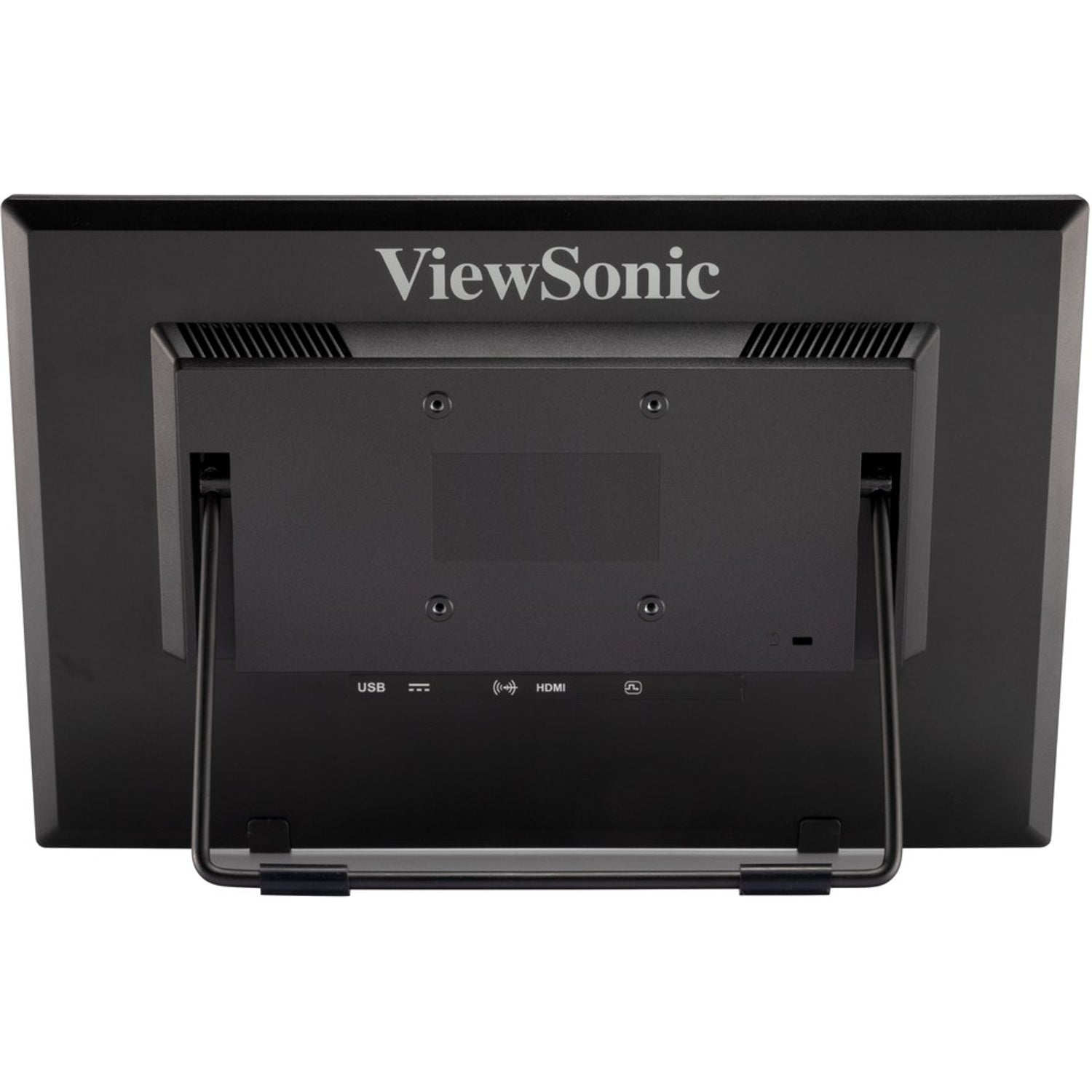

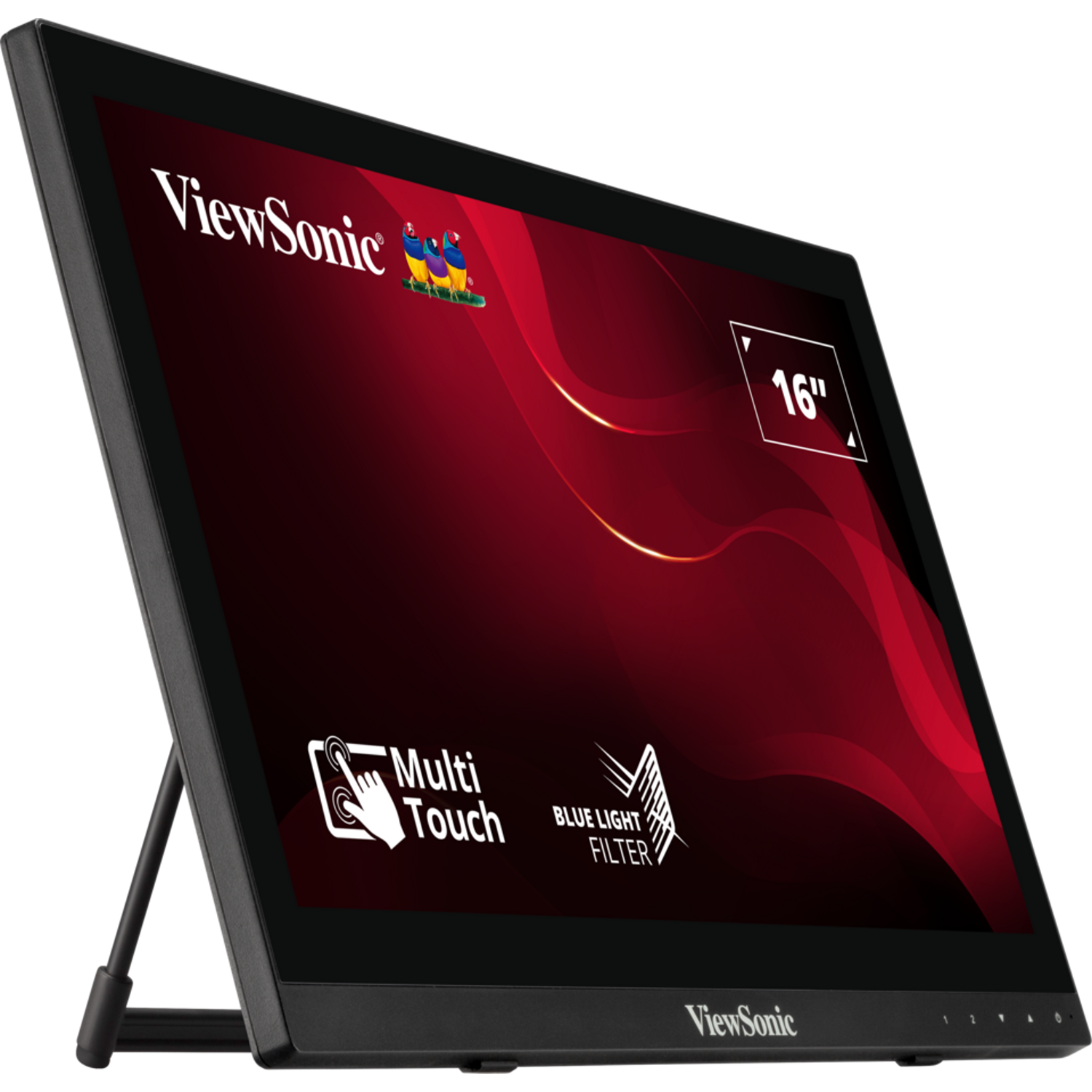

Ergonomic Stand
Tilts or lays completely flat on the tabletop.
Versatile Connectivity
HDMI and VGA inputs for flexible device connection.
Durable, Scratch-Resistant Screen
Protective 7H glass faceplate.
Need touch monitors for a retail counter, kiosk, classroom or office rollout? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic TD1630-3 Datasheet — Technical Specifications
General
| Product Name | ViewSonic TD1630-3 16" 10-point Touch Screen Monitor |
| Model | TD1630-3 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 16" (15.6" viewable) |
| Panel Type | TN |
| Resolution | 1366 x 768 (WXGA) |
| Refresh Rate | 60 Hz |
| Response Time | 12 ms (Tr+Tf) |
| Brightness | 190 cd/m² (typ) |
| Contrast Ratio | 500:1 static (typ); 10M:1 dynamic |
| Colours | 262K, 6-bit |
| Colour Gamut | sRGB 67% size; NTSC 45% size (typ) |
| Viewing Angles | 90° H / 60° V |
| Pixel Size | 0.252 x 0.252 mm |
| Low Blue Light | Software solution |
| Backlight Life | 15,000 hours (min) |
Touch
| Touch Technology | Projected capacitive, 10-point multi-touch |
| Surface | Glossy, 7H hard coating |
| Cover Glass Thickness | 0.83 mm |
| Touch Interface | USB 2.0 Type-B |
Connectivity
| HDMI | 1 x HDMI 1.4 |
| VGA | 1 |
| USB | 1 x USB 2.0 Type-B (touch) |
| Audio In | 1 x 3.5 mm |
| Speakers | 2 x 1 W |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 5.5 W typical; 6 W max; 0.5 W standby |
| Eco Mode | 4.3 W (conserve) / 4.9 W (optimised) |
| Power Supply | External power adapter |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical & Ergonomics
| Dimensions (W x H x D) | 379 x 247 x 37 mm |
| Net Weight | 1.3 kg |
| Packaging (W x H x D) | 453 x 389 x 86 mm |
| Gross Weight | 2.5 kg |
| Tilt | 15° / 50° |
| VESA | 75 x 75 mm |
Compatibility & Software Support
Devices
Windows 7/8/8.1/10/11 certified and macOS tested. Connect video by HDMI or VGA and the USB-B cable for touch — ideal for POS, kiosks and front counters.
Software
On-screen menu with auto image adjust, colour and audio settings, plus a software low blue light filter.
Package Contents & ViewSonic TD Series Ordering Information
In the Box
TD1630-3 monitor, power cable (IEC C13), VGA cable, USB A/B cable (v2.0), audio cable, AC/DC adapter, quick start guide.
ViewSonic TD Series Touch Monitors
| Model | Key feature |
| TD1617A-2K | 16" WQXGA IPS 165 Hz portable, 10-point touch, 2 x USB-C |
| TD1630-3 (this listing) | 16" (15.6") WXGA, 10-point PCAP, HDMI + VGA |
| TD1655 | 16" (15.6") FHD IPS portable, 10-point touch, USB-C, pen |
| TD2223-2 | 22" (21.5") FHD VA, 10-point IR touch, 7H glass |
| TD2230 | 22" 10-point touch screen |
| TD2423 | 24" IR touch |
| TD2455 | 24" in-cell touch, USB-C |
| TD2465 | 24" frameless 10-point PCAP touch |
| TD2760 | 27" 10-point touch screen |
| TD3207 | 32" open-frame touch, 24/7 operation |
Datasheet & Downloads
| ViewSonic datasheet | TD1630-3 Datasheet |
| User guide | TD1630-3 User Guide (PDF, English) |
| Quick start guide | TD1630-3 Quick Start Guide (PDF) |
| ViewSonic product page | TD1630-3 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting TD1630-3.
Frequently Asked Questions — ViewSonic TD1630-3
How is touch connected?
Connect the supplied USB A/B cable to your PC in addition to HDMI or VGA video.
Can it lie flat?
Yes, the stand tilts from 15° to 50° and the display can lay flat on the table.
Can I wall-mount it?
Yes, it is VESA 75 x 75 mm compatible.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
