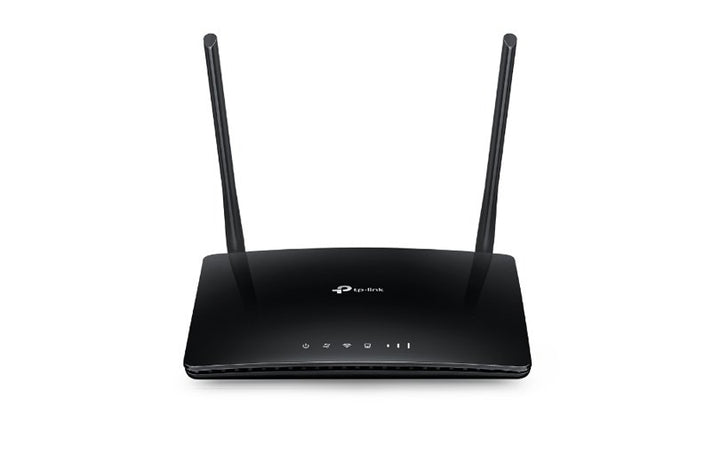

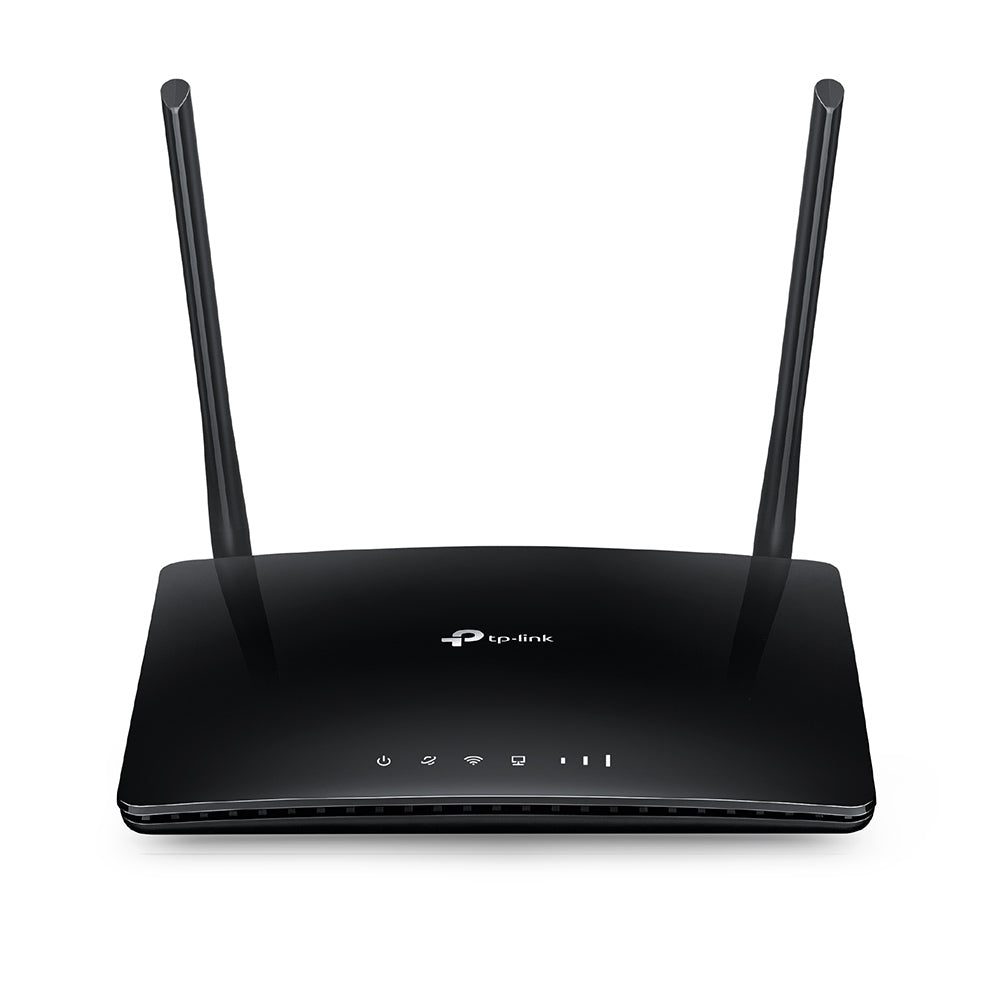

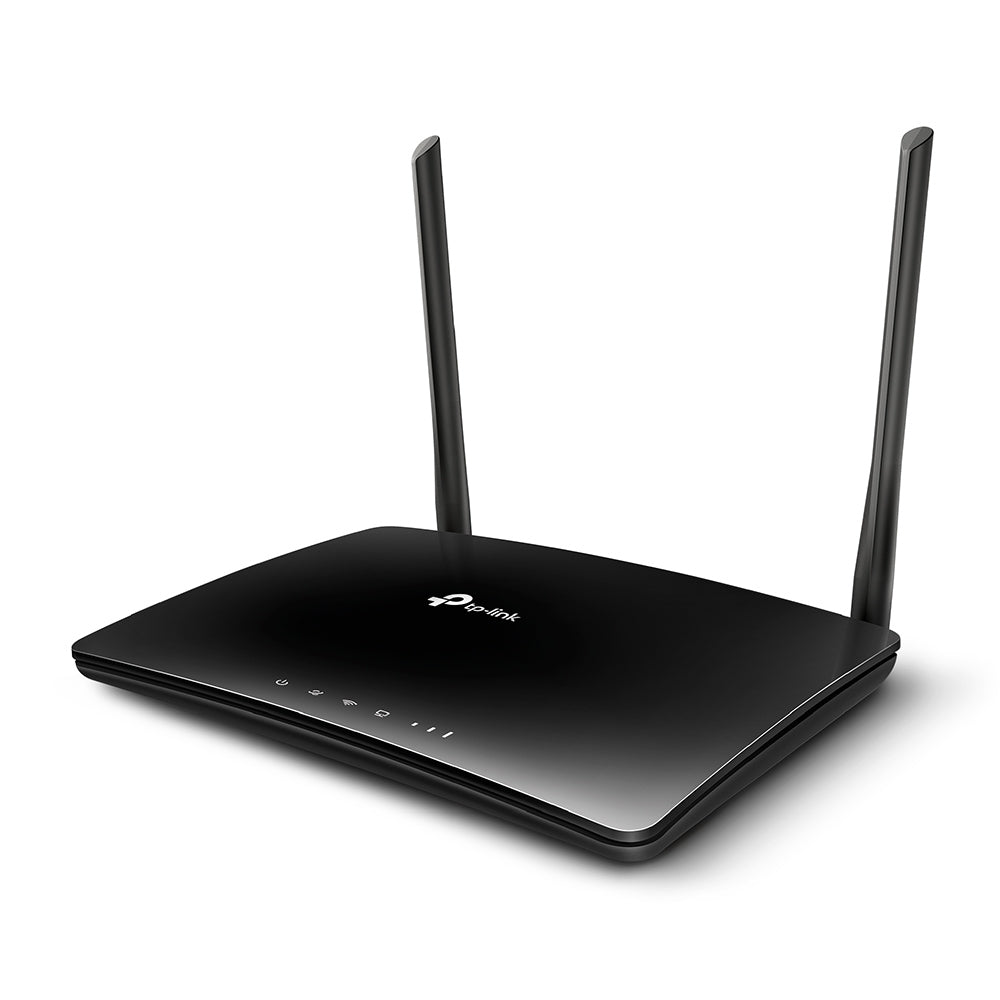

TP-Link TL-MR6400 300Mbps Wireless N 4G LTE Router
PRODUCT DESCRIPTION
TP-Link 300Mbps Wireless N 4G LTE Router (TL-MR6400) - 3 Years Local Warranty
The TL-MR6400 is the single-band workhorse of TP-Link's 4G LTE router line. One 2.4 GHz radio at 300 Mbps, four 10/100 Mbps ports and two detachable external LTE antennas give a straightforward shared mobile connection - no dual-band tuning, no fixed line, just a nano SIM and a power socket.
Single-Band 2.4 GHz Wi-Fi at 300 Mbps
Wi-Fi is IEEE 802.11b/g/n on 2.4 GHz only, published at 300 Mbps, with two internal Wi-Fi antennas. Sticking to 2.4 GHz keeps range and wall penetration at their best and keeps every older device compatible, at the cost of the higher throughput a 5 GHz radio would add. Published reception sensitivity is 11g 54M -74 dBm, 11n HT20 -71 dBm and 11n HT40 -67 dBm. A single 2.4 GHz guest network is supported.
LTE at Up to 150Mbps, With 3G and 2G Fallback
TP-Link publishes "download speeds of up to 150Mbps" on the 4G LTE connection - the mobile downlink figure, separate from the 300 Mbps 2.4 GHz Wi-Fi rate in the product name. Bands are FDD-LTE B1/B3/B7/B8/B20 and TDD-LTE B38/B40, plus DC-HSPA+/HSPA+/HSPA/UMTS on B1/B8 and EDGE/GPRS/GSM quad band. WAN Failover is published, so the unit can move between the mobile connection and a wired feed on the LAN/WAN port. The two external LTE antennas are detachable.
WDS Bridging and a VPN Server
The TL-MR6400 publishes a WDS Bridge function among its wireless features - useful for extending coverage to an outbuilding or a second unit without cabling. On the software side it carries a VPN server with PPTP VPN and OpenVPN, plus VPN pass-through for PPTP, L2TP and IPSec, and a firewall set of DoS protection, SPI firewall, IP address and domain filtering and IP/MAC binding.

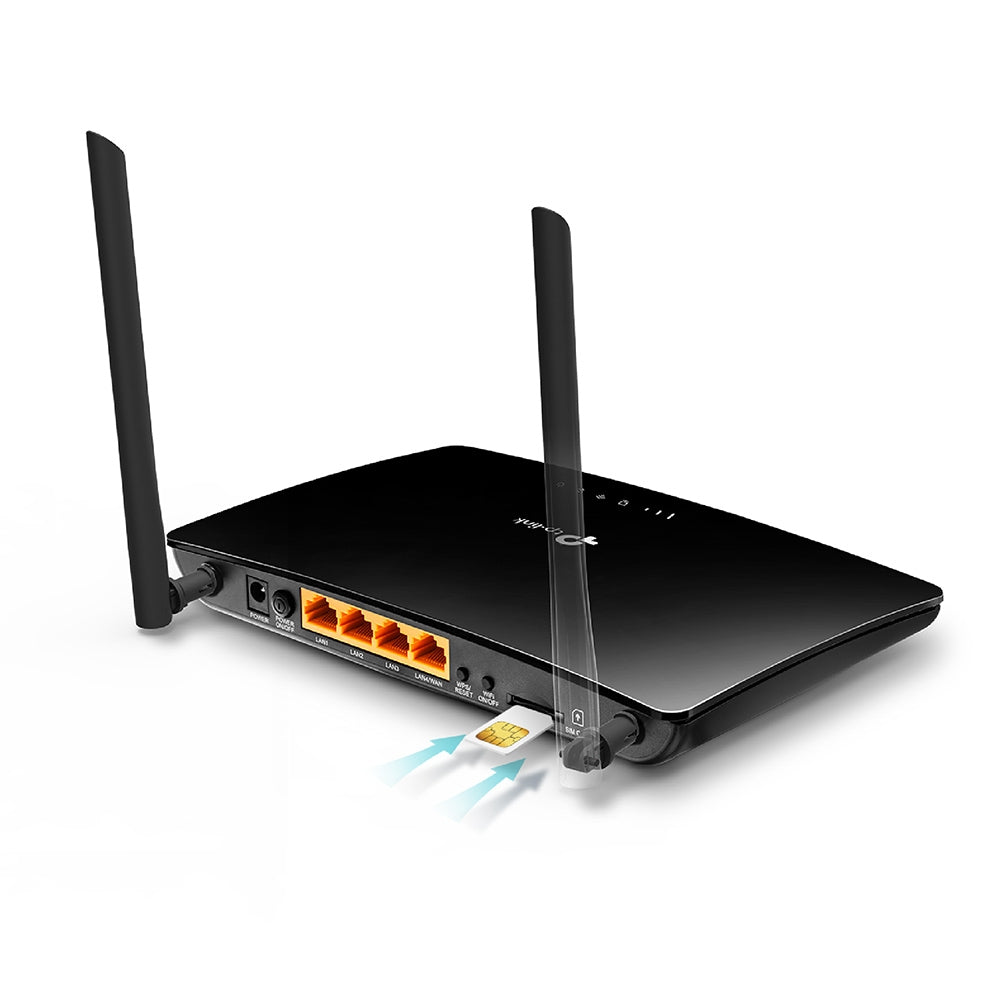

Nano SIM Slot With Adapters Supplied
The SIM slot is published as a nano SIM slot, and the box includes both a Micro-to-Standard and a Nano-to-Standard SIM card adapter, so any common SIM size fits. TP-Link also publishes a WPS/Reset button, a wireless on/off button and a power on/off button. Ports are three 10/100 Mbps LAN and one 10/100 Mbps LAN/WAN in a 202 x 141 x 33.6 mm desktop body.
Ideal For
Singapore homes, shops and site offices that need a simple shared 4G connection, older device fleets that live on 2.4 GHz, and standby internet where cost matters more than wireless speed. Supplied by SourceIT with local Singapore warranty and GST invoice.
TL-MR6400 Datasheet — Technical Specifications
General
| Model | TL-MR6400 |
| Official Product Name | 300Mbps Wireless N 4G LTE Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware

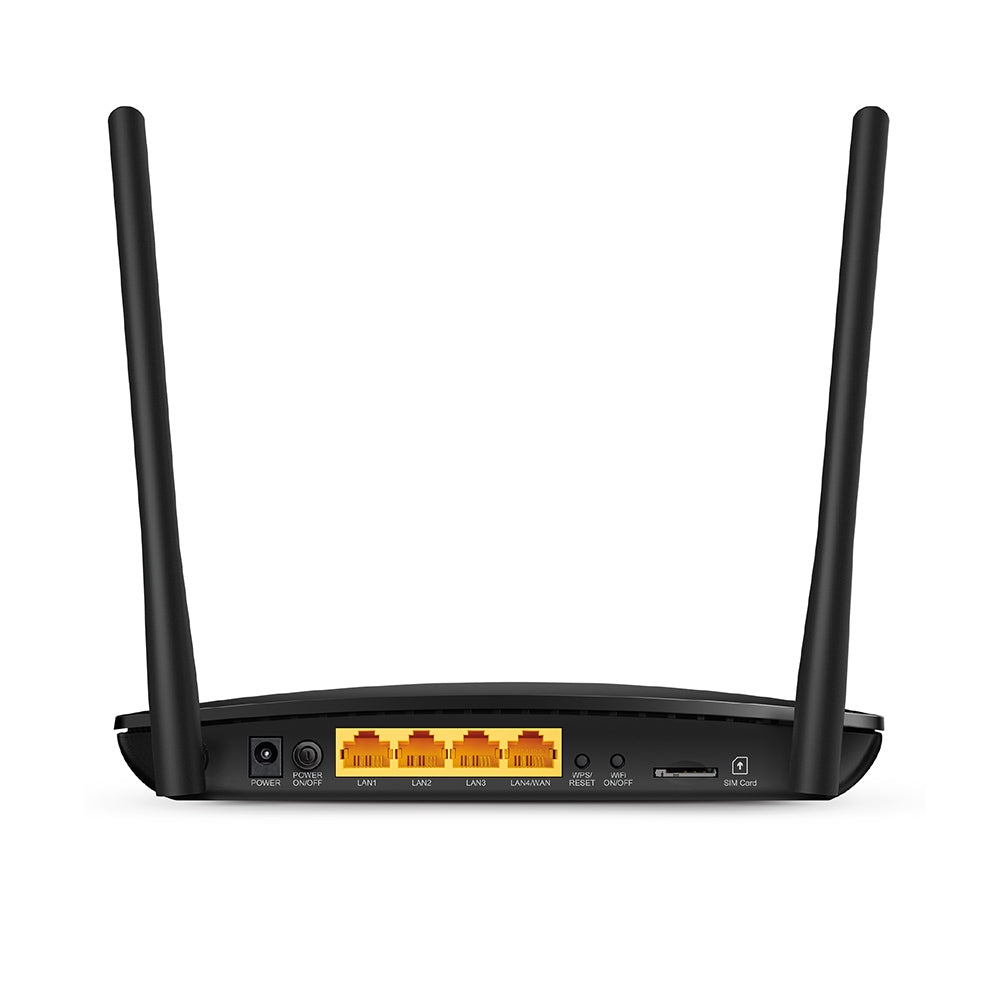

| Interface | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Ports | 3× 10/100 Mbps LAN ports, 1× 10/100 Mbps LAN/WAN Port, 1× Nano SIM Card Slot |
| Button | WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| Antenna Type | 2 Internal Wi-Fi Antennas, 2 Detachable External 4G LTE Antennas |
| External Power Supply | 12V/1A |
| External Power Supply (EU) | 9V/0.85A |
| Dimensions (W x D x H) | 202 x 141 x 33.6 mm (7.95 x 5.55 x 1.32 in) |
TP-Link publishes two power-supply ratings for this model, 12V/1A and, for EU, 9V/0.85A, and describes the SIM slot both as "1 SIM Card Slot" and as "1× Nano SIM Card Slot". Both are shown above. The box includes Micro-to-Standard and Nano-to-Standard SIM adapters. Check the adapter and SIM tray on the unit you receive, and ask us to confirm before ordering if either matters.
Mobile Broadband
| SIM Card Format | Nano SIM (published as "1× Nano SIM Card Slot"); Micro-to-Standard and Nano-to-Standard adapters supplied |
| 4G LTE Download Speed | Up to 150Mbps, published as "download speeds of up to 150Mbps" |
| Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz); TDD-LTE B38/B40 (2600/2300MHz); 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz); 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Failover | Yes |
Wireless
| Wireless Standards | IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz |
| Signal Rate | 300Mbps at 2.4GHz |
| Reception Sensitivity | 11g 54M: -74dBm; 11n HT20: -71dBm; 11n HT40: -67dBm |
| Transmit Power | CE: <20dBm(2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Guest Network | 2.4GHz guest network x 1 |
Software
| WAN Connection Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quality of Service | Traffic Control (IP QoS) |
| VPN Server | PPTP VPN, OpenVPN |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | Supports IPv4 and IPv6 |
Environment and Certification
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
TP-Link does not publish a processor, memory or net weight row for the TL-MR6400 on its Singapore page, so none is claimed here. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications; actual throughput, coverage and device counts vary with network conditions, client limitations and environmental factors.
Compatibility & Software Support
| SIM Format | Nano SIM, published as "1× Nano SIM Card Slot". Micro-to-Standard and Nano-to-Standard SIM card adapters are supplied in the box, so a micro or standard SIM will also fit. A data plan from your mobile operator is required; the SIM is not supplied |
| 4G LTE Download Speed | Up to 150Mbps, published as "download speeds of up to 150Mbps". Actual speed depends on your operator, plan, band and signal |
| Fixed-Line Use | The 10/100Mbps LAN/WAN port accepts a wired broadband service, so the router can run on fixed line, on the SIM, or with WAN Failover between them |
| Wireless Bridging | WDS Bridge is published among the wireless functions |
| VPN | PPTP VPN and OpenVPN server; PPTP/L2TP/IPSec pass-through |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher; SIM Card |
| Hardware Versions | TP-Link lists V8 as the current hardware version for Singapore, with V7.20, V7, V5, V4, V3, V2 and V1 also available. The specifications above are the ones TP-Link publishes for Singapore; confirm the revision with us if a specific version is required |
The system-requirements row is TP-Link's published text and still names operating systems and browsers that are long out of support. Band support varies by operator and plan — check your intended bands against the Network Type row above before ordering.
Package Contents & Ordering Information
Package Contents
| In the Box | 300Mbps Wireless N 4G LTE Router TL-MR6400; RJ45 Ethernet Cable; Power Adapter; Quick Installation Guide; Micro to Standard SIM Card Adapter; Nano to Standard SIM Card Adapter |
Ordering Information
| Model | TL-MR6400 |
| SourceIT SKU | TL-MR6400 |
| Warranty | 3 Years Local Warranty (Singapore) |
| Requires | An active nano SIM and mobile data plan (not included); a micro or standard SIM fits using the supplied adapters |
Datasheet & Downloads
Frequently Asked Questions — TL-MR6400
Does the TL-MR6400 have 5 GHz Wi-Fi?
No. It is a single-band 2.4 GHz router published at 300 Mbps. For dual-band on a 4G router, look at the Archer MR200, MR400, MR500 or MR505.
Which SIM size does it take?
Nano SIM. TP-Link publishes the slot both as "1× Nano SIM Card Slot" and as "1 SIM Card Slot", and the box contains Micro-to-Standard and Nano-to-Standard adapters so a micro or standard SIM will fit as well. Eight hardware revisions are in circulation, so ask us to confirm the SIM tray against the revision you are buying.
How fast is the 4G connection?
TP-Link publishes "download speeds of up to 150Mbps" on the LTE side. The 300 Mbps in the product name is the 2.4 GHz Wi-Fi rate, not the mobile downlink. Real speeds depend on your operator, plan, band and signal strength.
Can it extend an existing Wi-Fi network?
TP-Link publishes a WDS Bridge function among its wireless features. Send us the details of the network you want to extend and we will confirm whether this is the right approach.
What warranty does SourceIT provide?
Three years local Singapore warranty, per TP-Link's published replacement warranty policy, with a GST invoice on every unit.
Can SourceIT quote this in volume?
Yes. Send the quantity and we will quote the routers and local warranty support together.
