TP-Link Omada 25GBase-SR SFP28 LC Transceiver, Multi-Mode 100 m
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

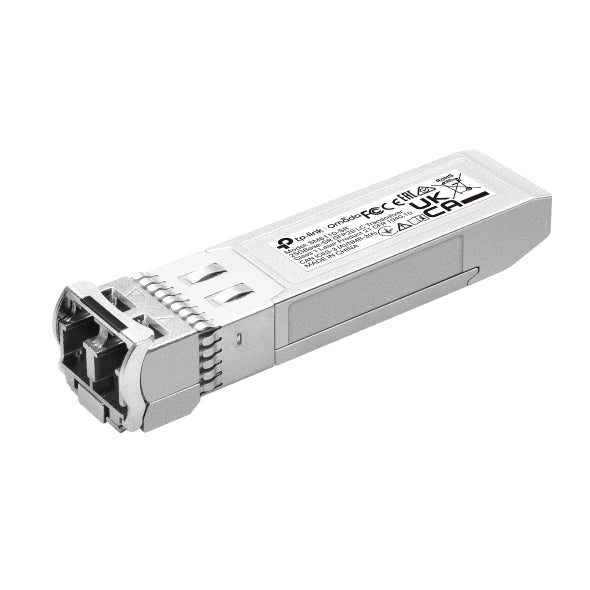

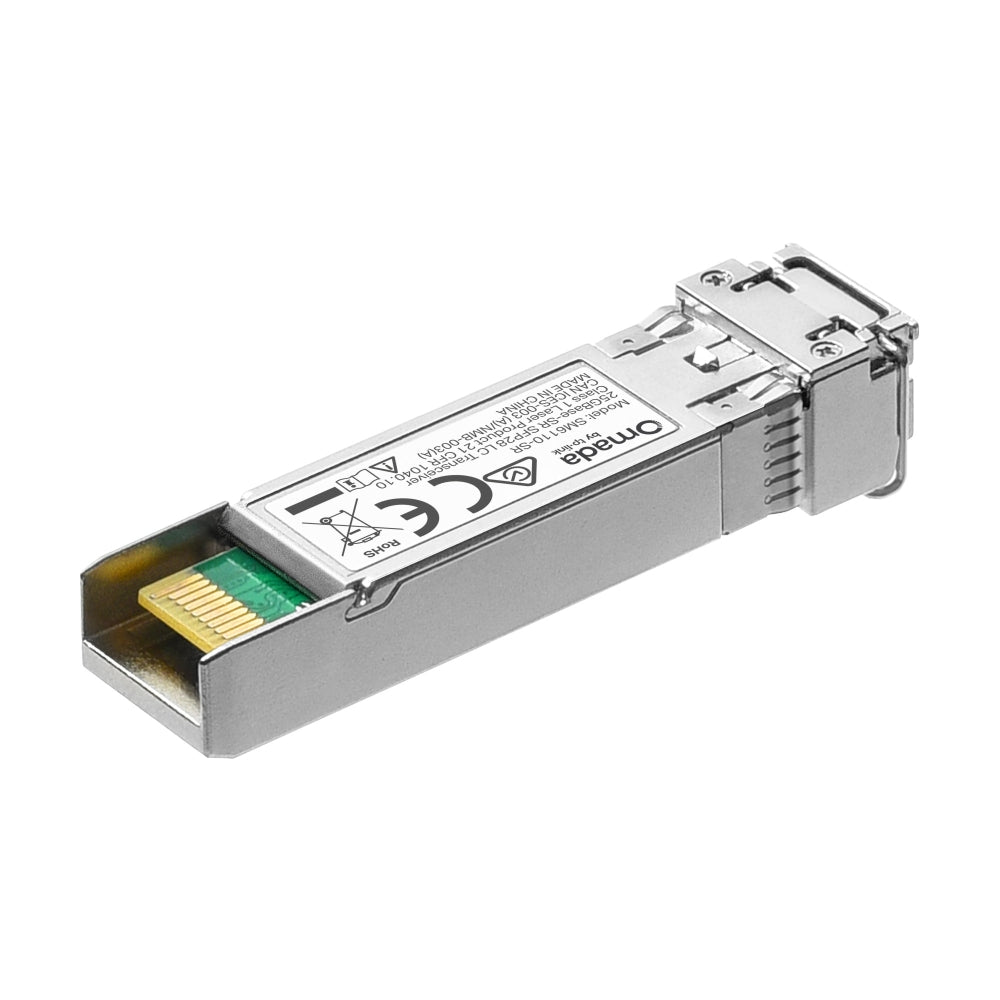

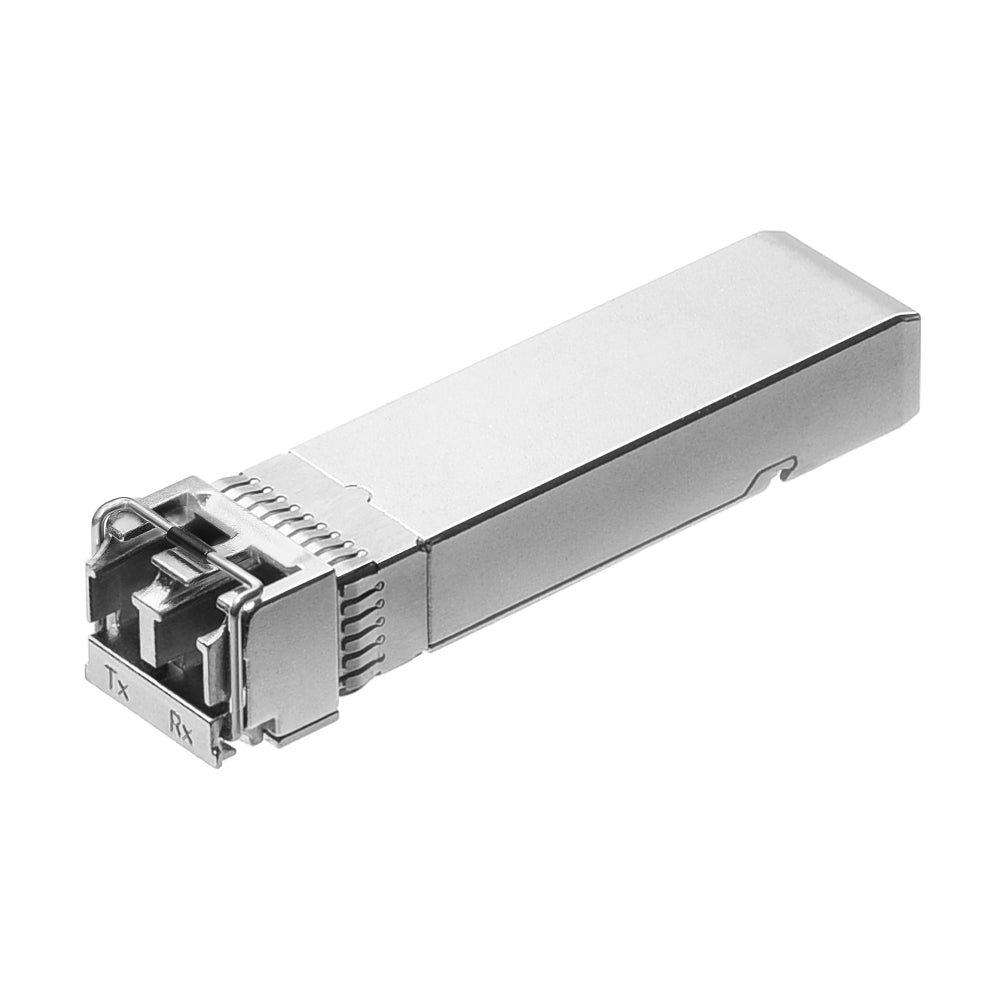

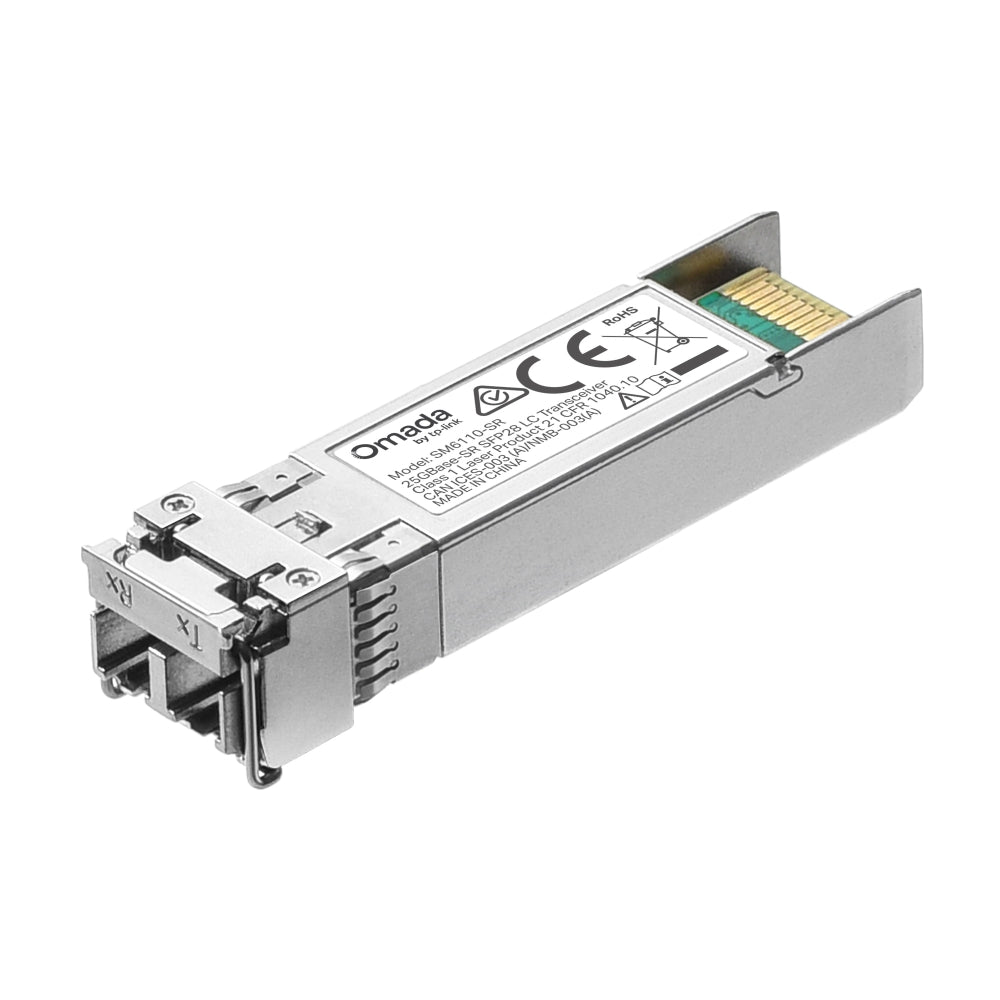

TP-Link Omada 25GBase-SR SFP28 LC Transceiver (SM6110-SR) - 5 Years Local Warranty
The SM6110-SR is Omada's short-reach 25 Gigabit optic: an 850 nm multi-mode SFP28 module that runs dual rate at 25.78 Gbps or 10.31 Gbps over duplex LC fibre. It reaches 70 m on OM3 and 100 m on OM4 at 25G, or 300 m on OM3 when stepped down to 10G, drawing no more than 1 W. It is the module to fit when the 25G link stays inside one building.
Dual Rate: 25.78 Gbps Today, 10.31 Gbps Where You Need Reach
One part number covers two speeds. At 25.78 Gbps the SM6110-SR carries a full 25 Gigabit Ethernet link over multi-mode fibre; dropped to 10.31 Gbps it behaves as a 10G optic and stretches to 300 m on OM3. That matters when a building's existing multi-mode plant is longer than 100 m — rather than re-pulling single-mode, the same module can run the link at 10G until the cabling is upgraded. It also means spares inventory does not have to be split between 10G and 25G short-reach parts.
850 nm Multi-Mode Optics on OM3 or OM4
The module transmits at 850 nm into 50/125 µm or 62.5/125 µm multi-mode fibre through a duplex LC/UPC connector, the standard short-reach combination in a data centre or a riser. TP-Link publishes the reach against fibre grade rather than a single headline number: 70 m on OM3 and 100 m on OM4, both at 25.78 Gbps. Multi-mode optics and patch cords cost materially less than single-mode over these distances, which is why short-reach modules are the usual choice for switch-to-switch links inside a rack row.
Under 1 W, DDM and Hot Swappable
Power consumption is no more than 1 W, so a fully populated line of SFP28 slots adds very little to the switch's thermal load. Digital Diagnostic Monitoring is supported, giving the host switch real-time optical transmit and receive levels, temperature, bias current and supply voltage — the readings an engineer uses to tell a dirty connector from a failing laser without pulling the module. The module is hot swappable and SFP-MSA compliant, so it seats and re-seats in a live chassis.
Standards-Based, Including Fronthaul Protocols
The SM6110-SR is built to IEEE 802.3ae and 802.3by, the 10G and 25G Ethernet standards, and to the SFF-8402, SFF-8431, SFF-8432 and SFF-8472 mechanical, electrical and management interface specifications that make an SFP28 cage an SFP28 cage. TP-Link additionally lists eCPRI and CPRI support, the fronthaul protocols used between radio equipment and baseband units, alongside TCP/IP — so the part is not limited to enterprise switching.
Ideal For
Singapore data centres, campus cores and Omada deployments moving switch-to-switch uplinks from 10G to 25G over existing multi-mode fibre, and integrators who want one short-reach optic that also serves as a long-haul 10G part. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
SM6110-SR Datasheet — Technical Specifications
General
| Model | SM6110-SR |
| Official Product Name | Omada 25GBase-SR SFP28 LC Transceiver |
| Brand | TP-Link Omada |
| Warranty | 5 Years Local Warranty (Singapore) |
Hardware Features
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Dimensions (W x D x H) | 2.23 × 0.56 × 0.44 in (56.75 × 14 × 11.26 mm) |
Transceiver
| Standards and Protocols | IEEE 802.3ae, 802.3by; SFF-8402, SFF-8431, SFF-8432, SFF-8472; eCPRI, CPRI; TCP/IP |
| Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |
| Wavelength | 850 nm |
| Fiber Type | 50/125 µm or 62.5/125 µm Multi-mode |
| Max. Cable Length | 70 m (OM3) @ 25.78 Gbps, 100 m (OM4) @ 25.78 Gbps, 300 m (OM3) @ 10.31 Gbps |

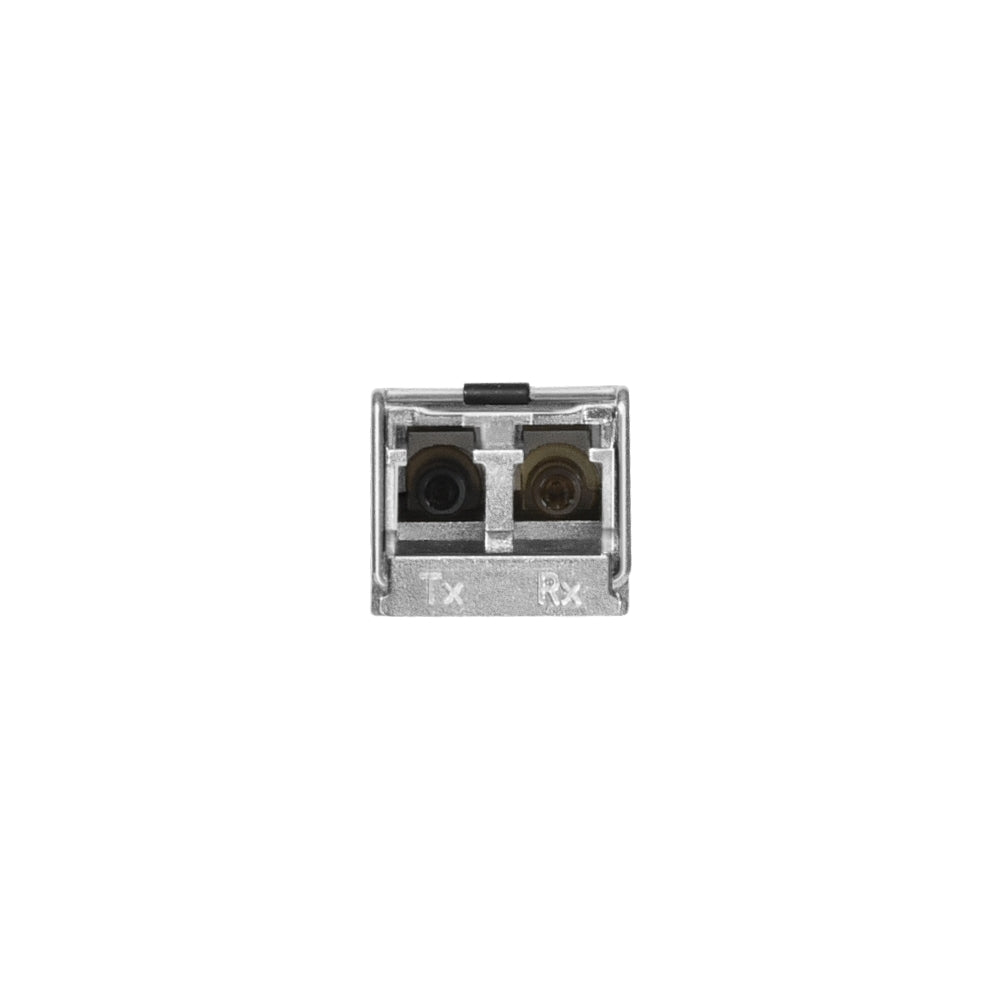

| Connector | Duplex LC/UPC |
| Power Supply | 3.3 V |
| Power Consumption | No more than 1 W |
| Regulatory Compliance | CE, FCC, RoHS |
| Operating Temperature | 0 °C to 70 °C (32 °F to 158 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 85% RH non-condensing |
| Storage Humidity | 5% to 85% RH non-condensing |
TP-Link does not publish an EAN or carton pack size for this module. Ask SourceIT if you need carton quantities for a bulk order.
Compatibility & Software Support
This is a passive pluggable transceiver, not a managed Omada device. It carries no firmware of its own, needs no licence, and does not appear in an Omada Controller as a separate device — the host switch owns the port, reports the link, and exposes whatever diagnostics it supports. Adopting the switch into an Omada Software, Hardware or Cloud-Based Controller is what puts the port under central management.
| Slot Type | SFP28 — SFP-MSA compliant, hot swappable |
| Supported Rates | 25.78 Gbps and 10.31 Gbps (dual rate) |
| Fibre Required | Duplex multi-mode, 50/125 µm or 62.5/125 µm, LC/UPC connectors |
| Matching Module | A second SM6110-SR at the far end — short-reach optics are fitted in pairs |
| Diagnostics | DDM, read by the host switch |
| Omada Controller | Not adopted directly; managed through the switch that hosts it |
TP-Link does not publish a per-switch compatibility list for this module. Send us your switch model and slot type and we will confirm before you order rather than infer it from a sibling product.
Package Contents & Ordering Information
Package Contents
- SM6110-SR
- Installation Guide
Ordering Information
| Model | SM6110-SR |
| Recommended Retail Price (incl. GST) | S$129.00 |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — SM6110-SR
Can the SM6110-SR run at 10G instead of 25G?
Yes. It is a dual-rate module, specified at 25.78 Gbps and 10.31 Gbps. At the lower rate TP-Link publishes a reach of 300 m on OM3 fibre, against 70 m on OM3 at the full 25G rate.
What fibre do I need?
Duplex multi-mode with LC/UPC connectors — 50/125 µm or 62.5/125 µm. Reach depends on grade: 70 m on OM3 or 100 m on OM4 at 25.78 Gbps.
Will it work in my switch?
It needs an SFP28 slot. TP-Link publishes no per-switch compatibility list for this module, so send us your switch model and we will confirm before you order.
Do I need one module or two?
Two. A fibre link needs a matching optic at each end, so order the SM6110-SR in pairs unless the far end is already fitted.
What warranty does SourceIT provide?
Five years local Singapore warranty, under Omada's replacement warranty tier for accessories. Every module sold by SourceIT comes with a GST invoice.
Can SourceIT quote this for a project?
Yes. Send the bill of materials and we will quote the whole Omada build — switching, optics, patching, gateways and access points — with local warranty and support.
