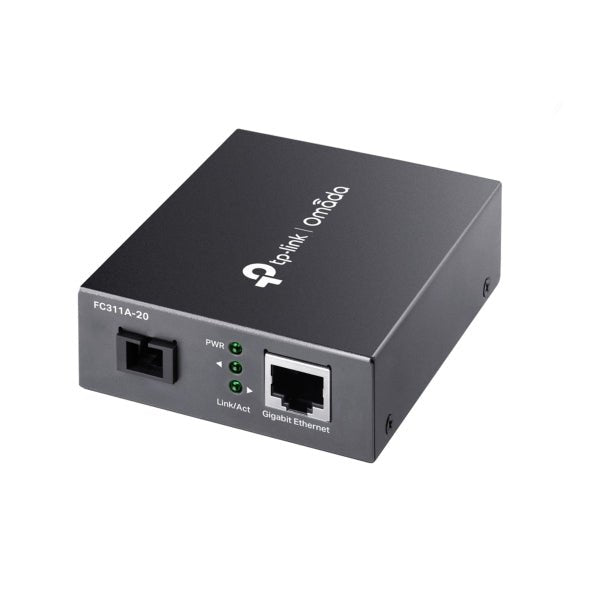

TP-Link Omada 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter (TL-FC311A-20)

  • $66.24
    Unit price per
Shipping calculated at checkout.

TP-Link Omada 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter (TL-FC311A-20) - 5 Year Warranty

TP-Link Omada 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter (TL-FC311A-20)
The TP-Link TL-FC311A-20 is an advanced media converter designed to efficiently convert 10/100/1000 Mbps Ethernet (RJ45) signals into 1000 Mbps single-mode SC fiber signals using WDM (Wavelength Division Multiplexing) bi-directional technology. This fiber converter is an ideal solution for businesses and enterprises needing to extend their network across long distances, ensuring high-speed, reliable communication with minimal fiber cable usage. The TL-FC311A-20 is perfect for applications where a low-cost, space-saving, and high-performance solution is needed for fiber network expansion.

WDM Bi-Directional Technology for Efficient Fiber Usage
Equipped with WDM bi-directional technology, the TP-Link TL-FC311A-20 enables simultaneous data transmission and reception over a single fiber strand, maximizing fiber usage and reducing the need for additional fiber cables. This technology ensures efficient long-distance communication by allowing both upstream and downstream data to flow over the same fiber. By utilizing WDM technology, the TL-FC311A-20 provides high-speed, full-duplex communication with minimal signal loss and interference, making it an ideal choice for networks requiring reliable and high-performance fiber connectivity.

Long-Distance Fiber Connectivity with Single-Mode Fiber
The TP-Link TL-FC311A-20 is capable of supporting up to 20 kilometers (12.4 miles) of single-mode fiber, making it suitable for enterprise-level network deployments that span large distances, such as campus networks or multi-building setups. Single-mode fiber ensures that signals travel with minimal attenuation, allowing for consistent high-speed performance even over extended distances. This long-range connectivity helps businesses extend their network reach without compromising data quality, making it a great choice for expanding networks or upgrading existing infrastructure.

Seamless Installation and Compatibility
With its plug-and-play functionality, the TP-Link TL-FC311A-20 is easy to set up and integrate into any network. The converter features a 10/100/1000 Mbps auto-negotiating RJ45 Ethernet port and an SC single-mode fiber port, offering excellent compatibility with various networking devices. The bi-directional feature simplifies fiber deployment by using only one fiber strand, making installation faster and more cost-effective. This fiber converter requires no complex configuration, ensuring quick deployment and smooth integration with your existing network infrastructure.

Durable, Compact, and Energy-Efficient Design
The TP-Link TL-FC311A-20 is built to last, offering robust performance in demanding environments. Its compact design allows for easy installation in tight spaces such as network closets or server rooms. The device is also energy-efficient, consuming minimal power while maintaining reliable data transmission speeds. This energy-efficient operation helps reduce operational costs and ensures long-term reliability, making it a cost-effective solution for businesses that need efficient, high-performance networking equipment.

Technical Specifications

  • Model: TP-Link Omada 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter (TL-FC311A-20)
  • Ethernet Port: 1 x RJ45 10/100/1000 Mbps Auto-Negotiation
  • Fiber Port: 1 x SC Single-mode Fiber (1000 Mbps) with WDM Bi-Directional Technology
  • Fiber Distance: Up to 20 kilometers (12.4 miles) on single-mode fiber
  • WDM Technology: Bi-Directional over Single Fiber
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Humidity: 10% to 90% (Non-condensing)
  • Power Supply: 5V/1A (External Power Adapter)
  • Dimensions: 3.3 x 2.1 x 0.9 inches
  • GTIN: 6935364065966

Detailed Specifications

PORT: 1× Gigabit SC Port, 1× Gigabit RJ45 Port (Auto MDI/MDIX) SPEC: Full-duplex, Tx:1550 nm, Rx:1310 nm, Up to 20 km, Chassis TL-FC1420 rack-mountable
