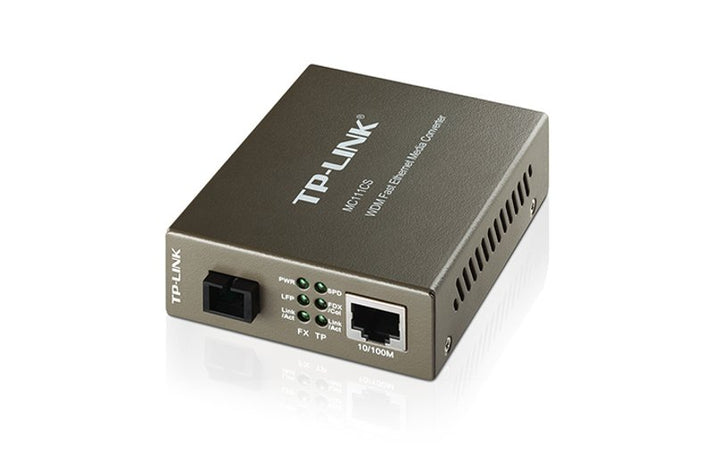

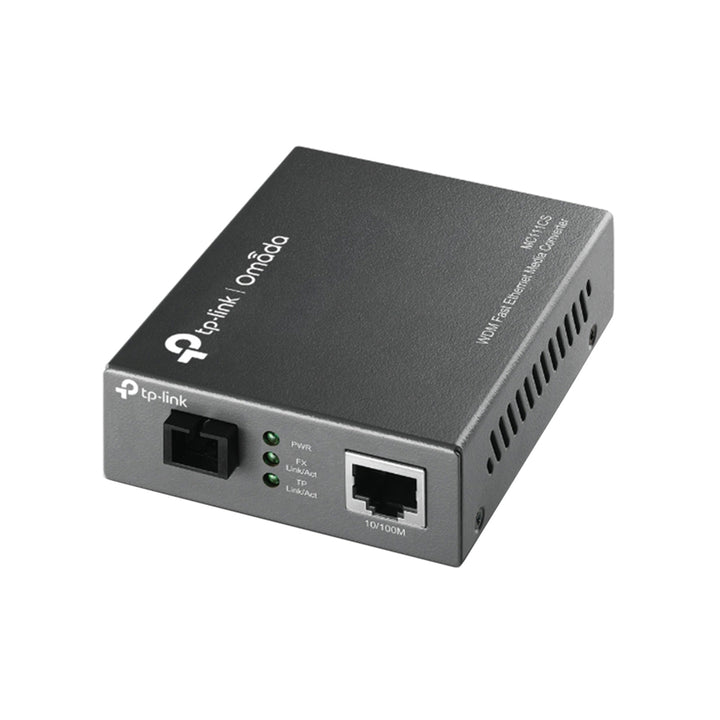

TP-Link Single-mode SC 10/100Mbps WDM Media Bi-Directional Fiber Converter (MC111CS)

TP-Link Single-mode SC 10/100Mbps WDM Media Bi-Directional Fiber Converter (MC111CS) - Efficient Fiber Network Solution

The TP-Link Single-mode SC 10/100Mbps WDM Media Bi-Directional Fiber Converter (MC111CS) is a highly efficient and cost-effective solution for extending network connections over long distances using fiber optics. With its single-mode SC fiber interface, this media converter enables bi-directional communication over a single fiber strand using Wavelength Division Multiplexing (WDM) technology. This makes it an ideal choice for linking remote buildings, campuses, or industrial sites, ensuring reliable high-speed connectivity with minimal signal degradation.

WDM Technology for Bi-Directional Fiber Communication

The TP-Link MC111CS features WDM technology, allowing for bi-directional data transmission over a single fiber cable. By utilizing separate wavelengths for upstream and downstream signals, WDM minimizes the need for multiple fiber strands, making it a cost-effective and space-efficient solution for fiber-optic network expansion. This feature is particularly useful in situations where fiber infrastructure is limited or expensive, as it maximizes the capacity of the available fiber connection.

Single-Mode SC Fiber for Long-Distance Connectivity

The MC111CS is equipped with a single-mode SC fiber interface, supporting long-distance connections of up to 20 kilometers (12.4 miles). Single-mode fiber offers superior transmission quality with lower signal loss, making it ideal for high-speed, long-distance communication. This makes the MC111CS suitable for various outdoor or industrial applications, where high-performance and extended reach are essential for maintaining a stable network.

10/100Mbps Ethernet for Versatile Networking

Supporting 10/100Mbps Ethernet speeds, the TP-Link MC111CS is compatible with a wide range of devices such as switches, routers, and other networking equipment. Whether you're setting up a new network or extending an existing one, this media converter ensures smooth data transmission between fiber and Ethernet-based devices. It enables seamless integration of legacy equipment with fiber-optic networks, helping businesses or organizations maximize their network performance and efficiency.

Durable and Easy to Install

Designed for reliability and ease of use, the TP-Link MC111CS features a compact and rugged design that can withstand industrial environments. Its simple plug-and-play functionality ensures a hassle-free installation process, while its durable metal casing guarantees long-lasting operation. The converter can be used for both indoor and outdoor deployments, making it versatile for various networking scenarios, including remote locations where fiber-based connectivity is required.

Technical Specifications

• Ethernet Standard: 10/100Mbps
• Fiber Interface: Single-mode SC
• WDM Technology: Bi-directional transmission over a single fiber strand
• Max Distance: Up to 20 kilometers (12.4 miles)
• Power Supply: 5V DC, 1A
• Dimensions: 97 x 69 x 27 mm
• Operating Temperature: 0°C to 50°C
• Compliance: CE, FCC
• GTIN: 6935364094242

Detailed Specification:

10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
PORT: 1× 100Mbps SC Port, 1× 10/100M RJ45 Port (Auto MDI/MDIX)
SPEC: Full-duplex, Tx:1550 nm, Rx:1310 nm, Up to 20 km, Chassis TL-MC1400 Rack-mountable.
