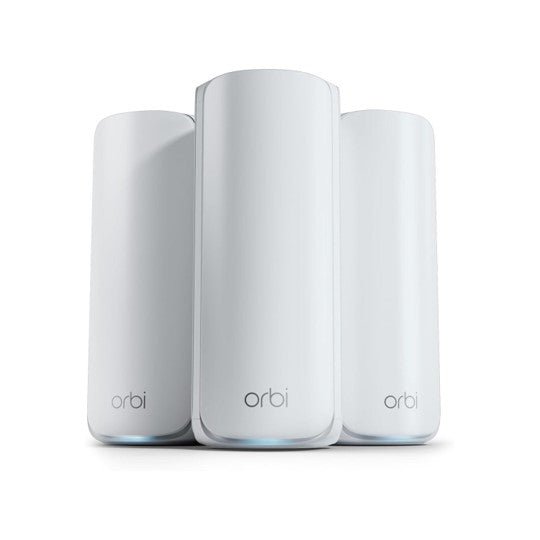

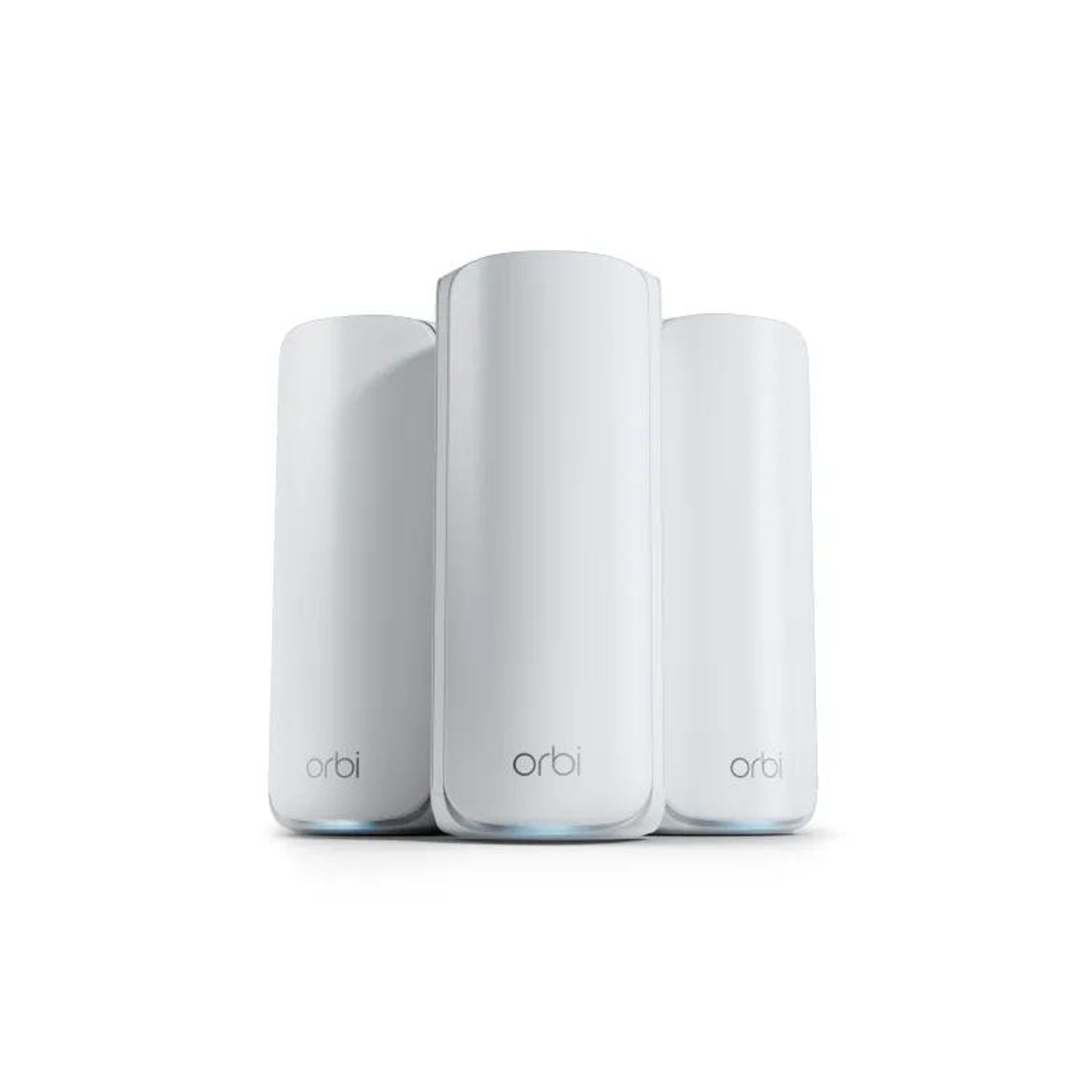

NETGEAR Orbi 770 RBE773 Tri-Band WiFi 7 Mesh System BE11000, 3-Pack
PRODUCT DESCRIPTION
NETGEAR Orbi 770 Series Tri-Band WiFi 7 Mesh System 3-Pack (RBE773-100APS) - Local Warranty
Affordable WiFi 7 Mesh
The NETGEAR Orbi 770 RBE773 brings tri-band BE11000 WiFi 7 to the whole home, with combined WiFi speeds of up to 11 Gbps — 2.4x faster than WiFi 6 per NETGEAR.
Multi-Link Operation
Multi-Link Operation combines the 5 GHz and 6 GHz bands for backhaul and fronthaul, and preamble puncturing blocks interference for stronger, steadier connections.

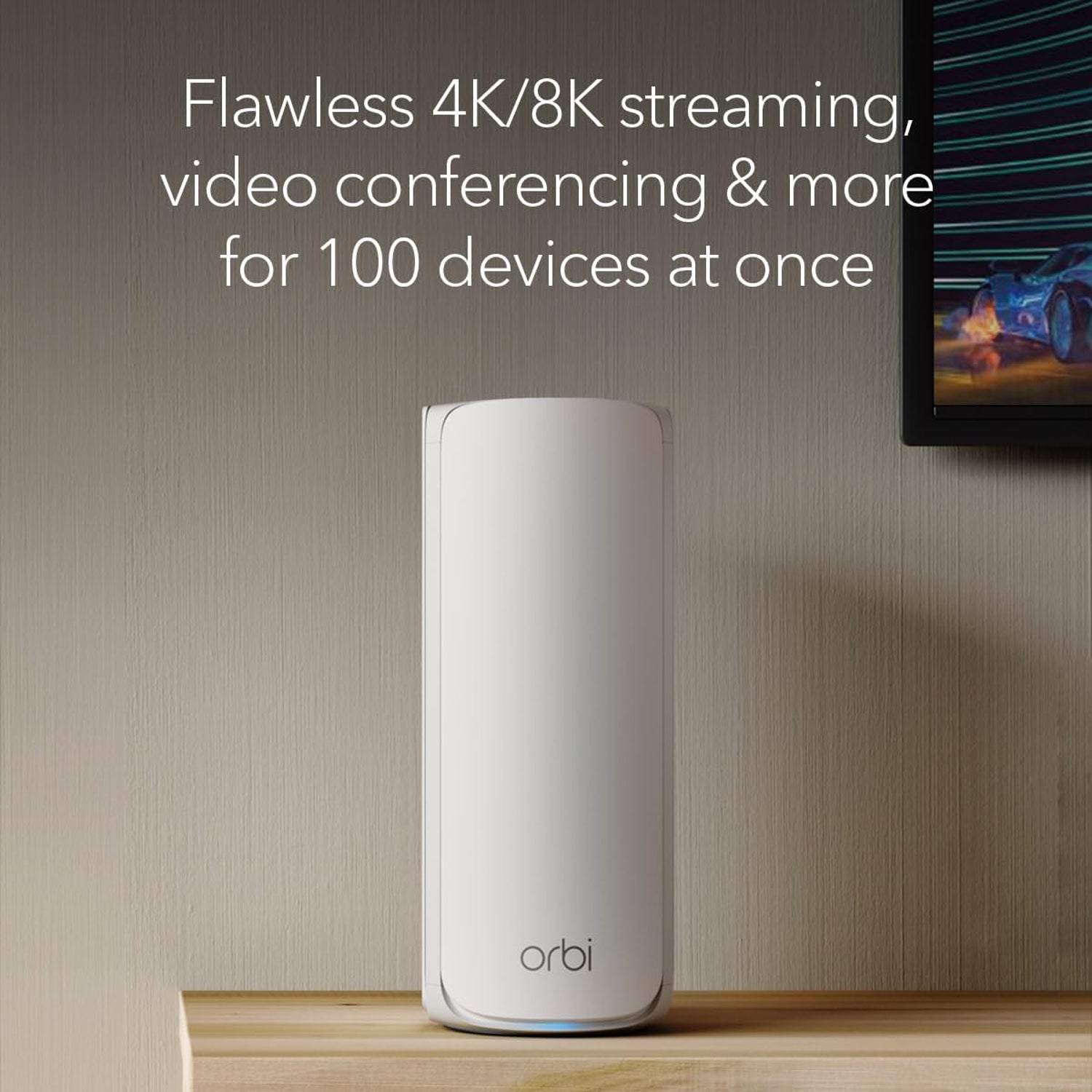

Coverage for Up to 100 Devices
One router and two satellites cover up to 540 sq. m. (NETGEAR Singapore; up to 8,000 sq. ft. on the datasheet) and support up to 100 connected devices.

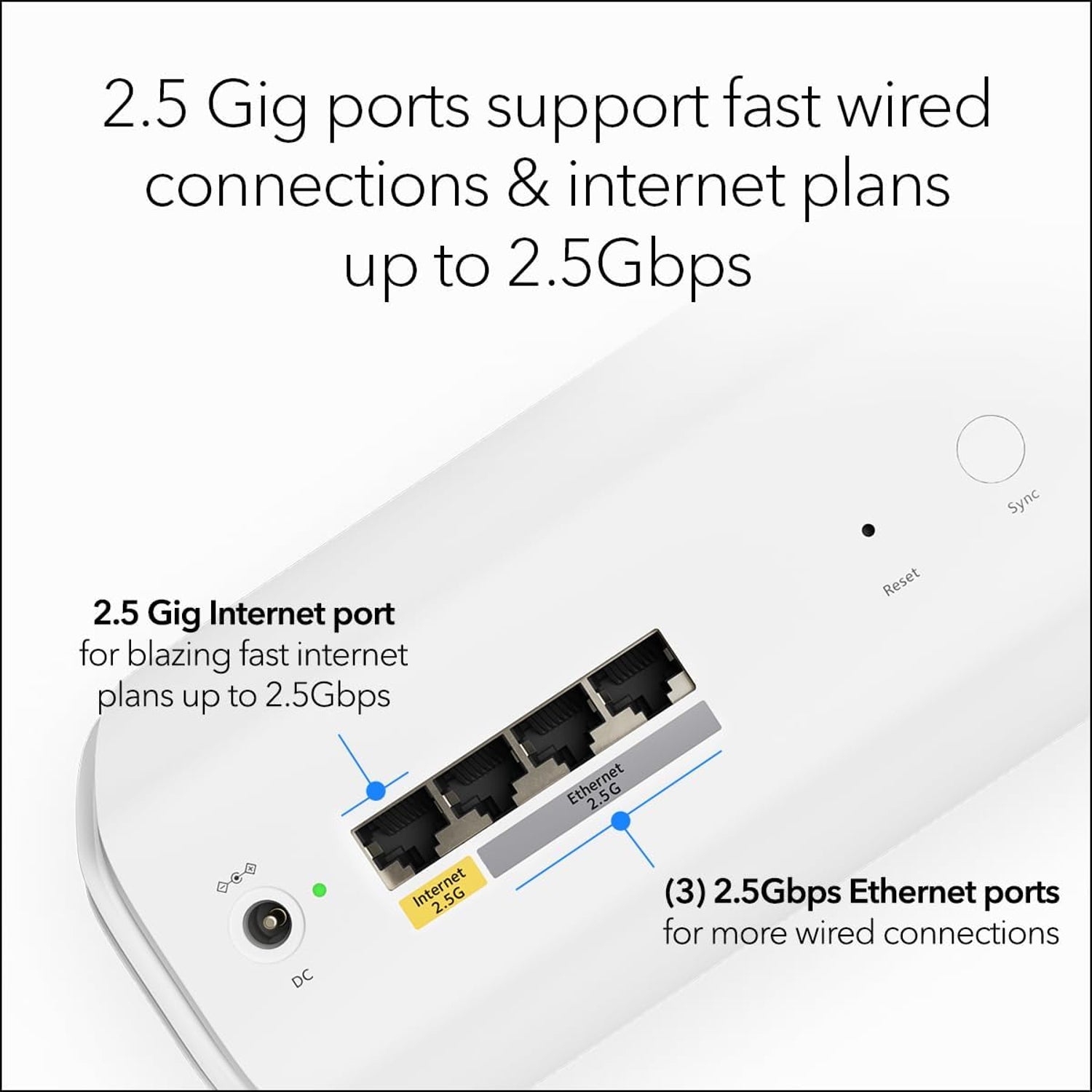

2.5 Gig Everywhere
A 2.5 Gbps internet port and three 2.5 Gbps LAN ports on the router, plus two 2.5 Gbps ports on every satellite.
Need help choosing? Email sales@sourceit.com.sg with your home size, number of floors and internet plan and we will recommend the right system.
NETGEAR RBE773 Datasheet — Technical Specifications
General
| Product Name | NETGEAR Orbi 770 Series Tri-Band WiFi 7 Mesh System 3-Pack |
| Part Number | RBE773-100APS |
| Series | NETGEAR Orbi 770 Series (WiFi 7) |
| Local Warranty (Singapore) | Local warranty in Singapore, supplied by SourceIT with a GST invoice |
Wireless
| WiFi Standard | WiFi 7 |
| Speed Class | BE11000 — combined WiFi speeds up to 11 Gbps |
| Bands | Tri-band: 6 GHz (2x2), 5 GHz (2x2), 2.4 GHz (2x2) — 6 streams |
| Multi-Link Operation | Combines 5 GHz and 6 GHz bands for backhaul and fronthaul |
| Coverage | Up to 540 sq. m. (3-pack, NETGEAR Singapore); up to 8,000 sq. ft. per datasheet |
| Concurrent Devices | Up to 100 |
Ports
| Router (RBE771) | 1 x 10/100/1000/2500 Mbps Multi-Gig WAN port; 3 x 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports |
| Satellite (RBE770) | 2 x 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports (each) |
Hardware & Security
| Processor | Quad-core 1.5 GHz |
| Security | WPA3 encryption; VPN; optional NETGEAR Armor subscription |
| Management | NETGEAR Orbi app |
Physical
| Dimensions (per unit) | 251.2 x 134.2 x 100.4 mm (9.88 x 5.28 x 3.95 in) |
| Weight (per unit) | 0.916 kg (2.02 lb) |
Compatibility & Software Support
Internet Connection
Connects to your existing fibre ONT, modem or gateway.
Expansion
Add RBE770 satellites to extend coverage — the RBE770 requires the Orbi 770 Series router (RBE771).
App
Set up and manage with the NETGEAR Orbi app.
Package Contents & Orbi 770 Series Ordering Information
In the Box
1 x Orbi WiFi 7 router (RBE771), 2 x Orbi WiFi 7 satellites (RBE770), 1 x Ethernet cable, 3 x power adapters, quick start guide.
NETGEAR Orbi 770 Series Models
| Model | Description | Part No. |
| RBE773 (this listing) | Router + 2 satellites (3-pack) | RBE773-100APS |
| RBE772 | Router + 1 satellite (2-pack) | RBE772-100APS |
| RBE770 | Add-on satellite | RBE770-100APS |
Datasheet & Downloads
| NETGEAR tech spec sheet | RBE773 Technical Specifications (PDF) |
| Quick start guide | RBE772/RBE773 Quick Start Guide (PDF) |
| User manual | Orbi 770 Series User Manual (PDF) |
| NETGEAR product page | RBE773 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting RBE773-100APS.
Frequently Asked Questions — NETGEAR RBE773
How fast is the Orbi 770?
Combined WiFi speeds of up to 11 Gbps (BE11000 tri-band WiFi 7) per NETGEAR.
How much area does the 3-pack cover?
Up to 540 sq. m. per NETGEAR Singapore (up to 8,000 sq. ft. on the datasheet).
What ports are included?
Router: one 2.5 Gbps WAN and three 2.5 Gbps LAN ports. Each satellite: two 2.5 Gbps LAN ports.
How many devices can connect?
Up to 100 connected devices.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. Contact us for the warranty period.
