NETGEAR Orbi 770 RBE772 Tri-Band WiFi 7 Mesh System BE11000, 2-Pack
PRODUCT DESCRIPTION
NETGEAR Orbi 770 Series Tri-Band WiFi 7 Mesh System 2-Pack (RBE772-100APS) - 1 Year Local Warranty
Affordable WiFi 7 Mesh
The NETGEAR Orbi 770 RBE772 brings tri-band BE11000 WiFi 7 to condominiums and smaller homes, with combined WiFi speeds of up to 11 Gbps per NETGEAR.
Multi-Link Operation
Multi-Link Operation combines the 5 GHz and 6 GHz bands for backhaul and fronthaul, and preamble puncturing blocks interference for stronger connections.
Coverage for Up to 100 Devices
One router and one satellite cover up to 360 sq. m. (NETGEAR Singapore; up to 5,500 sq. ft. on the datasheet) and support up to 100 connected devices.
2.5 Gig Everywhere

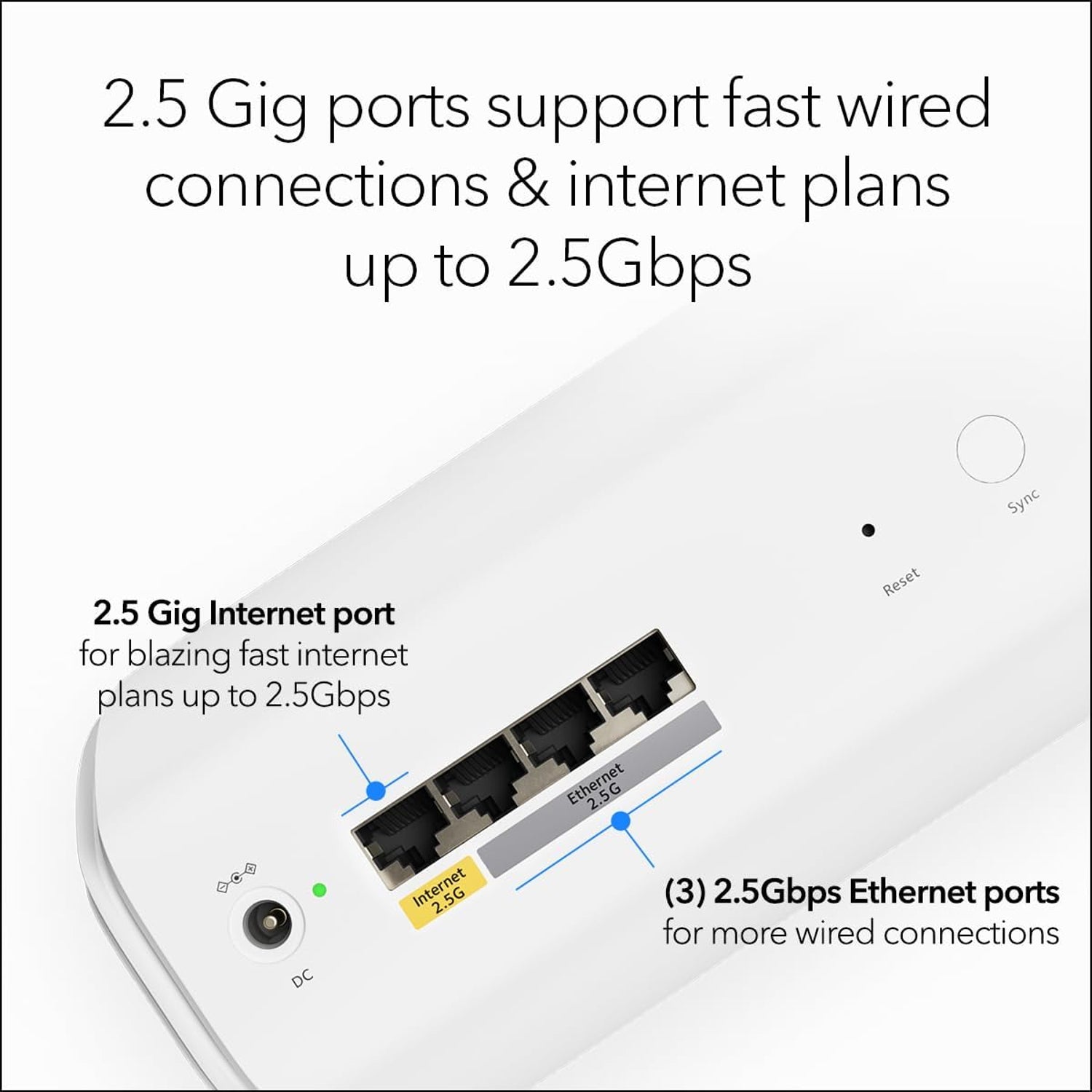

A 2.5 Gbps internet port and three 2.5 Gbps LAN ports on the router, plus two 2.5 Gbps ports on the satellite.
Need help choosing? Email sales@sourceit.com.sg with your home size, number of floors and internet plan and we will recommend the right system.
NETGEAR RBE772 Datasheet — Technical Specifications
General
| Product Name | NETGEAR Orbi 770 Series Tri-Band WiFi 7 Mesh System 2-Pack |
| Part Number | RBE772-100APS |
| Series | NETGEAR Orbi 770 Series (WiFi 7) |
| Local Warranty (Singapore) | 1 year local warranty in Singapore, supplied by SourceIT with a GST invoice |
Wireless
| WiFi Standard | WiFi 7 |
| Speed Class | BE11000 — combined WiFi speeds up to 11 Gbps |
| Bands | Tri-band: 6 GHz (2x2), 5 GHz (2x2), 2.4 GHz (2x2) — 6 streams |
| Multi-Link Operation | Combines 5 GHz and 6 GHz bands for backhaul and fronthaul |
| Coverage | Up to 360 sq. m. (2-pack, NETGEAR Singapore); up to 5,500 sq. ft. per datasheet |
| Concurrent Devices | Up to 100 |
Ports
| Router (RBE771) | 1 x 10/100/1000/2500 Mbps Multi-Gig WAN port; 3 x 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports |
| Satellite (RBE770) | 2 x 10/100/1000/2500 Mbps Multi-Gig Ethernet LAN ports (each) |
Hardware & Security
| Processor | Quad-core 1.5 GHz |
| Security | WPA3 encryption; VPN; optional NETGEAR Armor subscription |
| Management | NETGEAR Orbi app |
Physical
| Dimensions (per unit) | 251.2 x 134.2 x 100.4 mm (9.88 x 5.28 x 3.95 in) |
| Weight (per unit) | 0.916 kg (2.02 lb) |
Compatibility & Software Support
Internet Connection
Connects to your existing fibre ONT, modem or gateway.
Expansion
Add RBE770 satellites to extend coverage — the RBE770 requires the Orbi 770 Series router (RBE771).
App
Set up and manage with the NETGEAR Orbi app.
Package Contents & Orbi 770 Series Ordering Information
In the Box

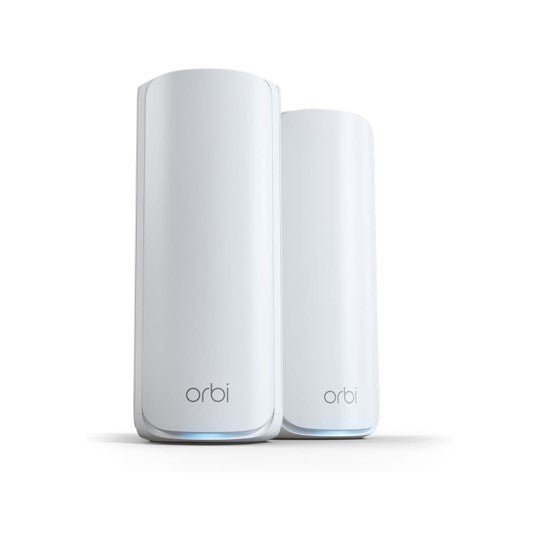

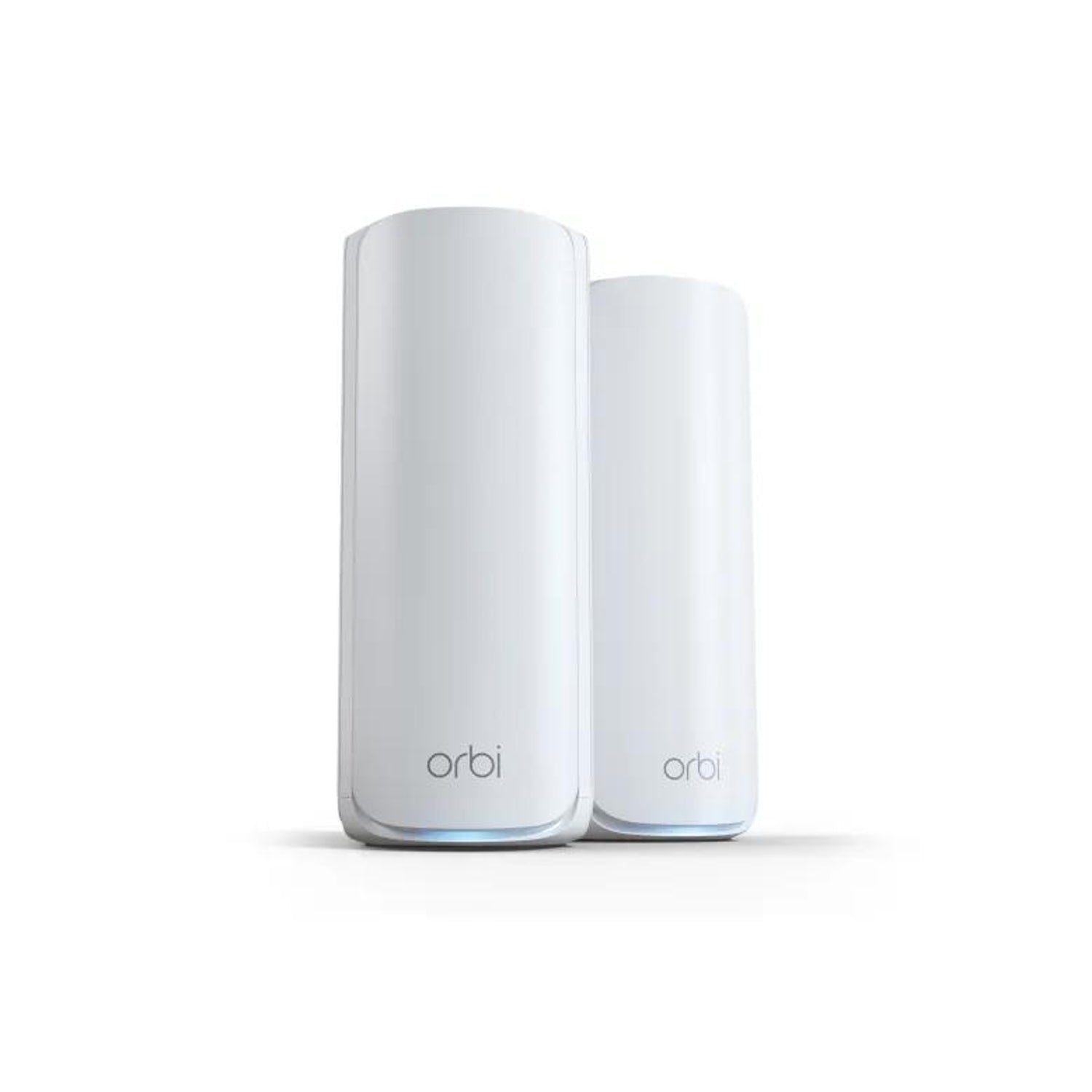

1 x Orbi WiFi 7 router (RBE771), 1 x Orbi WiFi 7 satellite (RBE770), 1 x 2 m Ethernet cable, 2 x power adapters, quick start guide.
NETGEAR Orbi 770 Series Models
| Model | Description | Part No. |
| RBE773 | Router + 2 satellites (3-pack) | RBE773-100APS |
| RBE772 (this listing) | Router + 1 satellite (2-pack) | RBE772-100APS |
| RBE770 | Add-on satellite | RBE770-100APS |
Datasheet & Downloads
| NETGEAR tech spec sheet | RBE772 Technical Specifications (PDF) |
| Quick start guide | RBE772/RBE773 Quick Start Guide (PDF) |
| User manual | Orbi 770 Series User Manual (PDF) |
| NETGEAR product page | RBE772 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting RBE772-100APS.
Frequently Asked Questions — NETGEAR RBE772
How fast is the Orbi 770?
Combined WiFi speeds of up to 11 Gbps (BE11000 tri-band WiFi 7) per NETGEAR.
How much area does the 2-pack cover?
Up to 360 sq. m. per NETGEAR Singapore. Add an RBE770 satellite for more.
What ports are included?
Router: one 2.5 Gbps WAN and three 2.5 Gbps LAN ports. Satellite: two 2.5 Gbps LAN ports.
How many devices can connect?
Up to 100 connected devices.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
