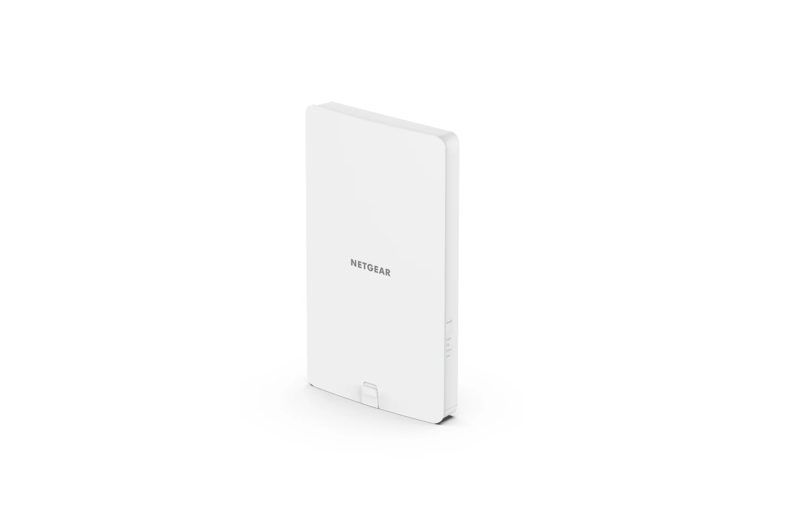

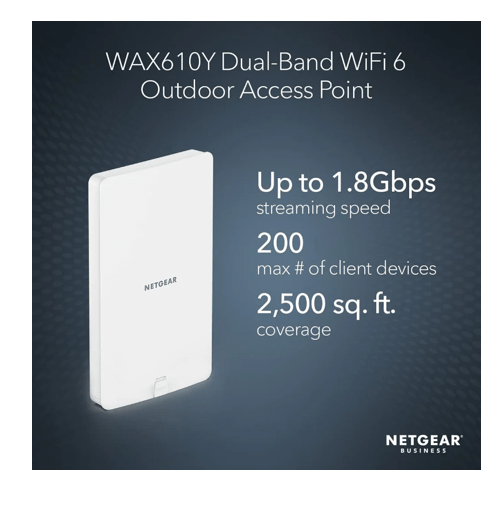

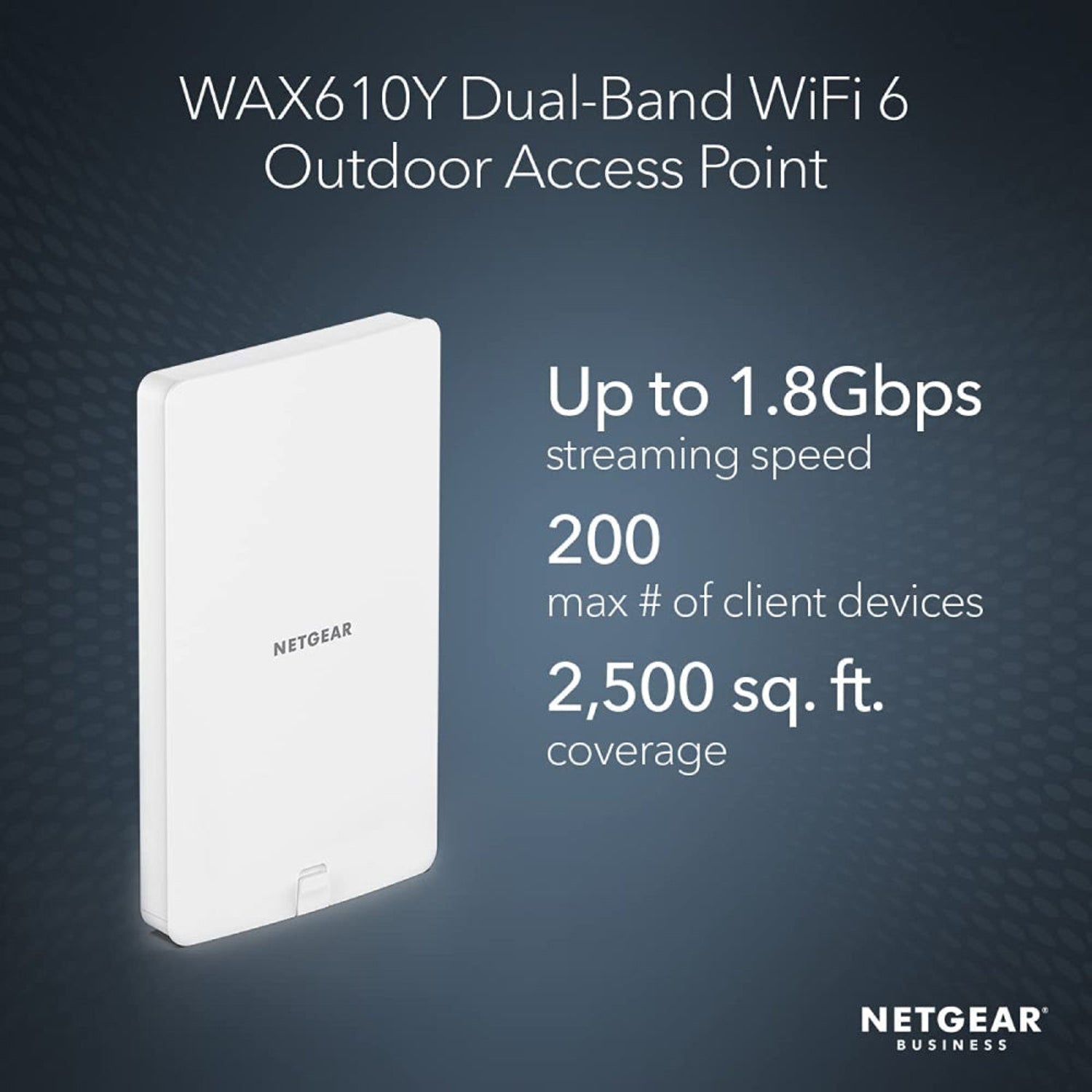

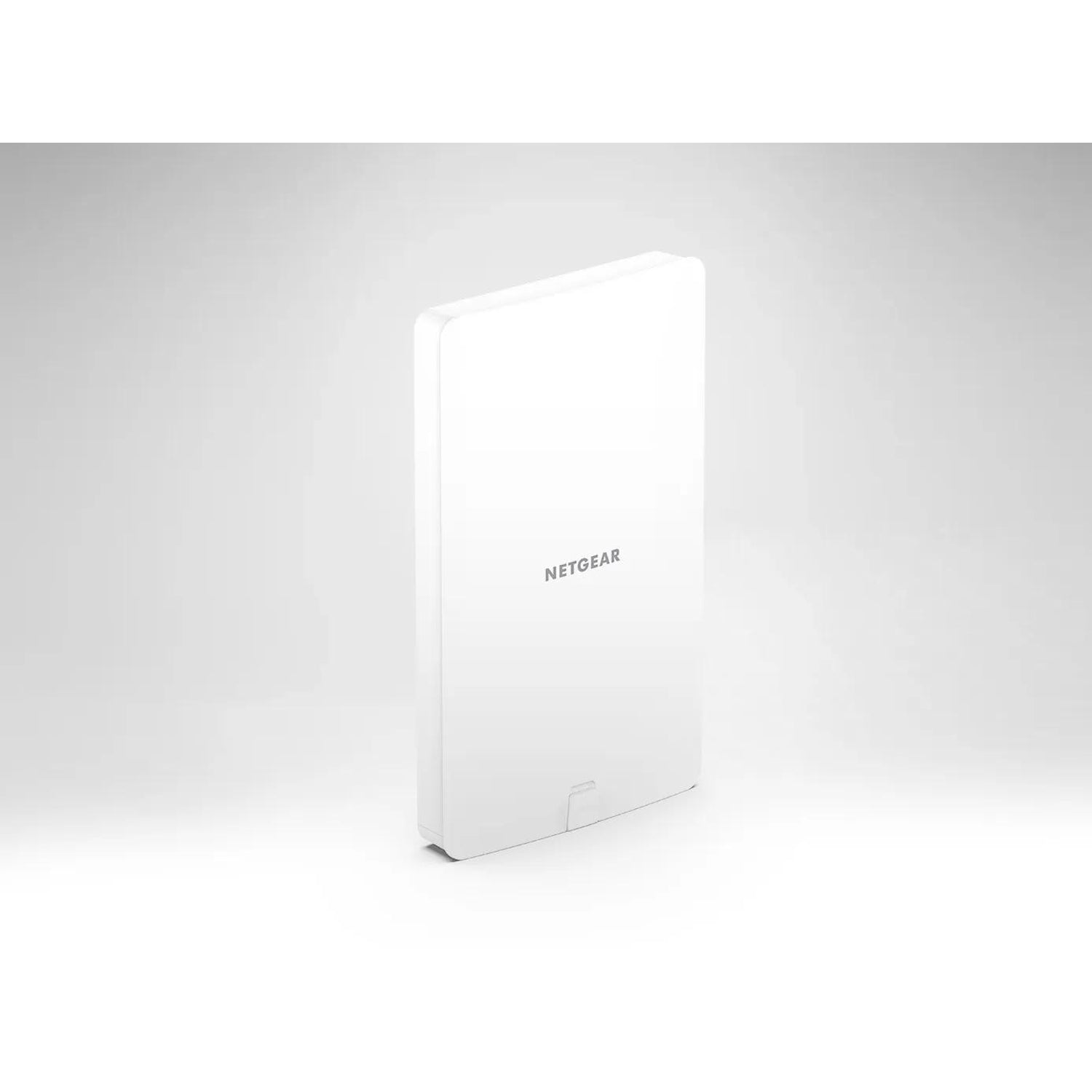

NETGEAR WAX610Y Insight Managed WiFi 6 AX1800 Outdoor PoE 2.5G Access Point IP55
PRODUCT DESCRIPTION
NETGEAR WAX610Y Insight Managed WiFi 6 AX1800 Dual Band PoE Multi-Gig Outdoor Access Point (WAX610Y-100EUS) - 5 Years Local Warranty
WiFi 6 Built for the Outdoors
The NETGEAR WAX610Y brings AX1800 dual-band WiFi 6 outside. Its IP55-rated, P2i nano-coated enclosure resists water and dust and operates from -10 to 50 °C, ideal for courtyards, car parks, warehouses and outdoor F&B areas.
2.5G Multi-Gig Port, Powered by PoE
A single 2.5GBASE-T port carries data and power from an 802.3at PoE+ switch or injector — one cable to the mounting point, no outdoor power outlet needed.
Enterprise-Grade Security
WPA3, WPA2/WPA3 Enterprise with RADIUS, up to 8 SSIDs with VLANs and a guest captive portal keep staff, guest and IoT traffic separated.
Insight Management and Instant Mesh
Manage it from the NETGEAR Insight app and Cloud Portal or locally in standalone mode, and use Insight Instant Mesh wireless backhaul to extend coverage where cabling is difficult.
Need help choosing? Email sales@sourceit.com.sg with your coverage area, client count and indoor/outdoor needs and we will size it for you.
NETGEAR WAX610Y Datasheet — Technical Specifications
General
| Product Name | NETGEAR WAX610Y Insight Managed WiFi 6 AX1800 Dual Band PoE Multi-Gig Outdoor Access Point |
| Part Number (SKU) | WAX610Y-100EUS |
| Series | NETGEAR Insight Managed WiFi 6 Access Points |
| Local Warranty (Singapore) | 5 Years, supplied by SourceIT with a GST invoice |
Wireless
| WiFi Standard | IEEE 802.11ax (WiFi 6); 5 GHz: 802.11a/n/ac/ax; 2.4 GHz: 802.11b/g/n/ax |
| WiFi Class | AX1800 dual-band concurrent (up to 1.8 Gbps) |
| Data Rates | 5 GHz: up to 1200 Mbps; 2.4 GHz: up to 600 Mbps |
| MIMO | 2x2 in 5 GHz, 2x2 in 2.4 GHz (4 streams total); bidirectional MU-MIMO |
| WiFi 6 Technologies | OFDM/OFDMA, BSS Coloring, Target Wake Time (TWT), Beamforming+ |
| Other Wireless | WMM, WDS, band steering, Adjustable Transmit Power Control (TPC) |
| Antennas | Internal, 3.6 / 4.4 dBi (2.4 GHz / 5 GHz) |
| Users (netgear.com) | Up to 250 max users; 30 concurrent users |
Interfaces
| Ethernet | 1 x 100/1000/2.5GBASE-T RJ-45 with Auto Uplink (Auto MDI-X) |
| LEDs | 4: Power & Cloud; LAN speed; 2.4 GHz status; 5 GHz status |
Software Features
| SSIDs / VLANs | 8 SSIDs with VLAN (802.1Q) support |
| Security | WPA, WPA2, WPA3 Personal; WPA2 and WPA3 Enterprise; 802.1X RADIUS; MAC address authentication; wireless access control |
| Guest Access | Guest network / captive portal |
| Mesh | Insight Instant WiFi Mesh (wireless backhaul) |
| Traffic Management | Bandwidth management |
| Management | NETGEAR Insight app and Insight Cloud Portal, or local web browser UI (standalone) |
Power
| Power Source | Powered by PoE only (no DC adapter input) |
| PoE Input | IEEE 802.3at PoE+ (full performance); IEEE 802.3af listed at approx. 60% of full throughput |
| PoE Power Consumption | 16.1 W (802.3at) |
Physical & Environmental
| Dimensions (W x D x H) | 181 x 305 x 34 mm |
| Weight | 940 g |
| Enclosure Rating | IP55 (water and dust resistant), P2i nano-coating |

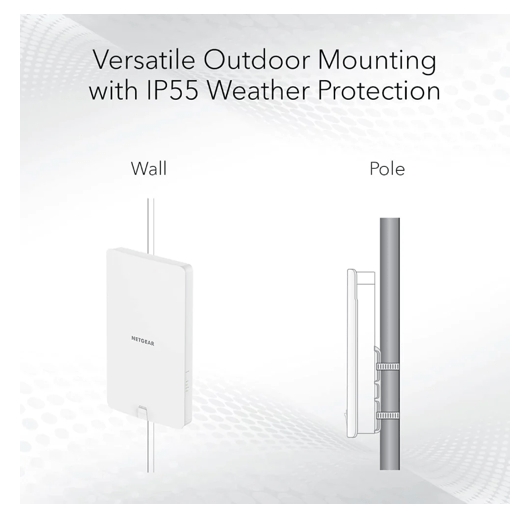

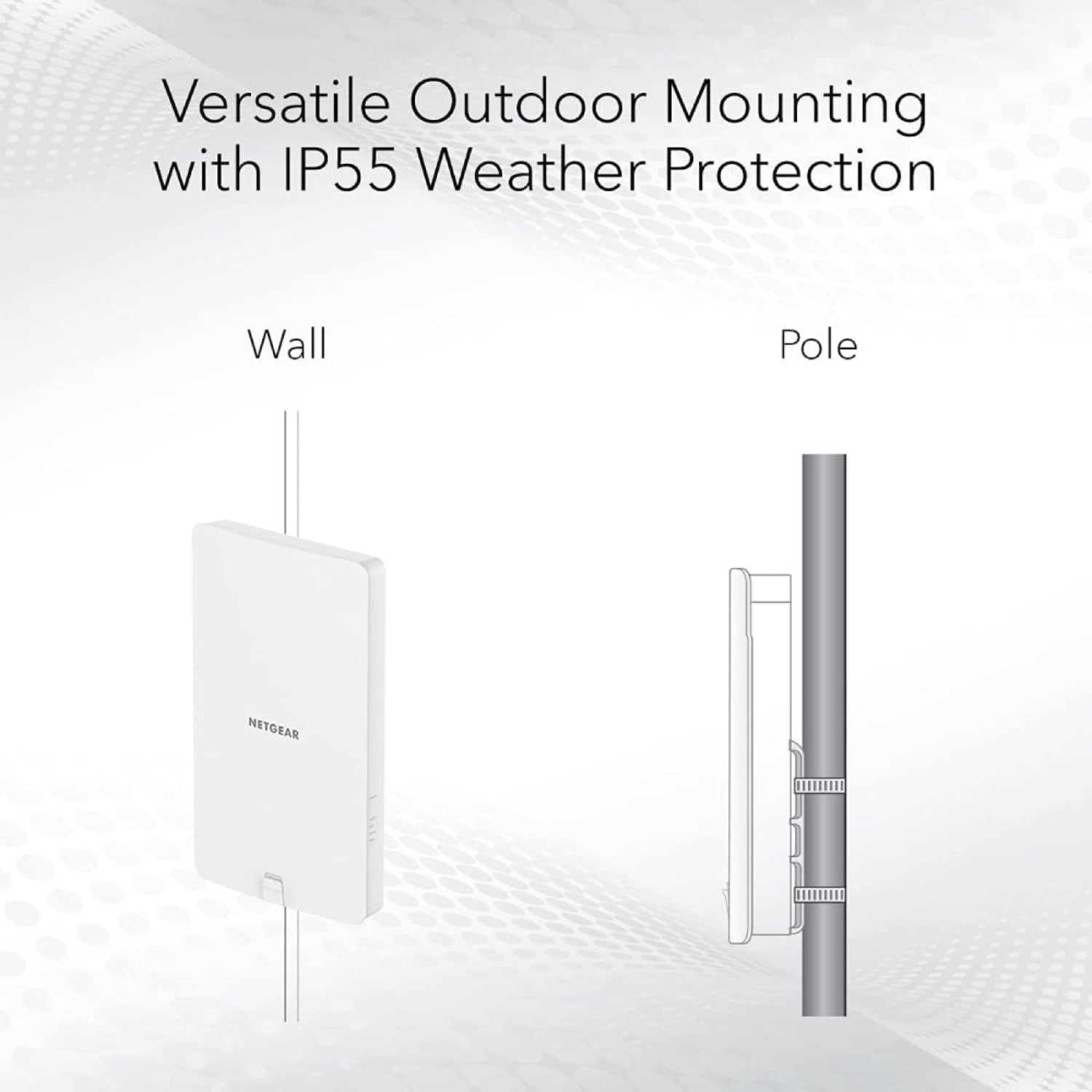

| Mounting | Pole mount kit and wall/ceiling mount kit included |
| Operating Temperature | -10 to 50 °C (no solar radiation) |
Compatibility & Software Support
Management
NETGEAR Insight app (iOS/Android) and Insight Cloud Portal for remote setup, monitoring and management, or local browser-based UI in standalone mode.
Client Compatibility
WiFi 6 (802.11ax) with backwards compatibility for 802.11a/b/g/n/ac clients on 2.4 GHz and 5 GHz.
Typical Use
Outdoor or semi-outdoor coverage on poles or walls — campuses, car parks, loading bays, poolside and outdoor dining — powered from a PoE+ switch or injector. Pairs with the indoor WAX610 under one Insight network.
Package Contents & Insight WiFi 6 Access Point Ordering Information
In the Box
WAX610Y Insight managed outdoor wireless access point, pole mount kit, wall/ceiling mount kit, installation guide. No power adapter — the WAX610Y is powered by PoE only (PoE+ switch or injector required, sold separately).
NETGEAR Insight WiFi 6 Access Point Models
| Model | Key Spec | Part No. |
| WAX610 | Indoor, WiFi 6 AX1800 dual-band, 1 x 2.5G PoE+ | WAX610-100EUS |
| WAX610Y (this listing) | Outdoor IP55, WiFi 6 AX1800 dual-band, 1 x 2.5G PoE+ | WAX610Y-100EUS |
| WAX615 | Indoor, WiFi 6 AX3000 dual-band | WAX615-100APS |
| WAX620 | Indoor, WiFi 6 AX3600 dual-band | WAX620 |
| WAX628 | Indoor, WiFi 6 AX5400 dual-band | WAX628-111APS |
Other NETGEAR Insight WiFi 6 access point models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | WAX610 / WAX610Y Datasheet (PDF) |
| User manual | WAX610 / WAX610Y User Manual (PDF) |
| NETGEAR product page | WAX610Y on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WAX610Y-100EUS.
Frequently Asked Questions — NETGEAR WAX610Y
How is the WAX610Y powered?
By PoE only. Connect it to an 802.3at PoE+ switch or injector (16.1 W). No power adapter is included or supported.
Is it weatherproof?
It is IP55 rated with P2i nano-coating for water and dust resistance, and operates from -10 to 50 °C (no solar radiation).
Can it be mounted on a pole?
Yes. Both a pole mount kit and a wall/ceiling mount kit are included in the box.
Can it mesh with indoor access points?
Yes. It supports Insight Instant WiFi Mesh wireless backhaul, and can be managed alongside other Insight access points such as the WAX610.
What warranty do I get?
5 Years local warranty in Singapore, supplied by SourceIT with a GST invoice.
