Poly Zoom Room Intelligent Director Camera Kit
PRODUCT DESCRIPTION
Poly Zoom Room Intelligent Director Camera Kit — 3 x Poly Studio E70 (9J6A4AA) - Local Warranty
Poly Zoom Room Intelligent Director Camera Kit — Three Studio E70 Cameras for Multi-Angle Zoom Rooms
The Poly Zoom Room Intelligent Director Camera Kit (9J6A4AA) supplies three Poly Studio E70 smart cameras for a Zoom Rooms deployment using Zoom's Intelligent Director. With three dual-lens 4K cameras positioned around the room, Zoom chooses the best angle on the active speaker rather than relying on a single front-of-room view. This is the configuration for flagship boardrooms and training spaces where a single camera cannot serve every seat.
Three Dual-Lens 20 MP Cameras, Nine Framing Options

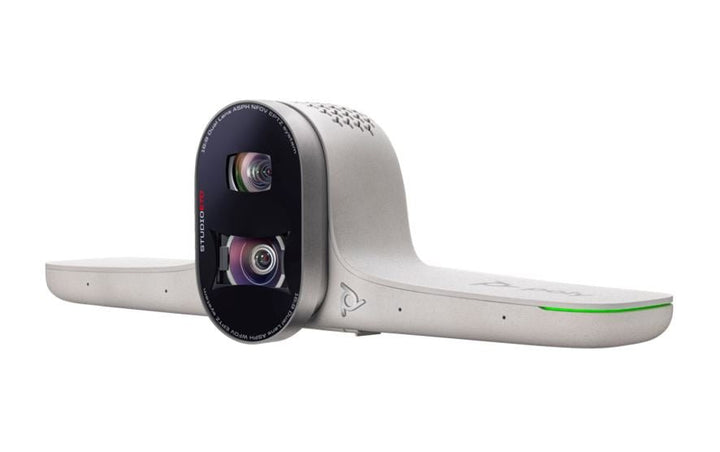

Each Studio E70 pairs a 120° HFOV / 140° DFOV wide lens with a 70° HFOV / 78° DFOV tele lens across two 20 MP 4K sensors, with 7.3x digital zoom and camera range to 25 ft / 7.62 m. Poly DirectorAI handles group framing, people framing, speaker framing and presenter tracking on each camera; Zoom Intelligent Director then selects between them.
Certified for Zoom Rooms Intelligent Director
HP states that the Poly Studio E70 is Zoom Rooms Intelligent Director certified, which is what makes the three-camera configuration supported rather than improvised. Each camera is also individually Certified for Zoom and Certified for Microsoft Teams.
PoE Power and Simple Cabling per Camera
Each E70 draws PoE (IEEE 802.3af Class 4) or uses an optional 60 W supply, and connects over USB Type-C or Ethernet. At 907 g and 321 x 102 x 89.1 mm each, with a wall mount included per camera, the kit installs cleanly around a large room. Optional VESA kits, stands and monitor clamps are available separately.
Poly Zoom Room Intelligent Director Camera Kit Datasheet — Technical Specifications
General
| Product | Poly Zoom Room Intelligent Director Camera Kit (Studio E70 x 3) |
| HP SKU | 9J6A4AA (regional SKU variants in distribution include 9J688AA, 9J6A6AA and 9J6A8AA TAA) |
| Manufacturer | Poly (HP) |
| Kit contents | Three Poly Studio E70 smart cameras, each with USB-C cable and wall mount kit; power adapters supplied as a pack of three |
| Platform | Zoom Rooms with Zoom Intelligent Director |
| Requires | A Zoom Rooms compute (for example the Poly Zoom Room Base Kit), separate USB audio or DSP, displays and a Zoom Rooms licence |
| Management | Poly Lens |
| Warranty | Local Warranty (Singapore) |
Camera specifications — each of the three Poly Studio E70 units
| Sensors / lenses | Dual lens, 2 x 20 MP 4K sensors |
| Capture resolution | UHD 2160p 4K (3840 x 2160) |
| Field of view (wide lens) | 120° HFOV / 140° DFOV |
| Field of view (tele lens) | 70° HFOV / 78° DFOV |
| Zoom | 7.3x digital zoom (HP does not state optical zoom for this model) |
| Camera range | Up to 25 ft / 7.62 m |
| Framing | Poly DirectorAI — group framing, people framing (preview), speaker framing, presenter tracking |
| Privacy | Motorised integrated electronic privacy shutter |
| Connectivity | 1 x USB Type-C (5 Gbps signalling), 1 x RJ-45 Ethernet |
| Power | PoE IEEE 802.3af Class 4, or optional 100–240 VAC external supply to 12 VDC 5 A (60 W) |
| Dimensions | 321 x 102 x 89.1 mm (12.63 x 4.02 x 3.51 in) |
| Weight | 907 g (2 lb) |
| Operating environment | 0–40 °C (32–104 °F), 15–80% humidity |
HP does not publish a recommended room size or seat count for the three-camera Intelligent Director configuration, nor a kit-level carton weight, so neither is stated here. Per-camera figures above are Poly's published specifications.
Compatibility & Software Support
This is a camera-only kit for Zoom Rooms. HP states the Poly Studio E70 is Zoom Rooms Intelligent Director certified, and the E70 is individually Certified for Zoom and Certified for Microsoft Teams. Google Meet certification is not stated for this camera and is not claimed here.
What you must add: a Zoom Rooms compute — typically the Poly Zoom Room Base Kit, whose product brief explicitly names the three-camera E70 Intelligent Director kit as a supported camera option — plus separate USB audio or a Pro AV DSP, displays and an active Zoom Rooms licence. HP's Zoom bundles page states that E70-based large-room configurations require separate USB audio or DSP.
Each camera connects over USB Type-C (5 Gbps) or RJ-45 Ethernet and takes PoE to IEEE 802.3af Class 4. Firmware and fleet management run through Poly Lens.
Package Contents & Studio E70 Intelligent Director Ordering Information
In the box:
- Three Poly Studio E70 smart cameras
- Per camera: USB-C cable and wall mount kit
- Power adapters (supplied as a pack of three)
- Poly Lens management software
HP does not publish whether PoE injectors, Ethernet cables or mounting hardware beyond the standard per-camera wall mount are included, so confirm with SourceIT before ordering cabling.
Poly Zoom Rooms bundles and base kits available from SourceIT
| Small Room Bundle for Zoom Rooms | Poly Studio R30 + TC10 + HP Mini Conferencing PC — 7230-88140-029 |
| Medium Room Bundle for Zoom Rooms | Poly Studio USB video bar + TC10 + HP Mini Conferencing PC — 7230-88150-029 |
| Large Room Bundle for Zoom Rooms | Poly Studio E70 + TC10 + HP Mini Conferencing PC (audio sold separately) — 7230-88160-029 |
| Zoom Room Base Kit | HP Mini Conferencing PC + TC10 (camera and audio sold separately) — 9J6C2AA |
| Zoom Room Intelligent Director Camera Kit | 3 x Poly Studio E70 smart cameras — 9J6A4AA |
Controllers and cameras sold separately
| Poly TC10 touch controller (black) | 875K5AA |
| Poly TC10 touch controller (white) | 875J5AA |
| Poly Studio E70 smart camera | 842F8AA |
| Poly Studio E60 smart camera | 9W1A6AA |
| Poly Studio V52 USB video bar | A09D4AA |
| Poly Studio V72 USB video bar | AV1E3AA |
| Poly Studio V12 USB video bar | A9DD8AA |
Optional Studio E70 mounting accessories
| Poly Studio E70 VESA Mount | 2215-87372-001 / 875K7AA |
| Poly Studio E70 / P15 / R30 Display Clamp | 2215-87419-001 / 875K8AA |
| Poly Studio E70 / X70 Polarized Filter | 875K9AA |
Datasheet & Downloads
Frequently Asked Questions — Poly Zoom Room Intelligent Director Camera Kit
How many cameras are in this kit?
Three Poly Studio E70 smart cameras, matching HP's own product title (Studio E70 x3) and the pack-of-three power adapters.
What is Zoom Intelligent Director and why does it need three cameras?
Intelligent Director is Zoom's multi-camera feature: with cameras at different angles it selects the best view of whoever is speaking, instead of a single wide shot from the front of the room. HP states the Studio E70 is Zoom Rooms Intelligent Director certified.
Do I need a room PC or compute appliance as well?
Yes. This is a camera-only kit. Add a Zoom Rooms compute — typically the Poly Zoom Room Base Kit, whose HP product brief lists the three-camera E70 kit as a supported option — plus displays and a Zoom Rooms licence.
Is room audio included?
No. HP states that E70-based large-room configurations require separate USB audio or DSP. Poly's usual pairings are the Trio C60, the Sync 60 or a Zoom-certified Pro AV system.
Do the E70 cameras have optical zoom?
No. Each E70 uses two 20 MP sensors behind a wide and a tele lens with 7.3x digital zoom. Poly states no optical zoom and no mechanical pan/tilt for this model.
How are the cameras powered and connected?
Each camera has 1 x USB Type-C (5 Gbps) and 1 x RJ-45, and takes PoE to IEEE 802.3af Class 4 or an optional 12 VDC 60 W supply. A wall mount is included with each camera; VESA kits, stands and clamps are available separately.
Would a single camera do instead?
For most large rooms, yes — the Large Room Bundle for Zoom Rooms uses one E70 and HP quotes 28 ft x 15 ft coverage. The three-camera kit is for rooms where seating layout or room shape means one angle cannot see everyone well.
Does this come with local warranty in Singapore?
Yes. Every Poly Zoom Room Intelligent Director Camera Kit sold by SourceIT comes with local Singapore warranty and a GST invoice.
