Poly Medium Room Bundle for Zoom Rooms
PRODUCT DESCRIPTION
Poly Medium Room Bundle for Zoom Rooms (7230-88150-029) - Local Warranty
Poly Medium Room Bundle for Zoom Rooms — Certified Zoom Rooms Package for 6 to 10 People

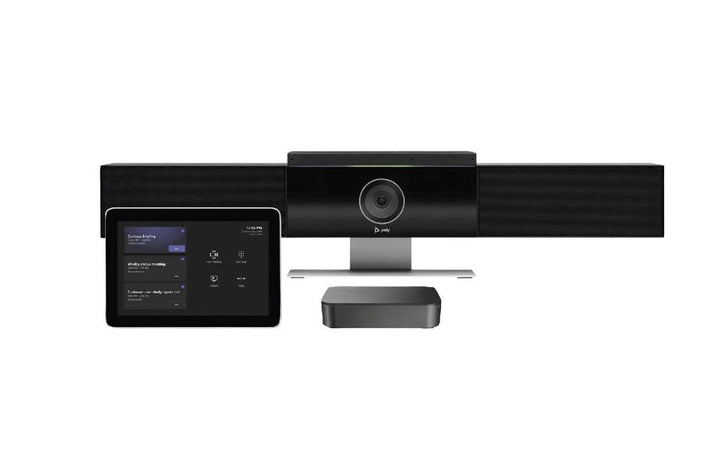

The Poly Medium Room Bundle for Zoom Rooms (7230-88150-029) pairs the premium Poly Studio USB video bar with a Poly TC10 touch controller and an HP Mini Conferencing PC running Zoom Rooms. Poly sizes this bundle for medium rooms of 6 to 10 people. It is the standard mid-size Zoom Room template for organisations that want one part number per room rather than a bill of materials.
Poly Studio USB Video Bar — 4K Camera with Six-Element Beamforming Array
The Studio USB bar captures 4K UHD 2160p (3840 x 2160) at 8 MP through a single lens with an integrated privacy shutter, covering 120° diagonal and 110° horizontal. Zoom is 5x EPTZ — electronic pan, tilt and zoom, not an optical lens. Poly DirectorAI supplies group framing, people framing, speaker framing, presenter tracking and conversation mode.
Stereo Speakers and 4.6 m Voice Pickup
Stereo speakers cover 100 Hz to 20 kHz at 90 dB at 0.5 m, and a six-element beamforming microphone array picks up voices to 15 ft / 4.6 m. Poly NoiseBlockAI, Poly Acoustic Fence and Poly Acoustic Clarity (full-duplex, echo cancellation and background-noise suppression) keep a mid-size boardroom intelligible. An optional expansion microphone is supported for longer tables.
Native Zoom Rooms Compute with TC10 Touch Control
The HP Mini Conferencing PC (Intel Core i7-12700T, 16 GB DDR5-4800, 256 GB NVMe SSD, Intel UHD Graphics 770) runs Zoom Rooms and drives up to three displays. The 10.1-inch PoE TC10 controller gives one-touch join and content sharing from the table.
Poly Medium Room Bundle for Zoom Rooms Datasheet — Technical Specifications
General
| Product | Poly Medium Room Bundle for Zoom Rooms |
| Part number | 7230-88150-029 |
| Manufacturer | Poly (HP) |
| Bundle contents | Poly Studio USB video bar, Poly TC10 touch controller (black), HP Mini Conferencing PC with Zoom Rooms |
| Recommended room size | Medium rooms, 6–10 people (Poly bundle datasheet) |
| Platform | Zoom Rooms — an active Zoom Rooms licence is required and is not included |
| Warranty | Local Warranty (Singapore) |
Camera — Poly Studio USB video bar
| Resolution / sensor | 4K UHD 2160p (3840 x 2160), 8 MP |
| Field of view | 120° DFOV / 110° HFOV |
| Zoom | 5x EPTZ — electronic pan, tilt and zoom; no optical zoom is stated |
| Lens | Single lens with integrated privacy shutter |
| Framing | Poly DirectorAI — group framing, people framing, speaker framing, presenter tracking, conversation mode |
Audio — Poly Studio USB video bar
| Speakers | Stereo speakers, 100 Hz – 20 kHz |
| Speaker output | 90 dB at 0.5 m |
| Microphones | 6-element beamforming microphone array |
| Pickup range | Up to 15 ft / 4.6 m |
| Audio processing | Poly NoiseBlockAI, Poly Acoustic Fence, Poly Acoustic Clarity (full-duplex, AEC, background-noise suppression) |
| Expansion | Optional expansion / extension microphone supported |
Connectivity and power — Poly Studio USB video bar
| USB | 1 x USB Type-C (USB 3.0 / 5 Gbps signalling, USB 2.0 compatible) |
| Wireless | Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2 |
| Analogue audio | Audio-in and line-in (for the optional microphone) |
| HDMI | Not fitted on this model |
| PoE | Not supported on this model |
| Power | 100–240 VAC 50/60 Hz external supply to 12 VDC 5 A |
| Dimensions (without stand) | 105 x 700 x 70 mm, 2,342 g |
| Dimensions (with stand) | 156 x 700 x 70 mm, 2,856 g |
| Mounting | Wall mount kit and table stand included |
Compute — HP Mini Conferencing PC
| Processor | Intel Core i7-12700T (up to 4.7 GHz, 25 MB L3 cache, 12 cores, 20 threads) |
| Chipset | Intel Q670 (vPro) |
| Memory | 16 GB DDR5-4800 (2 x 8 GB) |
| Storage | 256 GB PCIe NVMe TLC M.2 SSD |
| Graphics | Intel UHD Graphics 770 |
| Wireless | Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 |
| Wired network | Intel I219LM Gigabit Ethernet LOM |
| Front ports | 1 x headset, 2 x USB Type-A (10 Gbps), 1 x USB Type-C (20 Gbps) |
| Rear ports | 1 x RJ-45, 3 x USB Type-A, 2 x DisplayPort 1.4, 1 x HDMI 2.0b |
| Displays supported | Up to three monitors |
| Dimensions | 177 x 175 x 34 mm (6.97 x 6.89 x 1.35 in) |
| Weight | 1.42 kg (3.13 lb) |
| Power | 90 W external power adapter, up to 89% efficiency |
Controller — Poly TC10
| Display | 10.1 in (25.7 cm) diagonal IPS capacitive multi-touch, 16:10 |
| Resolution | WXGA 1280 x 800 |
| Brightness / contrast | 300 nits, 1000:1 |
| Connection & power | 1 x RJ-45; Power over Ethernet (PoE), IEEE 802.3at Class 0 |
| Dimensions | 260 x 184 x 64 mm (10.25 x 7.25 x 2.5 in) |
| Weight | 1.27 kg (2.79 lb) |
| Mounting | Drywall / J-box mount, tabletop stand, mounting hardware included |
| Part number | 875K5AA (black, sold standalone) |
Note on operating system: the Poly bundle datasheet for this generation states Windows 10 IoT Enterprise 64, while HP's later Base Room Kit documentation states Windows 11 IoT Enterprise 64. Both are HP-sourced and the difference is generational. Contact SourceIT if the exact Windows IoT build matters to your deployment.
Compatibility & Software Support
This bundle is a native Zoom Rooms deployment: the HP Mini Conferencing PC ships with Zoom Rooms and the TC10 is Certified for Zoom Rooms. An active Zoom Rooms licence is purchased separately.
Certifications HP states for the bundled Poly Studio USB video bar itself: Certified for Microsoft Teams and Certified for Zoom. HP additionally describes the bar as working with Google Meet through a connected Mac or PC — HP's wording there is compatibility, not certification, so SourceIT does not claim Google Meet certification for this model.
The HP Mini Conferencing PC supports up to three monitors (2 x DisplayPort 1.4, 1 x HDMI 2.0b) and carries Intel Wi-Fi 6E AX211 and Bluetooth 5.3. Fleet management and firmware updates run through Poly Lens.
Package Contents & Zoom Rooms Bundle Ordering Information
In the box (per HP's solution guide for this bundle):
- Poly Studio USB video bar, with wall mount kit, table stand, remote control, USB-C cable, AC adapter and setup sheet
- Poly TC10 touch controller (black), with Ethernet cable and table stand
- HP Mini Conferencing PC with Zoom Rooms, with power cable, 2 x DisplayPort-to-HDMI adapters, cable management and VESA mount
Required but not included: HDMI cables, Ethernet cable, USB keyboard and mouse, and an active Zoom Rooms licence.
Poly Zoom Rooms bundles and base kits available from SourceIT
| Small Room Bundle for Zoom Rooms | Poly Studio R30 + TC10 + HP Mini Conferencing PC — 7230-88140-029 |
| Medium Room Bundle for Zoom Rooms | Poly Studio USB video bar + TC10 + HP Mini Conferencing PC — 7230-88150-029 |
| Large Room Bundle for Zoom Rooms | Poly Studio E70 + TC10 + HP Mini Conferencing PC (audio sold separately) — 7230-88160-029 |
| Zoom Room Base Kit | HP Mini Conferencing PC + TC10 (camera and audio sold separately) — 9J6C2AA |
| Zoom Room Intelligent Director Camera Kit | 3 x Poly Studio E70 smart cameras — 9J6A4AA |
Controllers and cameras sold separately
| Poly TC10 touch controller (black) | 875K5AA |
| Poly TC10 touch controller (white) | 875J5AA |
| Poly Studio E70 smart camera | 842F8AA |
| Poly Studio E60 smart camera | 9W1A6AA |
| Poly Studio V52 USB video bar | A09D4AA |
| Poly Studio V72 USB video bar | AV1E3AA |
| Poly Studio V12 USB video bar | A9DD8AA |
Datasheet & Downloads
Frequently Asked Questions — Poly Medium Room Bundle for Zoom Rooms
Which video bar is in the medium Zoom Rooms bundle?
The Poly Studio USB video bar — 4K UHD, 8 MP, 120° DFOV, with stereo speakers and a six-element beamforming microphone array.
How big a room does this bundle cover?
Poly sizes it for medium rooms of 6 to 10 people. Microphone pickup is specified to 15 ft / 4.6 m; beyond that, add the optional expansion microphone or step up to the large bundle.
Is the zoom optical or electronic?
Electronic. The Studio USB bar uses 5x EPTZ — electronic pan, tilt and zoom. Poly does not specify an optical zoom lens on this model.
How does this compare with the small and large Zoom Rooms bundles?
All three share the same HP Mini Conferencing PC and TC10 controller. The small bundle uses the Studio R30, this medium bundle uses the Studio USB bar, and the large bundle uses the Studio E70 camera with room audio purchased separately.
Does it need a separate speakerphone or DSP?
No. Unlike the large bundle, the Studio USB bar contains the room speakers and microphones, so no external audio is required.
Do I still need a Zoom Rooms licence?
Yes. The Zoom Rooms subscription is separate from the hardware and can be quoted alongside it by SourceIT.
Does this come with local warranty in Singapore?
Yes. Every Poly Medium Room Bundle for Zoom Rooms sold by SourceIT comes with local Singapore warranty and a GST invoice.
