Poly Zoom Room Base Kit with HP Mini PC and TC10 Touch Controller (9J6C2AA) - Local Warranty
Poly Zoom Room Base Kit — Certified Zoom Rooms Compute and Control, Camera of Your Choice

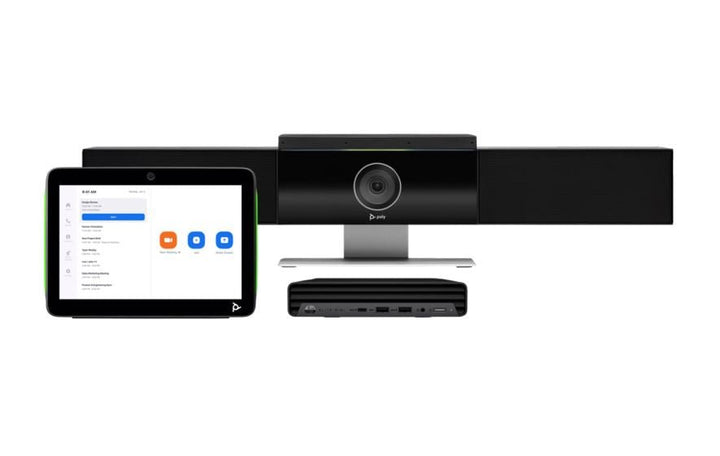

The Poly Zoom Room Base Kit (9J6C2AA) is the compute-and-control foundation of a Zoom Room: an HP Mini Conferencing PC running Zoom Rooms plus a Poly TC10 10.1-inch touch controller. Cameras, audio and the Zoom Rooms licence are chosen separately, which is what makes this the flexible way to standardise a Zoom estate across rooms of very different sizes on one common compute platform.
One Compute Platform, Small to Large Rooms
HP describes the Base Room Kit as configurable for small, medium and large rooms — the room size follows the camera you pair with it. HP's published pairings are Studio V12 for 15 ft x 10 ft (4.57 x 3.04 m), Studio V52 for 20 ft x 15 ft, and Studio V72, Studio E60 or Studio E70 for 28 ft x 15 ft. One SKU therefore covers a whole floor plan.
Intel Core i7 Compute with Enterprise Security
The HP Mini Conferencing PC runs an Intel Core i7-12700T (12 cores, 20 threads) with 16 GB DDR5-4800 and a 256 GB NVMe SSD, driving up to three displays through 2 x DisplayPort 1.4 and 1 x HDMI 2.0b. HP Sure Start Gen7 provides self-healing BIOS protection, and the whole room is managed through Poly Lens.
TC10 Touch Control over a Single PoE Cable
The bundled Poly TC10 gives a 10.1-inch WXGA capacitive touch surface for one-touch join, content sharing and room control, powered and connected over a single RJ-45 using PoE (IEEE 802.3at Class 0). Drywall, J-box and tabletop mounting hardware is in the box.
Poly Zoom Room Base Kit Datasheet — Technical Specifications
General
| Product | Poly Zoom Room Base Kit — HP Mini Conferencing PC with TC10 |
| HP SKU | 9J6C2AA |
| Product family | Poly Studio Base Room Kit for Zoom Rooms (regional SKU variants include 9J687AA and 9J6D0AA TAA) |
| Manufacturer | Poly (HP) |
| Kit contents | HP Mini Conferencing PC running Zoom Rooms, Poly TC10 touch controller, AC adapter, power cord, HP DisplayPort-to-HDMI True 4K adapter, mounting hardware |
| Not included | Zoom Rooms licence, camera, room audio and displays |
| Room size | Configurable for small, medium and large rooms — determined by the camera paired with it |
| Management | Poly Lens |
| Warranty | Local Warranty (Singapore) |
Compute — HP Mini Conferencing PC
| Processor | Intel Core i7-12700T (up to 4.7 GHz, 25 MB L3 cache, 12 cores, 20 threads) |
| Chipset | Intel Q670 (vPro) |
| Memory | 16 GB DDR5-4800 (2 x 8 GB) |
| Storage | 256 GB PCIe NVMe TLC M.2 SSD |
| Graphics | Intel UHD Graphics 770 |
| Wireless | Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 |
| Wired network | Intel I219LM Gigabit Ethernet LOM |
| Front ports | 1 x headset, 2 x USB Type-A (10 Gbps), 1 x USB Type-C (20 Gbps) |
| Rear ports | 1 x RJ-45, 3 x USB Type-A, 2 x DisplayPort 1.4, 1 x HDMI 2.0b |
| Displays supported | Up to three monitors |
| Dimensions | 177 x 175 x 34 mm (6.97 x 6.89 x 1.35 in) |
| Weight | 1.42 kg (3.13 lb) |
| Power | 90 W external power adapter, up to 89% efficiency |
| Operating system | Windows 11 IoT Enterprise 64 (HP Base Room Kit documentation) |
| Security | HP Sure Start Gen7 self-healing BIOS |
Controller — Poly TC10
| Display | 10.1 in (25.7 cm) diagonal IPS capacitive multi-touch, 16:10 |
| Resolution | WXGA 1280 x 800 |
| Brightness / contrast | 300 nits, 1000:1 |
| Connection & power | 1 x RJ-45; Power over Ethernet (PoE), IEEE 802.3at Class 0 |
| Dimensions | 260 x 184 x 64 mm (10.25 x 7.25 x 2.5 in) |
| Weight | 1.27 kg (2.79 lb) |
| Mounting | Drywall / J-box mount, tabletop stand, mounting hardware included |
| Part number | 875K5AA (black, sold standalone) |
Published camera pairings and room coverage
| Poly Studio V12 | 15 ft x 10 ft (4.57 x 3.04 m) |
| Poly Studio V52 | 20 ft x 15 ft |
| Poly Studio V72, Studio E60 or Studio E70 | 28 ft x 15 ft |
Listing data note: the variant SKU currently recorded against this listing (7230-88230-029 / 9C428AW) belongs to the HP Mini Conference G9 PC with Microsoft Teams Rooms, which is a different product — a Teams Rooms PC with no TC10 and no Zoom Rooms software. The correct HP SKU for this Zoom Room Base Kit is 9J6C2AA. This has been raised for correction in the store catalogue.
Compatibility & Software Support
The Base Kit is a Zoom Rooms compute and control platform. HP presents it as the Zoom Rooms certified bundle and states it supports Poly DirectorAI and Zoom Intelligent Director technologies. The bundled Poly TC10 is individually Certified for Zoom Rooms.
Supported cameras per HP's product brief: Poly Studio E70 (including the three-camera E70 Intelligent Director kit), Poly Studio E60, and the Poly Studio V-Series (V32, V52, V72).
The HP Mini Conferencing PC runs Windows 11 IoT Enterprise 64 with Intel Wi-Fi 6E AX211 and Bluetooth 5.3, and drives up to three displays. Fleet management, monitoring and firmware updates run through Poly Lens. An active Zoom Rooms licence is required and is not included. Microsoft Teams Rooms and Google Meet are not stated for this Zoom-specific kit — for a Teams Rooms compute base see the Poly Studio Base Kit G9 Plus.
Package Contents & Zoom Rooms Base Kit Ordering Information
In the box:
- HP Mini Conferencing PC running Zoom Rooms
- Poly TC10 touch controller
- AC adapter and power cord
- 1 x HP DisplayPort-to-HDMI True 4K adapter
- Mounting hardware
Required but not included: Zoom Rooms licence, camera, room audio, displays and HDMI cabling.
Poly Zoom Rooms bundles and base kits available from SourceIT
| Small Room Bundle for Zoom Rooms | Poly Studio R30 + TC10 + HP Mini Conferencing PC — 7230-88140-029 |
| Medium Room Bundle for Zoom Rooms | Poly Studio USB video bar + TC10 + HP Mini Conferencing PC — 7230-88150-029 |
| Large Room Bundle for Zoom Rooms | Poly Studio E70 + TC10 + HP Mini Conferencing PC (audio sold separately) — 7230-88160-029 |
| Zoom Room Base Kit | HP Mini Conferencing PC + TC10 (camera and audio sold separately) — 9J6C2AA |
| Zoom Room Intelligent Director Camera Kit | 3 x Poly Studio E70 smart cameras — 9J6A4AA |
Controllers and cameras sold separately
| Poly TC10 touch controller (black) | 875K5AA |
| Poly TC10 touch controller (white) | 875J5AA |
| Poly Studio E70 smart camera | 842F8AA |
| Poly Studio E60 smart camera | 9W1A6AA |
| Poly Studio V52 USB video bar | A09D4AA |
| Poly Studio V72 USB video bar | AV1E3AA |
| Poly Studio V12 USB video bar | A9DD8AA |
Datasheet & Downloads
Frequently Asked Questions — Poly Zoom Room Base Kit
What exactly is in the Zoom Room Base Kit?
An HP Mini Conferencing PC running Zoom Rooms and a Poly TC10 touch controller, with AC adapter, power cord, an HP DisplayPort-to-HDMI True 4K adapter and mounting hardware. The camera, room audio, displays and the Zoom Rooms licence are separate.
Which cameras can I pair with it?
HP names the Poly Studio E70 (including the three-camera Intelligent Director kit), the Studio E60 and the Studio V-Series (V32, V52, V72). Room coverage follows the camera: V12 for about 4.57 x 3.04 m, V52 for 20 ft x 15 ft, and V72, E60 or E70 for 28 ft x 15 ft.
How is this different from the Small, Medium and Large Zoom Rooms bundles?
The bundles pre-match the same compute and TC10 with a specific camera and audio set for a specific room size. The Base Kit gives you the identical compute and controller and lets you choose the camera and audio yourself.
Is this the same thing as the Microsoft Teams Room Base Kit?
No. This kit runs Zoom Rooms. For Teams, see the Poly Microsoft Teams Room Base Kit with GC8 or the newer Poly Studio Base Kit G9 Plus for Microsoft Teams.
Does it need a separate room PC or compute appliance?
No — the HP Mini Conferencing PC in this kit is the room compute. You only add camera, audio and displays.
Do I still need a Zoom Rooms licence?
Yes. The Zoom Rooms subscription is separate from the hardware and can be quoted alongside it by SourceIT.
Does this come with local warranty in Singapore?
Yes. Every Poly Zoom Room Base Kit sold by SourceIT comes with local Singapore warranty and a GST invoice.
