Poly Small Room Bundle for Zoom Rooms
PRODUCT DESCRIPTION
Poly Small Room Bundle for Zoom Rooms (7230-88140-029) - Local Warranty
Poly Small Room Bundle for Zoom Rooms — Complete Certified Zoom Room in One Part Number

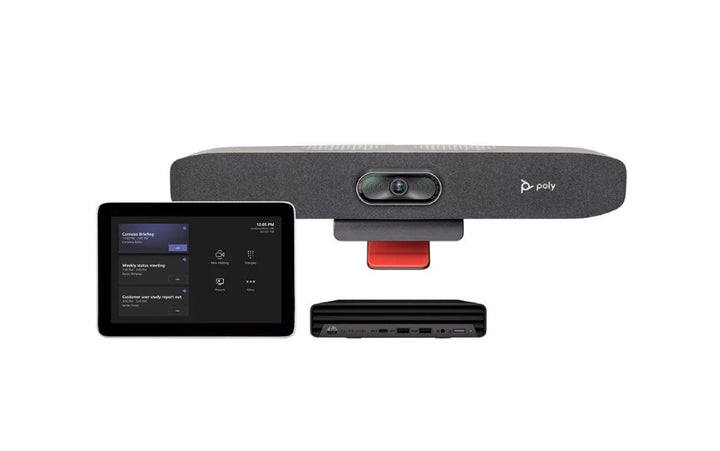

The Poly Small Room Bundle for Zoom Rooms (7230-88140-029) is a pre-matched Zoom Rooms package built around the Poly Studio R30 USB video bar, a Poly TC10 touch controller and an HP Mini Conferencing PC running Zoom Rooms. Poly sizes this bundle for small rooms of up to 5 people. For Singapore organisations rolling out a standard small-room Zoom template across a floor or a building, ordering one part number instead of five removes most of the procurement and staging effort.
Poly Studio R30 4K Video Bar with DirectorAI Framing
The bundled Studio R30 is an 8 MP 4K all-in-one bar with a 139° diagonal field of view and up to 5x electronic zoom — Poly does not specify optical zoom on this model. Poly DirectorAI provides speaker framing, group framing, people framing, presenter tracking and conversation mode, so a small room stays correctly framed without anyone touching a remote.
Three-Element Beamforming Audio with NoiseBlockAI
The R30 carries a three-element beamforming microphone array with pickup up to 15 ft (4.57 m) and an integrated speaker with passive radiator rated 84 dBSPL at 1 kHz at 1 m. Poly NoiseBlockAI, Poly Acoustic Fence and acoustic echo cancellation keep keyboard clatter and corridor noise out of the call — useful in the thin-walled, glass-fronted huddle rooms common in Singapore office fit-outs.
Native Zoom Rooms Compute and One-Touch Control
An HP Mini Conferencing PC with an Intel Core i7-12700T, 16 GB DDR5 and a 256 GB NVMe SSD runs Zoom Rooms natively, and the 10.1-inch Poly TC10 touch controller (PoE, IEEE 802.3at Class 0) starts and controls meetings. The result is a room that behaves the same as every other Zoom Room in the estate.
Poly Small Room Bundle for Zoom Rooms Datasheet — Technical Specifications
General
| Product | Poly Small Room Bundle for Zoom Rooms |
| Part number | 7230-88140-029 |
| Manufacturer | Poly (HP) |
| Bundle contents | Poly Studio R30 USB video bar, Poly TC10 touch controller (black), HP Mini Conferencing PC with Zoom Rooms |
| Recommended room size | Small rooms, up to 5 people (Poly bundle datasheet) |
| Platform | Zoom Rooms — an active Zoom Rooms licence is required and is not included |
| Warranty | Local Warranty (Singapore) |
Camera — Poly Studio R30
| Resolution / sensor | 4K, 8 MP |
| Capture resolutions | Ultra HD 4K 16:9 2160p, Full HD 1080p, HD 720p |
| Field of view | 139° DFOV / 121° HFOV |
| Zoom | Up to 5x electronic zoom (4x when tracking); no optical zoom is stated |
| Pan / tilt | Manual, via the Poly Lens Desktop app (not a mechanical PTZ head) |
| Framing | Poly DirectorAI — speaker framing, group framing, people framing, presenter tracking, conversation mode |
| Image processing | True colour and low-light compensation |
Audio — Poly Studio R30
| Speaker | One integrated speaker with passive radiator |
| Speaker frequency response | 100 Hz – 20 kHz |
| Speaker output | 84 dBSPL at 1 kHz at 1 m |
| Microphones | 3-element beamforming microphone array, 50 Hz – 14 kHz |
| Pickup range | Up to 15 ft / 4.57 m |
| Audio processing | Poly NoiseBlockAI, Poly Acoustic Fence, acoustic echo cancellation |
Connectivity — Poly Studio R30
| USB | 1 x USB 3.0 Type-C (USB 2.0 compatible), 2 x USB 2.0 Type-A |
| Wireless | 802.11ac Wi-Fi, Bluetooth 4.2 |
| HDMI | Not fitted on this model |
| PoE | Not supported on this model |
Compute — HP Mini Conferencing PC
| Processor | Intel Core i7-12700T (up to 4.7 GHz, 25 MB L3 cache, 12 cores, 20 threads) |
| Chipset | Intel Q670 (vPro) |
| Memory | 16 GB DDR5-4800 (2 x 8 GB) |
| Storage | 256 GB PCIe NVMe TLC M.2 SSD |
| Graphics | Intel UHD Graphics 770 |
| Wireless | Intel Wi-Fi 6E AX211 (2x2) and Bluetooth 5.3 |
| Wired network | Intel I219LM Gigabit Ethernet LOM |
| Front ports | 1 x headset, 2 x USB Type-A (10 Gbps), 1 x USB Type-C (20 Gbps) |
| Rear ports | 1 x RJ-45, 3 x USB Type-A, 2 x DisplayPort 1.4, 1 x HDMI 2.0b |
| Displays supported | Up to three monitors |
| Dimensions | 177 x 175 x 34 mm (6.97 x 6.89 x 1.35 in) |
| Weight | 1.42 kg (3.13 lb) |
| Power | 90 W external power adapter, up to 89% efficiency |
Controller — Poly TC10
| Display | 10.1 in (25.7 cm) diagonal IPS capacitive multi-touch, 16:10 |
| Resolution | WXGA 1280 x 800 |
| Brightness / contrast | 300 nits, 1000:1 |
| Connection & power | 1 x RJ-45; Power over Ethernet (PoE), IEEE 802.3at Class 0 |
| Dimensions | 260 x 184 x 64 mm (10.25 x 7.25 x 2.5 in) |
| Weight | 1.27 kg (2.79 lb) |
| Mounting | Drywall / J-box mount, tabletop stand, mounting hardware included |
| Part number | 875K5AA (black, sold standalone) |
Note on operating system: the Poly bundle datasheet for this generation states Windows 10 IoT Enterprise 64, while HP's later Base Room Kit documentation states Windows 11 IoT Enterprise 64. Both are HP-sourced and the difference is generational. Contact SourceIT if the exact Windows IoT build matters to your deployment.
Compatibility & Software Support
This bundle is a native Zoom Rooms appliance-style deployment: the HP Mini Conferencing PC ships with Zoom Rooms and the TC10 is Certified for Zoom Rooms. An active Zoom Rooms licence is purchased separately.
Certifications HP states for the bundled Poly Studio R30 itself: Certified for Zoom, Certified for Microsoft Teams, Certified for Google Meet and Certified for Chromebook. Note that these are certifications of the R30 as a USB device — the bundle as configured runs Zoom Rooms.
The HP Mini Conferencing PC supports up to three monitors and carries 2 x DisplayPort 1.4 and 1 x HDMI 2.0b, plus Intel Wi-Fi 6E AX211 and Bluetooth 5.3. Device management and firmware updates are handled through Poly Lens.
Package Contents & Zoom Rooms Bundle Ordering Information
In the box (per HP's solution guide for this bundle):
- Poly Studio R30 USB video bar, with display clamp, USB-C to USB-A cable and power cable
- Poly TC10 touch controller (black), with Ethernet cable and table stand
- HP Mini Conferencing PC with Zoom Rooms, with power cable, 2 x DisplayPort-to-HDMI adapters, cable management and VESA mount
Required but not included: HDMI cables, Ethernet cable, USB keyboard and mouse, and an active Zoom Rooms licence.
Poly Zoom Rooms bundles and base kits available from SourceIT
| Small Room Bundle for Zoom Rooms | Poly Studio R30 + TC10 + HP Mini Conferencing PC — 7230-88140-029 |
| Medium Room Bundle for Zoom Rooms | Poly Studio USB video bar + TC10 + HP Mini Conferencing PC — 7230-88150-029 |
| Large Room Bundle for Zoom Rooms | Poly Studio E70 + TC10 + HP Mini Conferencing PC (audio sold separately) — 7230-88160-029 |
| Zoom Room Base Kit | HP Mini Conferencing PC + TC10 (camera and audio sold separately) — 9J6C2AA |
| Zoom Room Intelligent Director Camera Kit | 3 x Poly Studio E70 smart cameras — 9J6A4AA |
Controllers and cameras sold separately
| Poly TC10 touch controller (black) | 875K5AA |
| Poly TC10 touch controller (white) | 875J5AA |
| Poly Studio E70 smart camera | 842F8AA |
| Poly Studio E60 smart camera | 9W1A6AA |
| Poly Studio V52 USB video bar | A09D4AA |
| Poly Studio V72 USB video bar | AV1E3AA |
| Poly Studio V12 USB video bar | A9DD8AA |
Datasheet & Downloads
Frequently Asked Questions — Poly Small Room Bundle for Zoom Rooms
Which Poly camera is in the small Zoom Rooms bundle?
The Poly Studio R30 USB video bar — an 8 MP 4K all-in-one bar with a 139° diagonal field of view, a 3-element beamforming microphone array and an integrated speaker. Camera and audio are in the one device.
What is the difference between the small, medium and large Zoom Rooms bundles?
The compute (HP Mini Conferencing PC) and the TC10 controller are the same in all three. The camera and audio differ: small uses the Studio R30, medium uses the Poly Studio USB video bar, and large uses the Studio E70 camera with audio purchased separately.
Do I still need a Zoom Rooms licence?
Yes. The bundle supplies the certified hardware and the pre-loaded Zoom Rooms compute; the Zoom Rooms subscription licence is bought separately from Zoom or through SourceIT.
Does the Studio R30 have optical zoom?
No. Poly specifies up to 5x electronic zoom (4x while tracking) and manual pan/tilt through the Poly Lens Desktop app. Optical zoom in the Poly range is found on the Studio E60, which has a 12x optical MPTZ lens.
What else do I need to buy to finish the room?
HDMI cables to your display or displays, an Ethernet cable, and a USB keyboard and mouse for first-time setup. Mounting hardware for the R30 (display clamp) and the TC10 (table stand and wall mount) is already in the box.
Can I build the same room without buying a bundle?
Yes. Order the Poly Zoom Room Base Kit for the compute and controller, then add whichever Poly camera and audio suit the space. The bundle simply pre-matches a known-good combination.
Does this come with local warranty in Singapore?
Yes. Every Poly Small Room Bundle for Zoom Rooms sold by SourceIT comes with local Singapore warranty and a GST invoice.
