Poly Studio R30 USB Video Bar
PRODUCT DESCRIPTION
Poly Studio R30 USB Video Bar (842D2AA) - Local Warranty

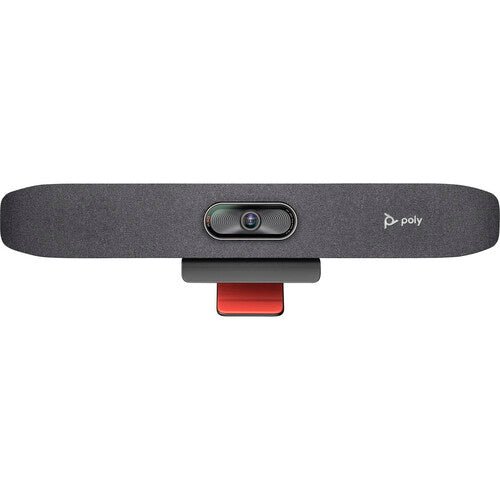

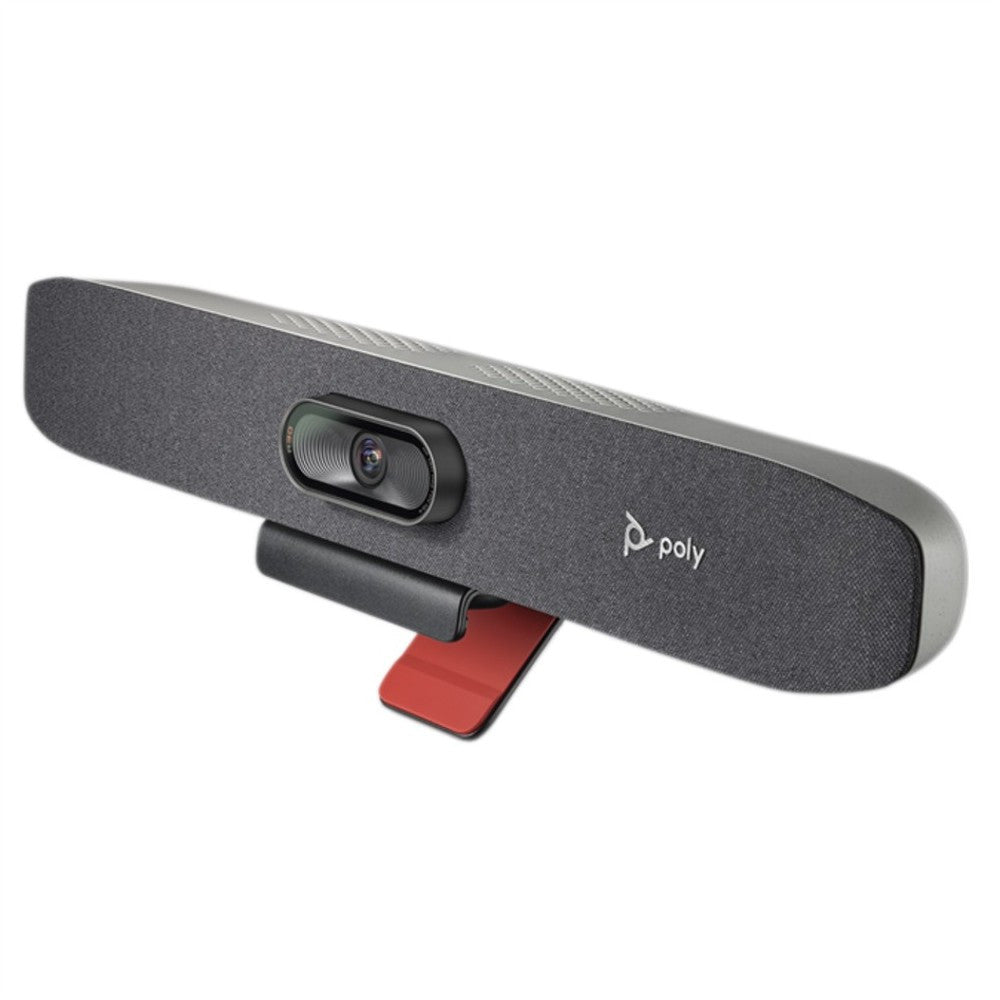

Poly Studio R30 — Compact 4K USB Video Bar for Small Rooms
The Poly Studio R30 is HP’s small-room USB bar, rated for three to five people. An 8 MP camera captures 4K UHD at 30 fps across a 120° diagonal field of view, and a monitor clamp in the box puts the whole thing on top of the room display in a couple of minutes. At 445 mm wide and 822 g with the clamp fitted, it suits focus rooms and small huddle spaces where a full-size bar would dominate the display.
8 MP 4K Camera with Poly DirectorAI Framing
The R30 records 2160p 4K UHD (3840 x 2160) at 30 fps with a 120° DFOV and 110° HFOV. Poly DirectorAI adds group framing, people framing, speaker framing and presenter tracking, and manual pan, tilt and zoom control is available when you want a fixed shot. Zoom is rated 5x without tracking and 4x with auto-tracking. A removable privacy cap covers the lens between meetings.
Three-Element Beamforming Array with NoiseBlockAI and Acoustic Fence
Three beamforming microphone elements cover a pickup range of 4.57 m (15 ft) — the right size for a small room. Poly NoiseBlockAI suppresses background noise, Poly Acoustic Fence keeps voices from outside the meeting area out of the call, and Poly Acoustic Clarity handles full-duplex echo cancellation. The integrated speaker delivers 90 dB SPL at 0.5 m across 100 Hz to 20 kHz.
Plug-and-Play USB-C, Managed by Poly Lens
One USB-C cable carries video and audio to any Windows or macOS host; a 5 m USB-C to USB-A cable is supplied, which is usually enough to reach a table or a wall-mounted PC. Two USB 2.0 Type-A ports, Wi-Fi 802.11a/b/g/n/ac and Bluetooth 4.2 are also on board, and the R30 is UAC and UVC plug-and-play so it works with any standards-based application. Fleet firmware and monitoring run through Poly Lens.
Ideal For

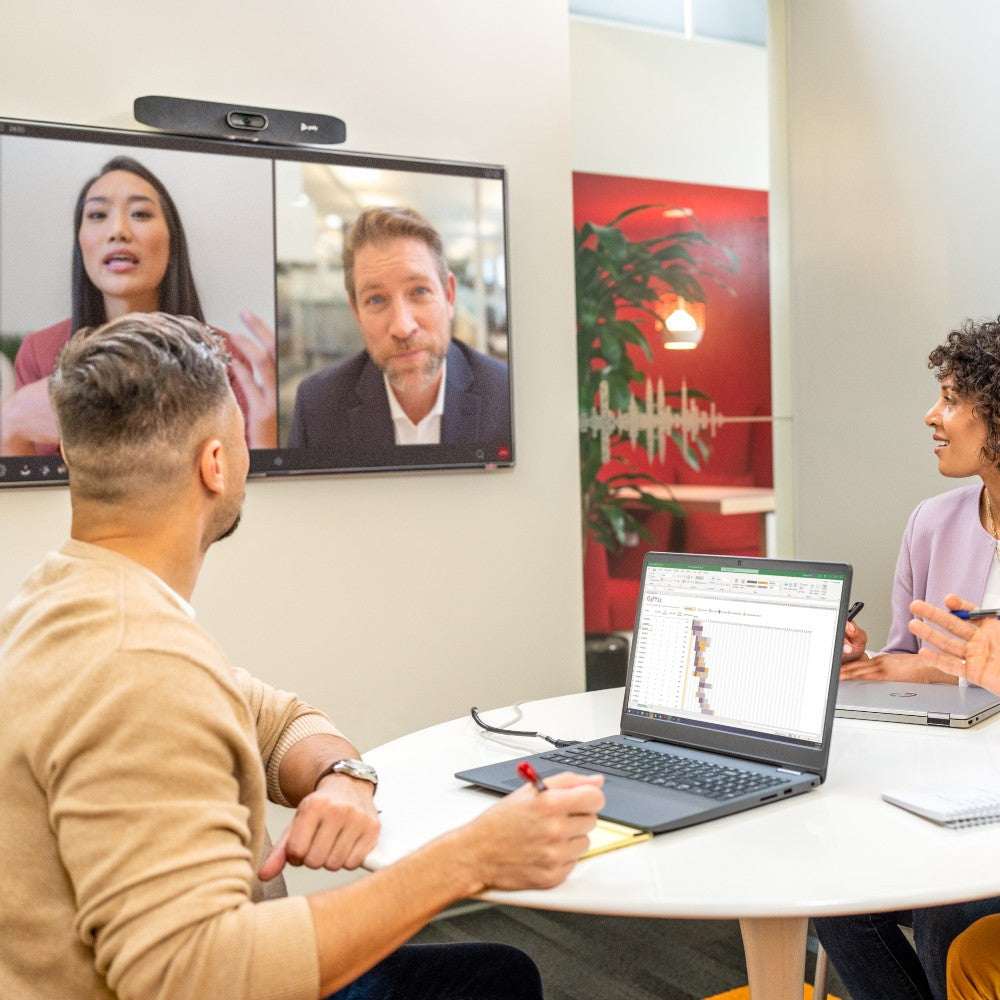

Small Singapore meeting rooms, focus rooms and huddle spaces of three to five people running Microsoft Teams or Zoom from a room PC or BYOD laptop, where the bar needs to clamp onto the display rather than take up table space.
Poly Studio R30 Datasheet — Technical Specifications
General
| Model | Poly Studio R30 |
| Part Number | 842D2AA |
| UPC | 197497463170 |
| Type | USB video bar — no built-in compute |
| Room size | Small rooms (3–5 people) |
| Certifications | Certified for Microsoft Teams; Certified for Zoom (HP spec sheet). HP’s Singapore product page additionally lists Certified for Google Meet and Certified for Chromebook |
| Standards | UAC and UVC plug-and-play; compatible with any application supporting standard USB audio and video drivers |
| Management | Poly Lens (requires Windows 10 or higher) |
| Colour | Sand |
| Manufacturer | Poly (HP) |
| Warranty | Local Warranty (Singapore) |
Camera
| Lens configuration | Single-lens, 8 MP |
| Resolution | 2160p 4K UHD (3840 x 2160) |
| Frame rate | 30 fps |
| Zoom | 5x without tracking; 4x with auto-tracking (HP does not state whether optical or digital) |
| Field of view | 120° DFOV; 110° HFOV |
| Camera control | Manual pan, tilt and zoom control |
| Poly DirectorAI | Group framing, people framing, speaker framing, presenter tracking |
| Privacy | Attachable / removable privacy cap |
Audio
| Speaker | Single integrated speaker |
| Speaker output | 90 dB SPL at 1000 Hz at 0.5 m, maximum volume |
| Speaker bandwidth | 100 Hz – 20 kHz |
| Microphones | Three-element beamforming microphone array |
| Pickup range | Up to 4.57 m (15 ft) |
| Audio processing | Poly NoiseBlockAI; Poly Acoustic Fence; Poly Acoustic Clarity |
Connectivity
| USB | 1 x USB Type-C (5 Gbps signalling rate); 2 x USB 2.0 Type-A |
| Power connector | 1 x 4.5 mm |
| Bluetooth | Bluetooth 4.2 |
| Wi-Fi | 802.11a/b/g/n/ac (SISO) |
| HDMI / Ethernet | Not listed by HP for this model |
Design & Power
| Dimensions | 445 x 86 x 81 mm with clamp; 445 x 68 x 81 mm without clamp |
| Weight | 822 g with clamp; 737 g without clamp |
| Power | 12 V / 3 A external adapter |
| Operating environment | 0–40 °C; 15–80% humidity; operating altitude to 3,000 m |
| Mounting | Monitor clamp included |
| Security | Kensington lock slot |
| Carbon footprint | 90 kg CO2e total (production 71 kg, energy 12 kg, transport 3 kg, end-of-life 0.5 kg) |
Compatibility & Software Support
The Poly Studio R30 is a USB peripheral with no built-in compute — the meeting platform runs on the connected Windows or macOS host.
| Built-in compute | None — USB connection to a room PC or laptop |
| Microsoft Teams | Certified |
| Zoom | Certified |
| Google Meet and Chromebook | HP’s Singapore product page lists Certified for Google Meet and Certified for Chromebook; HP’s own spec sheet for 842D2AA lists only Teams and Zoom. Please confirm with SourceIT if Google Meet certification is a procurement requirement |
| Other applications | Any application supporting standard USB audio and video drivers (UAC / UVC) |
| Windows | Windows 8.1, 10 and 11 |
| macOS | macOS 10.10 or later |
| Device management | Poly Lens (requires Windows 10 or higher) |
Poly Studio USB Video Bar Range at SourceIT
| Model | Part Number | Positioned For |
| Poly Studio R30 USB Video Bar (this listing) | 842D2AA | Small rooms (3–5 people) |
| Poly Studio V12 USB Video Bar | A9DD8AA | Small conference spaces |
| Poly Studio USB Video Bar | 7200-85830-102 / 842D4AA | Medium rooms (6–9 people) |
| Poly Studio V52 USB Video Bar | A09D4AA | Small to medium rooms |
| Poly Studio V72 USB Video Bar | AV1E3AA | Large rooms |
Package Contents & Poly Studio USB Video Bar Ordering Information
What’s in the Box (842D2AA)
Poly Studio R30; monitor clamp; AC power adapter; power cable; USB Type-C to USB Type-A cable (5 m / 16.4 ft); removable privacy cap; setup sheet.
Poly Studio USB Video Bar Ordering Information
| Model | Part Number | Positioned For |
| Poly Studio R30 USB Video Bar (this listing) | 842D2AA | Small rooms (3–5 people) |
| Poly Studio V12 USB Video Bar | A9DD8AA | Small conference spaces |
| Poly Studio USB Video Bar | 7200-85830-102 / 842D4AA | Medium rooms (6–9 people) |
| Poly Studio V52 USB Video Bar | A09D4AA | Small to medium rooms |
| Poly Studio V72 USB Video Bar | AV1E3AA | Large rooms |
Datasheet & Downloads
Frequently Asked Questions — Poly Studio R30
What room size is the Poly Studio R30 designed for?
HP rates the R30 for small rooms of three to five people, with microphone pickup to 4.57 m (15 ft).
Is the Studio R30 certified for Google Meet?
HP’s Singapore product page lists Certified for Google Meet and Certified for Chromebook alongside Teams and Zoom, but HP’s own spec sheet for 842D2AA lists only Microsoft Teams and Zoom. If Google Meet certification is a procurement requirement, the Poly Studio USB video bar carries Google Meet certification on both HP sources.
How does the R30 compare with the Poly Studio V12?
Both are small-room USB bars. The Studio V12 is the newer design with a 20 MP lens, stereo speakers rated 2 x 5 W and a four-microphone array, and it can be powered over PoE++. The R30 has an 8 MP lens, a single speaker and a three-microphone array, includes its power adapter and monitor clamp, and adds manual pan, tilt and zoom control.
Do I need a room PC, licence or compute appliance with the Studio R30?
Yes. The R30 is a USB peripheral with no built-in compute, so a Windows or macOS host runs the meeting platform and holds the room licence. It can also serve as the camera and audio for a Poly Studio G62 room, which HP lists as a compatible peripheral.
How does the Studio R30 mount?
A monitor clamp is supplied in the box and is the standard mounting method — the bar sits on top of the room display. Fitted with the clamp the bar measures 445 x 86 x 81 mm and weighs 822 g.
What colour is the Studio R30?
HP specifies the R30 in Sand, not black. It is worth checking against the rest of the room hardware if a consistent finish matters.
Does the Studio R30 support Ethernet or PoE?
No. HP does not list Ethernet or PoE for this model. It connects to the host over USB-C and takes power from the supplied 12 V / 3 A adapter; Wi-Fi 802.11a/b/g/n/ac and Bluetooth 4.2 are on board.
Does the Poly Studio R30 come with warranty in Singapore?
Yes. Every Poly Studio R30 sold by SourceIT comes with local Singapore warranty and a GST invoice.
