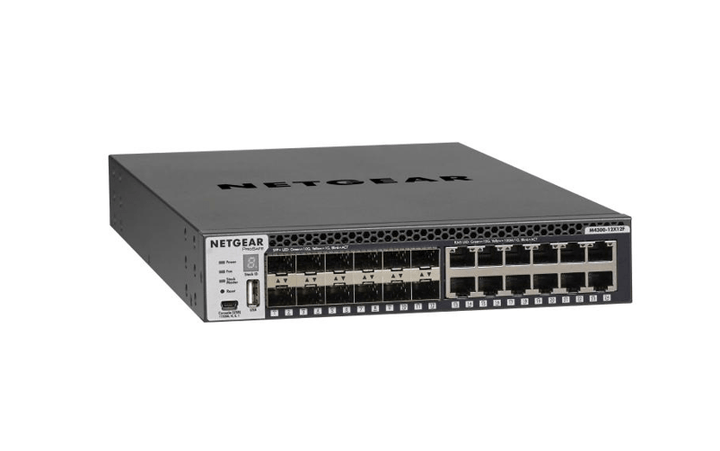

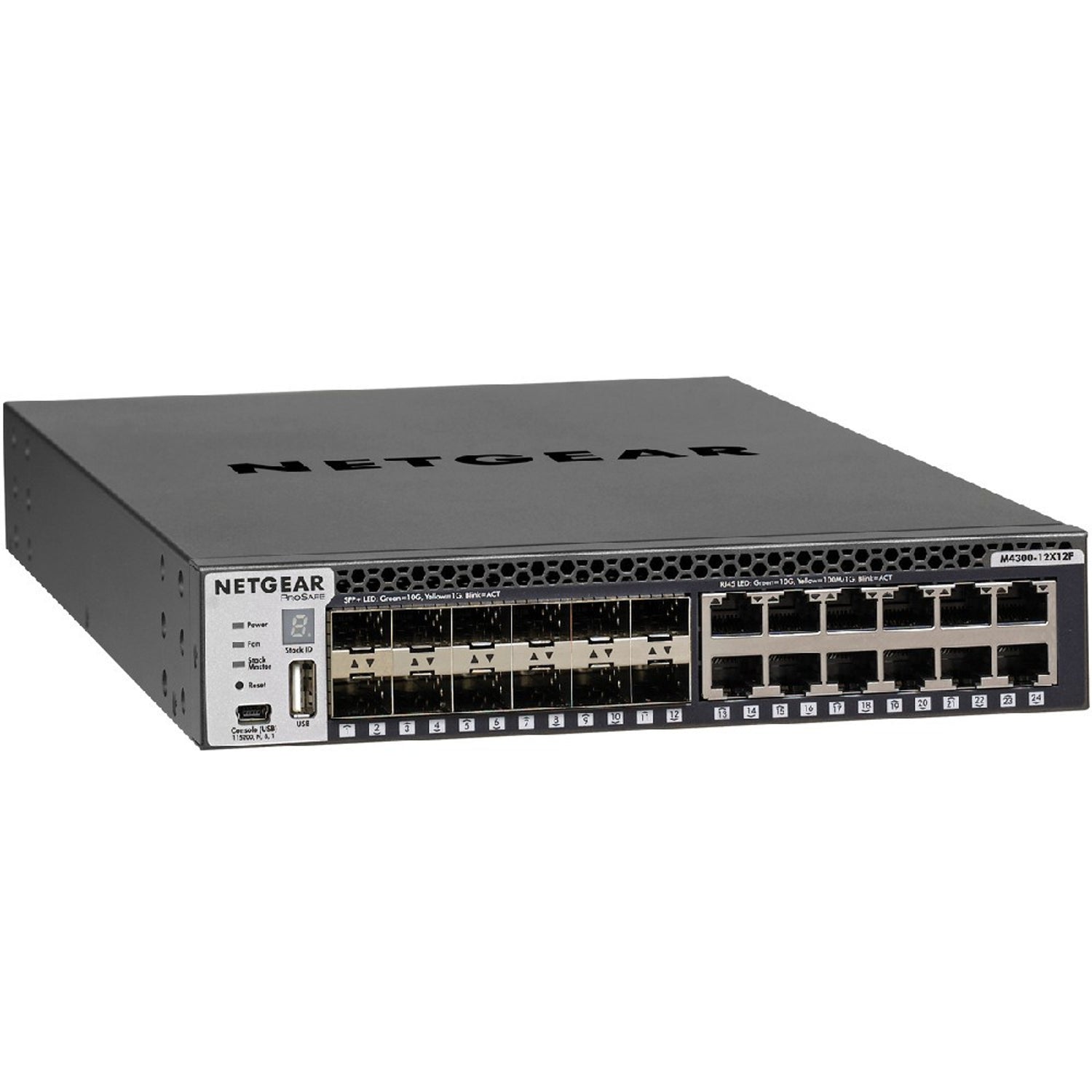

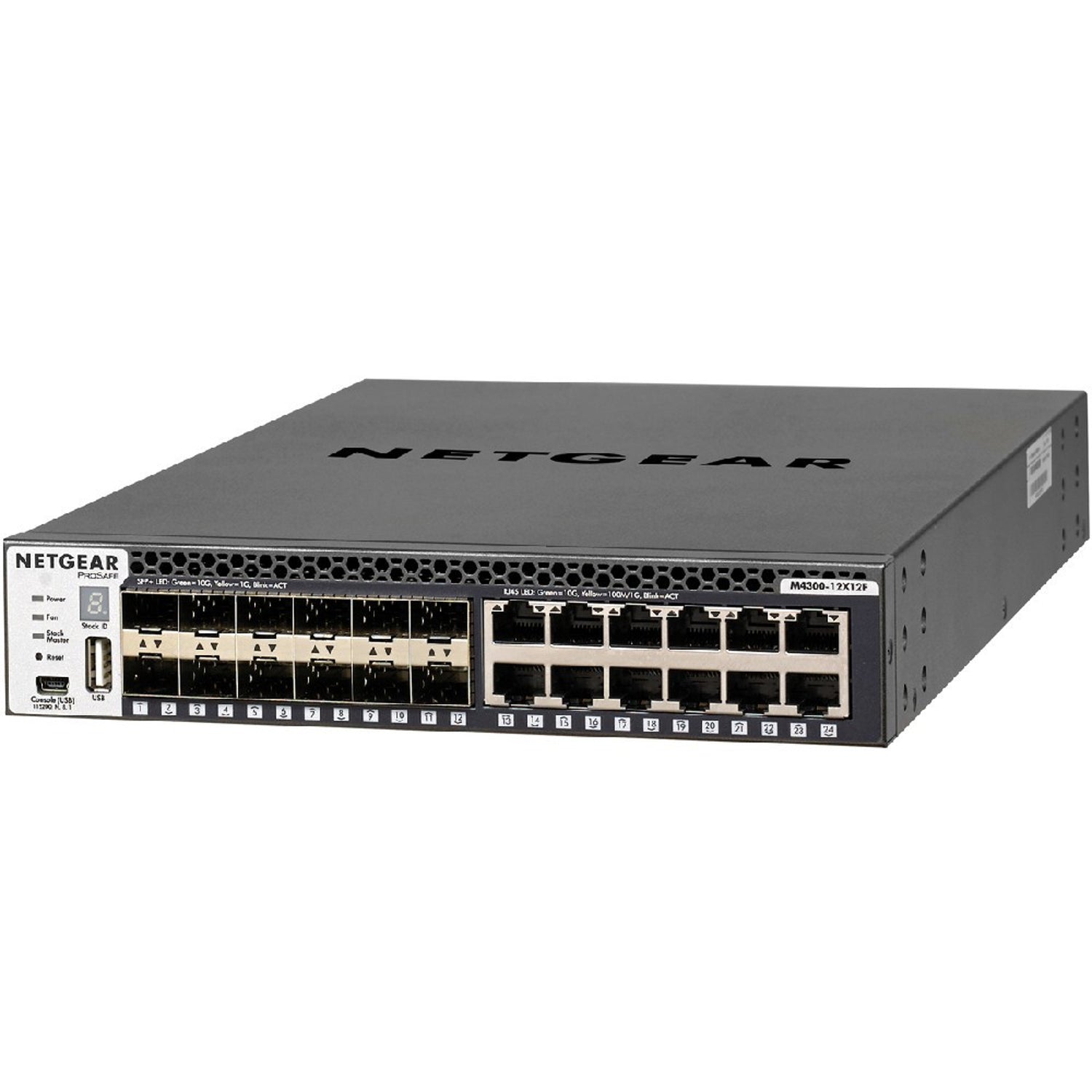

NETGEAR XSM4324S M4300-12X12F Half-Width 24-Port 10G Stackable L3 Managed Switch, 12x 10GBASE-T, 12x SFP+
PRODUCT DESCRIPTION
NETGEAR M4300-12X12F Half-Width 24-Port 10G Stackable L3 Managed Switch, 12x 10GBASE-T, 12x SFP+ (XSM4324S-100AJS) - Limited Lifetime Local Warranty
Twelve Copper and Twelve Fibre 10G Ports

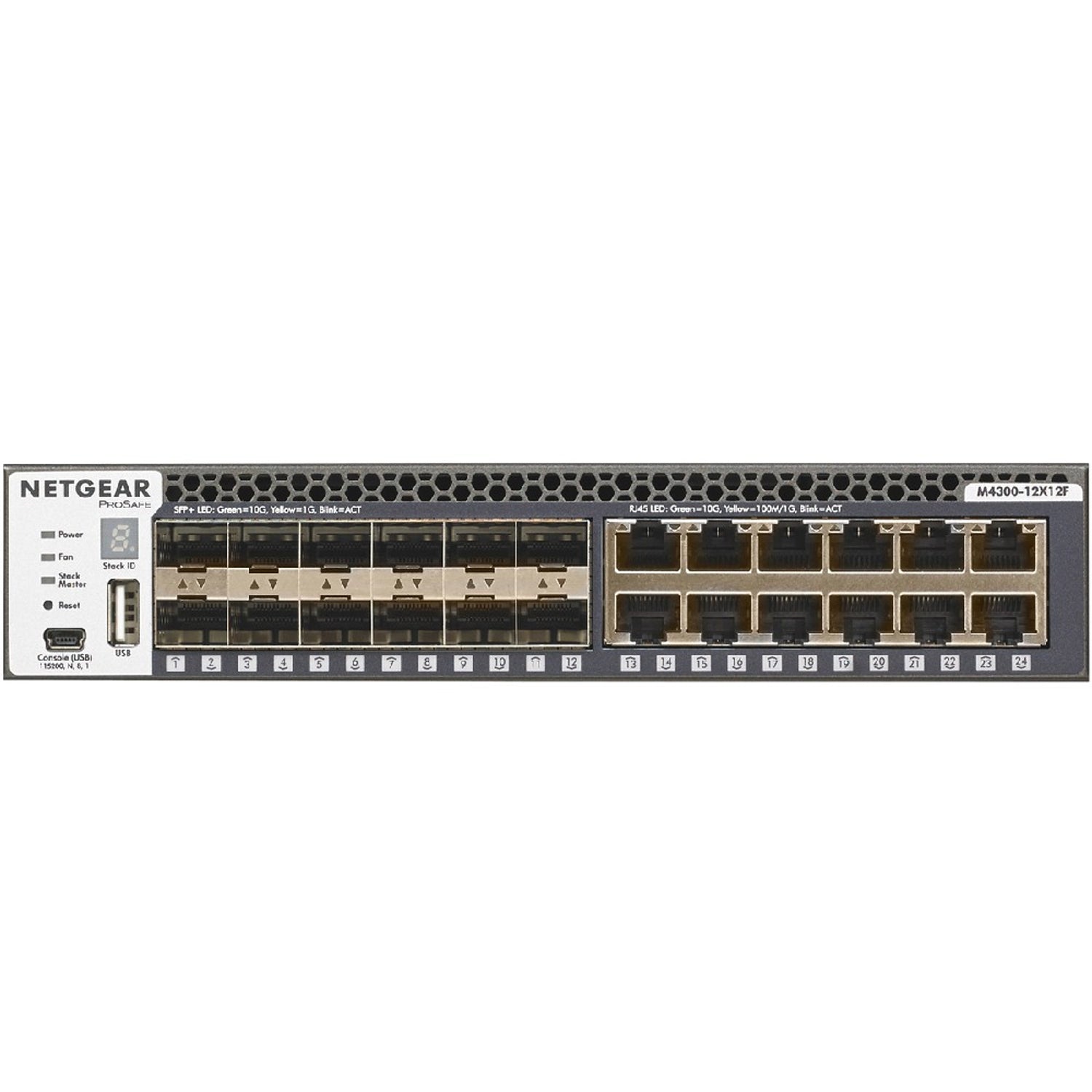

The M4300-12X12F provides 12 x 10GBASE-T RJ45 ports (100M / 1G / 10G) and 12 x SFP+ ports (1G / 10G), all independent, on a 480 Gbps non-blocking switching fabric for server, storage and AV aggregation.
Half-Width for Redundant Top-of-Rack
At half-width 1U, two M4300-12X12F switches can be installed side by side in a single rack space for redundant top-of-rack, with a 1G out-of-band management port for dedicated management access.
Stacking with Non-Stop Forwarding
Up to eight M4300 switches can be aggregated into a single virtual chassis, and 10G models stack seamlessly with 1G models. There are no dedicated stacking ports: any 10G port (copper or fibre, RJ45, SFP+ or DAC) can be used. Non-Stop Forwarding (NSF) gives hitless failover from the management unit to the redundant management unit, and the stack is seen by the rest of the network as a single bridge or router.
Zero-Touch Pro AV Multicast
NETGEAR IGMP Plus provides automatic Layer 2 multicast out of the box: IGMP Snooping, IGMP Fast Leave and IGMP Querier are already enabled, giving zero-touch AV-over-IP with pre-configured L2 multicast (SDVoE-ready).
Layer 3 Routing with No Licence
The entire M4300 feature set, including L2 switching with IGMP Plus and L3 routing (static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing) plus PTPv2, is available without a licence. Manage it through the industry-standard CLI, the NETGEAR web GUI or SNMP, with sFlow and RSPAN for visibility.
Need help choosing? Email sales@sourceit.com.sg with your server, storage or AV endpoint counts and cabling types and we will size it for you.
NETGEAR XSM4324S M4300-12X12F Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4300-12X12F Stackable Half-Width 24-Port 10G Managed Switch with 12x 10GBASE-T and 12x SFP+ |
| Part Number | XSM4324S-100AJS |
| Series | NETGEAR M4300 Series Fully Managed Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| 10G copper ports | 12 x 10GBASE-T (100M / 1G / 10G), independent |
| 10G fibre ports | 12 x SFP+ (1G / 10G), independent |
| Out-of-band management | 1 x 1G Ethernet |
| Console | RJ45 RS232; Mini-USB |
| USB | USB port for storage |
Performance
| Switching fabric | 480 Gbps |
| Throughput | Line-rate |
| Latency | <2.76µs (10G RJ45); <1.83µs (10G SFP+) |
| MAC address table | 16K |
| ARP/NDP | 888 |
| Routing table | Static: 64 IPv4 / 64 IPv6; RIP: 512; OSPF: 512 |
| VLANs | 4K |
| Packet buffer | 32Mb |
| Stacking | Up to 8 switches, NSF hitless failover; any 10G port can be a stacking port |
Power & Environmental

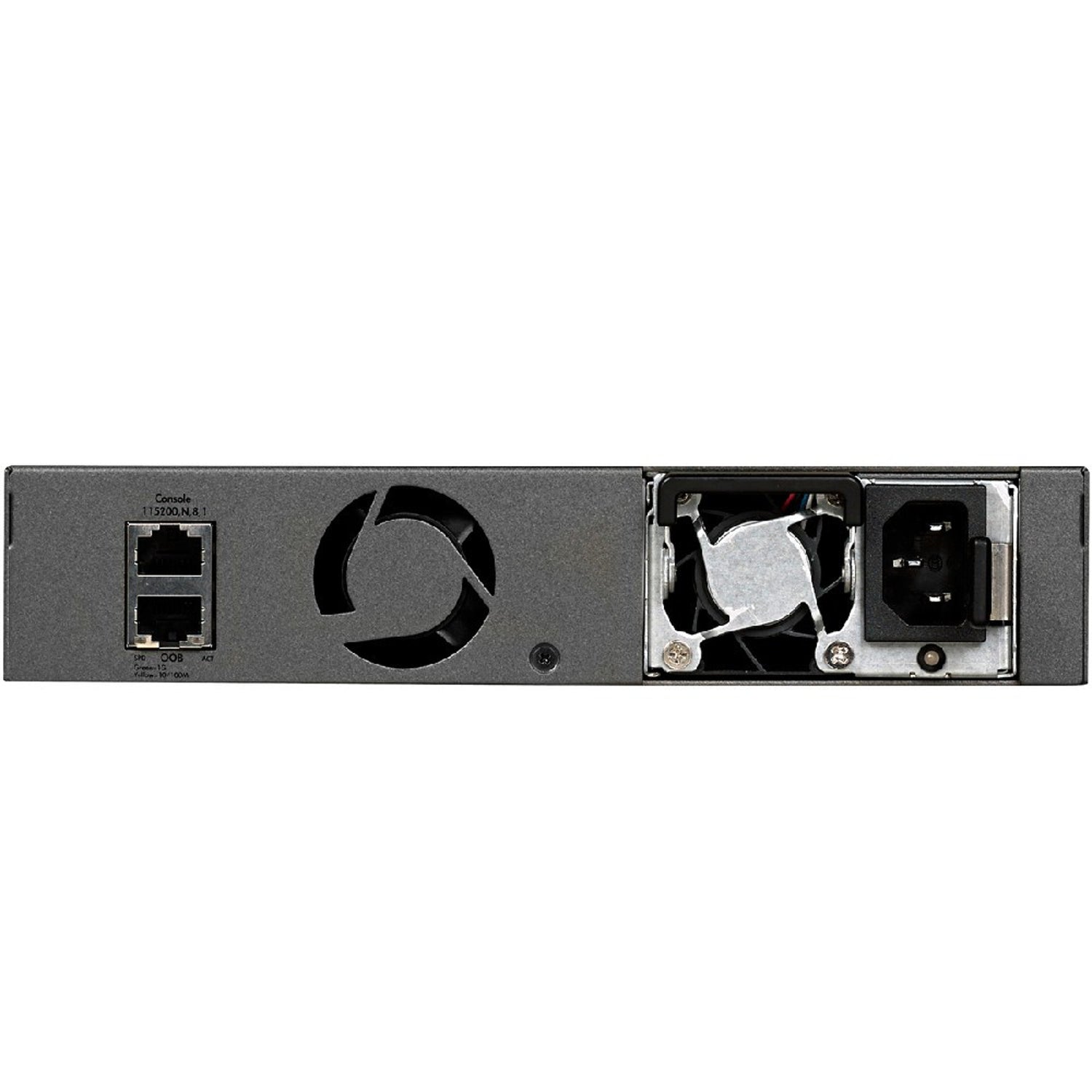

| Power supply | 1 x APS250W modular PSU included |
| PSU bays | 1 modular bay |
| Max power consumption | 97W (per netgear.com) |
| Acoustic noise | 36.9 dB @ 25°C |
Physical
| Form factor | Half-width 1U; two units fit side by side in 1U |
Compatibility & Software Support
Power supply
Ships with one NETGEAR APS250W modular PSU in a single modular bay. A spare APS250W is available.
Transceivers & cabling
The 12 SFP+ ports accept 1G and 10G SFP/SFP+ optics and DAC cables; the 12 10GBASE-T ports run at 100M, 1G or 10G over copper.
Stacking
Stacks with other M4300 models (up to 8 switches), including mixing 1G and 10G models. Any 10G port, copper or fibre, can be configured for stacking.
Software features
Full Layer 2 and Layer 3 feature set with no licence: static routing, RIP, OSPF, VRRP, PIM-SSM, policy-based routing, PTPv2 and NETGEAR IGMP Plus automatic multicast. Managed via industry-standard CLI, web GUI and SNMP, with sFlow and RSPAN.
Package Contents & M4300 Ordering Information
In the Box
M4300 switch with power supply unit (per model ordered), power cord, console cable (RJ45 to DB9), USB console cable (mini-B to type A), half-width rack-mount kit (long and regular brackets, screws and middle mounts, for mounting one switch or two side by side in 1U), rubber footpads and quick installation guide.
NETGEAR M4300 Models
| Model | Ports | Part No. |
| GSM4328S M4300-28G | 24 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4328S-100AJS |
| GSM4328PA M4300-28G-PoE+ (550W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PA-100AJS |
| GSM4328PB M4300-28G-PoE+ (1000W PSU) | 24 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4328PB-100AJS |
| GSM4352S M4300-52G | 48 x 1G, 2 x 10GBASE-T, 2 x SFP+ | GSM4352S-100AJS |
| GSM4352PA M4300-52G-PoE+ (550W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PA-100AJS |
| GSM4352PB M4300-52G-PoE+ (1000W PSU) | 48 x 1G PoE+, 2 x 10GBASE-T, 2 x SFP+ | GSM4352PB-100AJS |
| XSM4316S M4300-8X8F | 8 x 10GBASE-T, 8 x SFP+ | XSM4316S-100AJS |
| XSM4316PA M4300-16X (PoE+, PA) | 16 x 10GBASE-T PoE+ | XSM4316PA-100AJS |
| XSM4316PB M4300-16X (PoE+, PB) | 16 x 10GBASE-T PoE+ | XSM4316PB-100AJS |
| XSM4324S M4300-12X12F (this listing) | 12 x 10GBASE-T, 12 x SFP+ | XSM4324S-100AJS |
| XSM4324CS M4300-24X | 24 x 10GBASE-T (4 shared SFP+) | XSM4324CS-100AJS |
| XSM4324FS M4300-24XF | 24 x SFP+ (2 shared 10GBASE-T) | XSM4324FS-100AJS |
| XSM4348S M4300-24X24F | 24 x 10GBASE-T, 24 x SFP+ | XSM4348S-100AJS |
| XSM4348CS M4300-48X | 48 x 10GBASE-T (4 shared SFP+) | XSM4348CS-100AJS |
| XSM4348FS M4300-48XF | 48 x SFP+ (2 shared 10GBASE-T) | XSM4348FS-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | M4300 Series Datasheet (PDF) |
| Hardware installation guide | M4300 Hardware Installation Guide (PDF) |
| User manual | M4300 / M4300-96X User Manual (PDF) |
| NETGEAR product page | XSM4324S on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4324S-100AJS.
Frequently Asked Questions — NETGEAR XSM4324S M4300-12X12F
Can I mount two of these in one rack unit?
Yes. The M4300-12X12F is half-width, and two can be installed side by side in a single 1U rack space.
Does it support 1G devices?
Yes. The 10GBASE-T ports run at 100M, 1G or 10G, and the SFP+ ports accept 1G or 10G modules.
Do I need a licence for Layer 3 routing?
No. Static, RIP, OSPF, VRRP, PIM-SSM and policy-based routing are included without a licence.
Can it stack with other M4300 switches?
Yes. Up to 8 M4300 switches, 1G and 10G models mixed, can form one stack using any 10G port, with NSF hitless failover.
Does it support PoE?
No. For 10G PoE+ look at the M4300-16X (XSM4316PA / XSM4316PB).
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
