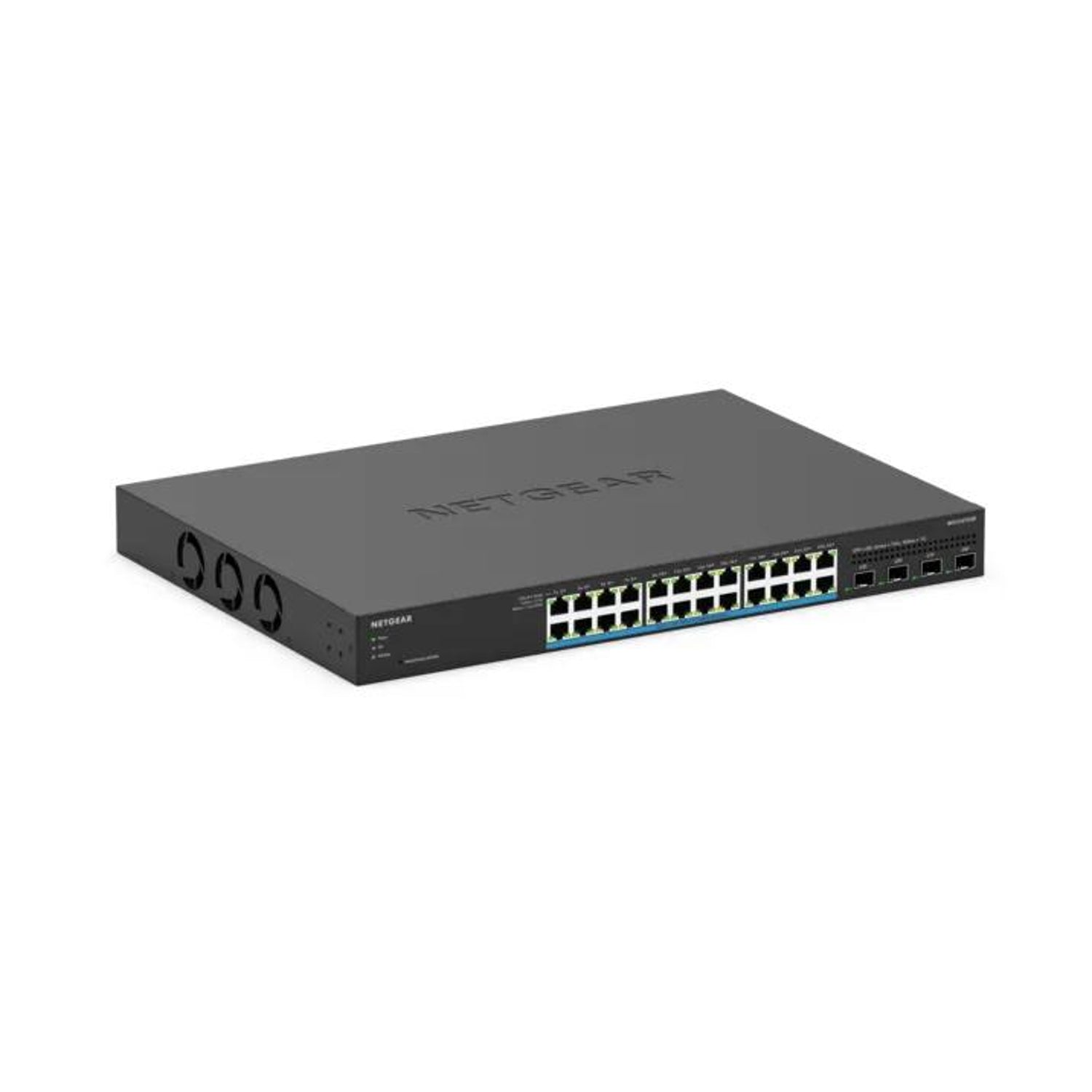

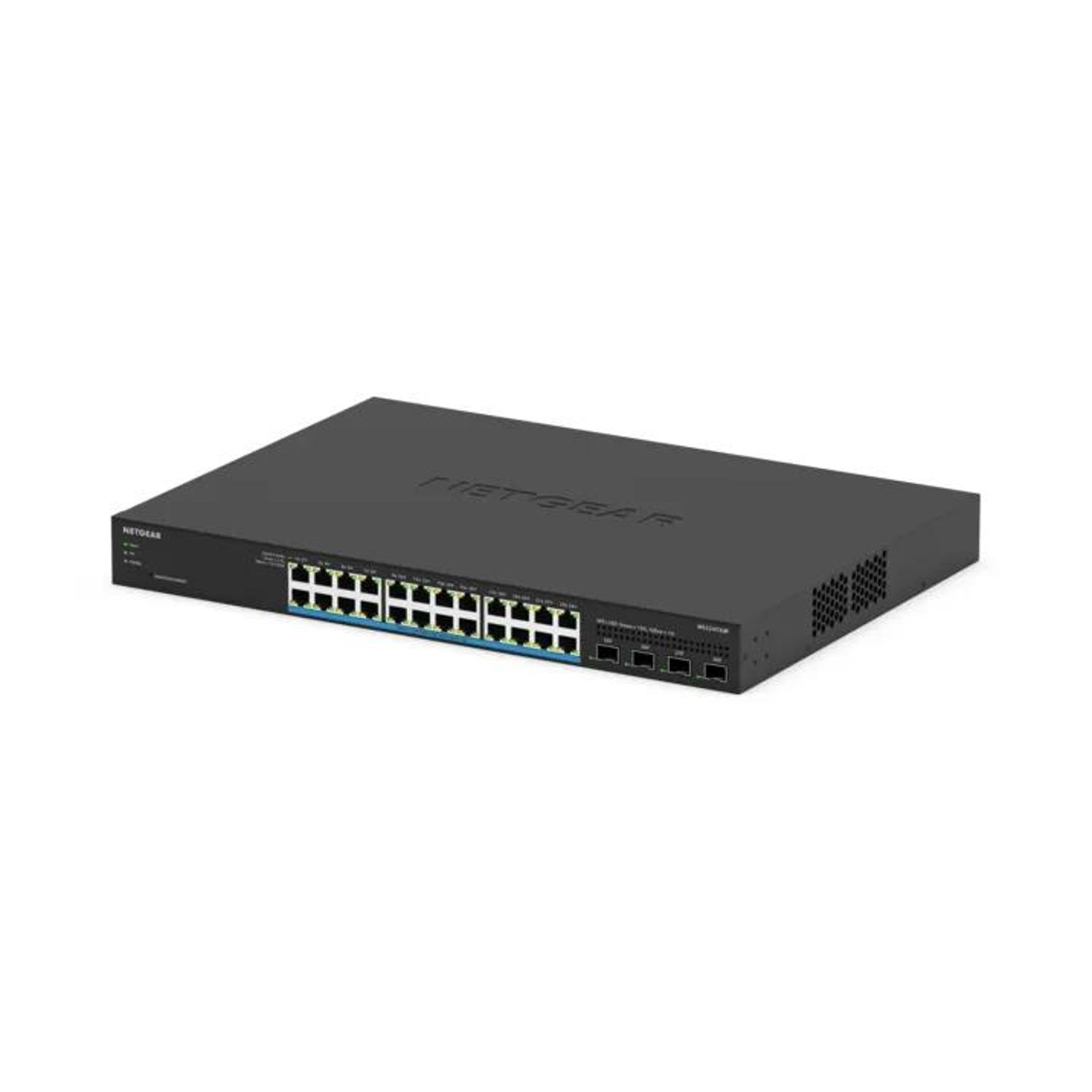

NETGEAR MS324TXUP 24-Port 2.5G Ultra60 PoE++ Smart Switch with 4x 10G SFP+ (720W)
PRODUCT DESCRIPTION
NETGEAR MS324TXUP 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports, 720W (MS324TXUP-100UKS) - Limited Lifetime Local Warranty

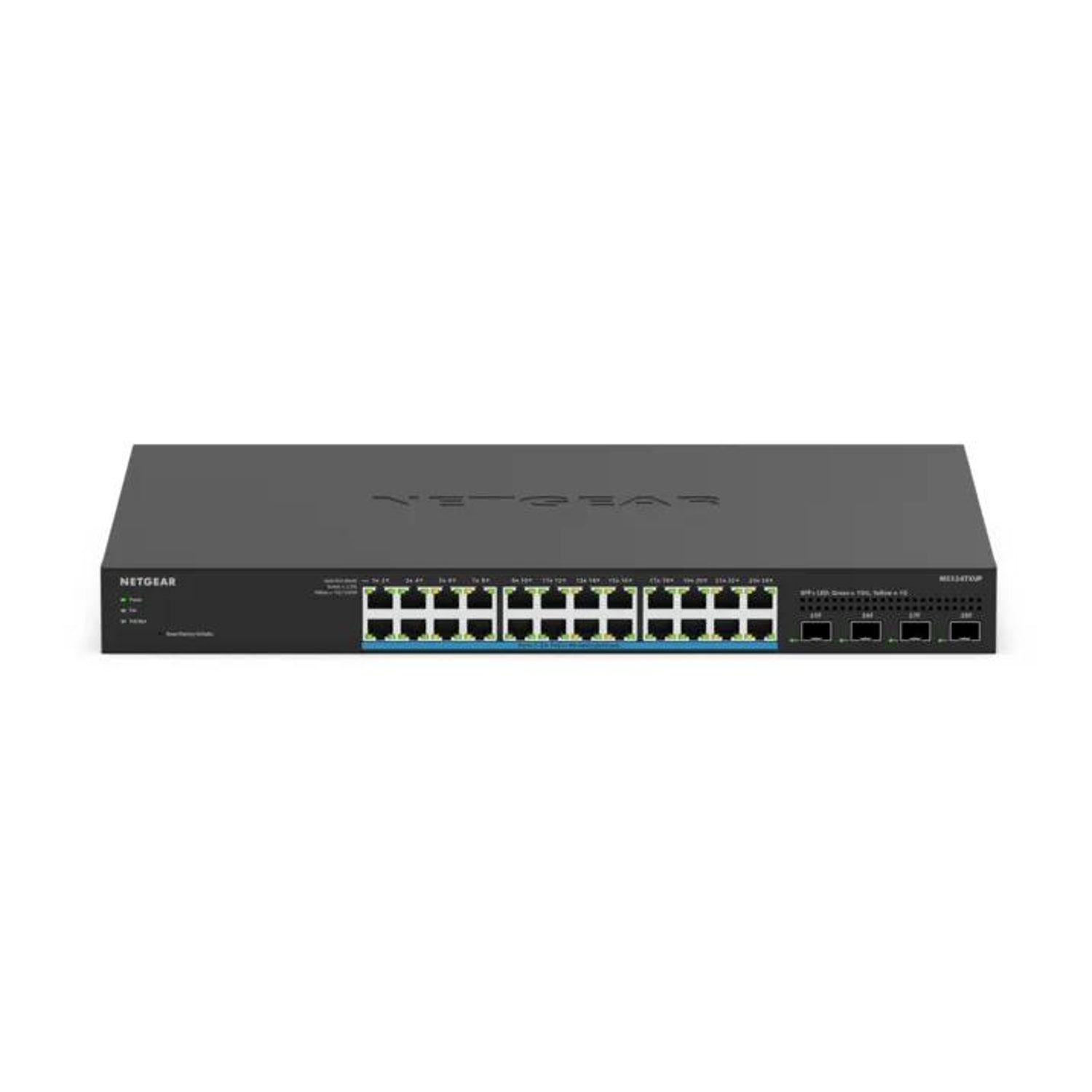

24 Ultra60 PoE++ Multi-Gig Ports
The NETGEAR MS324TXUP has 24 RJ-45 ports at 100M/1G/2.5G, every one delivering Ultra60 PoE++ (IEEE 802.3bt) at up to 60 W, plus 4 dedicated 10G SFP+ ports for fiber or DAC uplinks.
720 W PoE Budget
A 720 W total PoE budget powers WiFi access points, PTZ cameras and other high-draw devices, with per-port enable/disable, power limits, scheduling, uninterrupted PoE and PoE self-healing.
200 Gbps Non-Blocking
A 200 Gbps non-blocking fabric and 148.8 Mpps forwarding rate keep all ports at line rate, backed by a 1 GHz dual-core CPU, 1 GB RAM and dual firmware images.
Local or Cloud Smart Management
L2/L3 Lite features — VLANs with Auto-VoIP, Auto-Video, Auto-Camera and Auto-WiFi, ACLs, 802.1X, DHCP snooping, static routing — managed by web GUI or optional NETGEAR Insight cloud management with zero-touch provisioning.
NETGEAR MS324TXUP Datasheet — Technical Specifications
General
| Product Name | NETGEAR MS324TXUP 24-Port Multi-Gigabit (2.5G) Ethernet Ultra60 PoE++ Smart Switch with 4 SFP+ Ports |
| Part Number (SKU) | MS324TXUP-100UKS |
| Series | NETGEAR Multi-Gigabit Ultra60 PoE++ Smart Switches |
| Local Warranty (Singapore) | Limited Lifetime, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Copper Ports | 24 x RJ-45 1G/2.5G (100M/1G/2.5G) |
| Fiber Ports | 4 x dedicated 10G SFP+ (1G/10G) for fiber or copper modules |
| PoE | 24 x Ultra60 PoE++ (IEEE 802.3bt, up to 60 W per port) |
| PoE Budget | 720 W total |
| PoE Features | Per-port enable/disable, power limit, scheduling and timers; uninterrupted PoE; PoE self-healing |
Performance
| Switching Fabric | 200 Gbps non-blocking, full duplex |
| Forwarding Rate | 148.8 Mpps (64-byte packets) |
| Forwarding Mode | Store-and-forward |
| CPU / Memory | 1 GHz dual-core CPU, 1 GB RAM, 64 MB SPI flash; dual firmware image |
| Packet Buffer | 2 MB, dynamically shared |
| MAC Address Table | 32K |
| ARP Entries | 1,024 |
| VLANs | 256 |
| Multicast Groups | 512 |
| DHCP Snooping Bindings | 256 |
| ACLs | 100 shared (MAC, IPv4, IPv6; ingress) |
| Priority Queues | 8 (Weighted Round Robin and strict priority) |
| Link Aggregation | 8 LAGs (LACP or static), up to 8 members each |
| Jumbo Frames | 10K |
| Latency (64 / 1518 / 9216-byte) | 1G copper 5.32 / 5.67 / 5.64 µs; 2.5G copper 8.03 / 8.19 / 8.22 µs; 10G SFP+ fiber 1.14 / 1.228 / 1.236 µs |
Software Features
| Layer 2 | 802.1Q, MAC-based and protocol-based VLANs; Voice, Auto-VoIP, Auto-Video, Auto-Camera, Auto-WiFi and private VLANs; GVRP; STP, RSTP, MSTP; LACP and static LAG; storm control; 802.3x flow control |
| Multicast | IGMP snooping v1/v2/v3 with querier, MLD snooping v1/v2, MVR |
| Layer 3 Lite | Static IPv4 and IPv6 routing (32 routes each), VLAN routing (15 routed VLAN interfaces), IRDP; DHCP client, server, relay and snooping (IPv4/IPv6) |
| QoS | Port-based, 802.1p and DSCP prioritisation; ingress and egress port rate limiting; Auto-VoIP by OUI or SIP |
| Security | 802.1X with guest VLAN, RADIUS VLAN assignment, MAC-based 802.1X, RADIUS accounting; L2/L3/L4 ACLs; MAC lockdown; port security; DoS prevention; dynamic ARP inspection; protected ports; RADIUS and TACACS+ admin access |
| Management | Web GUI (HTTP/HTTPS, TLS 1.2), Lite CLI, NETGEAR Switch Discovery Tool, SNMP v1/v2c/v3, RMON 1/2/3/9, LLDP / LLDP-MED, optional NETGEAR Insight cloud management (app and portal), syslog, SNTP, IPv6 management |
| Diagnostics | Port mirroring (many-to-one), cable test, ping and traceroute |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet (off by default), auto power-down |
Power & Environmental
| Power Supply | Internal, fixed |
| Power Consumption | 765 W max (all ports, full PoE, line-rate traffic); 22 W min (link-down standby) |
| Heat Dissipation | 2,610.29 BTU/hr max; 75.07 BTU/hr min |
| Cooling | 3 internal fixed fans, temperature- and load-based speed control |
| Acoustic Noise | 38 dBA @ 25 °C |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Humidity | Up to 95% RH, non-condensing |
| Altitude | Up to 3,000 m (10,000 ft) |
| MTBF | 1,017,939 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 440 x 310 x 43 mm (17.3 x 12.2 x 1.7 in) |
| Weight | 4.44 kg (9.78 lb) |
| Mounting | Desktop (rubber footpads) or 19-inch rack mount (kit included) |
Compatibility & Software Support
Management
Local web GUI over HTTPS and Lite CLI, or optional NETGEAR Insight cloud management activated from the local GUI, via the Insight mobile app or web portal, with zero-touch provisioning, multi-site view and cloud firmware updates; SNMP v1/v2c/v3 for network management systems.
Transceivers
SFP+ ports accept NETGEAR modules such as AGM731F 1000BASE-SX, AGM732F 1000BASE-LX, AGM734 1000BASE-T, AXM761 10GBASE-SR, AXM762 10GBASE-LR, AXM763 10GBASE-LRM, AXM764 10GBASE-LR Lite, AXM765v2 10GBASE-T, and AXC761 (1 m) / AXC763 (3 m) SFP+ DAC cables (sold separately).
Typical Use
Multi-gig PoE++ access switch for offices, schools and hospitality powering many WiFi access points, cameras and other 60 W devices, with 10G fiber uplinks to the core.
Package Contents & Multi-Gig Smart Switch Ordering Information
In the Box
MS324TXUP smart switch, power cord (varies by region), rack mount kit, rubber footpads, installation guide.
NETGEAR Multi-Gig Smart Managed Switch Models
| Model | Ports / Key Spec | Part No. |
| MS110TX | 8 x 1G/2.5G + 2 x 10G SFP+, fanless | MS110TX-100UKS |
| MS110TXUP | 8 x 1G/2.5G (4 x PoE++ 60 W + 4 x PoE+ 30 W, 230 W) + 2 x 10G SFP+, fanless | MS110TXUP-100UKS |
| MS324TXUP (this listing) | 24 x 1G/2.5G Ultra60 PoE++ (720 W) + 4 x 10G SFP+ | MS324TXUP-100UKS |
| MS510TXM | 4 x 2.5G + 4 x 10G copper + 2 x 10G SFP+ | MS510TXM-100EUS |
| MS510TXUP | 4 x 2.5G + 4 x 10G copper (8 x Ultra60 PoE++, 295 W) + 2 x 10G SFP+ | MS510TXUP-100EUS |
Datasheet & Downloads
| NETGEAR datasheet | MS324TXUP Datasheet (PDF) |
| Installation guide | MS324TXUP Installation Guide (PDF) |
| User manual | MS324TXUP User Manual (PDF) |
| NETGEAR product page | MS324TXUP on netgear.com |
Frequently Asked Questions — NETGEAR MS324TXUP
How much PoE power does the MS324TXUP provide?
720 W total across 24 Ultra60 PoE++ (IEEE 802.3bt) ports, up to 60 W per port.
What port speeds does it support?
24 copper ports at 100M/1G/2.5G plus 4 dedicated 10G SFP+ ports (1G/10G).
Can it be managed from the cloud?
Yes. NETGEAR Insight cloud management is optional and is activated from the local web GUI; it can also be managed locally through the web GUI.
Are SFP+ modules included?
No. SFP+ transceivers and DAC cables are sold separately.
Can it be rack mounted?
Yes. It works on a desktop or in a 19-inch rack; the rack mount kit and rubber footpads are included.
What warranty do I get?
Limited Lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
