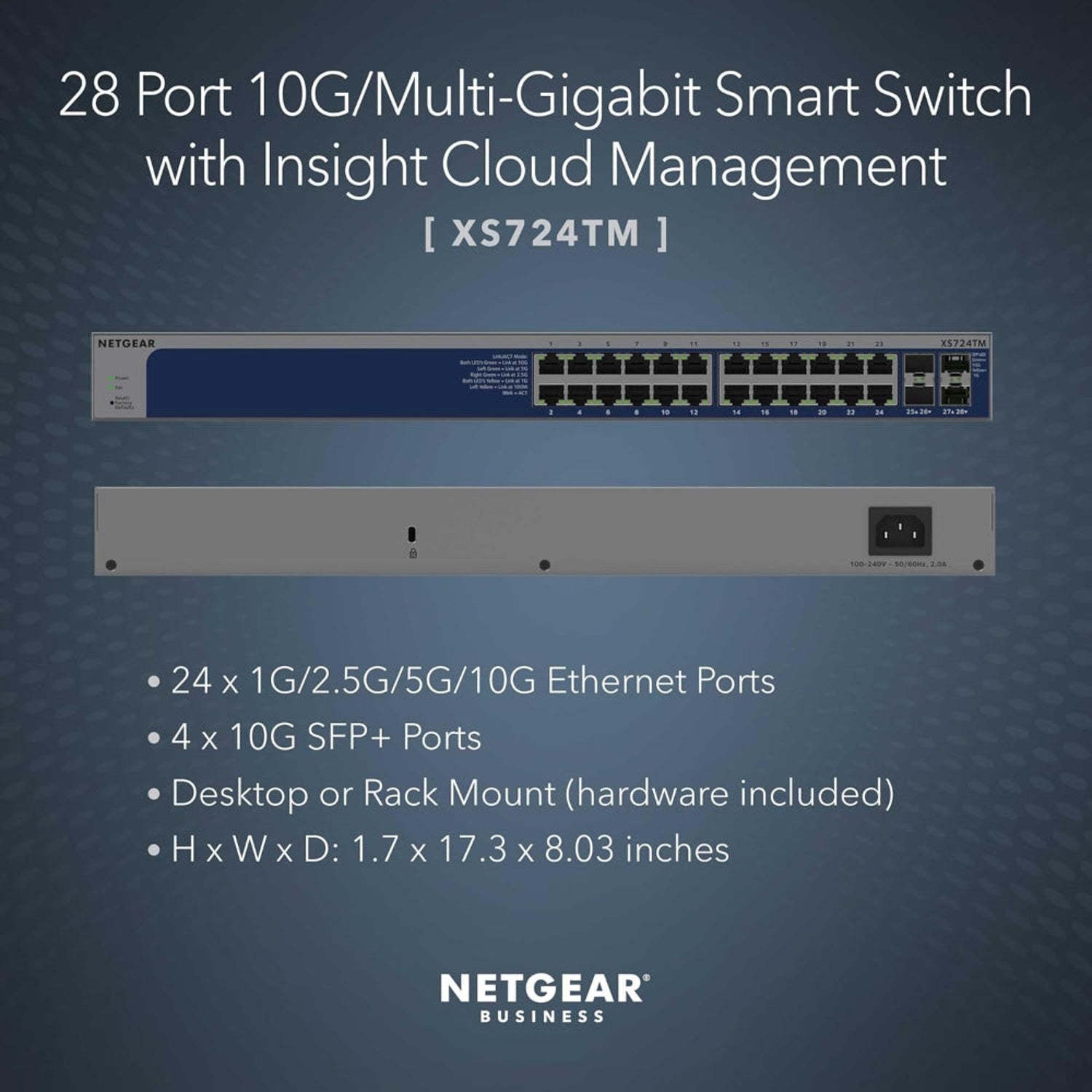

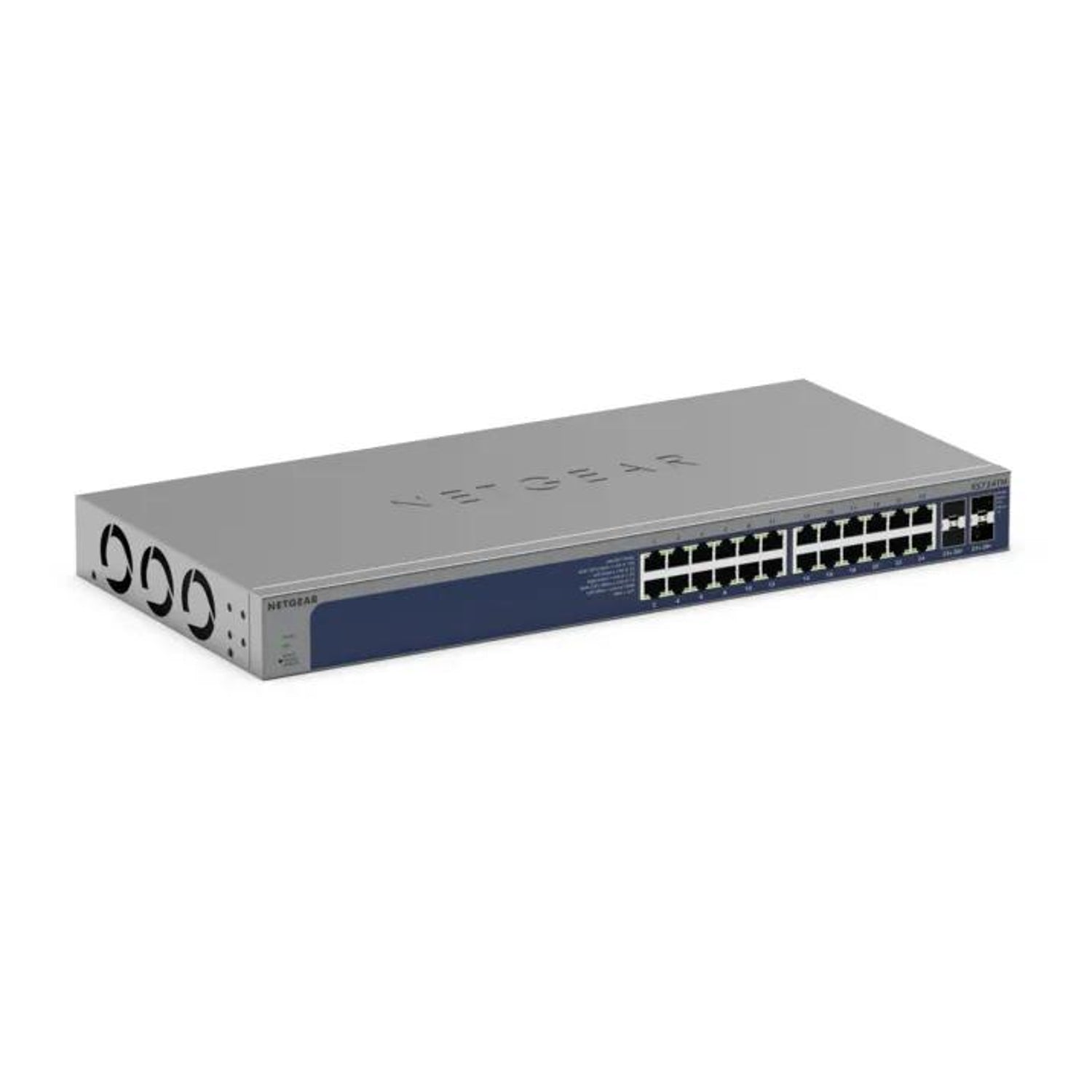

NETGEAR XS724TM 24-Port 10G/Multi-Gig Smart Switch, 4 x 10G SFP+, Cloud Manageable
PRODUCT DESCRIPTION
NETGEAR XS724TM 24-Port 10G/Multi-Gig Smart Switch with 4 x 10G SFP+ (XS724TM-100EUS) - Limited Lifetime Local Warranty
24 x 10G/Multi-Gig Ports Plus 4 x 10G SFP+
The NETGEAR XS724TM is an S3600 Series Smart switch with 24 x 10G/5G/2.5G/1G RJ-45 copper ports and 4 dedicated 1G/10G SFP+ fibre ports (28 ports in total), built for servers, NAS, workstations and Multi-Gig WiFi access points on existing copper cabling.
Line-Rate 10G Performance
NETGEAR rates the XS724TM at 560 Gbps line-rate switching capacity and a 416.6 Mpps forwarding rate, with a 16K MAC address table, 4 MB packet buffer and 9,216-byte jumbo frames.
Local Web Management or Optional Insight Cloud Management

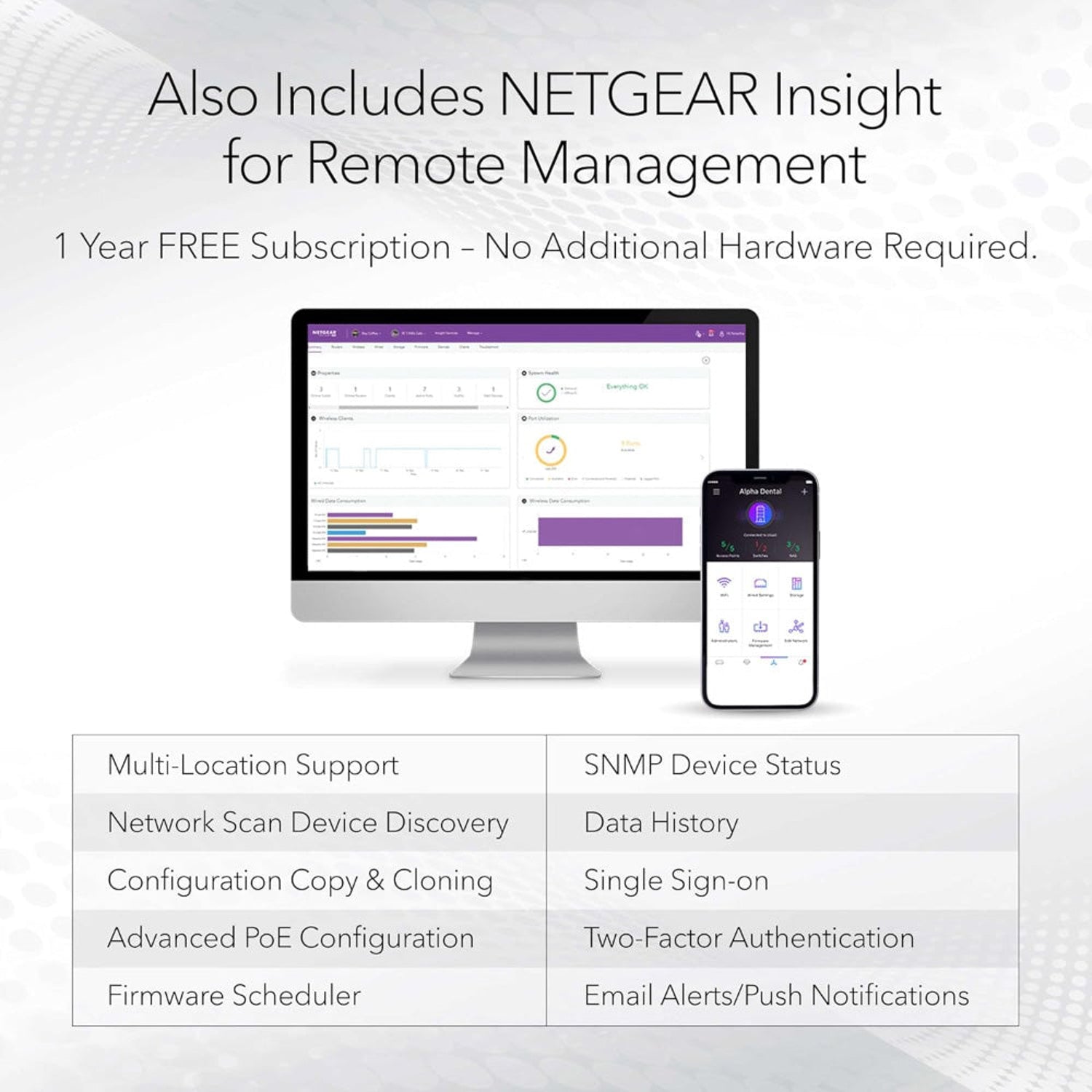

Manage the switch locally through the web browser GUI or Lite CLI, or optionally through NETGEAR Insight for remote/cloud management from the Insight mobile app or Insight Cloud portal.
Smart L2+ / L3 Lite Features, Rackmount Chassis
512 VLANs, IPv4/IPv6 static routing (64 + 64 routes, 15 routed VLAN interfaces), LACP link aggregation (8 LAGs, up to 8 members), 8 QoS priority queues, IGMP/MLD snooping and Energy Efficient Ethernet in a 1U, 440 mm-wide chassis for desktop or 19-inch rack installation (rack-mount kit included).
Need help choosing? Email sales@sourceit.com.sg with your port count, 10G device list and uplink needs and we will size it for you.
NETGEAR XS724TM Datasheet — Technical Specifications
General
| Product Name | NETGEAR XS724TM 24-Port 10G/Multi-Gig Smart Switch with 4 x 10G SFP+ |
| Part Number | XS724TM-100EUS |
| Series | NETGEAR S3600 Series 10G/Multi-Gigabit Ethernet Smart Switches (Smart Cloud) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Copper Ports | 24 x 10G/5G/2.5G/1G RJ-45 |
| SFP+ Ports | 4 x dedicated 1G/10G SFP+ |
Performance
| Switching Capacity | 560 Gbps line-rate |
| Forwarding Rate | 416.6 Mpps (64-byte packets) |
| Latency (64-byte) | 1G copper <2.08 µs; 10G copper <2.30 µs; 10G SFP+ <0.65 µs |
| MAC Address Table | 16K |
| Packet Buffer | 4 MB |
| Jumbo Frames | 9,216 bytes |
| CPU / Memory | 1.25 GHz single core; 1 GB RAM; 256 MB SPI flash |
Software Features
| VLANs | 512 (802.1Q) |
| Layer 3 | IPv4 / IPv6 static routing (64 IPv4 + 64 IPv6 static routes), 15 routed VLAN interfaces |
| Link Aggregation | 8 LAGs with up to 8 members each |
| ACLs | 100 shared for MAC, IP and IPv6 (ingress) |
| Multicast | 512 multicast groups |
| QoS | 8 priority queues |
| Other | Energy Efficient Ethernet |
Power & Environmental
| Power Supply | 1 internal fixed PSU |
| Power Consumption | 92.5 W max; 33.9 W min |
| Heat Dissipation | 315.66 BTU/hr max; 115.8 BTU/hr min |
| Cooling | 3 internal fans |
| Acoustic Noise | 29.61 dBA @ 25 °C (full load) |
| MTBF | 408,354.7 hours (46.6 years) @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 95% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 204 x 43.2 mm |
| Weight | 3.38 kg |
| Mounting | Desktop or 19-inch rack (rack-mount kit included) |
Compatibility & Software Support
Management

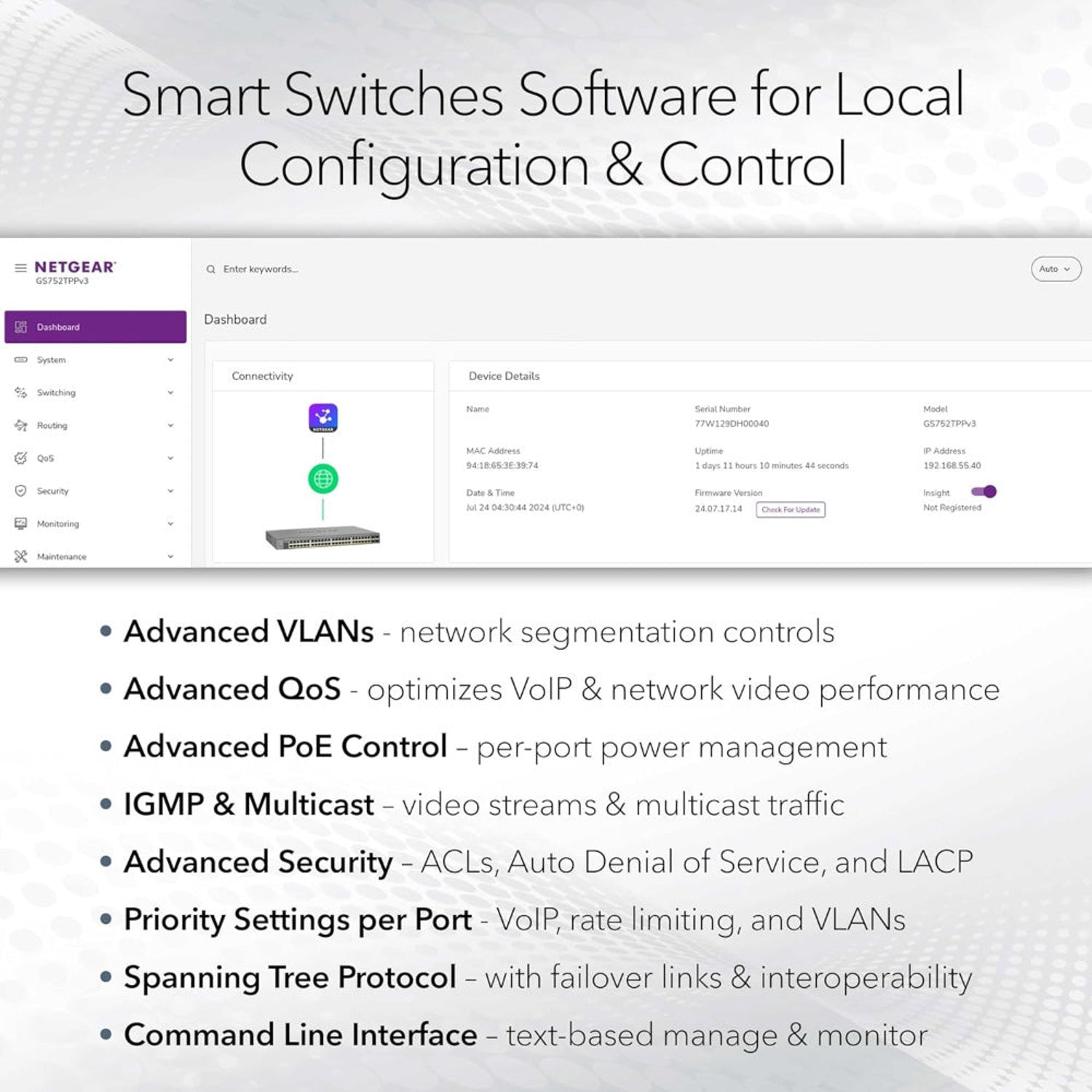

Local management through NETGEAR's web browser-based GUI and a text-based Lite CLI. Optional remote/cloud management with the NETGEAR Insight mobile app or the Insight Cloud portal.
Compatible NETGEAR SFP / SFP+ Modules
The four SFP+ ports accept 1G SFP and 10G SFP+ modules and SFP+ direct attach cables, for example:
| 1G SFP fibre | AGM731F 1000BASE-SX (multimode); AGM732F 1000BASE-LX (single mode) |
| 10G SFP+ fibre | AXM761 10GBASE-SR (multimode); AXM762 10GBASE-LR (single mode) |
| SFP+ Direct Attach Cables | AXC761 (1 m); AXC763 (3 m) |
Please confirm module compatibility with us before ordering.
Typical Use
10G aggregation for small and medium businesses, creative studios and server rooms. For fewer ports see the XS516TM (16 x 10G + 2 SFP+) or XS508TM (8 x 10G + 2 SFP+).
Package Contents & S3600 Series Ordering Information
In the Box
Smart switch, power cord (localised to region of sale), rack-mount kit, rubber footpads for tabletop installation, installation guide.
NETGEAR S3600 Series 10G/Multi-Gig Smart Switches
| Model | Ports | Part No. |
| XS508TM | 8 x 10G/Multi-Gig RJ-45 + 2 x 10G SFP+ | XS508TM-100UKS |
| XS516TM | 16 x 10G/Multi-Gig RJ-45 + 2 x 10G SFP+ | XS516TM-100UKS |
| XS724TM (this listing) | 24 x 10G/Multi-Gig RJ-45 + 4 x 10G SFP+ | XS724TM-100EUS |
| XS748TM | 44 x 10G/Multi-Gig RJ-45 + 4 x 10G SFP+ | XS748TM-100UKS |
Datasheet & Downloads
| NETGEAR datasheet | S3600 Series 10G/Multi-Gigabit Smart Switches Datasheet (PDF) |
| Installation guide | S3600 Series Installation Guide (PDF) |
| User manual | S3600 Series User Manual (PDF) |
| NETGEAR product page | XS724TM on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XS724TM-100EUS.
Frequently Asked Questions — NETGEAR XS724TM
What port speeds does the XS724TM support?
Its 24 RJ-45 ports run at 10G, 5G, 2.5G or 1G, and the 4 SFP+ ports accept 1G SFP or 10G SFP+ modules and SFP+ DAC cables.
Does it support PoE?
No. NETGEAR does not list PoE for the S3600 Series; power PoE devices with separate injectors or a PoE switch.
Can it be managed from the cloud?
Yes, optionally. It can be managed locally via the web GUI or Lite CLI, or remotely through NETGEAR Insight (mobile app or Insight Cloud portal).
Is it fanless?
No, it has 3 internal fans; NETGEAR rates acoustic noise at 29.61 dBA at 25 °C, full load.
Which region is the -100EUS part number?
NETGEAR's datasheet lists XS724TM-100EUS as the Europe/UK ordering code (NETGEAR lists regional part numbers for the same XS724TM model).
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
