NETGEAR PR460X 10G/Multi-Gig Dual WAN Pro Router with SFP+, Insight Managed
PRODUCT DESCRIPTION
NETGEAR PR460X 10G/Multi-Gigabit Dual WAN Pro Router (PR460X-111UKS) - 5 Years Local Warranty
10G and 2.5G Dual WAN with Failover
The NETGEAR PR460X Pro Router provides a 2.5G WAN port plus a 10G/Multi-Gig port configurable as a second WAN or LAN, with dual WAN failover and load balancing for resilient business internet.
Multi-Gig LAN and 10G SFP+
Three 2.5G/1G RJ-45 LAN ports and a 10G/1G SFP+ LAN port connect directly to Multi-Gig and fibre switches. NETGEAR rates LAN-to-WAN routing at up to 9.4 Gbps (10G WAN) and 2.4 Gbps (2.5G WAN).
High-Speed Site-to-Site and Remote Access VPN
IPSec site-to-site VPN (up to 30 tunnels, up to 8.92 Gbps) plus IPSec, OpenVPN and WireGuard client VPN (100 connections each), powered by a quad-core ARM A73 2.2 GHz CPU with packet processing engines, 2 GB DDR4 and 4 GB eMMC.
Insight Cloud or Local Management, Rackmount

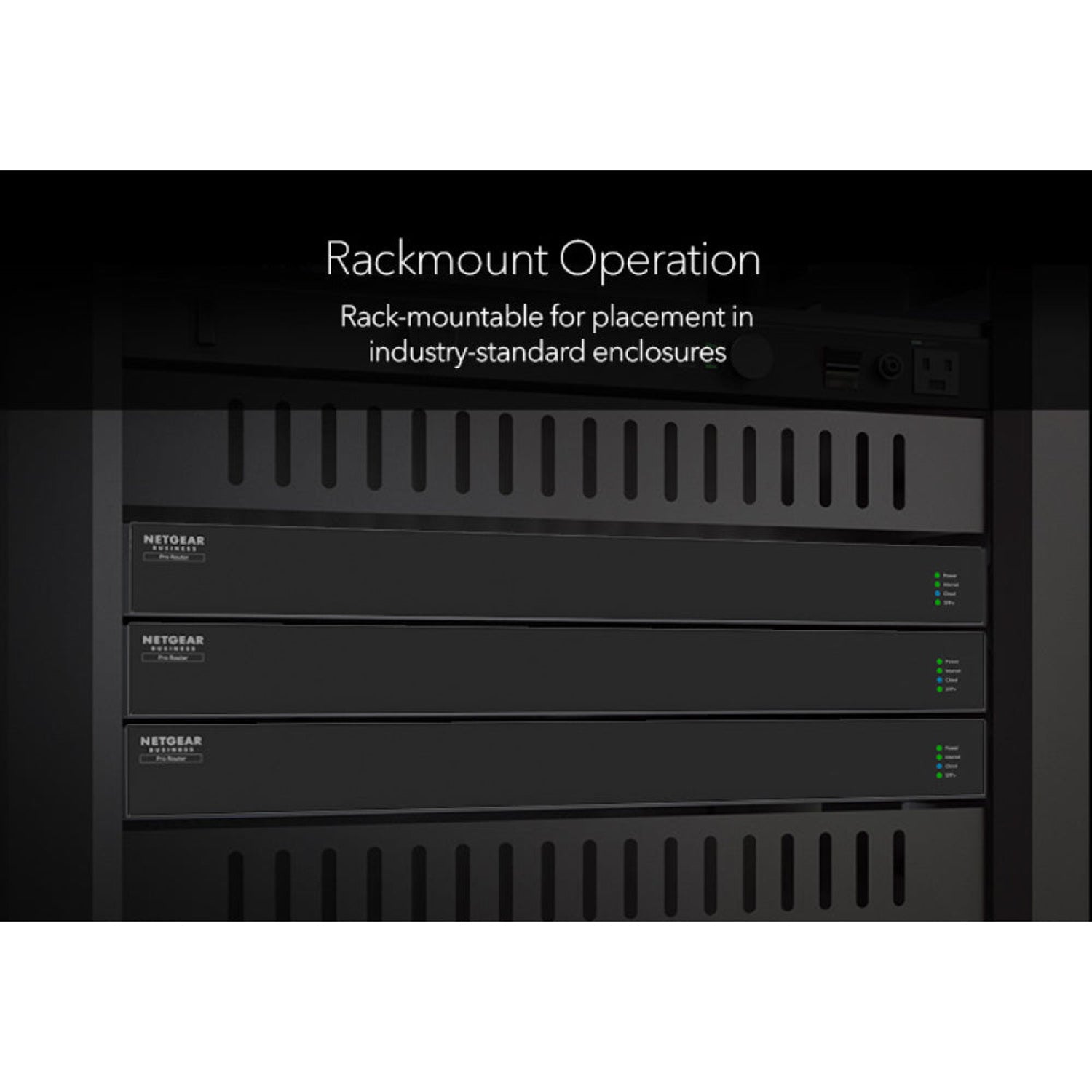

Manage remotely through NETGEAR Insight (app or cloud portal) or locally through the web interface. The 1U metal chassis mounts in a 19-inch rack (reverse-mounting ears included) or sits on a desk.
Designing a dual-WAN or multi-site VPN network? Email sales@sourceit.com.sg with your ISP links and site count and we will help you plan it.
NETGEAR PR460X Datasheet — Technical Specifications
General
| Product Name | NETGEAR PR460X 10G/Multi-Gigabit Dual WAN Pro Router |
| Part Number | PR460X-111UKS (Hong Kong/Singapore/Middle East) |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Interfaces
| WAN | 1 x 2.5G/1G RJ-45 (WAN1); 1 x 10G/Multi-Gig RJ-45 configurable WAN2/LAN |
| LAN | 3 x 2.5G/1G RJ-45; 1 x 10G/1G SFP+ |
| Dual WAN | Failover and load balancing |
Performance
| LAN-to-WAN | Up to 9.4 Gbps (10G WAN); 2.4 Gbps (2.5G WAN) |
| Site-to-Site VPN Throughput | Up to 8.92 Gbps (10G) / 4.42 Gbps (2.5G) |
| Client-to-Site VPN Throughput | Up to 500 Mbps |
| Concurrent Clients | 2,000 |
| CPU / Memory | Quad-core ARM A73 @ 2.2 GHz with packet processing engines; 2 GB DDR4; 4 GB eMMC |
VPN
| Protocols | IPSec site-to-site, IPSec client-to-site, OpenVPN, WireGuard |
| Tunnels | Up to 30 site-to-site; 100 client connections each for IPSec, OpenVPN and WireGuard |
| Encryption | 3DES, AES 128/192/256-bit; SHA-1/SHA-2/MD5; IKEv1/IKEv2, pre-shared key |
Network & Security
| VLANs | Up to 32 (802.1Q) |
| DHCP | Up to 32 DHCP servers |
| Firewall | Stateful firewall, traffic rules/scheduling, port forwarding, port triggering, DoS prevention, DMZ, VoIP SIP ALG |
Power & Physical
| Power Input | AC 100-240 V, 50/60 Hz, 1.3 A |
| Dimensions (W x D x H) | 440 x 100 x 43.2 mm |
| Weight | 1.513 kg |
| Mounting | 19-inch rack (kit included) or desktop (rubber feet) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | Up to 90% non-condensing |
Compatibility & Software Support
Management
Remote management with NETGEAR Insight (mobile app and Insight Cloud portal) for monitoring, auto-provisioning and central configuration, or local management through the web interface. NETGEAR also lists support for NETGEAR Engage, its free AV-over-IP controller software.
Optional Security Licence
NETGEAR offers optional PR460X security licences (advanced threat prevention, DNS/web security, Zero Trust access) in monthly, 1-, 3- and 5-year terms; ask us about availability.
SFP+ Modules
The 10G/1G SFP+ LAN port accepts SFP+ modules or DAC cables such as AXM761 or AXC761; please confirm compatibility with us before ordering.
Package Contents & NETGEAR Pro Router Ordering Information
In the Box
PR460X router, rack-mount kit with reverse-mounting ears, rubber feet, power cord, Ethernet cable, installation guide.
Ordering Information
| Model | Description | Part No. |
| PR460X (this listing) | 10G/Multi-Gig Dual WAN Pro Router | PR460X-111UKS |
| Security licence (optional) | Monthly / 1-year / 3-year / 5-year | SEC-PR460X-01 / -12 / -36 / -60 |
Datasheet & Downloads
| NETGEAR datasheet | PR460X Datasheet (PDF) |
| Installation guide | PR460X Installation Guide (PDF) |
| User manual | PR460X User Manual (PDF) |
| NETGEAR product page | PR460X on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PR460X-111UKS.
Frequently Asked Questions — NETGEAR PR460X
Can I use two internet connections?
Yes. The PR460X has a 2.5G WAN port and a 10G/Multi-Gig port that can be set as a second WAN, with failover and load balancing.
Which VPN types does it support?
IPSec site-to-site (up to 30 tunnels) and IPSec, OpenVPN and WireGuard remote access (100 connections each).
Does it have built-in WiFi?
No. It is a wired router; add NETGEAR access points such as the WBE710 or WAX series for WiFi.
Can it be rack-mounted?
Yes. It is a 1U, 19-inch rack-mountable metal unit with a rack-mount kit included.
What warranty do I get?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
