Ergotron 100 Series Double Pivot Single Monitor Mount
PRODUCT DESCRIPTION
Ergotron 100 Series Double Pivot Single Monitor Mount (47-093-800) - 5 Years Local Warranty

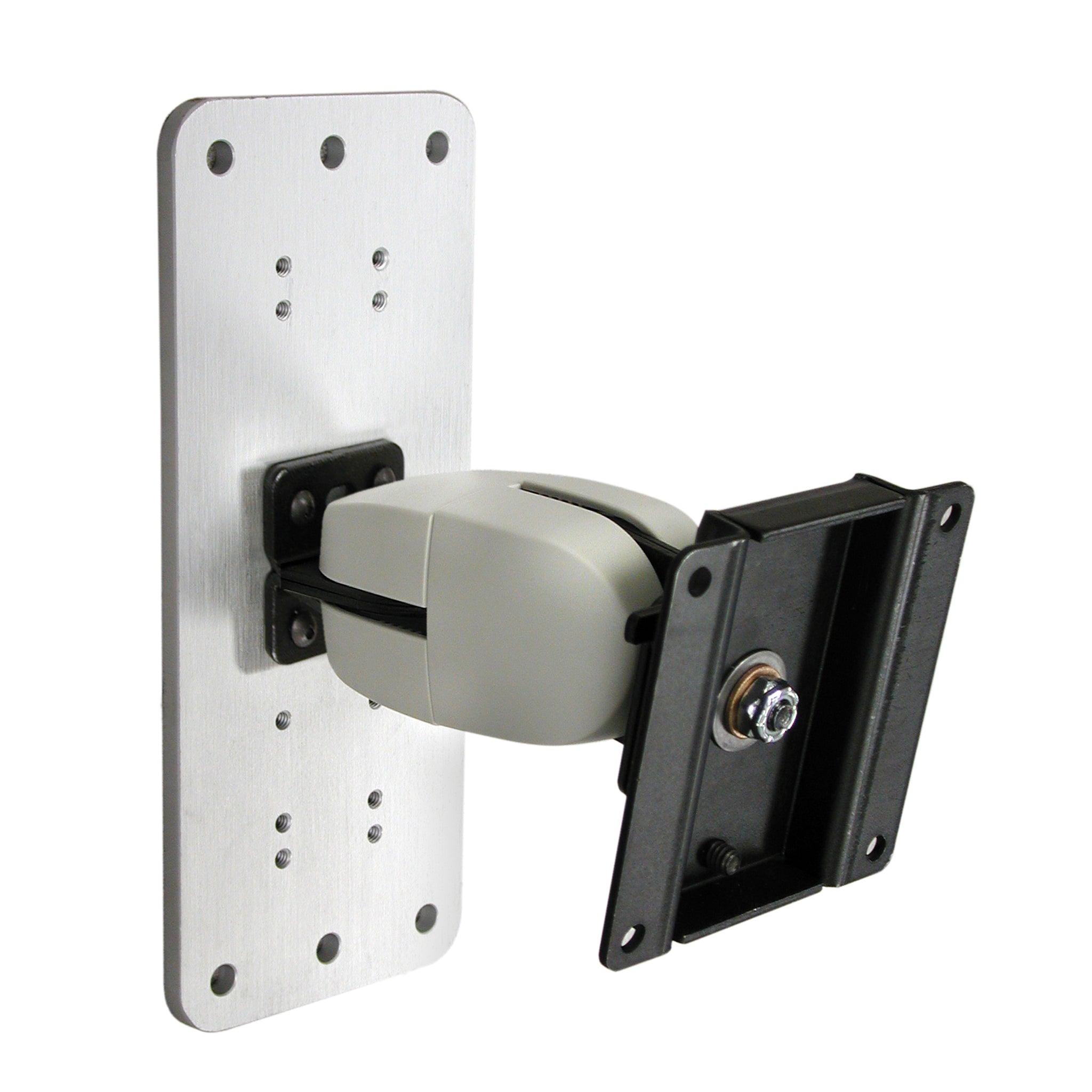

Minimum-Profile Wall Pivot for a Single Display
The Ergotron 100 Series Double Pivot mounts a single display to the wall with less than 6″ (15.2 cm) separating wall and monitor. That tight profile is the whole point of the 100 Series: it puts a screen exactly where it is needed in reception areas, clinical rooms, meeting rooms, kiosks and equipment bays without an arm projecting into the walkway.

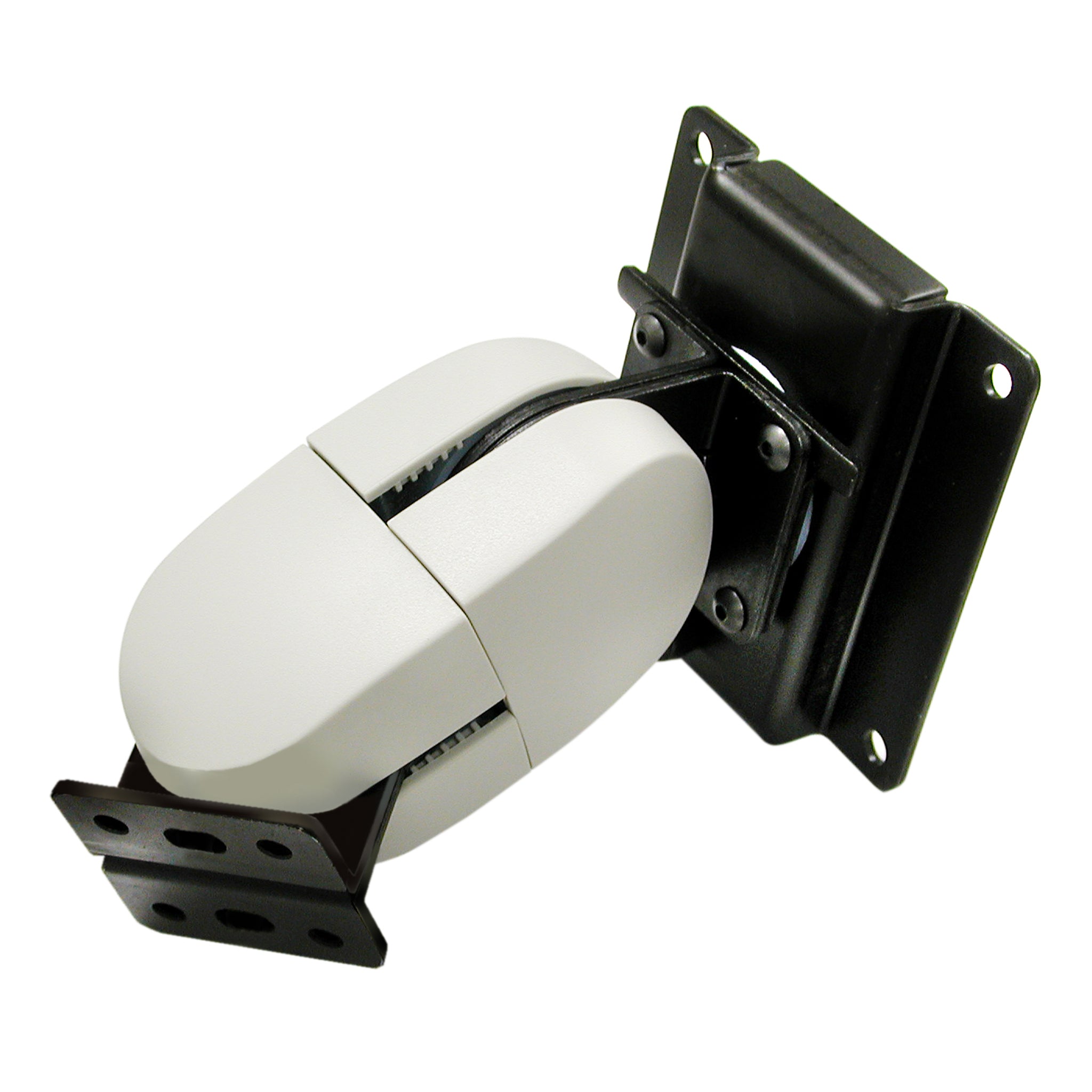

Two Pivots: 180° Tilt Plus 180° Pan
The double pivot adds side-to-side pan that the single-pivot version does not have. With 180° of tilt and 180° of pan, the screen can be angled down toward a seated viewer and swung left or right toward whoever is reading it — useful at a clinician workstation or any point where the same display serves people standing on either side.
360° Rotation for Portrait or Landscape
A full 360° of rotation lets the display be set to portrait for forms, patient records, digital signage or long documents, and returned to landscape without unbolting anything. Combined with the low profile, this makes the 100 Series a practical fixture for spaces that change roles.
Steel Construction Rated to 23 lbs (10.4 kg)
Ergotron rates the 100 Series Double Pivot for displays up to 23 lbs (10.4 kg) — note this is lower than the 25 lbs (11.3 kg) single-pivot model, because the second joint changes the load geometry. Internal steel construction under black and grey plastic covers keeps the assembly rigid in high-traffic Singapore environments where a wall-mounted screen is handled many times a day.
Ergotron 100 Series Double Pivot Datasheet — Technical Specifications
General
| Part Number | 47-093-800 |
| Model | 100 Series Double Pivot |
| Number of Screens | One (1) |

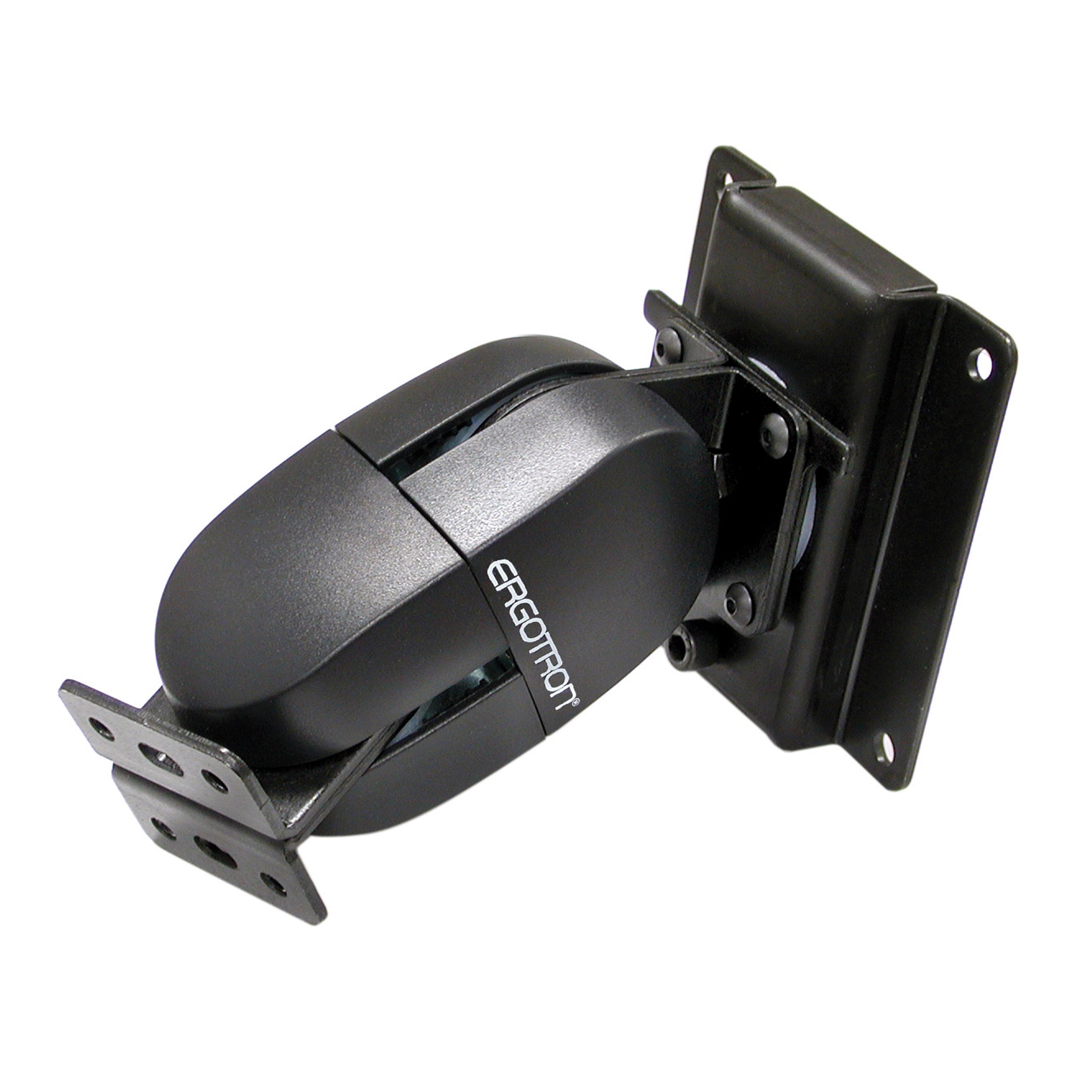

| Colour / Finish | Supplied with black and grey plastic covers |
| Mounting Type | Wall mount — low profile, less than 6″ (15.2 cm) between wall and monitor |
| Manufacturer Warranty | 5-Year Manufacturer Warranty (Ergotron) |
| Local Warranty | Local Warranty (Singapore) |
Display Compatibility
| Weight Capacity | ≤ 23 lbs (10.4 kg) |
| Typical Screen Size | ≤ 27″ |
| VESA Pattern | VESA MIS-D (75 x 75 mm – 100 x 100 mm) |
Adjustment & Motion
| Tilt | 180° |
| Pan | 180° |
| Rotation | 360° (portrait / landscape) |
| Profile | Less than 6″ (15.2 cm) separates wall and monitor |
Design & Durability
| Construction | Internal steel construction |
| Covers | Black and grey plastic covers supplied |
Compatibility & Fit
VESA: the 100 Series Double Pivot uses VESA MIS-D, covering 75 x 75 mm through 100 x 100 mm hole patterns. Long screws with spacers are supplied for displays with a recessed VESA interface.
Screen fit: displays up to 27″ weighing no more than 23 lbs (10.4 kg). Confirm your panel’s weight without its factory stand — many 27″ monitors clear this comfortably, but heavier professional and touch panels do not.
Mounting: this is a wall-mount pivot. It is supplied with a desk clamp, grommet mount and the screws for LCD attachment, so it can also be used on a worksurface where a fixed low-profile position is wanted. On plasterboard, always mount into a stud or use an appropriate structural fixing; Ergotron also offers a steel stud wall mounting kit for stud-frame walls.
Ultrawide and curved panels: an ultrawide on a single low-profile pivot puts significant leverage on the wall plate and usually exceeds the weight rating — use an articulating LX or HX wall arm instead. Curved panels up to 27″ and within the weight limit mount normally.
Single vs double pivot: the single-pivot 100 Series (47-092-800) is rated slightly higher at 25 lbs (11.3 kg) but offers tilt and rotation only. Choose the double pivot when you need pan.
Package Contents & 100 Series Ordering Information
In the box
- 100 Series Double Pivot arm
- Extension
- Desk clamp
- Grommet mount
- Screws for LCD attachment
- Long screws with spacers for LCDs with a recessed interface
- Black and grey plastic covers
- Installation guide
100 Series monitor mounts
| 100 Series Double Pivot (this listing) | 47-093-800 — ≤ 23 lbs (10.4 kg), tilt 180°, pan 180°, rotation 360° |
| 100 Series Single Pivot | 47-092-800 — ≤ 25 lbs (11.3 kg), tilt 180°, rotation 360° (no pan) |
Related Ergotron wall & desk mounts at SourceIT
| 100 Series Double Pivot Single Monitor Mount | 47-093-800 — low-profile wall pivot, ≤ 23 lbs (10.4 kg) |
| 400 Series Wall Monitor Arm, Grey | 45-007-099 — 24″ (61 cm) of vertical travel for sit-stand wall use |
Datasheet & Downloads
Official Ergotron documentation for this model. Links open in a new tab.
- Ergotron product page — 100 Series Tilting Pivot Monitor Wall Mount (47-093)
- Official Ergotron 100 Series Monitor Mounts datasheet (PDF)
- Ergotron 100 Series Flat Panel Monitor Pivots installation guide (PDF)
- Ergotron 100 Series dimensional drawings (PDF)
SourceIT Pte Ltd is a Singapore-based IT reseller. For a formal quotation, bulk pricing or a GST invoice, contact our sales team.
Frequently Asked Questions — Ergotron 100 Series Double Pivot
What is the actual weight limit of the 100 Series Double Pivot?
Ergotron rates it at ≤ 23 lbs (10.4 kg). The single-pivot 100 Series (47-092-800) is rated slightly higher at ≤ 25 lbs (11.3 kg) — the extra joint on the double pivot changes the load geometry.
How big a monitor can I mount?
Up to 27″, provided the panel weighs 23 lbs (10.4 kg) or less without its factory stand.
What is the difference between single pivot and double pivot?
The double pivot adds 180° of pan (left/right swing). Both offer 180° tilt and 360° rotation. Choose the double pivot when the screen has to be angled toward people standing in different positions.
How far does the monitor sit from the wall?
Less than 6″ (15.2 cm) separates wall and monitor — this is a minimum-profile mount, not an extending arm. If you need the screen to reach out into the room, look at the 200 Series Wall Monitor Arm, 1 Extension (45-233-200) or the 400 Series Wall Monitor Arm (45-007-099).
Can I mount it on a desk instead of a wall?
Yes — a desk clamp and grommet mount are supplied in the box alongside the wall hardware.
Does it support portrait orientation?
Yes, 360° rotation lets the display be set to portrait or landscape and changed at any time.
Does the 100 Series come with a warranty in Singapore?
Yes. Every Ergotron 100 Series Double Pivot sold by SourceIT comes with local Singapore warranty and a GST invoice; Ergotron backs the 100 Series Double Pivot with a 5-year manufacturer warranty.
