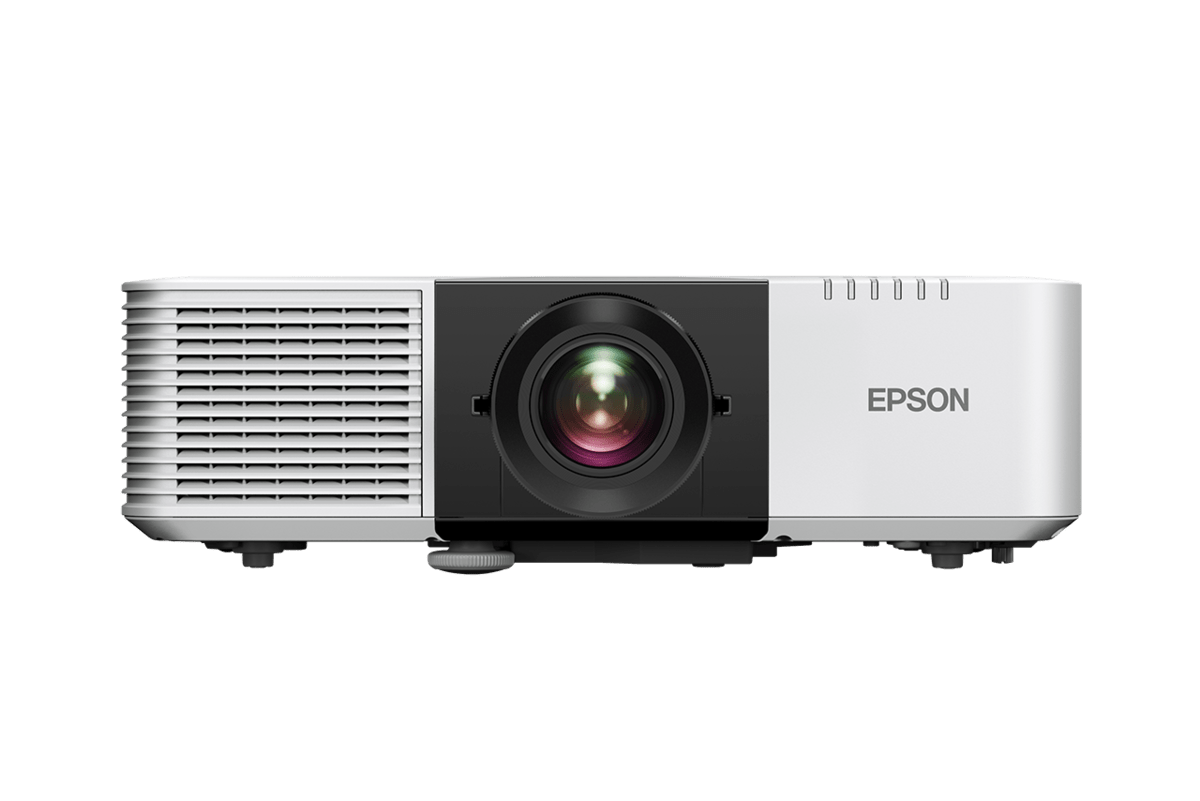

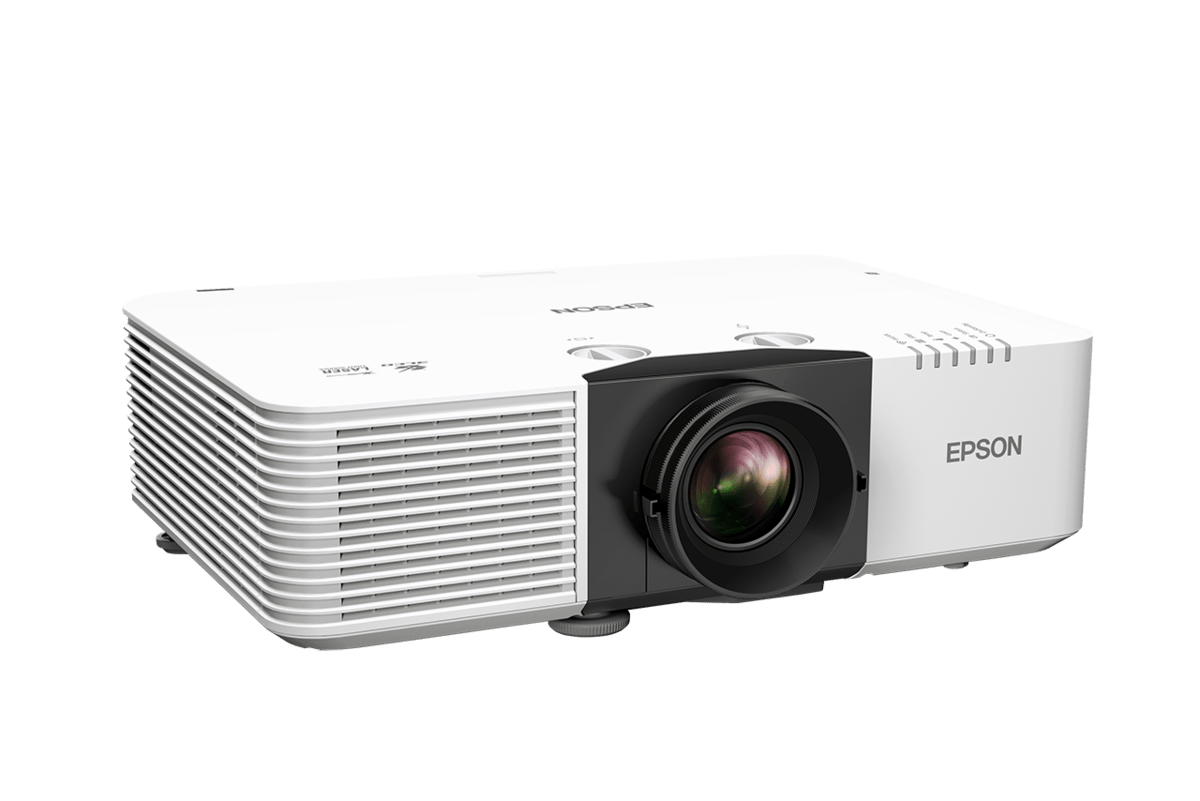

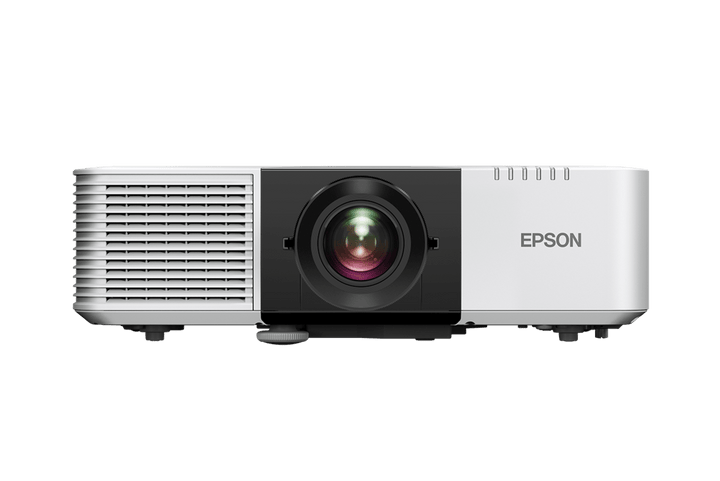

Epson EB-L890U WUXGA 3LCD Laser Projector
PRODUCT DESCRIPTION
Epson EB-L890U WUXGA 3LCD Laser Projector (V11HB27080) - 3 Years Singapore Local Warranty
8,000 Lumens — the Brightest of Epson's Compact L-Series Installation Range
Colour light output and white light output are both 8,000 lumens, with 8,700 lumens measured at the centre of the image. That puts the EB-L890U at the top of Epson's compact installation laser range and makes it the sensible choice for large auditoriums, convention halls, houses of worship and atriums where the screen is wide and the ambient light is uncontrolled. Because Epson's 3LCD engine keeps colour brightness equal to white brightness, logos, charts and photography stay saturated instead of washing out as room light rises.
Native WUXGA with 1.6x Zoom for Big Screens
The panel is native WUXGA at 1920 x 1200, which gives extra vertical resolution over Full HD for documents, spreadsheets and technical drawings. A 1.6x optical zoom spanning a 1.35 to 2.20 throw ratio fills screens from 50 to 500 inches, with an 80-inch image needing 2.33 to 3.78 metres. Lens shift of plus or minus 50 percent vertically and plus or minus 20 percent horizontally lets a rigging point sit well off the screen centreline. Dynamic contrast is rated at over 5,000,000:1 for depth in video content.
Built-in Wireless, HDBaseT and Loop-Out for Large-Venue Wiring
Wireless LAN is built in, so a visiting presenter can connect without cabling or an add-on module. Two HDMI inputs and one HDBaseT input, all HDCP 2.3, take room PCs, media servers and conferencing codecs, or a single long Cat 6 run back to a remote source rack. An HDMI output loops the HDMI 1 input onward to a confidence monitor or a second projector. RS-232C over D-Sub 9-pin and a 100Mbps wired LAN port give control systems and Epson Projector Management two independent ways in.
Laser to 30,000 Hours with a Matched Filter Cycle
The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the electrostatic air filter carries exactly the same maintenance cycle. In a venue where the projector is rigged twelve metres up, that is the specification that decides the cost of ownership: no lamp changes and no filter service in between. Start-up reaches the Epson logo in about 12 seconds, quick start-up displays in under 8 seconds and shutdown is instant off. Fan noise is 36dB in Normal mode and 26dB in Eco.
Epson EB-L890U Datasheet — Technical Specifications
General
| Product | Epson EB-L890U WUXGA 3LCD Laser Projector |
| Part Number (SKU) | V11HB27080 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | WUXGA (1920 x 1200) |
| GTIN | 010343347941 |
| Local Warranty (Singapore) | 3 years local warranty, supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 8,000 lm (Normal) / 5,600 lm (Eco) |
| Colour Light Output | 8,000 lm |
| Light Output (Centre) | 8,700 lm |
| Contrast Ratio | Over 5,000,000:1 |
| Lens Type | Optical zoom (manual) / focus (manual) |
| Zoom Ratio | 1.0 - 1.6 |
| Throw Ratio | 1.35 - 2.20 |
| Lens Shift | Vertical ±50% (manual), horizontal ±20% (manual) |
| F-Number | 1.5 - 1.7 |
| Focal Length | 20.0 mm - 31.8 mm |
| Projection Distance (standard size) | 80" diagonal: 2.33 m - 3.78 m |
| Screen Size (Wide) | 50" - 500" [1.44 m - 14.76 m] |
| Screen Size (Tele) | 50" - 500" [2.35 m - 23.84 m] |
| Keystone Correction | Vertical / horizontal: ±30° / ±30° |
| Projection Orientation | 360° free |
Light Source
| Type | Laser diode |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Start-Up Period | 12 seconds (Epson logo); warm-up period 30 seconds |
| Quick Start-Up | Less than 8 seconds (display) |
| Cool Down Period | Instant off |

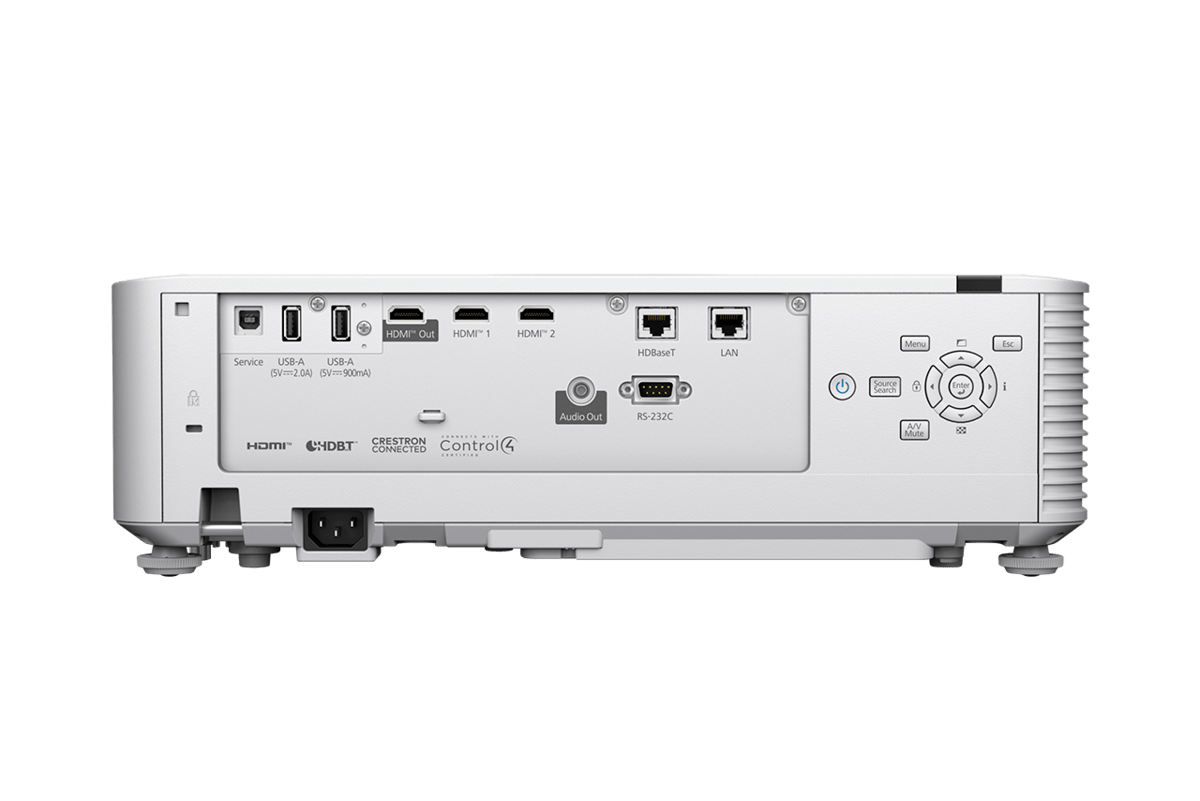

Connectivity
| HDMI | 2 (HDCP 2.3) |
| HDBaseT | 1 (HDCP 2.3) |
| HDMI Output | 1 (HDCP 2.3, supports HDMI 1 input only) |
| Audio Output | Stereo mini x 1 |
| Wired Network | LAN RJ45 x 1 (100Mbps) |
| Wireless LAN | Built-in |
| Control I/O | RS-232C (D-Sub 9-pin) x 1 |
| USB Type A | 2 (PC Free, document camera, firmware update, copy OSD settings, content playback, ELPEC01; port 1 also 5V/2A power supply, port 2 also 5V/0.9A power supply) |
| USB Type B | 1 (firmware update, copy OSD settings) |
Audio & Features
| Internal Speaker | 10 W monaural |
| Direct Power On / Off | Yes |
Physical & Environmental
| Weight | Approx. 8.5 kg |
| Air Filter | Electrostatic filter |
| Filter Maintenance Cycle | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Fan Noise | 36dB (Normal) / 26dB (Eco) |
| Operating Temperature (single use) | 0 - 45 °C at low altitude; 0 - 40 °C above 2,286 m, 20% - 80% humidity, no condensation |
| Operating Temperature (multi-projection) | 0 - 40 °C at low altitude; 0 - 35 °C above 2,286 m |
| Operating Altitude | 0 - 3,048 m (high altitude mode above 1,500 m) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
Projection orientation is 360 degrees free, so ceiling, table, tilted and rotated positions all work, including portrait for a tall wayfinding or feature image. Use the lens shift first — plus or minus 50 percent vertically and plus or minus 20 percent horizontally — because optical adjustment keeps the image sharp where digital keystone correction softens it; keystone correction of plus or minus 30 degrees in both axes is there for genuinely fixed rigging points. The projector weighs approximately 8.5 kg. Epson does not publish chassis dimensions for this model on its Singapore product page, so confirm bracket fit before ordering.
What it connects to
Two HDMI inputs and one HDBaseT input, all HDCP 2.3, take room PCs, laptops, media servers and video conferencing codecs, or one long Cat 6 run from a remote source rack — the standard wiring approach for a large venue. An HDMI output loops HDMI 1 to a confidence monitor or a second projector. This model is digital-input only, with no D-Sub 15-pin computer input, so VGA-only sources need a converter. A stereo mini audio output feeds the house sound system alongside the 10W internal speaker.
Network, control and content management
Built-in wireless LAN and a 100Mbps wired LAN port allow remote monitoring, scheduling and firmware management with Epson Projector Management. RS-232C over D-Sub 9-pin gives Crestron, Extron, AMX and similar control systems direct command access. Two USB Type A ports support PC Free playback, a document camera, the ELPEC01 external camera and USB power at 5V/2A and 5V/0.9A respectively; the USB Type B port handles firmware updates and copying OSD settings between units in a fleet.
Accessories
The EB-L890U ships with a fixed standard lens and is not an interchangeable-lens model. The ELPEC01 external camera is supported over USB. SourceIT can quote heavy-duty mounts, HDBaseT transmitters and cabling alongside the projector.
Package Contents & Epson Installation Laser Range
In the box
Epson does not publish a box-contents list for the EB-L890U on its Singapore product page, so no contents are claimed here. SourceIT will confirm exactly what ships with the unit when you request a quotation.
Epson installation laser range
| Model | Colour / white brightness |
| EB-L520U | 5,200 lm |
| EB-L570U | 5,200 lm, with 4K Enhancement |
| EB-L630U | 6,200 lm |
| EB-L690SU | 6,200 lm, short throw |
| EB-L690E | 6,500 lm, with 4K Enhancement |
| EB-L770U | 7,000 lm, with 4K Enhancement |
| EB-L790U | 7,300 lm |
| EB-L890U (this listing) | 8,000 lm |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EB-L890U together with a quotation. Send us your throw distance and screen width and we will confirm the image size before you order.
Frequently Asked Questions — Epson EB-L890U
How bright is the EB-L890U?
8,000 lumens of colour light output and 8,000 lumens of white light output, with 8,700 lumens measured at the centre of the image. It is the brightest model in Epson's compact L-Series installation range.
Does it have 4K Enhancement?
Epson lists the EB-L890U as a WUXGA model and does not publish a 4K Enhancement specification for it. The EB-L690E and EB-L770U both carry 4K Enhancement if pixel-shifted detail is a requirement.
Does it have built-in Wi-Fi?
Yes. Wireless LAN is built in, alongside a 100Mbps wired LAN port, so no separate adapter is needed for wireless presentation.
Does it have a VGA input?
No. The EB-L890U takes digital sources only — two HDMI inputs and one HDBaseT input. A VGA-only laptop or document camera will need a converter.
What size screen will it fill?
50 to 500 inches with the standard lens. An 80-inch image needs 2.33 to 3.78 metres, and the throw ratio is 1.35 to 2.20 across the 1.6x zoom.
Can it be rigged upside down or at an angle?
Yes. Projection orientation is 360 degrees free, and lens shift of plus or minus 50 percent vertically and plus or minus 20 percent horizontally means the unit does not need to sit on the screen centreline.
How does it compare with the EB-L790U?
The optics are identical — same 1.6x zoom, same 1.35 to 2.20 throw ratio, same lens shift. The EB-L890U is brighter at 8,000 lumens against 7,300 lumens, slightly heavier at 8.5 kg against 8.2 kg, and slightly louder at 36dB Normal against 34dB.
What warranty and paperwork do I get?
Every unit sold by SourceIT carries local Singapore warranty and ships with a GST invoice. Three years local warranty applies to this model.
