Epson EB-L790U WUXGA 3LCD Laser Projector
PRODUCT DESCRIPTION
Epson EB-L790U WUXGA 3LCD Laser Projector (V11HB28080) - 3 Years Singapore Local Warranty
7,300 Lumens for Auditoriums and Large Lecture Theatres
Colour light output and white light output are both 7,300 lumens, rising to 7,900 lumens measured at the centre of the image. That is enough to hold a large screen in a university auditorium, a hotel function room or a corporate town hall with the house lights up. Epson's 3LCD engine produces colour brightness equal to white brightness, so branded graphics, charts and photography stay saturated rather than fading under ambient light. Dynamic contrast is rated at over 5,000,000:1, which keeps dark video content from flattening out on a big screen.
Native WUXGA with 1.6x Zoom and Generous Lens Shift
The EB-L790U projects native WUXGA at 1920 x 1200 in 16:10, giving extra vertical space over Full HD for spreadsheets, documents and drawings. A 1.6x optical zoom covers a throw ratio of 1.35 to 2.20, filling screens from 50 to 500 inches; an 80-inch image needs 2.33 to 3.78 metres. Lens shift of plus or minus 50 percent vertically and plus or minus 20 percent horizontally means the projector rarely has to sit on the screen centreline, which usually gives a cleaner result than digital correction.
Built-in Wireless LAN and HDBaseT for Fixed Installations

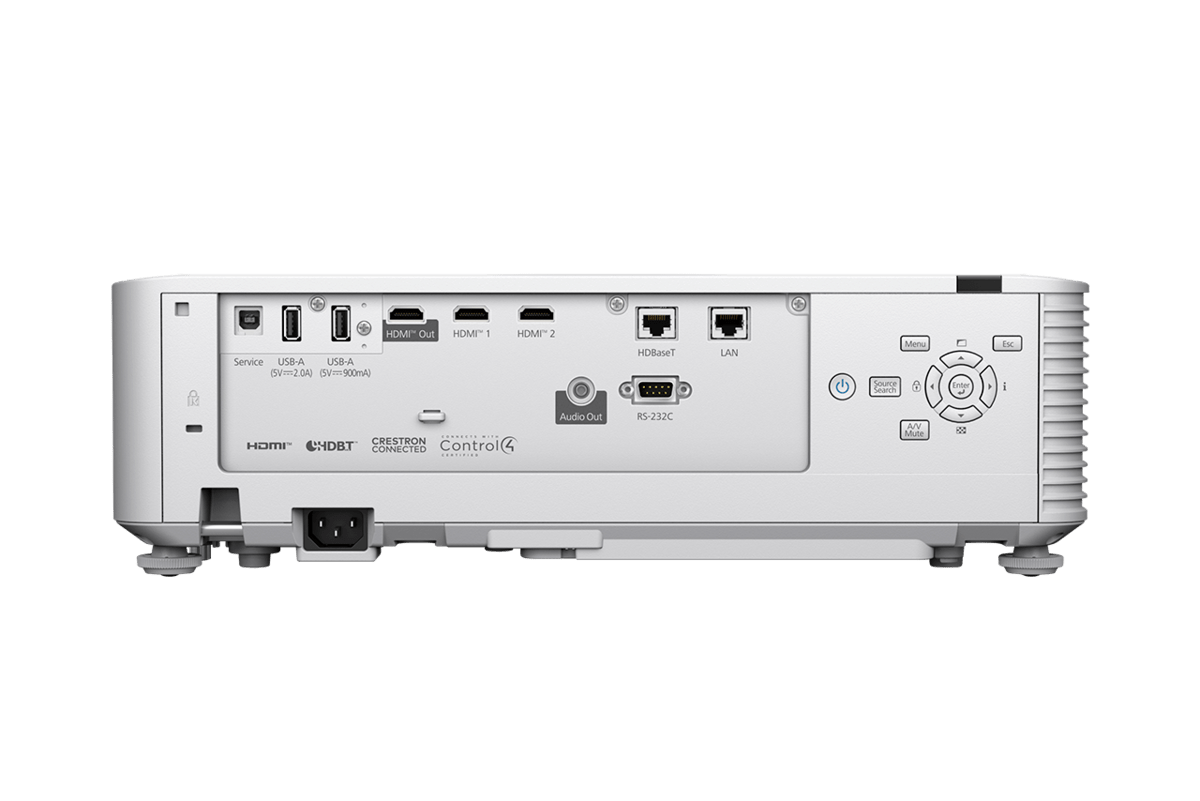

Wireless LAN is built in, so presenters can connect without a cable and without an add-on adapter. Two HDMI inputs and one HDBaseT input, all HDCP 2.3, take room PCs, media servers, conferencing codecs or a single long Cat 6 run from a remote source rack — the usual approach in a large venue. An HDMI output loops the HDMI 1 input onward to a confidence monitor or a second projector. RS-232C over D-Sub 9-pin and a 100Mbps wired LAN port give AV control systems two independent routes in.
Laser to 30,000 Hours with a Matched Filter Cycle
The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the electrostatic air filter carries exactly the same maintenance cycle. For a projector rigged in a high ceiling that is the specification that matters most: no lamp changes and no filter service between them. Start-up reaches the Epson logo in about 12 seconds, quick start-up displays in under 8 seconds and shutdown is instant off, so the room turns over quickly between sessions. Fan noise is 34dB Normal, 25dB Eco.
Epson EB-L790U Datasheet — Technical Specifications
General
| Product | Epson EB-L790U WUXGA 3LCD Laser Projector |
| Part Number (SKU) | V11HB28080 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | WUXGA (1920 x 1200) |
| GTIN | 010343348115 |
| Local Warranty (Singapore) | 3 years local warranty, supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 7,300 lm (Normal) / 5,110 lm (Eco) |
| Colour Light Output | 7,300 lm |
| Light Output (Centre) | 7,900 lm |
| Contrast Ratio | Over 5,000,000:1 |
| Lens Type | Optical zoom (manual) / focus (manual) |
| Zoom Ratio | 1.0 - 1.60 |
| Throw Ratio | 1.35 - 2.20 |
| Lens Shift | Vertical ±50% (manual), horizontal ±20% (manual) |
| F-Number | 1.5 - 1.7 |
| Focal Length | 20.0 - 31.8 mm |
| Projection Distance (standard size) | 80" diagonal: 2.33 m - 3.78 m |
| Screen Size (Wide) | 50" - 500" [1.44 - 14.76 m] |
| Screen Size (Tele) | 50" - 500" [2.35 - 23.84 m] |
| Keystone Correction | Vertical / horizontal: ±30° / ±30° |
| Projection Orientation | 360° free |
Light Source
| Type | Laser diode |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Start-Up Period | 12 seconds (Epson logo); warm-up period 30 seconds |
| Quick Start-Up | Less than 8 seconds (display) |
| Cool Down Period | Instant off |
Connectivity
| HDMI | 2 (HDCP 2.3) |
| HDBaseT | 1 (HDCP 2.3) |
| HDMI Output | 1 (HDCP 2.3, supports HDMI 1 input only) |
| Audio Output | Stereo mini x 1 |
| Wired Network | LAN RJ45 x 1 (100Mbps) |
| Wireless LAN | Built-in |
| Control I/O | RS-232C (D-Sub 9-pin) x 1 |
| USB Type A | 2 (PC Free, document camera, firmware update, copy OSD settings, content playback, ELPEC01; port 1 also 5V/2A power supply, port 2 also 5V/0.9A power supply) |
| USB Type B | 1 (firmware update, copy OSD settings) |
Audio & Features
| Internal Speaker | 10 W monaural |
| Direct Power On / Off | Yes |
Physical & Environmental
| Weight | Approx. 8.2 kg |
| Air Filter | Electrostatic filter |
| Filter Maintenance Cycle | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Fan Noise | 34dB (Normal) / 25dB (Eco) |
| Operating Temperature (single use) | 0 - 45 °C at low altitude; 0 - 40 °C above 2,286 m, 20% - 80% humidity, no condensation |
| Operating Temperature (multi-projection) | 0 - 40 °C at low altitude; 0 - 35 °C above 2,286 m |
| Operating Altitude | 0 - 3,048 m (high altitude mode above 1,500 m) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
Projection orientation is 360 degrees free, so ceiling, table, tilted and rotated positions all work. Start with the lens shift — plus or minus 50 percent vertically and plus or minus 20 percent horizontally — because optical adjustment preserves image quality in a way digital keystone correction cannot; keystone correction of plus or minus 30 degrees in both axes is available for genuinely awkward rigging points. The projector weighs approximately 8.2 kg. Epson does not publish chassis dimensions for this model on its Singapore product page, so confirm bracket fit before ordering.
What it connects to
Two HDMI inputs and one HDBaseT input, all HDCP 2.3, take room PCs, laptops, media servers and video conferencing codecs, or a single long Cat 6 run from a remote source rack. An HDMI output loops HDMI 1 to a confidence monitor at the lectern or to a second projector. This model is digital-input only — there is no D-Sub 15-pin computer input — so a VGA-only laptop or document camera needs a converter. A stereo mini audio output feeds a room sound system alongside the 10W internal speaker.
Network, control and content management
Built-in wireless LAN and a 100Mbps wired LAN port let the projector be monitored and managed over the network with Epson Projector Management. RS-232C over D-Sub 9-pin gives Crestron, Extron, AMX and similar control systems direct command access. Two USB Type A ports support PC Free playback, a document camera, the ELPEC01 external camera and USB power at 5V/2A and 5V/0.9A respectively; a USB Type B port handles firmware updates and copying OSD settings between units.
Accessories
The EB-L790U ships with a fixed standard lens and is not an interchangeable-lens model. The ELPEC01 external camera is supported over USB. SourceIT can quote mounts, HDBaseT transmitters and cabling alongside the projector.
Package Contents & Epson Installation Laser Range
In the box
Epson does not publish a box-contents list for the EB-L790U on its Singapore product page, so no contents are claimed here. SourceIT will confirm exactly what ships with the unit when you request a quotation.
Epson installation laser range
| Model | Colour / white brightness |
| EB-L520U | 5,200 lm |
| EB-L570U | 5,200 lm, with 4K Enhancement |
| EB-L630U | 6,200 lm |
| EB-L690SU | 6,200 lm, short throw |
| EB-L690E | 6,500 lm, with 4K Enhancement |
| EB-L770U | 7,000 lm, with 4K Enhancement |
| EB-L790U (this listing) | 7,300 lm |
| EB-L890U | 8,000 lm |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EB-L790U together with a quotation. Send us your throw distance and screen width and we will confirm the image size before you order.
Frequently Asked Questions — Epson EB-L790U
How bright is the EB-L790U really?
7,300 lumens of colour light output and 7,300 lumens of white light output, with 7,900 lumens measured at the centre of the image. Epson measures colour light output to IDMS 15.4 and white light output to ISO 21118, so the two figures are directly comparable.
Does it have 4K Enhancement?
Epson lists the EB-L790U as a WUXGA model and does not publish a 4K Enhancement specification for it. If pixel-shifted detail matters, the EB-L690E and EB-L770U both carry 4K Enhancement.
Does it have built-in Wi-Fi?
Yes. Wireless LAN is built in on this model, alongside a 100Mbps wired LAN port. No separate adapter is needed for wireless presentation.
Does it have a VGA input?
No. The EB-L790U takes digital sources only — two HDMI inputs and one HDBaseT input. A VGA-only laptop or document camera will need a converter.
Can I loop the picture to a second screen?
Yes. One HDMI output is fitted, which passes through the HDMI 1 input only. It is normally used for a confidence monitor or to daisy-chain a second projector.
How often will it need servicing?
The laser light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the electrostatic air filter has the same maintenance cycle. There is no lamp to replace.
How does it compare with the EB-L890U?
The EB-L890U is the brighter model at 8,000 lumens against 7,300 lumens here, and is slightly heavier and slightly noisier at 36dB Normal against 34dB. Optically the two are identical: same 1.6x zoom, same 1.35 to 2.20 throw ratio, same lens shift.
What warranty and paperwork do I get?
Every unit sold by SourceIT carries local Singapore warranty and ships with a GST invoice. Three years local warranty applies to this model.
