Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement
PRODUCT DESCRIPTION
Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement (V11HB25080) - 3 Years Singapore Local Warranty
6,500 Lumens with 4K Enhancement for Large Bright Rooms
The EB-L690E delivers 6,500 lumens of colour light output and 6,500 lumens of white light output, rising to 7,100 lumens measured at the centre of the image. At that level a 150-inch screen stays legible in a lecture theatre with the lights up or a hotel ballroom with chandeliers running. Epson's 4K Enhancement pixel shifting places 4.6 million pixels on screen from a native WUXGA panel, sharpening small type, spreadsheet gridlines and CAD linework. Dynamic contrast is rated at over 5,000,000:1, which gives video and photographic content real depth.
Wi-Fi 6 Wireless Casting and Cloud Fleet Management
Wireless LAN is built in on this model, and Epson specifies Wi-Fi 6 for fast, reliable screen casting with WPA3-Enterprise security so IT can put the projector on the corporate network without exception. The same connection reaches Epson Projector Management Connected, Epson's cloud service for monitoring and managing a fleet of projectors across sites. For a campus or a multi-floor office running dozens of rooms, that means status, usage hours and firmware are visible from one console rather than from a ladder in each room.
1.6x Zoom, Lens Shift and 360-Degree Mounting
A 1.6x optical zoom covering a 1.35 to 2.20 throw ratio, combined with lens shift of plus or minus 50 percent vertically and plus or minus 20 percent horizontally, gives installers wide latitude over where the projector actually hangs. Projection orientation is 360 degrees free, and a universal VESA mounting pattern simplifies bracket selection. Built-in geometric correction tools plus keystone correction of plus or minus 30 degrees in both axes square up the image where the structure dictates an awkward position. Screen sizes run from 50 to 500 inches.
Up to 30,000 Hours of Low-Maintenance Operation
The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the electrostatic air filter carries exactly the same maintenance cycle. That pairing is what makes a high ceiling or a fixed rigging position practical: there is no lamp to change and no filter service in between. The projector reaches the Epson logo in about 12 seconds, warms up in 30 seconds and shuts down instantly, so rooms turn over quickly between sessions without a cool-down wait.
Epson EB-L690E Datasheet — Technical Specifications
General
| Product | Epson EB-L690E WUXGA 3LCD Laser Projector with 4K Enhancement |
| Part Number (SKU) | V11HB25080 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | WUXGA with 4K Enhancement |
| Pixel Number | 4.6M pixels (1920 x 1200 x 2) |
| GTIN | 010343341104 |
| Local Warranty (Singapore) | 3 years local warranty, supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 6,500 lm (Normal) / 4,550 lm (Eco) |
| Colour Light Output | 6,500 lm |
| Light Output (Centre) | 7,100 lm |
| Contrast Ratio | Over 5,000,000:1 |
| Lens Type | Optical zoom (manual) / focus (manual) |
| Zoom Ratio | 1.0 - 1.60 |
| Throw Ratio | 1.35 - 2.20 |
| Lens Shift | Vertical ±50% (manual), horizontal ±20% (manual) |
| F-Number | 1.5 - 1.7 |
| Focal Length | 20.0 - 31.8 mm |
| Screen Size (Wide) | 50" - 500" (1.49 m - 14.94 m) |
| Screen Size (Tele) | 50" - 500" (2.44 m - 24.35 m) |
| Keystone Correction | Vertical / horizontal: ±30° / ±30° |
| Projection Orientation | 360° free |
| Aspect Modes | Auto, 4:3, 16:9, Full, H-zoom, V-zoom, Native |
Light Source
| Type | Laser diode |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Start-Up Period | 12 seconds (Epson logo); warm-up period 30 seconds |
| Cool Down Period | Instant off |

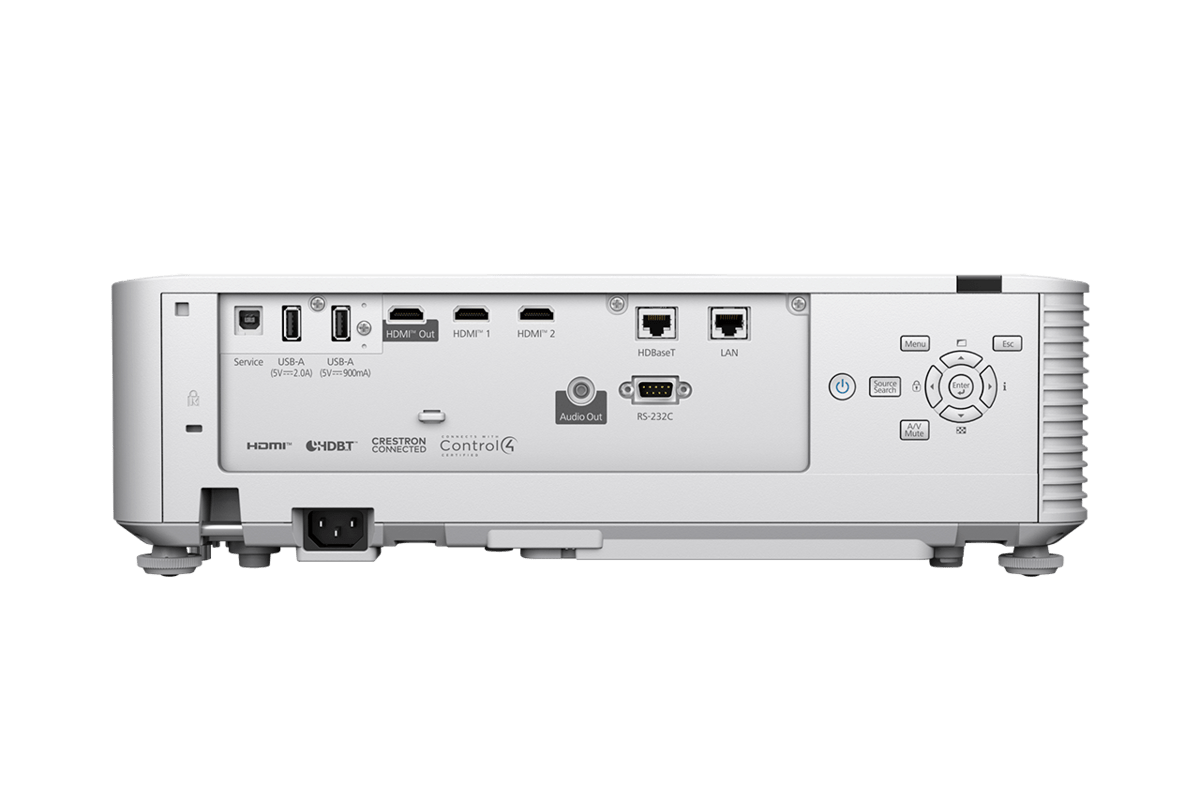

Connectivity
| HDMI | 2 (HDCP 2.3) |
| HDBaseT | 1 (HDCP 2.3) |
| HDMI Output | 1 (HDCP 2.3, supports HDMI 1 input only) |
| Audio Output | Stereo mini x 1 |
| Wired Network | LAN RJ45 x 1 (100Mbps) |
| Wireless LAN | Built-in (Wi-Fi 6, WPA3-Enterprise security) |
| Control I/O | RS-232C (D-Sub 9-pin) x 1 |
| USB Type A | 2 (PC Free, document camera, firmware update, copy OSD settings, content playback, ELPEC01; port 1 also 5V/2A power supply, port 2 also 5V/0.9A power supply) |
| USB Type B | 1 (firmware update, copy OSD settings) |
Audio & Features
| Internal Speaker | 10 W monaural |
| Geometric Correction | Built-in correction tools |
| Direct Power On / Off | Yes |
| Cloud Management | Epson Projector Management Connected |
Physical & Environmental
| Dimensions (W x H x D, excluding feet) | 440 x 122 x 304 mm |
| Weight | Approx. 8.2 kg |
| Mounting Pattern | Universal VESA |
| Air Filter | Electrostatic filter |
| Filter Maintenance Cycle | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Fan Noise | 32dB (Normal) / 25dB (Eco) |
| Operating Temperature (single use) | 0 - 45 °C at low altitude; 0 - 40 °C above 2,286 m, 20% - 80% humidity, no condensation |
| Operating Temperature (multi-projection) | 0 - 40 °C at low altitude; 0 - 35 °C above 2,286 m |
| Operating Altitude | 0 - 3,048 m (high altitude mode above 1,500 m) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
A universal VESA mounting pattern and 360-degree free projection orientation make bracket selection and positioning straightforward, whether the unit is ceiling-hung in a lecture theatre, rigged above a ballroom or floor-mounted for a rear-projection setup. Use the lens shift first — plus or minus 50 percent vertically and plus or minus 20 percent horizontally — before reaching for keystone correction, which is available at plus or minus 30 degrees in both axes. The projector measures 440 x 122 x 304 mm excluding feet and weighs approximately 8.2 kg.
What it connects to
Two HDMI inputs and one HDBaseT input all carry HDCP 2.3, covering room PCs, laptops, conferencing codecs and long Cat 6 runs from a remote source rack. An HDMI output loops the HDMI 1 input to a confidence monitor or a second projector. This model is digital-input only — there is no D-Sub 15-pin computer input — so a VGA-only source needs a converter. A stereo mini audio output passes sound to a room system if the 10W internal speaker is not enough.
Network, control and content management
Built-in Wi-Fi 6 wireless LAN with WPA3-Enterprise security and a 100Mbps wired LAN port both connect the projector to Epson Projector Management Connected, Epson's cloud service for monitoring a fleet. RS-232C over D-Sub 9-pin gives AV control systems direct command access. Two USB Type A ports support PC Free playback, a document camera, the ELPEC01 external camera and USB power delivery at 5V/2A and 5V/0.9A respectively.
Accessories
The EB-L690E ships with a fixed standard lens and is not an interchangeable-lens model. The ELPEC01 external camera is supported over USB. SourceIT can quote VESA mounts, HDBaseT transmitters and cabling alongside the projector.
Package Contents & Epson Installation Laser Range
In the box
Epson does not publish a box-contents list for the EB-L690E on its Singapore product page, so no contents are claimed here. SourceIT will confirm exactly what ships with the unit when you request a quotation.
Epson installation laser range
| Model | Colour / white brightness |
| EB-L520U | 5,200 lm |
| EB-L570U | 5,200 lm, with 4K Enhancement |
| EB-L630U | 6,200 lm |
| EB-L690SU | 6,200 lm, short throw |
| EB-L690E (this listing) | 6,500 lm, with 4K Enhancement |
| EB-L770U | 7,000 lm, with 4K Enhancement |
| EB-L790U | 7,300 lm |
| EB-L890U | 8,000 lm |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EB-L690E together with a quotation. Send us your throw distance and screen width and we will confirm the image size before you order.
Frequently Asked Questions — Epson EB-L690E
Is the EB-L690E a true 4K projector?
No. The panel is WUXGA and Epson's 4K Enhancement shifts each pixel to place 4.6 million pixels on screen, roughly double the native count. The result is visibly sharper text and fine detail than plain WUXGA, but it is not a native 4K imager.
Does it have built-in Wi-Fi?
Yes. Wireless LAN is built in, and Epson specifies Wi-Fi 6 with WPA3-Enterprise security, so it can join a corporate network without a separate adapter. A 100Mbps wired LAN port is also fitted.
Does it have a VGA input?
No. The EB-L690E takes digital sources only — two HDMI inputs and one HDBaseT input, all HDCP 2.3. A VGA-only laptop or document camera will need a converter.
Can I loop the signal to a second display?
Yes. There is one HDMI output, which passes through the HDMI 1 input only. It is commonly used for a confidence monitor at the lectern or to daisy-chain a second projector.
How long before it needs servicing?
The laser light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the electrostatic air filter has the same maintenance cycle. There is no lamp to replace.
How does it differ from the EB-L690SU?
The EB-L690SU is the short-throw model, with a 0.79 to 1.36 throw ratio for large images from close range. The EB-L690E here is the standard-throw model at 1.35 to 2.20, is slightly brighter at 6,500 lumens against 6,200 lumens, and adds 4K Enhancement.
What size screen will it fill?
50 to 500 inches. At the wide end of the zoom that is 1.49 to 14.94 metres of throw distance, and at the tele end 2.44 to 24.35 metres.
What warranty and paperwork do I get?
Every unit sold by SourceIT carries local Singapore warranty and ships with a GST invoice. Three years local warranty applies to this model.
