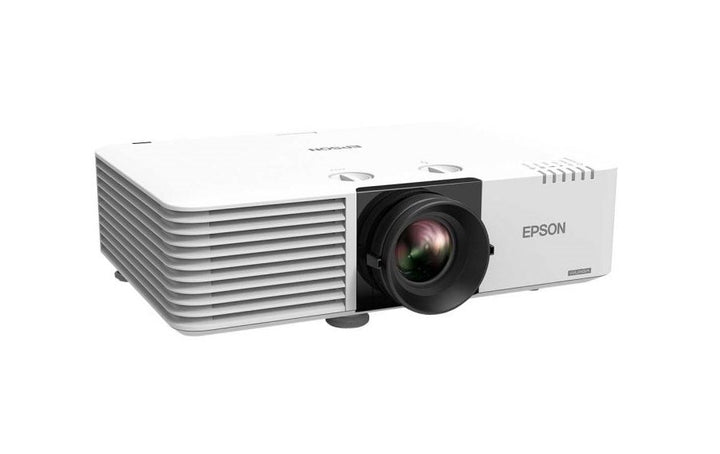

Epson EB-L630U Projector
PRODUCT DESCRIPTION
Epson EB-L630U WUXGA 3LCD Laser Projector (V11HA26040) - 3 Years Singapore Local Warranty
6,200 Lumens for Large Lecture Theatres and Open Lobbies
Colour light output and white light output are both 6,200 lumens, which is the point at which a projected image stops needing the blinds drawn. That matters in university lecture theatres, hotel ballrooms, showrooms and open-plan lobbies where ambient light is fixed and the screen is large. Epson's 3LCD engine keeps colour brightness equal to white brightness, so charts and branded material hold their saturation instead of washing out. A 2,500,000:1 dynamic contrast ratio adds depth to video and photographic content shown in the same room.
Native WUXGA on a 0.67-inch 3LCD Panel
The EB-L630U uses a 0.67-inch 3LCD panel at native WUXGA, 1920 x 1200 pixels in 16:10. Those extra 120 vertical pixels over Full HD give you a full spreadsheet row or an extra line of code without scrolling, which is why WUXGA remains the standard for corporate and higher education installations. Super resolution and detail enhancement processing sharpen upscaled material from lower-resolution sources. Note that this model projects at its native resolution and does not use Epson's 4K Enhancement pixel shifting — for that, look at the EB-L690E or EB-L770U.
Laser Light Source to 20,000 Hours with 360-Degree Projection
A laser diode light source rated at up to 20,000 hours in Normal mode removes lamp replacement from the maintenance schedule and keeps output stable across the life of the install. Projection is 360 degrees, so the unit can be ceiling-hung, floor-standing, tilted or rotated as the room demands. Lens shift of plus or minus 50 percent vertically and plus or minus 20 percent horizontally lets the projector sit well off the screen centreline, and keystone correction of plus or minus 30 degrees in both axes cleans up the geometry when an ideal position is not available.
Full Legacy and Modern Connectivity with HDBaseT and Loop-Out
Two HDMI inputs and one HDBaseT input handle modern sources and long Cat 6 runs from a remote rack, while two D-Sub 15-pin computer inputs and two stereo mini audio inputs keep older laptops, document cameras and lectern PCs working. Loop-through outputs — one HDMI, one D-Sub 15-pin and one stereo mini audio — feed a confidence monitor or a second display. RS-232C and RJ45 give control systems direct access, wireless connectivity is included, and Miracast support lets presenters cast from a compatible device without cabling.
Epson EB-L630U Datasheet — Technical Specifications
General
| Product | Epson EB-L630U WUXGA 3LCD Laser Projector |
| Part Number (SKU) | V11HA26040 |
| Projection Technology | 3LCD |
| LCD Panel | 0.67-inch |
| Native Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| 4K Enhancement | Not supported on this model |
| GTIN / UPC | 8715946695310 |
| Local Warranty (Singapore) | 3 years local warranty, supplied by SourceIT with GST invoice |
Projection & Optics
| Colour Light Output | 6,200 lumens |
| White Light Output | 6,200 lumens |
| Contrast Ratio | 2,500,000:1 |
| Zoom | 1 - 1.6 (optical) |
| Throw Ratio | 1.35 (zoom wide) - 2.20 (zoom tele) |
| Screen Size (standard lens) | 50" to 500" |
| Projection Distance (standard lens) | 80" screen: 2.33 m - 3.78 m |
| Lens F-Number | 1.5 - 1.7 |
| Lens Focal Length | 20 mm - 31.8 mm |
| Focus Method | Manual |
| Keystone Correction (standard lens) | Vertical ±30°, horizontal ±30° |
| Lens Shift (standard lens) | Vertical ±50%, horizontal ±20% |
| 360° Projection | Yes |
Light Source
| Type | Laser diode |
| Light Source Life | Up to 20,000 hours (Normal mode) |
| LD Input Power | 219 W |
Connectivity
| Digital Input | 2 x HDMI, 1 x HDBaseT |
| Computer Input | 2 x D-Sub 15-pin (RGB), 1 x USB 2.0 Type B |
| Audio Input | 2 x stereo mini |
| Video Output | 1 x D-Sub 15-pin (RGB) |
| Digital Output | 1 x HDMI |
| Audio Output | 1 x stereo mini |
| Control I/O | 1 x RS-232C |
| Network I/O | 1 x RJ45, 1 x USB Type A (for optional ELPAP11) |
| HDBaseT | Yes |
| Wireless Connectivity | Included |
Audio & Features
| Built-in Speaker | 10 W |
| Miracast | Yes |
| Split Screen | Yes |
| Super Resolution | Yes |
| Detail Enhancement | Yes |
| Content Playback | Yes |
| Epson Projector Management | Yes |
| Epson iProjection (Multi-PC Projection) | Yes |
| Epson Professional Tool | Yes |
| Epson Projector Content Manager | Yes |
| Wireless LAN Enterprise Security | Yes |
| Edge Blending | Not supported on this model |
| Curved Screen Projection | Not supported on this model |
| Lens Position Memory | Not supported on this model |
| Frame Interpolation | Not supported on this model |
Physical & Environmental
| Dimensions (D x W x H, including feet) | 339 x 440 x 136 mm |
| Weight | 8.4 kg |
| Noise Level (Normal / Eco) | 38 / 27 dB |
Power
| Power Consumption (LD on) | 345 W |
| Power Consumption (standby) | 2.0 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
360-degree projection means the EB-L630U can be ceiling-hung, table-mounted, tilted or rotated to suit the room. Use the lens shift first — plus or minus 50 percent vertically and plus or minus 20 percent horizontally — because optical adjustment preserves image quality in a way digital keystone correction cannot. Keystone correction of plus or minus 30 degrees in both axes is there when the mounting position leaves no alternative. The chassis measures 339 x 440 x 136 mm including feet and weighs 8.4 kg, so check the load rating on any existing bracket.
What it connects to
Two HDMI inputs and one HDBaseT input take modern sources, including a single long Cat 6 run from a remote rack. Two D-Sub 15-pin computer inputs and two stereo mini audio inputs keep legacy laptops, lectern PCs and document cameras in service, which is why this model still suits refurbishment projects in older rooms. Loop-through outputs — one HDMI, one D-Sub 15-pin and one stereo mini audio — drive a confidence monitor at the lectern or pass audio to a room system alongside the 10W internal speaker.
Network, control and content management
An RJ45 port and an RS-232C serial port give Crestron, Extron, AMX and similar control systems direct command access. Epson Projector Management handles remote monitoring, scheduling and firmware across a fleet. Epson iProjection supports multi-PC projection from laptops and mobile devices; Epson Projector Content Manager builds playlists for content playback from USB. Wireless connectivity is included and wireless LAN enterprise security is supported, so IT can put the unit on the corporate network. Miracast casting is supported from compatible devices.
Accessories
The EB-L630U ships with a fixed standard lens and is not an interchangeable-lens model. The optional Epson ELPAP11 wireless LAN module fits the dedicated USB Type A port. SourceIT can quote mounts, HDBaseT transmitters and cabling alongside the projector.
Package Contents & Epson Installation Laser Range
In the box
- Epson EB-L630U projector
- 3 m power cable
- Remote control
- 2 x AA batteries
- Cable cover
- User's Guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson installation laser range
| Model | Colour / white brightness |
| EB-L520U | 5,200 lm |
| EB-L570U | 5,200 lm, with 4K Enhancement |
| EB-L630U (this listing) | 6,200 lm |
| EB-L690SU | 6,200 lm, short throw |
| EB-L690E | 6,500 lm, with 4K Enhancement |
| EB-L770U | 7,000 lm, with 4K Enhancement |
| EB-L790U | 7,300 lm |
| EB-L890U | 8,000 lm |
Datasheet & Downloads
- Epson Singapore — EB-L630U support, manuals and downloads
- Epson — EB-L630U full published specifications
SourceIT can email the current data sheet revision for the EB-L630U together with a quotation. Send us your throw distance and screen width and we will confirm the image size before you order.
Frequently Asked Questions — Epson EB-L630U
Does the EB-L630U have 4K Enhancement?
No. Epson lists 4K Enhancement as not supported on this model. It projects at its native WUXGA resolution of 1920 x 1200. If pixel-shifted detail matters to you, the EB-L690E or EB-L770U carry 4K Enhancement.
Can I edge blend two units into one wide image?
No. Epson lists edge blending and curved screen projection as not supported on the EB-L630U. For multi-projector blending, look at the EB-L570U, EB-L770U or the EB-L690E and above.
How long does the laser light source last?
Epson rates it at up to 20,000 hours in Normal mode. There is no lamp to replace at any point, so the running cost is power and the occasional filter clean.
Will it work with our older VGA laptops and document camera?
Yes. The EB-L630U has two D-Sub 15-pin computer inputs alongside its two HDMI inputs and HDBaseT input, plus two stereo mini audio inputs. It also loops video out over D-Sub 15-pin and HDMI for a confidence monitor.
Is wireless presentation included?
Epson lists wireless connectivity as included on this model, with wireless LAN enterprise security and Miracast support. The optional ELPAP11 module fits the dedicated USB Type A port.
What screen size will it fill?
50 to 500 inches with the standard lens. At 80 inches the throw distance is 2.33 to 3.78 metres across the 1.6x zoom range, and the throw ratio is 1.35 to 2.20.
How noisy is it in a quiet boardroom?
Epson quotes 38dB in Normal mode and 27dB in Eco. For a boardroom ceiling, Eco mode is usually the sensible setting unless you need the full 6,200 lumens.
What warranty and paperwork do I get?
Every unit sold by SourceIT carries local Singapore warranty and ships with a GST invoice. Three years local warranty applies to this model.
