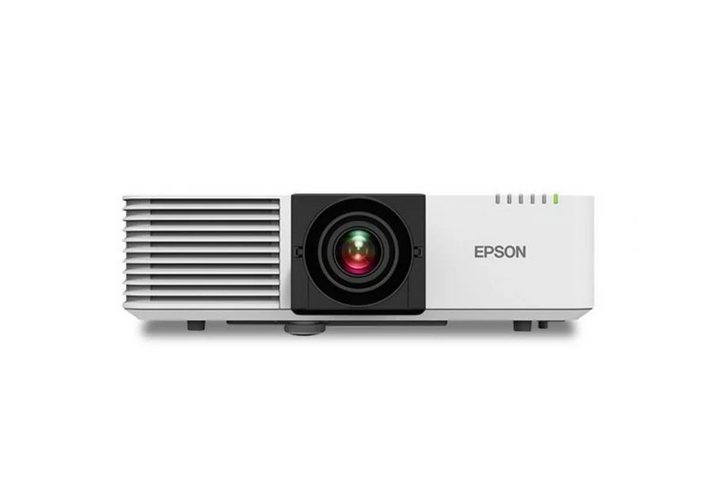

Epson EB-L520U WUXGA 3LCD Laser Projector
PRODUCT DESCRIPTION
Epson EB-L520U WUXGA 3LCD Laser Projector (V11HA30040) - 3 Years Singapore Local Warranty
5,200 Lumens of Colour and White Brightness for Bright Meeting Rooms
The EB-L520U puts out 5,200 lumens of white light and 5,200 lumens of colour light, so slides, spreadsheets and video hold their punch in rooms where the blinds stay open and the downlights stay on. Because Epson's 3LCD engine measures colour brightness equal to white brightness, reds and blues do not dim away the moment ambient light rises. Paired with a dynamic contrast ratio of over 5,000,000:1, it suits corporate boardrooms, training rooms, university lecture theatres and hotel function spaces across Singapore where you cannot control the light but still need a readable image.
Laser Light Source Rated to 20,000 Hours with No Lamp Changes
A laser diode light source replaces the lamp entirely, rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode. The electrostatic air filter carries the same 20,000 and 30,000 hour maintenance cycle, so a ceiling-mounted unit in a lecture theatre or an atrium can run for years before anyone needs a ladder. Start-up shows the Epson logo in about 8 seconds, quick start-up displays in under 5 seconds, and shutdown is instant off. For facilities teams managing a fleet, that removes the lamp budget and most of the scheduled downtime.
1.6x Zoom and 360-Degree Mounting for Awkward Rooms
The manual 1.6x optical zoom covers a throw ratio of 1.35 to 2.20, filling screens from 50 to 500 inches. That gives an installer real latitude when the only available mounting point sits further back than ideal, or when a short room forces the projector close to the screen. Projection orientation is 360 degrees free, so the unit can be ceiling-hung, floor-standing, tilted onto a high wall or rotated for a portrait wayfinding panel. Vertical and horizontal keystone correction of plus or minus 30 degrees squares the image up when a straight-on position simply is not available.
HDBaseT, Dual HDMI and Networked Control for Integrated AV
Two HDMI inputs and one HDBaseT input all carry HDCP 2.3, so the EB-L520U drops into a switched AV rack or takes a single long Cat 6 run from a remote source rack. Two D-Sub 15-pin computer inputs and a monitor output keep legacy laptops and confidence monitors working. A 100Mbps wired LAN port, an RS-232C serial port and a USB Type B control port give control systems three ways in, and the optional ELPAP11 wireless adapter adds screen mirroring and wireless presentation for visitors who arrive with nothing but a laptop.
Epson EB-L520U Datasheet — Technical Specifications
General
| Product | Epson EB-L520U WUXGA 3LCD Laser Projector |
| Part Number (SKU) | V11HA30040 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | WUXGA (1920 x 1200) |
| Aspect Ratio | 16:10 |
| GTIN / UPC | 8715946675113 |
| Local Warranty (Singapore) | 3 years local warranty, supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 5,200 lm (Normal) / 3,640 lm (Extended) |
| Colour Light Output | 5,200 lm |
| Light Output (Centre) | 5,600 lm |
| Contrast Ratio | Over 5,000,000:1 |
| Lens Type | Optical zoom (manual) / focus (manual) |
| Zoom Ratio | 1.0 - 1.60 |
| Throw Ratio | 1.35 - 2.20 (wide to tele) |
| F-Number | 1.50 - 1.70 |
| Focal Length | 20 - 31.8 mm |
| Screen Size (Wide) | 50" - 500" [1.44 - 14.76 m] |
| Screen Size (Tele) | 50" - 500" [2.35 - 23.84 m] |
| Keystone Correction | Vertical / horizontal: ±30° / ±30° |
| Projection Orientation | 360° free |
Light Source
| Type | Laser diode |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Start-Up Period | 8 sec (Epson logo); warm-up period 30 sec |
| Quick Start-Up | Less than 5 seconds (display) |
| Cool Down Period | Instant off |
Connectivity
| HDMI | 2 (HDCP 2.3) |
| HDBaseT | 1 (HDCP 2.3) |
| Analogue RGB Input | D-Sub 15-pin x 2 |
| Analogue Video Output | D-Sub 15-pin x 1 |
| Audio Input | Stereo mini jack x 2 |
| Audio Output | Stereo mini jack x 1 |
| Wired Network | LAN RJ45 x 1 (100Mbps) |
| Wireless | Optional (ELPAP11) |
| Control I/O | RS-232C (D-Sub 9-pin) x 1 |
| USB Type A | 1 (PC Free, firmware update, copy OSD settings) |
| USB Type B | 1 (mouse, keyboard, control, firmware) |
Audio & Features
| Internal Speaker | 10W monaural |
| Split Screen | Up to 4 split screens, up to 4 devices connected simultaneously |
| Wide Screen Setting | Supports 16:6 |
| Edge Blending | Yes |
| Screen Mirroring | Yes (with optional ELPAP11) |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions (D x W x H, excluding feet) | 304 x 440 x 122 mm |
| Weight | Approx. 7.7 kg |
| Air Filter | Electrostatic filter |
| Filter Maintenance Cycle | 20,000 hours (Normal) / 30,000 hours (Extended) |
| Fan Noise | 31dB (Normal) / 23dB (Eco) |
| Operating Temperature (single use) | 0 - 45 °C at low altitude; 0 - 40 °C above 2,286 m, 20% - 80% humidity, no condensation |
| Operating Temperature (multi-projection) | 0 - 40 °C at low altitude; 0 - 35 °C above 2,286 m |
| Operating Altitude | 0 - 3,048 m (high altitude mode above 1,500 m) |
Power
| Power Supply Voltage | 100 - 240 V AC ±10%, 50/60 Hz |
| Power Consumption (220 - 240V) | 293 W (Normal) / 223 W (Extended) |
| Standby Power | 2.0 W (Normal) / 0.3 W (Eco) |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
Projection orientation is 360 degrees free, so the EB-L520U can be ceiling-mounted, table-mounted, tilted or rotated to suit the room. Vertical and horizontal keystone correction of plus or minus 30 degrees squares up an off-axis image. With a 1.6x manual zoom and a throw ratio of 1.35 to 2.20, an 80-inch image falls within a practical range of standard ceiling mounting positions, and the projector will fill anything from a 50-inch screen up to 500 inches. Dimensions excluding feet are 304 x 440 x 122 mm at approximately 7.7 kg, so check the load rating of any existing bracket before reusing it.
What it connects to
Two HDMI inputs with HDCP 2.3 take laptops, room PCs, media players and video conferencing codecs. A single HDBaseT input carries video, audio and control over one Cat 6 run from a remote rack. Two D-Sub 15-pin computer inputs keep older notebooks and document cameras in service, and the D-Sub 15-pin monitor output feeds a confidence display at the lectern. Two stereo mini audio inputs and one stereo mini audio output let you either use the 10W internal speaker or pass audio to a room system.
Network, control and content management
A 100Mbps wired LAN port supports Epson Projector Management for remote monitoring, scheduling and firmware across a fleet. RS-232C over D-Sub 9-pin and the USB Type B control port both accept commands from Crestron, Extron, AMX and similar control systems. Adding the optional ELPAP11 wireless LAN module enables screen mirroring and wireless presentation, useful in rooms where guests present from their own devices. Split screen shows up to four connected sources at once.
Lenses and accessories
The EB-L520U ships with a fixed standard lens; it is not an interchangeable-lens model. The optional Epson ELPAP11 wireless LAN module is the accessory most installations add. SourceIT can quote mounts, HDBaseT transmitters and cabling alongside the projector.
Package Contents & Epson Installation Laser Range
In the box
- Epson EB-L520U projector
- Power cable
- Remote control with 2 x AA batteries
- User guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson installation laser range
| Model | Colour / white brightness |
| EB-L520U (this listing) | 5,200 lm |
| EB-L570U | 5,200 lm, with 4K Enhancement |
| EB-L630U | 6,200 lm |
| EB-L690SU | 6,200 lm, short throw |
| EB-L690E | 6,500 lm, with 4K Enhancement |
| EB-L770U | 7,000 lm, with 4K Enhancement |
| EB-L790U | 7,300 lm |
| EB-L890U | 8,000 lm |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EB-L520U together with a quotation. Tell us the room size, throw distance and screen width and we will confirm the lens coverage before you order.
Frequently Asked Questions — Epson EB-L520U
What does the "U" in EB-L520U mean?
In Epson's business projector naming, "U" indicates WUXGA resolution, 1920 x 1200 pixels in a 16:10 aspect ratio. A "W" model would be WXGA and an "F" model Full HD 1920 x 1080. WUXGA gives you 120 extra vertical pixels over Full HD, which is useful for spreadsheets, CAD and documents.
Does the EB-L520U have 4K Enhancement?
No. The EB-L520U projects at its native WUXGA resolution of 1920 x 1200. If you need Epson's 4K Enhancement pixel-shifting technology, look at the EB-L570U, EB-L690E or EB-L770U instead.
How long does the laser last and do I ever change a lamp?
There is no lamp. The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the electrostatic air filter shares the same maintenance cycle. In a room running eight hours a day, five days a week, 20,000 hours is roughly ten years of use.
Can I mount it on its side or upside down?
Yes. Projection orientation is 360 degrees free, so the EB-L520U can be ceiling-hung, floor-standing, tilted or rotated. Keystone correction of plus or minus 30 degrees vertically and horizontally handles off-axis placement.
Does it have built-in Wi-Fi?
No, wireless is optional on this model. The projector has a 100Mbps wired LAN port as standard; adding the Epson ELPAP11 wireless LAN module enables wireless presentation and screen mirroring.
What size screen will it fill?
Anything from 50 to 500 inches diagonal. At the wide end of the 1.6x zoom that is a throw distance of 1.44 to 14.76 metres, and at the tele end 2.35 to 23.84 metres. Throw ratio is 1.35 to 2.20.
How does it differ from the EB-L630U?
The EB-L630U is the brighter model at 6,200 lumens against 5,200 lumens here. Both are WUXGA 3LCD laser projectors sharing the same 1.6x zoom and 1.35 to 2.20 throw ratio, and neither uses 4K Enhancement. The EB-L630U adds two D-Sub computer inputs plus HDMI and D-Sub loop-through outputs.
What warranty and paperwork do I get?
Every unit sold by SourceIT carries local Singapore warranty and ships with a GST invoice. Three years local warranty applies to this model.
