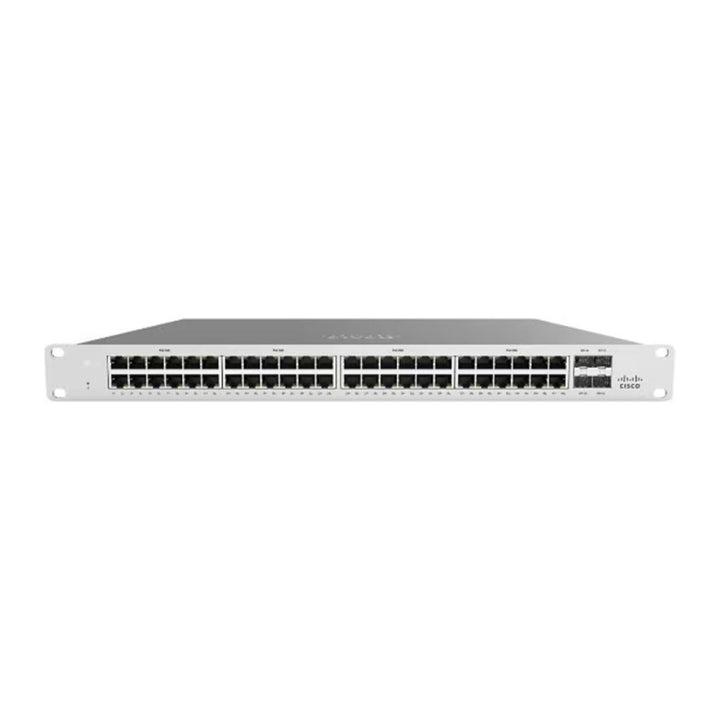

Cisco Meraki MS120-48LP 1G L2 Cld Managed 48x GigE 370W PoE Switch (MS120-48LP-HW)
Cisco Meraki MS120-48LP 1G L2 Cloud-Managed 48x GigE 370W PoE Switch (MS120-48LP-HW) - Local Warranty
Cisco Meraki MS120-48LP Cloud-Managed Switch – Scalable Connectivity for Modern Networks
The Cisco Meraki MS120-48LP Cloud-Managed Switch (MS120-48LP-HW) is a 48-port Gigabit Ethernet switch designed to deliver high-speed connectivity and Power over Ethernet (PoE+) capabilities. With a total PoE power budget of 370W, this switch powers and connects devices such as IP phones, Wi-Fi access points, security cameras, and IoT devices. It is managed via the Meraki Cloud Dashboard, allowing for centralized control, real-time monitoring, and remote troubleshooting. This switch is ideal for enterprise networks, educational institutions, and distributed branch offices seeking simple, secure, and scalable connectivity.
MS120-48LP-HW 48-Port PoE Switch – High Power, High Capacity, High Efficiency
The MS120-48LP-HW 48-Port PoE Switch offers a total of 48 Gigabit Ethernet ports, each capable of delivering up to 30W of PoE+ power. With a combined 370W PoE budget, it can support high-demand devices like Wi-Fi 6 access points, VoIP phones, and IP cameras. The switch also features 4 uplink ports, enabling fast connections to upstream switches, routers, or data centers. This capability makes it suitable for high-density deployments in corporate offices, schools, and healthcare facilities where multiple devices require both data and power from a single source.
48x Gigabit Ethernet PoE+ Switch – Power and Data in One
The Cisco Meraki MS120-48LP provides 48 Gigabit Ethernet ports with support for PoE+ (Power over Ethernet Plus), allowing businesses to power and connect their devices through a single cable. This all-in-one design simplifies cable management, reduces operational costs, and enhances scalability. With support for 30W of power per port, the switch can power a wide range of devices, from surveillance cameras and video conferencing systems to wireless access points and IoT sensors. The cloud-based Meraki dashboard enables complete visibility and control of connected devices.
Cloud-Managed Layer 2 Switch – Centralized Network Control
The MS120-48LP-HW is a Layer 2 cloud-managed switch that allows network administrators to configure, manage, and monitor multiple switches from a single dashboard. The Meraki Cloud Dashboard provides real-time insights into device health, port status, and network performance, allowing for zero-touch provisioning and easy remote management. With features like port mirroring, QoS (Quality of Service), VLAN support, and link aggregation, the MS120-48LP streamlines network control and ensures reliable performance for bandwidth-heavy applications like video streaming, cloud-based workflows, and VoIP communications.
Technical Specifications – Detailed Overview
- Model: Cisco Meraki MS120-48LP Cloud-Managed Switch (MS120-48LP-HW)
- Port Configuration: 48 x 1G Gigabit Ethernet ports for fast, reliable data transfer
- Uplink Ports: 4 x 1G SFP uplinks for connecting to core switches, routers, or data centers
- PoE Capabilities: PoE+ (Power over Ethernet Plus) support with a total power budget of 370W
- PoE Power per Port: Delivers up to 30W per port for high-power devices such as access points, phones, and cameras
- Switching Capacity: High-capacity switching for fast, seamless data flow across connected devices
- Cloud Management: Fully managed via the Meraki Dashboard for centralized network control and monitoring
- Layer: Layer 2 switching with support for VLANs, QoS, port mirroring, and link aggregation
- Network Security: Supports port security, access control, and guest VLANs for advanced network protection
- Power Supply: Internal power supply for clean, hassle-free installation
- Applications: Ideal for corporate offices, schools, healthcare facilities, and retail stores
- Mounting: Rack-mountable design for easy deployment in server racks or network cabinets
- Operating Environment: Indoor use only, suitable for office, education, and retail environments
