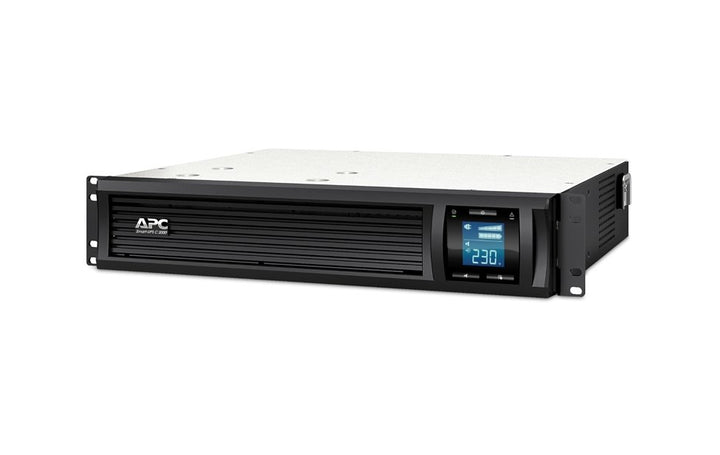

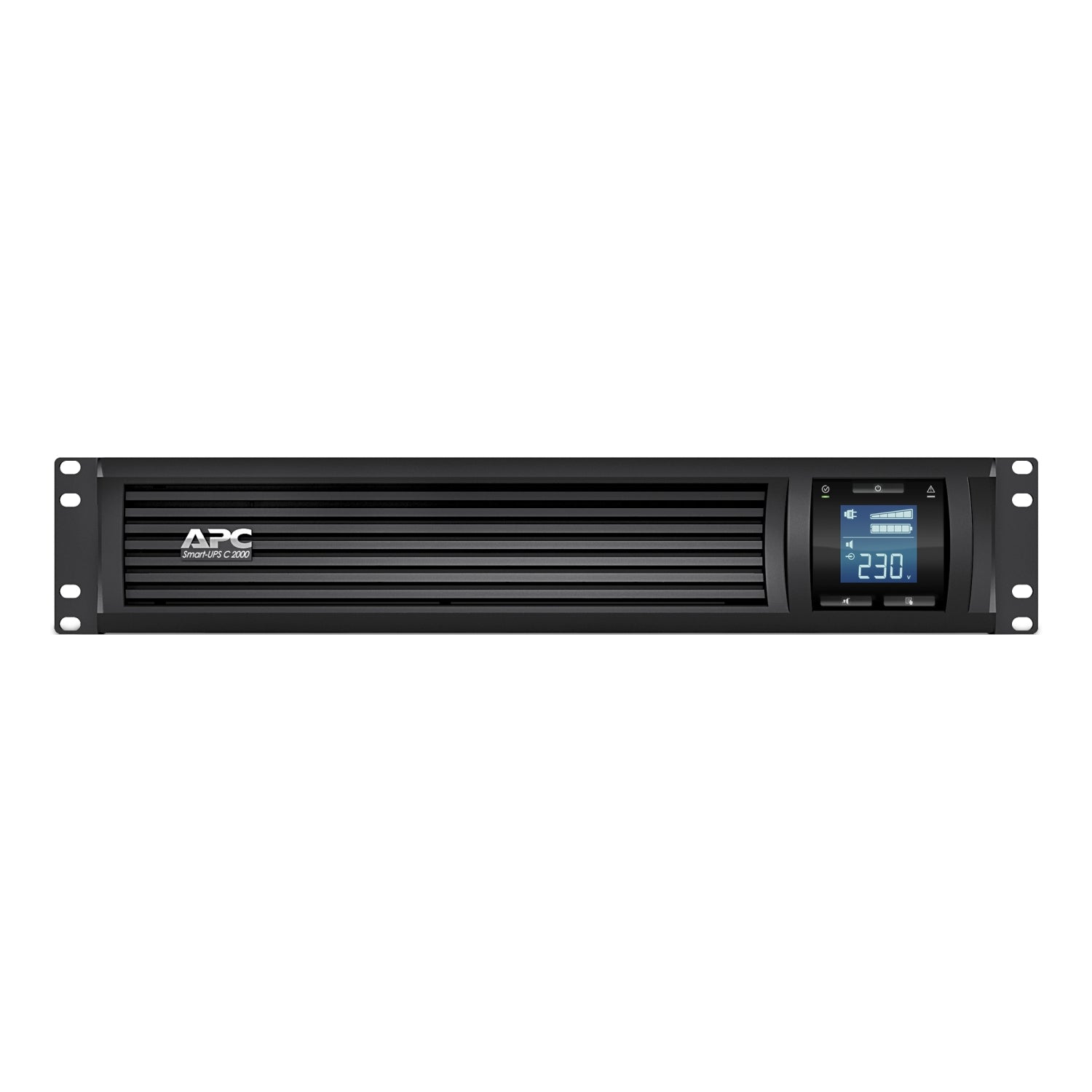

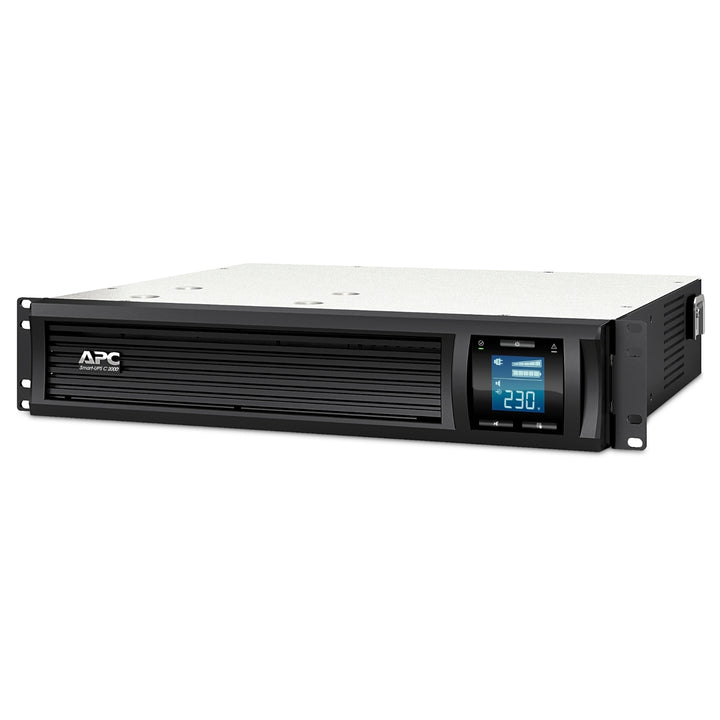

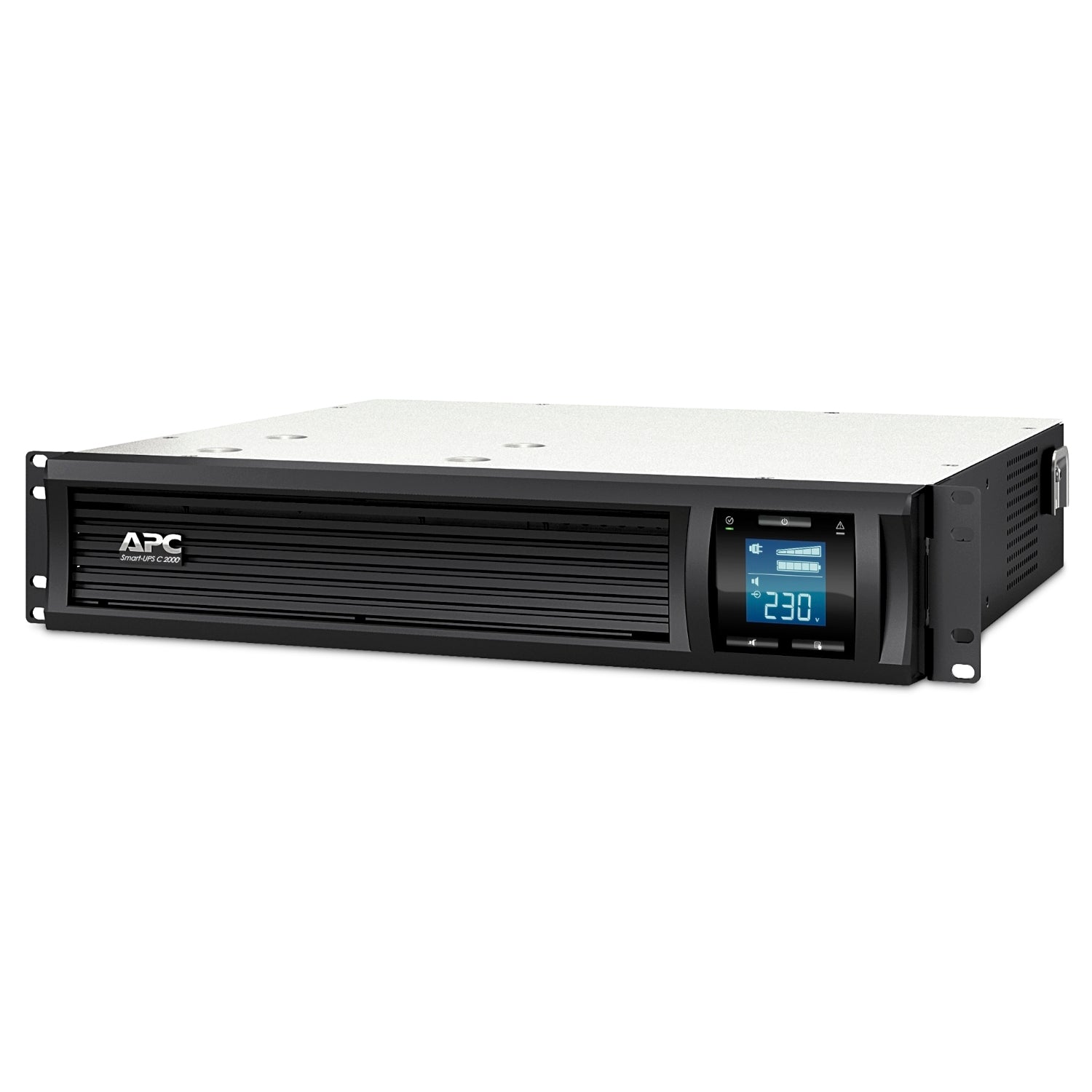

APC Smart-UPS C 2000VA 2U rack mountable 230V
PRODUCT DESCRIPTION
APC Smart-UPS C, Line Interactive, 2000VA / 1300W, Rackmount 2U, 230V (SMC2000I-2U) - 2 Years Local Warranty
2000 VA / 1300 W of Sine Wave Protection in 2U of Rack Space
The APC Smart-UPS C SMC2000I-2U puts 2000 VA and 1300 W of true sine wave, line-interactive protection with AVR into a 2U rackmount chassis. Output distortion stays under 5% at full load, which is what active-PFC server and network power supplies need — a step-approximated waveform can make those supplies drop the load or run hot. For a Singapore comms cabinet or a small server rack, this is the practical middle of the range.
AVR Handles PUB Voltage Dips Without Touching the Battery
Singapore runs on 230 V, 50 Hz mains, and the day-to-day threat to equipment here is rarely a full blackout — it is the sag when a PUB feeder is switched, the brownout during a storm, and the surge that follows. Automatic Voltage Regulation corrects those without touching the battery, which is why an AVR unit's batteries last longer in service than a cheaper standby UPS's do in the same building. The SMC2000I-2U works across a 180 to 287 V input window on 50/60 Hz ±3 Hz auto-sensing input, correcting through the transformer so the battery is held in reserve for real outages.

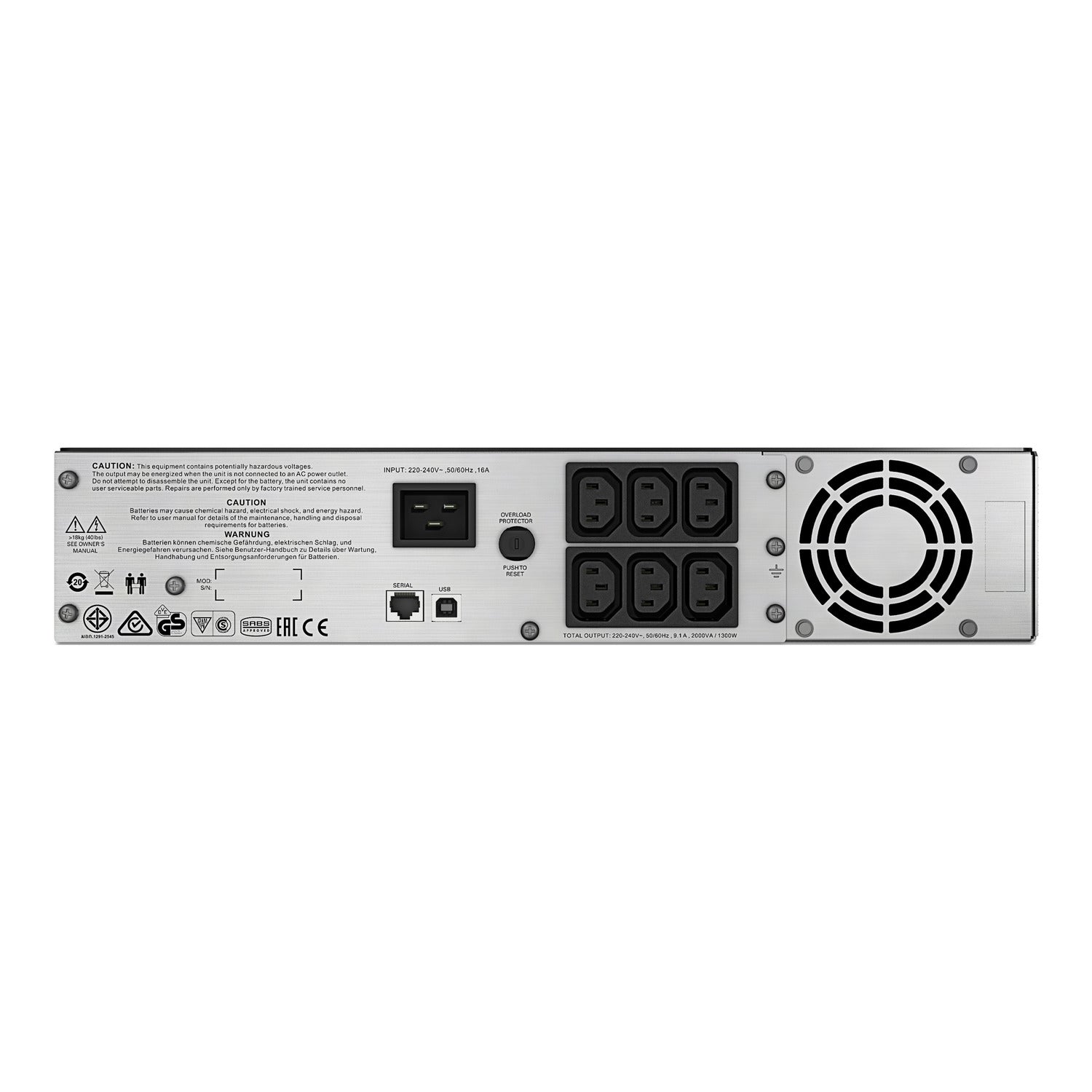

Six C13 Outlets and Two Jumper Cords — No C19 on This Model
This is the specification detail worth reading twice: the SMC2000I-2U provides six IEC C13 outlets plus two IEC jumper cords, all battery-backed, and it has no IEC C19 outlet. Its tower sibling the SMC2000I does have a C19, and so does the larger SMC3000RMI2U. If you have a C20-terminated load to feed, this is not the model — and that is exactly the mistake we would rather you did not make at the point of order. The unit itself is fed by an IEC C20 inlet.
2U, 470 mm Deep, and It Ships with Brackets — Not Rails
The chassis is 89 mm high, 480 mm wide across the mounting flanges and 470 mm deep, weighing 26.2 kg. It fits a standard 19-inch rack, and the 470 mm depth is modest enough for most comms cabinets. Note that Schneider ships rack-mounting brackets, not four-post slide rails, with this model — if your cabinet needs rails you will want to plan support for the rear of the unit. At 42 dBA and 81 BTU/hr it is quiet and cool enough for an office comms cupboard.
APC SMC2000I-2U Datasheet — Technical Specifications
General
| Part Number (SKU) | SMC2000I-2U |
| Product Name | APC Smart-UPS C, Line Interactive, 2000VA, Rackmount 2U, 230V, 6x IEC C13 outlets, USB and Serial communication, AVR, Graphic LCD |
| Topology | Line interactive |
| Form Factor | Rackmount, 2U |
| Display | Multifunction graphic LCD status and control console |
| Certifications | C-Tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE (later revisions add UK PSTI) |
| Manufacturer Warranty | 2-Year Manufacturer Warranty (APC by Schneider Electric) |
| Local Warranty | Local Warranty (Singapore) |
Output
| Output Power Capacity | 2000 VA / 1300 W |
| Nominal Output Voltage | 230 V |
| Output Frequency | 50 Hz, synchronised to mains |
| Waveform | Sine wave |
| Output Voltage Distortion | Less than 5% at full load |
| Output Connections | (6) IEC 320 C13 — battery backup; (2) IEC jumper cords — battery backup. No IEC C19 outlet on this model. |
| Surge Energy Rating | 300 Joules |
Input
| Nominal Input Voltage | 230 V |
| Input Voltage Range (mains operation) | 180 to 287 V |
| Input Frequency | 50/60 Hz ±3 Hz, auto-sensing |
| Input Connection | IEC 320 C20 |
| Voltage Regulation | Automatic Voltage Regulation (AVR) |
Batteries & Runtime
| Battery Type | Maintenance-free sealed lead-acid with suspended electrolyte, leakproof |
| Replacement Battery Cartridge | Schneider has used more than one cartridge designation across production revisions of this model — check the label on your unit, or ask SourceIT to confirm before ordering |
| Typical Recharge Time | 3 hours |
| Expected Battery Life | 3 to 5 years |
| Runtime at Load | Schneider Electric publishes no runtime table for this model — contact SourceIT with your load in watts for a sizing estimate |
Communications & Management
| Communication Ports | USB and serial |
| SmartSlot | None — an internal network management card cannot be fitted |
| Management Software | Compatible with APC PowerChute management software for graceful shutdown over USB or serial |
Physical & Environmental
| Dimensions (H × W × D) | 89 × 480 × 470 mm (fits a standard 19-inch rack) |
| Rack Height | 2U |
| Mounting Hardware Supplied | Rack-mounting brackets (four-post slide rails are not included) |
| Net Weight | 26.2 kg |
| Shipping Weight | 30.16 kg |
| Operating Temperature | 0 to 40 °C |
| Relative Humidity | 0 to 95%, non-condensing |
| Operating Altitude | 0 to 3,000 m |
| Audible Noise | 42 dBA at 1 m |
| Heat Dissipation | 81 BTU/hr |
| Package Contents | Software CD, documentation CD, installation guide, rack-mounting brackets, USB cable |
Specifications We Have Not Published
The replacement battery cartridge part number is deliberately not published here: independent mirrors of the Schneider data sheet give three different designations across production revisions, and quoting the wrong one is a returns problem, not a typo. Ask us and we will confirm against your unit's label. Schneider also does not publish an adjustable input range, a battery VAh figure, an input current or a battery bus voltage for this model — the 170 to 300 V adjustable range belongs to the tower builds and is not carried over here. Transfer time appears in only one data sheet revision, so it is omitted. UL, cUL and ENERGY STAR are not on the certification list for this model and are not claimed, and no Schneider document describes the batteries as hot-swappable. Where Schneider Electric does not publish a figure for this exact model, SourceIT leaves it out rather than estimate it from a similar part number.
Compatibility & Runtime
All eight outputs — six IEC C13 sockets and two IEC jumper cords — are battery-backed. There is no C19 outlet on this model, which is the single most common ordering mistake in the Smart-UPS C rack range.
Sizing. Size against 1300 W. Total your nameplate watts and aim to stay below about 1040 W so there is headroom for inrush and for the battery losing capacity with age. Schneider publishes no runtime table for this model, so ask us rather than rely on a figure found elsewhere.
Rack fit. 2U of height and 470 mm of depth in a standard 19-inch rack. Rack-mounting brackets are supplied; four-post slide rails are not. In a deep cabinet you will want to support the rear of a 26.2 kg unit rather than hang it on the front flanges alone.
Input. IEC C20 inlet. A dedicated circuit is the sensible choice at this rating.
Management. This model has no SmartSlot. An internal APC network management card such as the AP9640 or AP9641 cannot be fitted to any Smart-UPS C unit — management is over the bundled USB or serial port to a host running APC PowerChute software. If you need SNMP or web management in the rack, choose a Smart-UPS SMT or SMX model with a SmartSlot, or a Smart-UPS C SmartConnect model with a built-in Ethernet port.
Package Contents & Smart-UPS C Series Ordering Information
In the Box
- APC Smart-UPS C 2000VA 2U rackmount UPS (SMC2000I-2U)
- Rack-mounting brackets
- Software CD
- Documentation CD
- Installation guide
- USB cable
Smart-UPS C Series Ordering Information
The Smart-UPS C range runs from 1000 VA to 3000 VA in both tower and 2U rack builds. Watts, not VA, is the number to size against — and check the outlet mix, which is not consistent across the range:
| APC Smart-UPS C 1000VA 2U Rack LCD 230V | SMC1000I-2U |
| APC Smart-UPS C 1500VA 2U Rack LCD 230V | SMC1500I-2U |
| APC Smart-UPS C 2000VA 2U Rack 230V (this listing) | SMC2000I-2U |
| APC Smart-UPS C 3kVA Rackmount 2U 230V | SMC3000RMI2U |
Smart-UPS C tower siblings
| APC Smart-UPS C 1000VA LCD 230V | SMC1000I |
| APC Smart-UPS C 1500VA LCD 230V | SMC1500I |
| APC Smart-UPS C 2000VA LCD 230V | SMC2000I |
| APC Smart-UPS C 3000VA LCD 230V | SMC3000I |
Smart-UPS C SmartConnect builds (with built-in Ethernet monitoring)
Datasheet & Downloads
Full technical documentation for the APC SMC2000I-2U is published by Schneider Electric. The official product page below lists the Schneider Electric product data sheet and User Guide 990-4472G.
Schneider Electric serves its datasheet and manual PDFs through a redirecting download service that we cannot link to reliably, so we do not publish a direct PDF link that might break or return the wrong model's document. Email sales@sourceit.com.sg with the model number and we will send you the current APC SMC2000I-2U product data sheet and user manual as PDFs, along with a quotation.
Frequently Asked Questions — APC SMC2000I-2U
Does this model have a C19 outlet?
No — and it is worth being clear about it. The SMC2000I-2U has six IEC C13 outlets and two IEC jumper cords, with no C19. Schneider's own product name for this model reads “6x IEC C13 outlets” with no C19 listed. If you need a C19 for a C20-terminated load, look at the tower SMC2000I or the larger SMC3000RMI2U, both of which do have one.
What is the difference between 2000 VA and 1300 W?
VA is apparent power and W is real power. Size against the 1300 W figure — modern IT loads reach the watt ceiling long before the VA rating becomes the limit. Total your nameplate watts and keep the sum under roughly 1040 W to leave 20% headroom.
How long will it run for?
Schneider Electric publishes no runtime table for this model, so we will not quote minutes. Runtime depends steeply on load. Send us your load in watts and the runtime you need and we will size it properly.
Does it come with rails, and how much rack depth do I need?
It ships with rack-mounting brackets, not four-post slide rails — a real fitting difference customers hit. Allow 2U of height and 470 mm of depth, and support the rear of the unit in a deep cabinet; it weighs 26.2 kg.
Is the output a true sine wave? Will it work with an active-PFC PSU?
Yes to both — true sine wave with less than 5% distortion at full load, which is what active-PFC supplies require. This is the main reason to choose Smart-UPS over a Back-UPS or Easy UPS for server and network equipment.
Which replacement battery cartridge does it take?
We are deliberately not printing one. Independent mirrors of Schneider's data sheet give three different cartridge designations for this model across production revisions, and shipping the wrong cartridge is an avoidable returns problem. Check the label on your unit or send us its serial number and we will confirm the right part before you order.
Can I fit a network management card for SNMP monitoring?
This model has no SmartSlot. An internal APC network management card such as the AP9640 or AP9641 cannot be fitted to any Smart-UPS C unit — management is over the bundled USB or serial port to a host running APC PowerChute software. If you need SNMP or web management in the rack, choose a Smart-UPS SMT or SMX model with a SmartSlot, or a Smart-UPS C SmartConnect model with a built-in Ethernet port.
Is the warranty valid in Singapore, and do I get a GST invoice?
Yes. Every APC SMC2000I-2U sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SMC2000I-2U with a 2-year manufacturer warranty.
