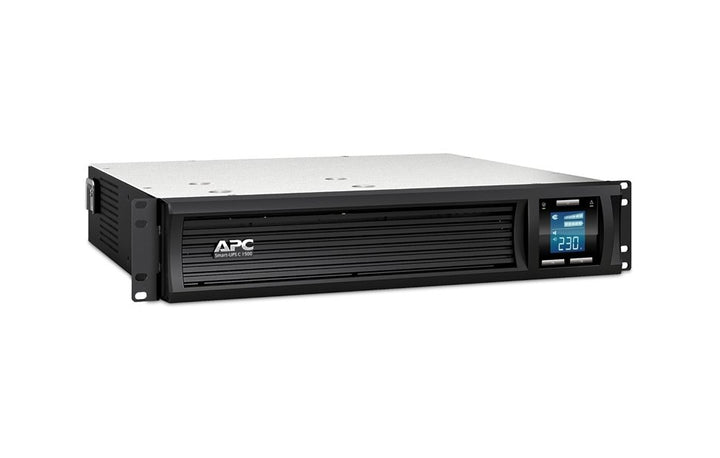

Smart-UPS C 1500VA 2U rack mountable LCD 230V (SMC1500I-2U)

Smart-UPS C 1500VA 2U rack mountable LCD 230V (SMC1500I-2U) - 2 Years Local Warranty

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1500VA/900W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 2U rackmount SMC operates in green mode for high operating efficiency. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. Its dimensions are 457mm (depth) x 89mm (height) x 432mm (width) and weighs 28.64kg. Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, and edge networks. It conforms to CE, CSA, EAC, C-Tick, GOST, VDE, and UL 1778.

• Main Input Voltage
• 230 V
• Other Input Voltage
• 220 V
• 240 V
• Main Output Voltage
• 230 V
• Rated power in W
• 900 W
• Rated power in VA
• 1500 VA
• Input Connection Type
• IEC 320 C14
• output connection type
• 4 IEC 320 C13
• 2 IEC Jumpers
• Number of rack unit
• 2U
• number of cables
• 1
• Battery type
• Lead-acid battery
• provided equipment
• CD with software
• Documentation CD
• Installation guide
• Rack mounting brackets
• USB cable
• General
• Number of power module filled slots
• 0
• Number of power module free slots
• 0
• product web sub-family
• Entry level
• Redundant
• No
• Physical
• colour
• Black
• Height
• 8.9 cm
• Width
• 43.2 cm
• Depth
• 45.7 cm
• Net weight
• 28.64 kg
• Mounting location
• Front
• Mounting preference
• Lower
• Mounting mode
• Rack-mounted
• Two post mountable
• 1
• USB compatible
• Yes
• Input
• input voltage limits
• 170...300 V adjustable
• 180...287 V
• network frequency
• 50/60 Hz +/- 3 Hz auto-sensing
• Output
• Harmonic distortion
• Less than 5 % at full load
• Maximum configurable power in VA
• 1500 VA
• Maximum configurable power in W
• 900 W
• Transfer time
• 2 ms typical
• UPS type
• Line interactive
• Wave type
• Sine wave
• output frequency
• 57...63 Hz for 60 Hz nominal sync to mains
• Conformance
• Product certifications
• C-Tick
• CE
• CSA
• GOST
• VDE
• EAC
• standards
• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018
• Environmental
• Acoustic level
• 46 dBA
• Heat dissipation
• 90 Btu/h
• Operating altitude
• 0...10000 ft
• Ambient air temperature for operation
• 0…40 °C
• Ambient air temperature for storage
• -15…45 °C
• Storage altitude
• 0.00…15240.00 m
• relative humidity
• 0…95 %
• storage Relative Humidity
• 0…95 %
• Batteries & Runtime
• Run Time
• View Runtime Graph
• Extended runtime
• 0
• Number of battery filled slots
• 0
• Number of battery free slots
• 0
• Battery recharge time
• 3 h
• Number of battery replacement quantity
• 1
• Battery life
• 4…6 year(s)
• Replacement battery
• APCRBC157
• Battery power in VAH
• 260 VAh runtime
• battery charger power
• 86 W rated
• Communications & Management
• alarm
• Alarm when on battery : distinctive low battery alarm : configurable delays
• control panel
• Multifunction LCD status and control console
• Free slots
• 0
• alarm
• Alarm when on battery : distinctive low battery alarm : configurable delays
• Surge Protection and Filtering
• Surge energy rate
• 459 J
• Noise suppression
• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
• Packing Units
• Unit Type of Package 1
• PCE
• Number of Units in Package 1
• 1
• Package 1 Height
• 25.1 cm
• Package 1 Width
• 59.4 cm
• Package 1 Length
• 60.3 cm
• Package 1 Weight
• 31.91 kg
• Contractual warranty
• Warranty
• 2 years repair or replace
