APC Smart-UPS C 1000VA LCD RM 2U 230V with SmartConnect

APC Smart-UPS C 1000VA LCD RM 2U 230V with SmartConnect (SMC1000I-2UC) - 2 Years Local Warranty

Rackmount Backup You Can Count On

The APC Smart-UPS C 1000VA LCD RM 2U (SMC1000I-2UC) offers pure-sine-wave power backup in a compact rack-mount chassis. With 1000 VA / 600 W capacity, it protects entry-level servers, networking gear, and POS systems during power disturbances. Its green operating mode boosts efficiency above 97%, cutting energy waste without sacrificing the protection your equipment needs.

SmartConnect for Easy Cloud Monitoring

This UPS comes with built-in SmartConnect, enabling remote status checks, firmware updates, and proactive alerts via a secure cloud portal. There is no need for local cards or SNMP, simply scan the QR code, register, and start monitoring from anywhere. It is ideal for IT teams managing multiple sites or remote branch offices that need centralized visibility.

Full-Featured 2U Rack Design

Designed for data cabinets, this 2U rackmount unit includes rack-mount brackets and cables right out of the box. The easy-to-read LCD shows load, battery runtime, and voltage at a glance. It supports both USB and serial connectivity for local management and PowerChute software integration, making installation and ongoing administration straightforward.

Robust Performance and Battery Management

Line-interactive AVR maintains output within +/-5%, syncing to mains frequency at +/-3 Hz. Typical recharge is three hours to 90%, with an expected battery life of 4-6 years and hot-swappable RBC compatibility for minimal downtime. Run times are approximately 16 minutes at half load (~300 W) and around 6 minutes at full load (600 W).

Technical Specifications

• Model: APC Smart-UPS C 1000VA LCD RM 2U 230V (SMC1000I-2UC)
• Capacity: 1000 VA / 600 W
• Voltage: 230 V nominal (range 170-300 V)
• Waveform: Pure sine wave
• Topology: Line-interactive with AVR

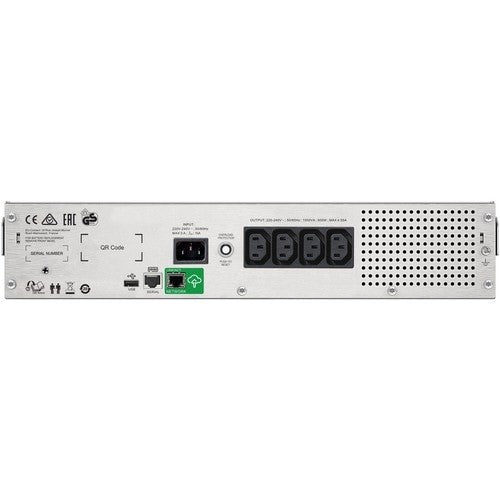

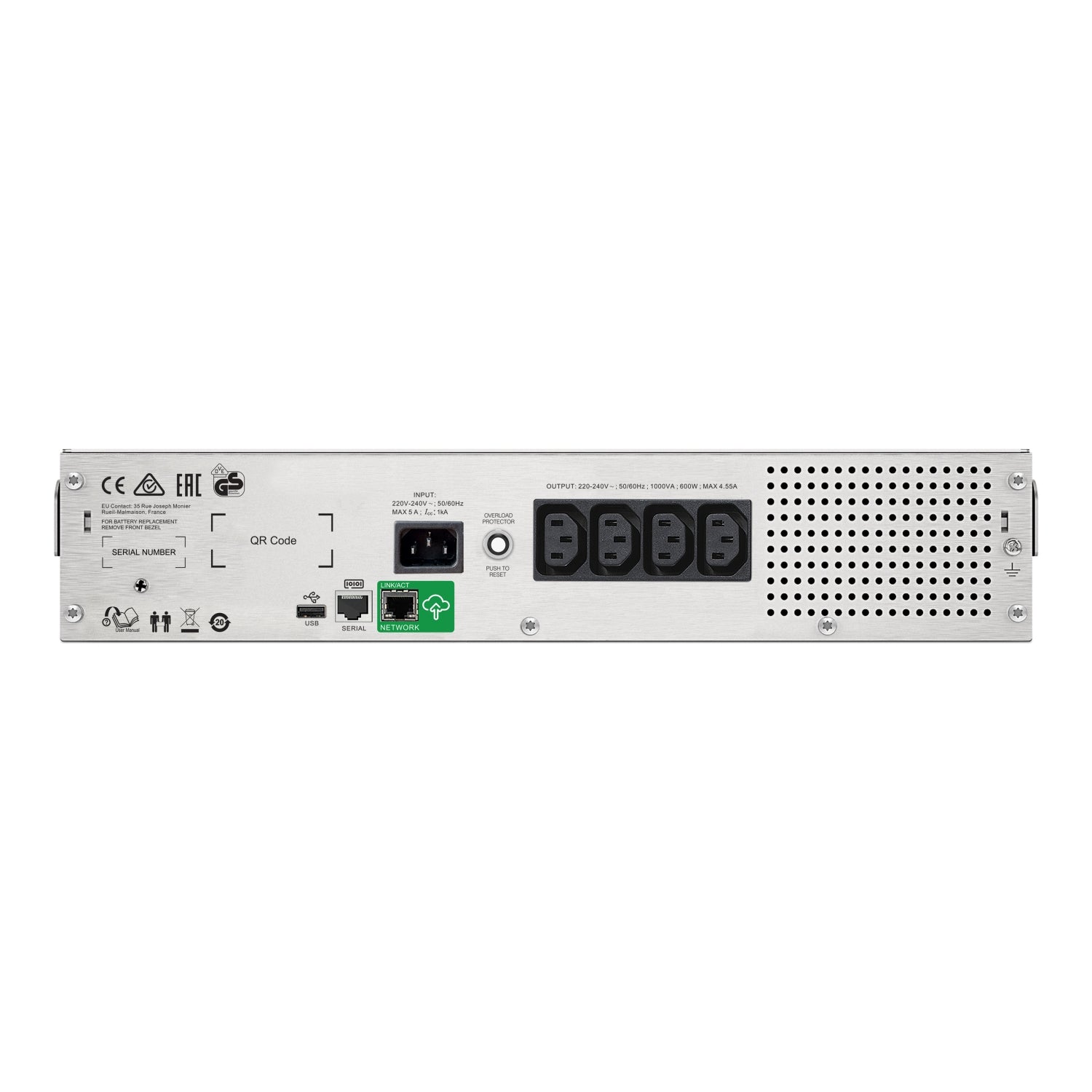

• Outlets: 4x IEC C13 + 2x IEC jumper
• Input: IEC-320 C14, 50/60 Hz +/-3 Hz
• Display: LCD status
• Battery: Sealed lead-acid, hot-swappable, RBC-124
• Battery life: 4-6 years; recharge time ~3 hrs
• Runtime: ~16 min @ half load; ~6 min @ full load
• Dimensions: 432 x 406 x 86 mm (2U rack)
• Weight: ~20.5 kg
• Communication: USB, RS-232 serial, SmartConnect cloud
• Efficiency: >97% in green mode
• Certifications: ENERGY STAR, UL 1778, RoHS, REACH, FCC, CE
• Warranty: 2 years repair/replace (battery included)

Ideal Use Case: Data cabinets and small server rooms needing efficient 2U rack-mounted pure sine wave backup with cloud-based SmartConnect monitoring for entry-level servers, networking gear, and POS systems.

GTIN/UPC: 0731304332930
