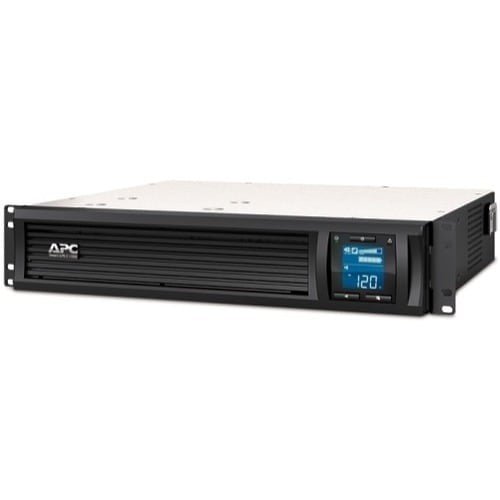

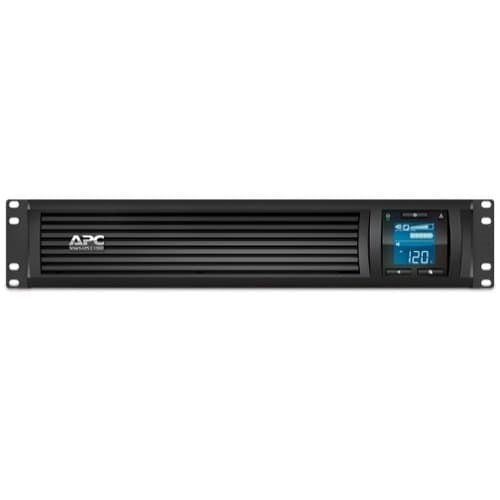

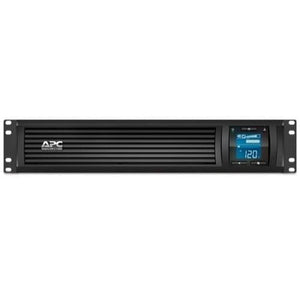

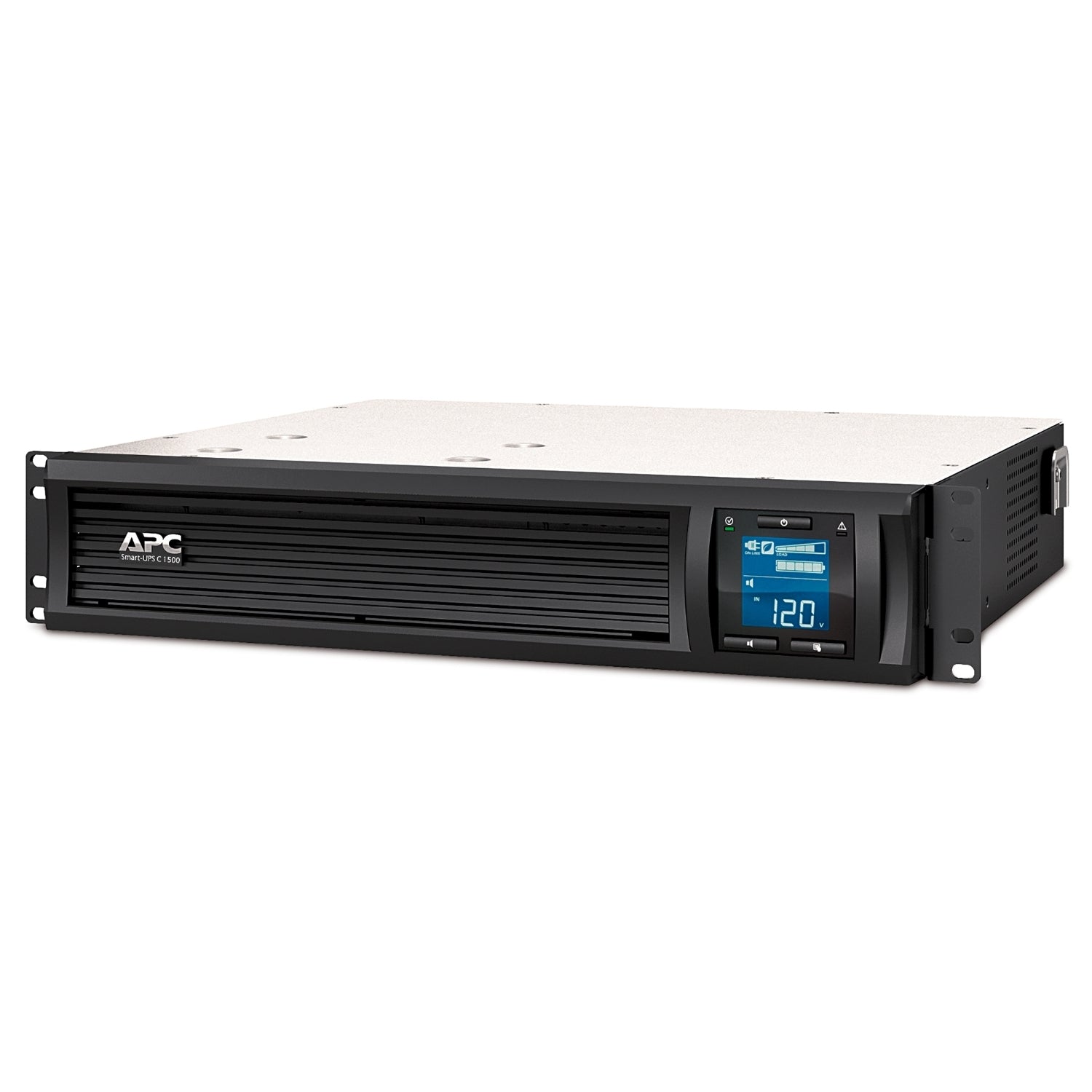

APC Smart-UPS C 1500VA LCD RM 2U 230V with SmartConnect
PRODUCT DESCRIPTION
APC Smart-UPS C 1500VA LCD RM 2U 230V with SmartConnect (SMC1500I-2UC) - 2 Years Local Warranty
Clean 1500VA Sine-Wave Backup Power for Singapore's 230 V / 50 Hz Mains
The APC SMC1500I-2UC is a line-interactive UPS rated at 1500VA / 900 W and built for the 230 V, 50 Hz supply used across Singapore. It rides through the brief sags, brownouts and switching transients that follow afternoon thunderstorms and PUB grid events without touching the battery, because Automatic Voltage Regulation corrects mains voltage electronically over an input window of 180 – 287 V. The battery is only called on when the supply falls outside that window, so cycle count stays low and the cartridge lasts longer in our year-round heat and humidity.
True Sine Wave Output for Servers, NAS and Active-PFC Power Supplies
Schneider Electric specifies sine wave output for the SMC1500I-2UC, not a step-approximated or simulated wave. That matters if you are protecting rack servers, a NAS, a firewall, PoE switches or any modern workstation, because active power-factor-corrected supplies can shut down or run hot on a stepped waveform. Transfer to battery takes 6 ms typically and 10 ms at most — comfortably inside the hold-up time of a standard ATX or server PSU.
APC SmartConnect: Remote Monitoring Without a Network Card
The trailing “C” in SMC1500I-2UC means APC SmartConnect: a dedicated Ethernet port built into the UPS that reports status, load, battery health and self-test results to the APC SmartConnect cloud portal, with email alerts. You register the unit by scanning its QR code, so there is no management card to buy and configure. Note that this model has no SmartSlot — if you need local SNMP on your own LAN rather than cloud reporting, choose a Smart-UPS SMT model instead. USB and serial ports are fitted for local shutdown signalling.
Rack Planning: 2U of Height and 477 mm of Depth
The SMC1500I-2UC occupies 2U in a 19-inch rack and is 477 mm deep, so check your cabinet depth and the space behind the rear rails before ordering — UPS units are among the deepest things in a comms cabinet. Rack mounting brackets are supplied in the box; 4-post rails are not, so plan for shelf or rail support on a deep cabinet. Mount it low in the rack: at 28.64 kg it is one of the heaviest single items you will install, and a low centre of gravity keeps a half-populated cabinet stable.
Bought Locally: GST Invoice, Local Warranty, Stock in Singapore
SourceIT supplies the SMC1500I-2UC as local Singapore stock with a GST invoice and local warranty support, so you are not chasing a grey-import serial number when a battery fails in year two. The replacement battery cartridge is a stocked line item as well, which keeps a mid-life battery swap to a same-week job rather than a special order.
APC SMC1500I-2UC Datasheet — Technical Specifications
Full technical specifications for the APC SMC1500I-2UC, as published by Schneider Electric. Schneider's own product name for this part number is “APC Smart-UPS C, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD”. Where a specification is not confirmed by an official Schneider source it has been left out rather than estimated.
General
| Part Number (SKU) | SMC1500I-2UC |
| Output Power Capacity | 1500 VA / 900 W |
| Series | APC Smart-UPS C with APC SmartConnect |
| Topology | Line interactive with Automatic Voltage Regulation (AVR) |
| Display | Multifunction graphic LCD status and control console |
| Form Factor | Rackmount 2U |
| Certifications | CE, C-Tick, GOST, VDE; UK PSTI compliant |
| Environmental Compliance | EU RoHS compliant; REACh declaration available; mercury free |
| IP Rating | IP20 |
| EAN / GTIN | 0731304332954 |
| 2-Year Manufacturer Warranty (APC by Schneider Electric) | 2 years repair or replace |
| Local Warranty (Singapore) | Supplied by SourceIT with local Singapore warranty and GST invoice |
Output
| Output Power Capacity | 1500 VA / 900 W |
| Nominal Output Voltage | 230 V AC, single phase (also 220 V, 240 V) |
| Output Voltage Distortion | Less than 5% |
| Output Frequency | 50/60 Hz ± 3 Hz, synchronised to mains |
| Output Waveform | Sine wave |
| Transfer Time | 6 ms typical; 10 ms maximum |
| Output Connections | (4) IEC 60320 C13 (battery backup) + (2) IEC jumpers (battery backup) |
Input
| Nominal Input Voltage | 230 V |
| Input Voltage Range (mains operation) | 180 – 287 V |
| Adjustable Input Voltage Range | 170 – 300 V |
| Input Frequency | 50/60 Hz ± 3 Hz (auto-sensing) |
| Input Connection | IEC 320 C14 |
| Surge Energy Rating | 459 Joules |
Batteries & Runtime
| Battery Type | Lead-acid, internal, included |
| Battery Capacity | 336 VAh |
| Replacement Battery Cartridge | APCRBC157 (quantity 1) |
| Expected Battery Life | 4 – 6 years |
| Typical Recharge Time | 3 hours |
| Runtime at Stated Loads | Not published by Schneider Electric for this model |
Communications & Management
| SmartConnect | Built-in SmartConnect Ethernet port for cloud monitoring |
| Interface Ports | USB, serial |
| SmartSlot | Not fitted on this model |
| Software | APC SmartConnect software for remote power monitoring |
Physical & Environmental
| Rack Height | 2U (86 mm) |
| Dimensions (W × D × H) | 432 × 477 × 86 mm |
| Net Weight | 28.64 kg |
| Shipping Weight | 31.91 kg |
| Rack Mounting | Rack mounting brackets included; 4-post rack rails are not supplied |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95%, non-condensing |
| Maximum Operating Elevation | 3000 metres (10,000 ft) |
| Storage Temperature | −15 to 45 °C |
| Audible Noise | 46 dBA |
| Package Contents | Documentation CD, installation guide, rack mounting brackets, USB cable |
Compatibility & Runtime
What you can plug in
The SMC1500I-2UC provides four IEC 60320 C13 outlets plus two IEC jumper outlets, all on battery backup. Every outlet is on battery backup, so there is no surge-only group to watch out for — but that also means everything you connect draws on the battery, so keep printers, kettles and other non-critical loads off the UPS. Size the connected load against the wattage rating (900 W), not the VA rating.
Input, plug type and circuit
The UPS inlet is an IEC 320 C14, so it takes a standard IEC power cord from a Singapore 13 A outlet or from a rack PDU C13 socket. Mains operating range is 180 – 287 V, adjustable to 170 – 300 V.
Rack fit
2U of 19-inch rack height (86 mm), 477 mm deep, 28.64 kg. Schneider supplies rack mounting brackets with this model but does not supply 4-post rails, so on a deep cabinet plan for a shelf or a third-party rail set to carry the weight.
Runtime
Schneider Electric does not publish fixed runtime figures for this model, so we do not quote any. Runtime depends entirely on the connected load: a UPS at 30–40% of its wattage rating will run several times longer than the same unit at full load, and battery age reduces runtime over the cartridge's service life. Tell SourceIT the actual load in watts and the number of minutes you need to shut down cleanly, and we will size it against Schneider's runtime curve for the exact model.
Batteries
The SMC1500I-2UC takes the APCRBC157 replacement battery cartridge (quantity 1), a stocked SourceIT line: APC APCRBC157 Replacement Battery Cartridge. Typical recharge time is 3 hours.
Management and software
APC SmartConnect is built in and is the management route for this model — there is no SmartSlot, so an internal network management card cannot be fitted. USB and serial ports are provided for local shutdown signalling. Schneider's documentation for this model names APC SmartConnect software for remote power monitoring.
Package Contents & Smart-UPS C SmartConnect Ordering Information
In the box
Documentation CD, installation guide, rack mounting brackets, USB cable.
APC Smart-UPS C SmartConnect series
| SMC1000IC | 1000 VA / 600 W — Tower, (8) C13 |
| SMC1500IC | 1500 VA / 900 W — Tower, (8) C13 + (2) jumpers |
| SMC1000I-2UC | 1000 VA / 600 W — Rackmount 2U, (4) C13 + (2) jumpers |
| SMC1500I-2UC (this listing) | 1500 VA / 900 W — Rackmount 2U, (4) C13 + (2) jumpers |
Matching replacement battery cartridge
| APC APCRBC157 | Replacement battery cartridge for the SMC1500I-2UC, quantity 1 per UPS |
Network management
This model has no SmartSlot, so an internal management card cannot be added. APC SmartConnect (built in) is the monitoring route. If you need a card-based SNMP solution, the Smart-UPS SMT rackmount range carries a free SmartSlot — ask SourceIT for a like-for-like alternative.
External battery packs
This UPS uses its internal battery only; Schneider does not list an external battery pack option for this model. If you need extended runtime, the APC Smart-UPS On-Line SRT range and the Easy UPS On-Line SRV range accept external battery packs — ask SourceIT for a sizing.
Datasheet & Downloads
Official Schneider Electric documentation for the APC SMC1500I-2UC. Links open in a new tab.
- Schneider Electric product page — APC SMC1500I-2UC (official specifications, feature list and full document library)
- APC Smart-UPS C 1000/1500 VA 120/230 Vac Tower/Rack-Mount 2U - Operation Manual (Schneider Electric document page)
- Quick Installation Guide - Smart-UPS SMC1000I-2UC, SMC1500I-2UC (Schneider Electric document page)
- APC SmartConnect portal — register the UPS to activate cloud monitoring and email alerts
Need a specific document, a declaration of conformity or a quotation on SourceIT letterhead? Contact us and we will send it across.
Frequently Asked Questions — APC SMC1500I-2UC
What is the difference between the 1500 VA and the 900 W rating, and how do I size the SMC1500I-2UC?
VA is apparent power and 900 W is the real power the UPS can actually deliver — always size against the watt figure. Add up the wattage of everything you intend to connect (a server nameplate figure is usually well above real draw, so a plug-in power meter gives a better number), then aim to load the UPS to roughly 60–70% of 900 W. That leaves headroom for start-up surges and gives noticeably longer runtime than running it at the limit.
How long will the SMC1500I-2UC run on battery?
Schneider Electric does not publish fixed runtime figures for this model, so we do not quote any. Runtime is a function of load: the lighter the connected load relative to the 900 W rating, the longer it lasts, and runtime shortens as the battery ages. Tell SourceIT your actual load in watts and how many minutes you need for a clean shutdown, and we will check it against Schneider's runtime curve for this exact part number.
What does the “C” at the end of SMC1500I-2UC mean?
The trailing C denotes APC SmartConnect — a built-in Ethernet port for cloud monitoring, registered by scanning the QR code on the unit. Schneider's own product names make the distinction explicit: the build without the C is otherwise the same UPS but has no SmartConnect port, and an “NC” build ships with a network management card pre-installed instead. Note that on this model there is no SmartSlot, so SmartConnect is the management route.
Is the output a true sine wave, and will it work with an active-PFC power supply?
Yes. Schneider Electric specifies sine wave output for the SMC1500I-2UC — not a step-approximated or simulated sine wave, which some entry-level Back-UPS and Easy UPS models use. That makes it suitable for servers, NAS units and workstations with active power-factor-corrected supplies, which can misbehave on a stepped waveform. Output voltage distortion is specified as less than 5%.
Which replacement battery cartridge does the SMC1500I-2UC take, and can I change it myself?
It takes one APCRBC157 cartridge. The cartridge is designed as a user-replaceable part and SourceIT stocks it: APC APCRBC157 Replacement Battery Cartridge. In Singapore's climate we suggest checking battery health annually from about year three and budgeting for a swap rather than waiting for a failed self-test during an outage.
How much rack space does it need, and are rails included?
It is a 2U unit, 477 mm deep. Schneider supplies rack mounting brackets with this model but not 4-post rails, so on a deep cabinet plan for a shelf or a separate rail set to carry the weight. Mount it low in the rack.
Can I add a network management card for SNMP?
No. Schneider's documentation for this model lists no SmartSlot, so an internal management card cannot be fitted; APC SmartConnect cloud monitoring is the built-in management route. If you need card-based SNMP on your own LAN, the Smart-UPS SMT rackmount range carries a free SmartSlot — ask SourceIT for an alternative.
How does it compare with the SMC1000IC?
The SMC1000IC is rated 1000 VA / 600 W in tower format with (8) C13, against 1500VA / 900 W in rackmount 2U format on this unit. The electrical platform is shared — same sine wave output, same AVR, same SmartConnect port — so the choice is about capacity and whether you are mounting it in a rack. Compare it here: APC SMC1000IC.
Does the SMC1500I-2UC come with a warranty in Singapore?
Yes. Every APC SMC1500I-2UC sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the SMC1500I-2UC with a 2-year manufacturer warranty (2 years repair or replace). Registering the unit on the APC SmartConnect portal adds a further year of battery warranty under Schneider's SmartConnect terms.
