Lenovo USB-C Mini Dock
PRODUCT DESCRIPTION

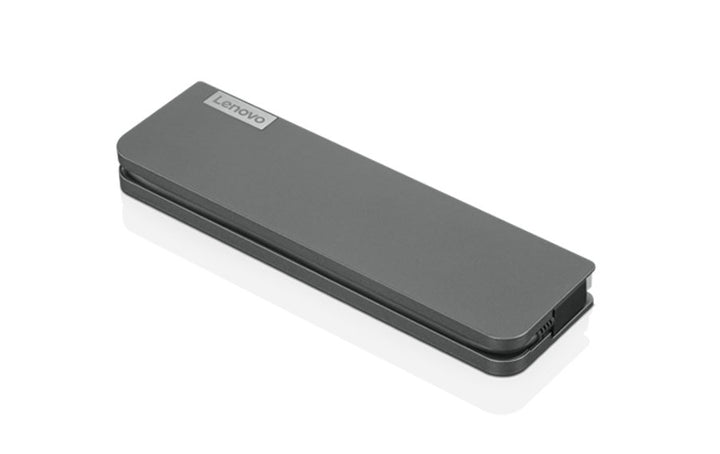

Lenovo USB-C Mini Dock (40AU0065UK) - Local Warranty
The Dock With VGA — Which Is Often the Whole Reason to Buy It
The Lenovo USB-C Mini Dock carries HDMI 2.0 and VGA, gigabit Ethernet, three USB ports and a 3.5 mm audio jack, on a 240 mm captive USB-C cable. It is the only dock in this range with a VGA output. If you present into meeting rooms, lecture theatres or client sites that still have VGA projectors — and plenty in Singapore do — that port is the entire argument.
45 W to the Laptop, With a 65 W Adapter Supplied
Lenovo publishes 45 W charging to the laptop from the 65 W USB-C adapter in the box. That is enough for a standard business ultrabook and not enough for a larger machine under load. Our previous version of this page said 60 W; Lenovo says 45 W, and that is what appears here.
156 Grams, and a Genuinely Complete Port Set
180 x 53 x 17 mm and 156 grams excluding the adapter, with HDMI, VGA, gigabit Ethernet, USB-A 3.1 Gen 1, USB-C 3.1 Gen 1, USB 2.0 and a combo audio jack. For a dock this small, having both a modern and a legacy video output plus wired networking is unusual.
Two Things You Should Know Before Ordering
First, the warranty on this model is 1 year, not the 3 years Lenovo gives most of its docks — that is Lenovo's published term and we are not going to hide it. Second, Lenovo's own online store no longer lists this part number for sale, though it continues to publish support documentation and firmware for it. Lenovo has made no end-of-life announcement, so we will not call it discontinued — but if long-term supply matters, ask us before you standardise on it.
Lenovo USB-C Mini Dock Datasheet — Technical Specifications
General
| Product | Lenovo USB-C Mini Dock |
| Part Number | 40AU0065UK |
| Type | Compact USB-C dock with VGA |
| Warranty | 1 year, customer-replaceable unit (CRU), per Lenovo's published datasheet — note this is shorter than the 3 years Lenovo gives most of its docks |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Connectivity
| Host Connection | USB-C, via a 240 mm captive cable |
| Video Outputs | 1 x HDMI 2.0 and 1 x VGA |
| Maximum Display | One display at 4K 60 Hz over HDMI |
| USB Ports | 1 x USB 3.1 Gen 1 Type-A; 1 x USB 3.1 Gen 1 Type-C; 1 x USB 2.0 Type-A. Lenovo names the generation but publishes no Gbps figure for these ports |
| Ethernet | 1 x gigabit Ethernet |
| Audio Jack | 1 x 3.5 mm combo |
Power
| AC Adapter | 65 W USB-C power adapter and power cord included |
| Charging to the Laptop | 45 W |
Physical
| Dimensions | 180 x 53 x 17 mm. Lenovo's own datasheet misprints the imperial conversion as 70.9 in for the 180 mm dimension; the metric figures are the reliable ones |
| Weight | 156 g (0.3 lb), excluding the adapter |
| Cable | 240 mm, captive |
| Certifications | CB; BSMI; SII; CU; Ukraine; Kvalitet; LoA; NOM; cULus; FCC; ICES; CE; RCM; VCCI; KCC; EAC |
Compatibility & Fit
Buy it for the VGA port. Almost nothing else in Lenovo's current docking range has one. If your people present into rooms with VGA projectors, or connect to older KVM switches, laboratory instruments or industrial panels, this dock removes the dongle they otherwise have to remember. Everything newer connects over HDMI.
45 W is the honest limit. The 65 W adapter in the box charges the laptop at 45 W, because the dock keeps a share for its ports. That runs a standard 13- or 14-inch business ultrabook comfortably. A 15-inch machine or a workstation will drain slowly under load. Tell us the laptop model and we will say plainly whether it is enough.
On the 1-year warranty. Lenovo publishes a 1-year CRU warranty for this dock where most of its range carries 3 years. That is a real difference in what you are buying, and it is stated here rather than buried. Every unit SourceIT sells also carries local Singapore warranty support and a GST invoice.
On availability. Lenovo continues to publish the support page, service-parts article and firmware downloads for this dock, and has issued no end-of-life or end-of-support notice for it. But its own online store no longer serves a live product page for the part number in any region we checked. We are telling you what we observed rather than asserting a lifecycle status Lenovo has not declared. If you are standardising a fleet on this model, ask us about supply first.
Will it work with my laptop? Lenovo's own wording is that its USB-C and Thunderbolt docks "function with laptops that support industry standard USB-C Alt-Mode, DisplayLink or Thunderbolt protocols through their Type C port". In practice that means most business laptops of the last several years, Lenovo or otherwise. What Lenovo qualifies is the management features: MAC address pass-through, Wake-on-LAN, PXE boot and the mirrored power button work on most ThinkPads and, in Lenovo's words, "may not be available on certain other Lenovo laptops or non-Lenovo branded laptop systems". If those matter to your deployment — and for a managed fleet with imaging over the network they usually do — tell us the laptop models and we will check them before you order.
Package Contents & Lenovo Docking Ordering Information
In the box, per Lenovo PSREF:
- Lenovo USB-C Mini Dock
- 65 W power adapter with power cord
- Installation manual
- Warranty card
Lenovo Docking Station Ordering Information
| 40BD0065UK | Lenovo X9 Charging GaN Dock — 65 W GaN charger with HDMI 2.1, 2 x USB-C, USB-A, microSD |
| 4X11N40212 | Lenovo USB-C Slim Travel Dock — 110 g, HDMI 2.1 4K60, 4 USB ports, SD reader, no adapter |
| 40B90000WW | Lenovo USB-C Dual Display Travel Dock — 137 g, dual 4K60, gigabit Ethernet — no adapter |
| 40B90100UK | Lenovo USB-C Dual Display Travel Dock with Adapter — The same dock with a 100 W adapter included |
| 40AU0065UK (this listing) | Lenovo USB-C Mini Dock — HDMI + VGA, gigabit Ethernet, 45 W, 1-year warranty |
| 40AY0090UK | Lenovo ThinkPad Universal USB-C Dock — 3 x 4K60, GbE, 90 W adapter — charges at 65 W |
| 40AY0135UK | Lenovo ThinkPad Universal USB-C Dock (135 W Adapter) — The same dock with the 135 W adapter — charges at 100 W |
| 40AF0135UK | Lenovo ThinkPad Hybrid USB-C with USB-A Dock — Connects over USB-C or USB-A, 2 x 4K60, 90 W |
| 40B00135UK | Lenovo ThinkPad Universal Thunderbolt 4 Dock — 4 x 4K60 or 1 x 8K30, GbE, 100 W, 135 W adapter |
| 40B00300UK | Lenovo ThinkPad Thunderbolt 4 Workstation Dock — 230 W to a mobile workstation, 300 W adapter, split cable |
| 40ANY230UK | Lenovo ThinkPad Thunderbolt 3 Workstation Dock Gen 2 — Previous generation — 170 W, 230 W adapter, 4 displays |
| 40BN0135UK | Lenovo ThinkPad Universal USB-C Smart Dock, ThinkSmart Edition — Meeting-room dock — Azure Sphere managed, mounting kit, 5 m HDMI |
Datasheet & Downloads
Lenovo publishes no PSREF specification sheet for its docking accessories. The document linked above is Lenovo's own datasheet or product brochure for this part number and is the source for every figure on this page.
Frequently Asked Questions — Lenovo USB-C Mini Dock
Does it really have a VGA port?
Yes — HDMI 2.0 and VGA, and it is the only dock in our Lenovo range with VGA. For sites with older projectors, KVM switches or instrumentation, that is usually the deciding feature.
How much does it charge the laptop?
45 W, from the 65 W adapter supplied. Our earlier version of this page said 60 W, which was wrong — Lenovo publishes 45 W. That suits a standard business ultrabook; a larger machine will charge slowly under load.
Why is the warranty only one year?
Because that is what Lenovo publishes for this model — 1 year CRU, where most Lenovo docks carry 3 years. We would rather tell you than let you assume. Every unit we sell also carries local Singapore warranty support and a GST invoice.
Is it discontinued?
Lenovo has not said so, and we will not claim it. Lenovo still publishes the support page, the service-parts article and firmware for this dock. What we can tell you as an observation is that Lenovo's own online store no longer serves a live product page for the part number in any region we checked. If you are planning a fleet rollout on this model, talk to us about supply before you commit.
Can it drive two monitors?
Lenovo publishes one display at 4K 60 Hz over HDMI. It has both HDMI and VGA outputs, but Lenovo publishes no dual-display capability for this model, so we do not claim one. If two screens are the requirement, the USB-C Dual Display Travel Dock or the ThinkPad Universal USB-C Dock in the ordering table are the models to look at.
