Lenovo ThinkSystem SR675 V3 3U GPU Server
PRODUCT DESCRIPTION
Lenovo ThinkSystem SR675 V3 3U GPU Server (Configure-to-Order) - Local Warranty
3U GPU Server With Dual AMD EPYC

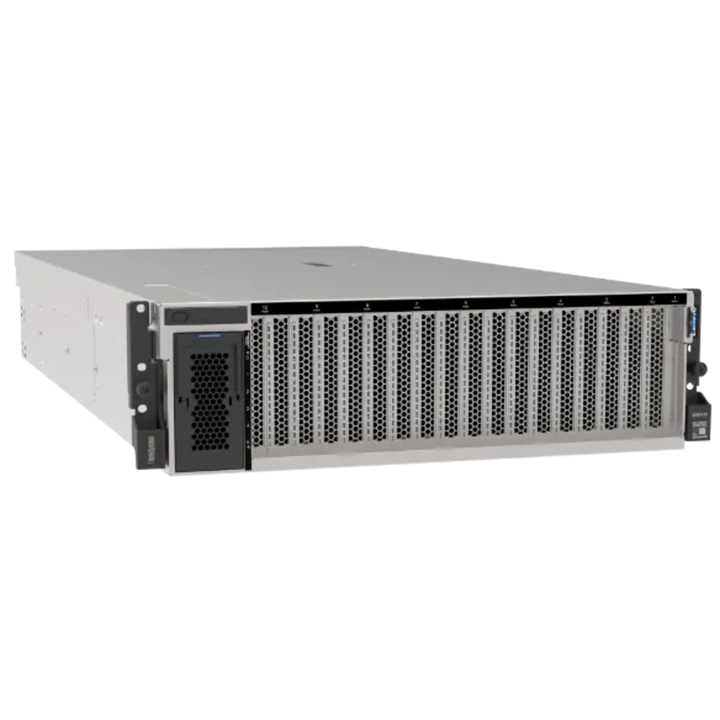

The Lenovo ThinkSystem SR675 V3 is a 3U GPU-dense rack server. It takes up to two AMD EPYC 9005 or 9004 Series processors with up to 160 cores each and 24 DDR5 DIMM slots for up to 3 TB of memory.
Three Base Configurations
Lenovo builds the SR675 V3 as a 4-DW model with up to 4 double-wide or single-wide PCIe GPUs, an 8-DW model with up to 8 double-wide or single-wide PCIe GPUs, or an SXM5 model with 4 x NVIDIA SXM5 GPUs and Lenovo Neptune liquid-to-air cooling, giving one platform for AI training, inference, HPC and visualisation.
Managed by Lenovo XClarity
Every SR675 V3 includes the XClarity Controller 2 (XCC2) for out-of-band management, TPM 2.0, a chassis intrusion switch and hot-swap drives and power supplies.
Lenovo ThinkSystem SR675 V3 Datasheet — Technical Specifications
General
| Product Name | Lenovo ThinkSystem SR675 V3 GPU Server |
| Machine Types | 7D9Q (1-year warranty), 7D9R (3-year warranty) |
| Form Factor | 3U rack server |
| Order Type | Configure-to-Order (processors, memory, GPUs, drives, network adapters, power supplies and support term chosen per order) |
| Lenovo Standard Warranty | 1 year or 3 years depending on machine type; customer-replaceable unit and onsite, 9x5 next business day |
Processor & Memory
| Processors | Up to two AMD EPYC 9005 Series ("Turin") or 9004 Series ("Genoa") processors, up to 160 cores, up to 4.1 GHz, up to 400 W TDP |
| Memory Slots | 24 DIMM slots (12 per processor), TruDDR5 |
| Memory Speed | Up to 6400 MHz (EPYC 9005); up to 4800 MHz (EPYC 9004) |
| Maximum Memory | 3 TB (24 x 128 GB 3DS RDIMMs) |
GPU & Expansion
| Base Models | 4-DW model: up to 4 x double-wide or single-wide PCIe GPUs; 8-DW model: up to 8 x double-wide or single-wide PCIe GPUs; SXM5 model: 4 x NVIDIA SXM5 GPUs with Lenovo Neptune liquid-to-air cooling |
| PCIe Slots | Up to 14 expansion slots + 1 x OCP slot (configuration dependent) |
| Network | OCP 3.0 SFF slot with PCIe 4.0 x8 or x16 host interface |
Storage
| Drive Bays | 4-DW model: 8 x 2.5-inch hot-swap AnyBay bays; 8-DW model: 6 x EDSFF E1.S plus 4 x EDSFF E3.S 1T bays |
| Storage Controllers | 12 Gb SAS/SATA RAID adapters or 12 Gb SAS/SATA HBAs; onboard NVMe |
Management & Security
| Systems Management | Lenovo XClarity Controller 2 (XCC2) embedded management |
| Rear Ports | 3 x USB 3.1 G1 (5 Gb/s), 1 x VGA, 1 x RJ-45 1GbE systems management port |
| Security | Chassis intrusion switch, power-on and administrator passwords, TPM 2.0 |
Power, Cooling & Physical
| Power Supplies | Up to 4 x hot-swap CFFv4 AC power supplies, 1800 W to 2600 W, 80 PLUS Platinum or Titanium |
| Cooling | 5 x dual-rotor 80 mm fans with N+1 rotor redundancy |
| Hot-Swap Parts | Drives and power supplies |
| Dimensions (W x H x D) | 448 x 131 x 892 mm |
| Weight | 36.7 kg (4-DW model); 39 kg (8-DW model); 39.5 kg (SXM5 model) |
How to Configure Your Server — Sizing Checklist
Servers are built to order. Answer the questions below so we can size the right configuration for you.
Step 1: Hardware Requirements
- Which server form factor do you need: tower or rackmount?
- How many CPU cores, how much RAM and how much usable storage capacity do you require?
- How many processors: single-socket (1S), dual-socket (2S) or four-socket (4S)?
- Which RAID configuration do you need? Any specific HDD or SSD type, such as 7.2K or 10K rpm drives?
- Which network interface is required: 1GbE Base-T, SFP+ or Fibre Channel?
- How many years of maintenance support do you need? (Minimum 3 years)
Step 2: Deployment & Services
- How many server units are required?
- Will you run virtual machine workloads? Do you need a VMware licence, or Windows Server with Hyper-V?
- How do you store data today? Do you have existing NAS or SAN storage?
- How do you back up today? Would you like a backup proposal, such as an IDPA 8TB appliance?
- Do you require burn-in test services?
- Do you need hard disk retention services?
Operating Systems, Management & Workloads
Operating Systems & Hypervisors
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and Canonical Ubuntu. Check Lenovo's OS interoperability guide for the exact versions certified with your GPUs.
Management Tools
XClarity Controller 2 provides out-of-band console, monitoring and alerting, and Lenovo XClarity software manages the SR675 V3 alongside the rest of your ThinkSystem fleet.
Typical Workloads
AI training and inference, HPC simulation, data analytics, rendering and visualisation.
Package Contents & Lenovo ThinkSystem Servers Ordering Information
What Is Supplied
The SR675 V3 is built to order: chassis in the chosen base model (4-DW, 8-DW or SXM5) with the processors, memory, GPUs, drives, network adapters and power supplies specified on your quotation, plus rack rails and power cords where ordered.
Lenovo ThinkSystem Servers
| Model | Key feature |
| ThinkSystem ST650 V3 | Tower, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR250 V3 | 1U, 1-socket Intel Xeon E-2400 |
| ThinkSystem SR630 V3 | 1U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR650 V3 | 2U, 2-socket 4th/5th Gen Intel Xeon |
| ThinkSystem SR630 V4 | 1U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650 V4 | 2U, 2-socket Intel Xeon 6 |
| ThinkSystem SR650a V4 | 2U, 2-socket Intel Xeon 6, up to 4 double-wide GPUs |
| ThinkSystem SR645 V3 | 1U, 2-socket AMD EPYC |
| ThinkSystem SR655 V3 | 2U, 1-socket AMD EPYC |
| ThinkSystem SR665 V3 | 2U, 2-socket AMD EPYC |
| ThinkSystem SR675 V3 (this listing) | 3U GPU server, up to 8 GPUs |
| ThinkSystem SR680a V3 | 8U, 8 x NVIDIA SXM GPUs |
| ThinkSystem SR685a V3 | 8U, 8 x NVIDIA SXM or AMD Instinct GPUs |
| ThinkSystem SR780a V3 | 5U, 8 x NVIDIA SXM GPUs, Neptune liquid cooling |
Datasheet & Downloads
| Product guide | Lenovo ThinkSystem SR675 V3 Product Guide (Lenovo Press) |
| Datasheet | Lenovo ThinkSystem SR675 V3 Datasheet (Lenovo Press) |
| 3D tour | 3D tour: Lenovo ThinkSystem SR675 V3 (Lenovo Press) |
| User documentation | ThinkSystem SR675 V3 documentation (Lenovo Docs) |
| Lenovo product page | ThinkSystem SR675 V3 on lenovo.com |
Frequently Asked Questions — Lenovo ThinkSystem SR675 V3
Is this a fixed configuration?
No. The SR675 V3 is configure-to-order. The base model, processors, memory, GPUs, drives, network adapters and support term are specified to your workload; use the sizing checklist above to brief us.
How many GPUs does it take?
Up to eight double-wide or single-wide PCIe GPUs in the 8-DW model, up to four in the 4-DW model, or four NVIDIA SXM5 GPUs in the SXM5 model.
Which processors does it use?
Up to two AMD EPYC 9005 or 9004 Series processors, with up to 160 cores per processor and TDPs up to 400 W.
How much memory can it take?
24 DDR5 DIMM slots for up to 3 TB, at up to 6400 MHz with EPYC 9005 processors.
Does the SXM5 model need a water supply?
No. The SXM5 model uses Lenovo Neptune liquid-to-air cooling, a closed loop inside the server, so it runs in an air-cooled rack.
