Epson EB-U50 WUXGA 3LCD Projector
PRODUCT DESCRIPTION
Epson EB-U50 WUXGA 3LCD Projector (V11H952052) - 3 Years Singapore Local Warranty
3,700 Lumens of Equal White and Colour Brightness for Lit Meeting Rooms
The EB-U50 puts out 3,700 lumens of white light output and 3,700 lumens of colour light output. Because both figures are the same, slides, charts and brand colours stay saturated when the lights stay on, which is how most Singapore meeting rooms and classrooms actually run. Epson's three-chip 3LCD engine draws every frame from red, green and blue panels at once rather than sequencing a colour wheel, so there is no rainbow artefact to distract a room. Paired with a 16,000:1 contrast ratio, dense financial tables and dark product photography keep their separation without dimming the space.
Native WUXGA Resolution for Wide Spreadsheets and Dual-Page Documents
A 0.67-inch panel gives the EB-U50 a native WUXGA resolution of 1920 x 1200 at a 16:10 aspect ratio. That extra vertical space over a 1920 x 1080 panel is the practical difference between seeing twelve rows of a spreadsheet and seeing twenty, and it matches the native ratio of most corporate notebooks, so laptop output arrives without letterboxing or rescaling. Architectural drawings, CAD views and side-by-side document comparisons all land pixel-for-pixel. For boardrooms, training centres and tertiary lecture theatres that live in wide-format content, the resolution earns its keep every session.
Built-In Wireless LAN and Enterprise Security for Shared Rooms
Wireless LAN is built in rather than bolted on, covering IEEE 802.11b, 802.11g and 802.11n on 2.4GHz. Security is the part that matters to an IT team: alongside OPEN and WPA2-PSK in Quick mode, Advanced mode adds WPA/WPA2-PSK and WPA/WPA2-EAP with PEAP, PEAP-TLS, EAP-TLS, EAP-Fast and LEAP. That EAP support is what lets the projector sit on a corporate 802.1X network instead of a guest SSID. A wired RJ45 port and RS-232C control are also on board, so the unit drops into an existing AV control system or a managed VLAN without compromise.
Portable at 3.1kg with a 10,000-Hour Filter Cycle
At approximately 3.1kg including the standard lens and 248 x 364 x 87mm excluding feet, the EB-U50 is genuinely carryable between rooms or sites. It starts up in as little as 6 seconds and shuts down with Instant Off, so nobody waits on a cool-down fan before packing up. A High Efficiency Filter stretches the maintenance cycle to 10,000 or 20,000 hours depending on operating mode, cutting the service visits a facilities team has to schedule. Quiet mode drops fan noise to 28dB, low enough for a small huddle room where the projector sits close to the table.
Epson EB-U50 Datasheet — Technical Specifications
General
| Product | Epson EB-U50 WUXGA 3LCD Projector |
| Part Number (SKU) | V11H952052 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Native Resolution | WUXGA (1920 x 1200) |
| Aspect Ratio | 16:10 |
| Light Source | 200W UHE lamp |
| Local Warranty (Singapore) | 3 Years — supplied by SourceIT with GST invoice |
Projection & Optics
| LCD Panel Size | 0.67” |
| White Light Output (Normal / Extended) | 3,700 lm |
| Colour Light Output | 3,700 lm |
| Contrast Ratio | 16,000:1 |
| Lens Type | Optical Zoom (Manual) / Focus (Manual) |
| Focal Length | 20.42 – 24.50 mm |
| Zoom Ratio | 1 – 1.2 |
| F-number | 1.50 – 1.71 |
| Throw Ratio Range | 1.38 – 1.68 (Wide to Tele) |
| Screen Size (Wide) | 30” to 300” [1.07 to 10.98 m] |
| Screen Size (Tele) | 30” to 300” [0.87 to 9.02 m] |
| Keystone Correction | ±30° vertical / ±30° horizontal (Auto Vertical Keystone only) |
| Quick Corner | Yes |
Light Source
| Type | 200W UHE |
| Lamp Life (Normal / Eco) | 10,000 / 17,000 hours |
| Air Filter Type | High Efficiency Filter |
| Filter Maintenance Cycle | 10,000 / 20,000 hours |
Connectivity
| Digital Input | HDMI x 2 |
| Analog Input | D-Sub 15-pin x 2 |
| Monitor Output | D-Sub 15-pin x 1 |
| Audio Input | Stereo mini jack x 2 |
| Audio Output | Stereo mini jack x 1 |
| USB Type A | 1 (USB memory, USB document camera, wireless LAN unit, firmware update) |
| USB Type B | 1 (USB Display, control, firmware update) |
| Wired Network | RJ45 x 1 |
| Wireless LAN | Built-in |
| Control I/O | RS-232C, D-Sub 9-pin x 1 |
Audio & Features
| Wireless Standards | IEEE 802.11b (11 Mbps), 802.11g (54 Mbps), 802.11n (130.0 Mbps), all 2.4GHz |
| Wireless Security (Quick Mode) | OPEN, WPA2-PSK |
| Wireless Security (Advanced Mode) | OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP |
| Supported EAP Types | PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP |
| Start-Up Period | Up to 6 seconds (warm-up period 30 seconds) |
| Cool Down Period | Instant Off |
| Direct Power On / Off | Yes |
Physical & Environmental
| Dimensions Excluding Feet (D x W x H) | 248 x 364 x 87 mm |
| Weight | Approx. 3.1 kg (including standard lens) |
| Fan Noise (Normal / Quiet) | 37dB / 28dB |
| Operating Temperature | 5 – 40 °C (41 – 104 °F) |
| Operating Altitude | 0 – 3,048 m (0 – 10,000 ft); above 1,500 m use high altitude mode |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (Normal / Extended) | 285W / 218W |
| Standby Power | 2.0W / 0.3W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement
The EB-U50 is a standard-throw table or ceiling projector with a 1.38 – 1.68 throw ratio, so a 100” image needs roughly 3 to 3.7 metres of throw distance. Manual zoom and manual focus are set at the unit. For rooms where the projector cannot sit square to the screen, ±30° vertical and ±30° horizontal keystone correction plus Quick Corner let you square the image from the menu; vertical keystone can also correct automatically. At 3.1kg it is light enough for a standard ceiling bracket or for trolley-mounted use that moves between rooms.

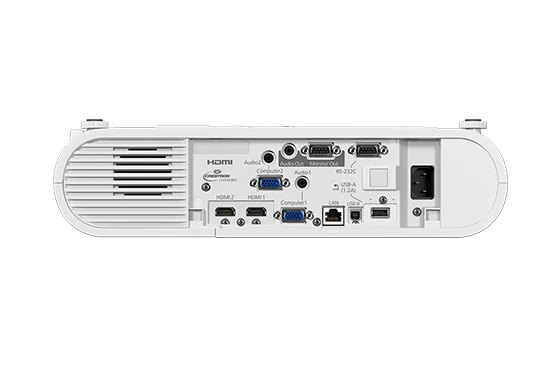

What it connects to
Two HDMI inputs cover a room PC and a guest laptop or video bar simultaneously. Two D-Sub 15-pin analog inputs keep older notebooks, document cameras and legacy room systems working, and a D-Sub 15-pin monitor output lets you loop the signal to a confidence display at the lectern. Two stereo mini jack audio inputs and one output feed the room's sound system. USB Type B supports USB Display, so a laptop can send image and control over a single USB cable, while USB Type A takes a USB memory stick or an Epson document camera.
Network and management
Built-in wireless LAN and an RJ45 wired port both put the projector on the network for remote monitoring, scheduling and firmware updates. Advanced mode security covers WPA/WPA2-PSK and WPA/WPA2-EAP with PEAP, PEAP-TLS, EAP-TLS, EAP-Fast and LEAP, which is what an enterprise 802.1X network requires. RS-232C on a D-Sub 9-pin connector gives a Crestron, Extron or AMX control system direct serial command of power, input and shutter without depending on the IP network.
Related equipment
SourceIT supplies the EB-U50 alongside the rest of the Epson business projector range, including the Epson EB-2265U WUXGA 3LCD Projector for larger halls and the Epson EB-982W WXGA 3LCD Projector where WXGA is sufficient. Ceiling brackets, screens and cabling can be quoted together with the projector.
Package Contents & Epson EB Range
In the box
Epson Singapore does not publish a bundled-accessory list for the EB-U50 on its product page, so no box contents are claimed here. SourceIT can confirm exactly what ships in the carton against the current Epson Singapore packing list before you order.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson EB range
| Model | Resolution |
| EB-U50 (this listing) | WUXGA (1920 x 1200) |
| EB-2265U | WUXGA |
| EB-982W | WXGA |
| EB-685W | WXGA (ultra-short throw) |
| EB-1485Fi | Full HD |
| EB-L520U | WUXGA (laser) |
| EB-805F | Full HD (laser) |
Datasheet & Downloads
SourceIT can email the current data sheet revision for the EB-U50 together with a formal quotation. Tell us the room size, mounting method and screen you are working to and we will confirm the throw distance and bracket before you order.
Frequently Asked Questions — Epson EB-U50
What does the “U” in EB-U50 mean?
Across Epson's EB business range the trailing letter denotes native resolution. “U” indicates WUXGA, so the EB-U50 has a native 1920 x 1200 panel at a 16:10 aspect ratio. Models ending in “W” are WXGA and models ending in “F” are Full HD 1920 x 1080.
Is the EB-U50 bright enough for a room with the lights on?
It produces 3,700 lumens of white light output and 3,700 lumens of colour light output. Equal white and colour brightness means colour content does not dim relative to white content, which is the usual reason a projected slide looks washed out in a lit room. For a typical meeting room or classroom with normal ceiling lighting, this is a comfortable working level.
How far back does it need to sit for a 100-inch image?
The throw ratio is 1.38 to 1.68 wide to tele, so a 100” wide-format image needs roughly 3 to 3.7 metres of throw distance depending on where you set the zoom. Epson publishes an overall range of 30” to 300”, from 1.07 to 10.98 metres at the wide end and 0.87 to 9.02 metres at the tele end.
Does it use a lamp or a laser light source?
The EB-U50 uses a 200W UHE lamp, rated at 10,000 hours in Normal mode and 17,000 hours in Eco mode. If you need a laser light source with a longer maintenance-free life, look at the laser models in the Epson range such as the EB-L520U or EB-805F.
How often does the filter need servicing?
The EB-U50 uses a High Efficiency Filter with a published maintenance cycle of 10,000 or 20,000 hours depending on operating mode. That is a long interval for a lamp-based projector and keeps scheduled facilities work to a minimum.
Can it join a corporate 802.1X wireless network?
Yes. Wireless LAN is built in, and Advanced mode security supports WPA/WPA2-EAP with PEAP, PEAP-TLS, EAP-TLS, EAP-Fast and LEAP in addition to WPA/WPA2-PSK. A wired RJ45 port is also fitted if your policy keeps AV devices off wireless entirely.
Can it be controlled by a room control system?
Yes. An RS-232C port on a D-Sub 9-pin connector allows direct serial control from a Crestron, Extron or AMX processor, and the RJ45 port allows IP-based monitoring and control. Both are fitted as standard.
What warranty and invoicing do I get from SourceIT?
Every EB-U50 sold by SourceIT carries a 3-year Singapore local warranty and ships with a GST invoice. Warranty service is handled locally through Epson Singapore's service network, so there is no cross-border return to arrange.
