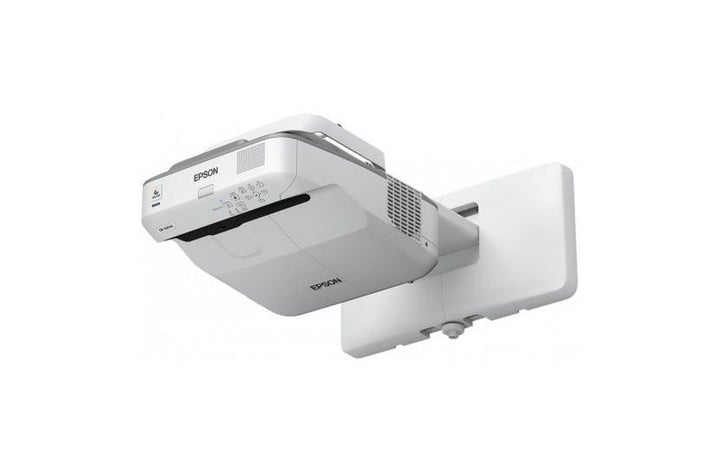

Epson EB-685W Ultra-Short Throw WXGA 3LCD Projector
PRODUCT DESCRIPTION
Epson EB-685W Ultra-Short Throw WXGA 3LCD Projector (V11H744052) - 3 Years Singapore Local Warranty
Throw Ratio of 0.28 to 0.37 With No Presenter Shadow
The EB-685W mounts directly above the screen and fills 60 to 100 inches from 35.4 to 60.1 cm of clearance, a throw ratio of 0.28 to 0.37. A teacher or presenter standing at the board casts no shadow across the image and is never dazzled by the lens while facing the room. In the shallow classrooms and narrow training rooms common in Singapore school blocks and office fit-outs, that geometry also frees the floor: there is no ceiling mount hanging in a walkway and no long cable run down the length of the room.
3,500 Lumens With Colour Brightness to Match
Epson rates the EB-685W at 3,500 lumens white light output and 3,500 lumens colour light output, with a 14,000:1 contrast ratio and up to 1.07 billion colours processed at 10 bit. Because the 3LCD engine delivers colour brightness equal to white brightness, a colour-coded diagram or a chart with several series stays readable under the fluorescent lighting that classrooms and training rooms are required to keep on. There is no need to darken the room for the material on screen to hold its detail from the back row.
WXGA 16:10 With 10,000-Hour Eco Lamp Life
The native WXGA 1280 x 800 panel gives a 16:10 widescreen shape suited to modern lesson material, widescreen decks and video. The 250 W UHE lamp is rated at 5,000 hours in Normal mode and 10,000 hours in Eco, with an air filter maintenance cycle of up to 10,000 hours. For an institution running a classroom eight hours a day through term time, that Eco figure keeps the replacement cycle to a manageable interval and makes the running cost across a fleet of rooms predictable enough to budget.
Three HDMI Inputs and Full Room Integration
Three HDMI inputs, one of which supports MHL, sit alongside two D-Sub computer inputs, a monitor output, composite video, three audio inputs, a microphone input and an audio output. A wired RJ45 port carries Epson's network projection and management tools, and the projector is a Crestron Integrated Partner with Crestron RoomView, AMX Device Discovery, Extron IP Link and Control4 support, so it drops into an existing managed AV estate rather than needing a separate control approach.
Epson EB-685W Datasheet — Technical Specifications
General
| Product | Epson EB-685W Ultra-Short Throw WXGA 3LCD Projector |
| Part Number (SKU) | V11H744052 |
| Projector Type | Ultra-short-throw 3LCD lamp projector |
| Native Resolution | WXGA (1280 x 800), 16:10 |
| Brightness | 3,500 lm white light output; 3,500 lm colour light output |
| GTIN | 8715946628386 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | Epson 3LCD, 3-chip technology; RGB liquid crystal shutter |
| LCD Panel | 0.62" (C2fine) |
| Contrast Ratio | 14,000:1 |
| Screen Size (projection distance) | 60” – 100” [35.4 – 60.1 cm]; 74.3” screen at 44.3 cm |
| Throw Ratio | 0.28 (zoom: wide), 0.37 (zoom: tele) |
| Zoom | 1 – 1.35 (digital) |
| Lens | No optical zoom, manual focus; F-number 2.6; focal length 3.7 mm |
| Offset | 5.8: -2 |
| Colour Reproduction | Up to 1.07 billion colours; 10-bit colour processing |
| Keystone Correction | Vertical ±3°; horizontal ±3° |
Light Source
| Type | 250 W UHE lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
| Replacement Lamp | ELPLP91 |
Connectivity
| Digital Input | HDMI x 3 (1 supports MHL) |
| Video Input | D-Sub 15-pin RGB x 2 (Computer 2 in common with Monitor Out); RCA composite x 1 |
| Video Output | D-Sub 15-pin RGB x 1 (Computer 1 signal only) |
| Audio Input | Stereo mini x 3 |
| Audio Output | Stereo mini x 1 |
| Mic Input | Stereo mini x 1 |
| Control I/O | RS-232C D-Sub 9-pin x 1 |
| USB | USB Type A x 1 (USB memory, document camera, firmware update, copy OSD settings); USB Type B x 1 (USB Display, mouse, keyboard, control, firmware update) |
| Network | RJ45 x 1 (100 Mbps) wired LAN; USB Type A x 1 for optional ELPAP10 LAN unit |
| Wireless Connectivity | Optional ELPAP10 wireless LAN unit |
| Wireless LAN Security | WPA/WPA2-Personal (with optional wireless LAN unit) |
Audio & Features
| Internal Speaker | 16 W monaural |
| Control System Support | AMX Device Discovery, Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Control4 |
| Network Tools | Epson network projection, control and management; multi-PC projection; message broadcasting |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard |
| Instant Off / Direct Power On / Auto Power On | Yes |
| Security | Kensington-style lock provision; padlock and security cable hole; wireless LAN unit lock; password protect function |
Physical & Environmental
| Dimensions (including feet, W x H x D) | 400 x 149 x 367 mm |
| Weight | 5.7 kg |
| Air Filter Maintenance Cycle | Up to 10,000 hours |
| Wall Mount | Optional ELPMB62 |
Power
| Power Consumption (Normal / Eco) | 354 W / 309 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning
The EB-685W is designed for a wall mount directly above the screen using the optional ELPMB62 wall mount, with the optional ELPMB29 table mount as an alternative. Allow for a 400 x 149 x 367 mm body and 5.7 kg when specifying the fixing and any backing behind plasterboard. Because the throw ratio is 0.28 to 0.37, image size is set by the mount's distance from the wall, so fix the screen or board position before drilling. Keystone correction is only ±3 degrees, so the mount must be square.
What it connects to
Three HDMI inputs, one MHL-capable, cover a room PC, a laptop plate and a document camera or media player at the same time. Two D-Sub 15-pin inputs and a composite RCA input handle older equipment, and a D-Sub output feeds a confidence monitor. Three stereo mini audio inputs, a microphone input and an audio output allow a teacher's radio mic to be mixed into the 16 W internal speaker or passed on to a room amplifier.
Network, control and management
A wired RJ45 port at 100 Mbps carries Epson's network projection, control and management tools along with multi-PC projection and message broadcasting. The projector is a Crestron Integrated Partner and supports Crestron RoomView, AMX Device Discovery, Extron IP Link and Control4, so it can be adopted into an existing managed AV estate. RS-232C is available for serial control where a network route is not wanted.
Wireless option and accessories
Wireless LAN is an optional ELPAP10 unit fitted to a USB Type A port rather than a built-in radio, with WPA/WPA2-Personal security once installed. Epson also lists the ELPAF49 air filter, the ELPKC31 USB extension cable, the ELPSP02 external speakers, the ELPDC21 document camera and the ELPCB02 control box as options for this model. The interactive counterpart in the same chassis is the EB-695Wi.
Package Contents & Epson Ultra-Short-Throw Range
In the box
- EB-685W projector main unit
- Power cable (5 m)
- Remote control
- Batteries for remote control (2 x AA)
- Projector feet
- Quick start guide
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson Ultra-Short-Throw range
| Model | Resolution & light source |
| EB-685W (this listing) | WXGA, 3,500 lm, lamp |
| Epson EB-695Wi | WXGA, 3,500 lm, lamp, interactive |
| Epson EB-725W | WXGA, 4,000 lm, laser |
| Epson EB-725Wi | WXGA, laser, interactive |
| Epson EB-735F | Full HD, laser |
Datasheet & Downloads
Epson Singapore no longer lists a product page for this model. SourceIT can email the current data sheet revision, the user's guide and a formal quotation on request.
Frequently Asked Questions — Epson EB-685W
How close to the wall does the EB-685W sit?
It fills 60 to 100 inches from 35.4 to 60.1 cm, a throw ratio of 0.28 to 0.37. A 74.3-inch image sits at about 44.3 cm from the surface.
Does it include interactivity or pens?
No. The EB-685W is the non-interactive model. The interactive version in the same chassis is the EB-695Wi, which is supplied with two Easy Interactive Pens and a finger touch unit.
Which lamp does it take and how long does it last?
The ELPLP91, a 250 W UHE lamp, rated at 5,000 hours in Normal mode and 10,000 hours in Eco. The air filter runs on a cycle of up to 10,000 hours.
Is wireless included?
No. Wireless LAN is the optional ELPAP10 unit, which fits a USB Type A port and supports WPA/WPA2-Personal security. Wired RJ45 networking is built in.
Can it be ceiling mounted like an ordinary projector?
It is designed for the ELPMB62 wall mount directly above the screen, with the ELPMB29 table mount as an alternative. Keystone correction is only ±3 degrees in each axis, so the mount has to be square to the surface rather than corrected in software.
Will it work with our Crestron or Extron control system?
Yes. It is a Crestron Integrated Partner with Crestron RoomView support, and it also supports AMX Device Discovery, Extron IP Link and Control4, plus RS-232C serial control.
Is the speaker enough for a classroom, and can a microphone be used?
The internal speaker is 16 W monaural, and a dedicated microphone input is provided so a teacher's radio mic can be fed through the projector. A stereo mini audio output is available for a separate amplifier.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
