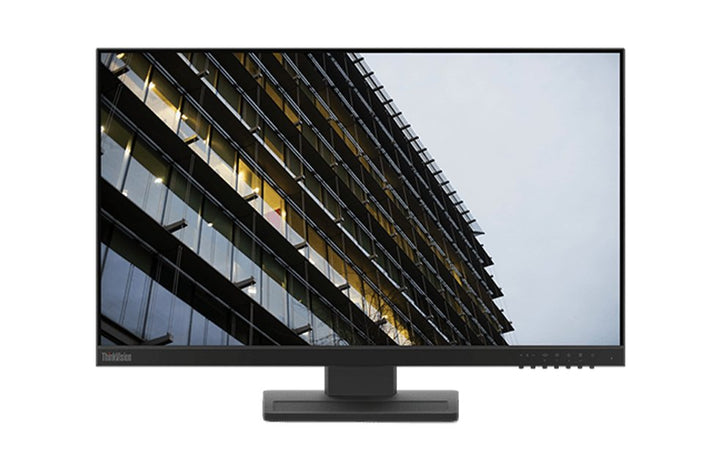

Lenovo ThinkVision E24-28 23.8-inch FHD Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision E24-28 / E24-29 (63ABMAR3WW) - 3 Years Local Warranty
Please Read This First: Lenovo Indexes This Part Number as an E24-29, Not an E24-28
We list this monitor as a ThinkVision E24-28. Lenovo's PSREF indexes part number 63ABMAR3WW under the ThinkVision E24-29. The two share the same chassis, stand, ports, dimensions, power figures, box contents and warranty — but the panel differs: the E24-28 is IPS at 1000:1, the E24-29 is VA at 3000:1. We are confirming with our distributor which we hold. If the panel type matters to you, contact us before ordering and we will put the answer in writing.
Everything Else on This Page Is the Same for Both Models
A 23.8-inch 1920 x 1080 display with 2 W x 1.5 W stereo speakers, three video inputs including VGA, and — unusually for the E series — a full ergonomic stand with 155 mm of height adjustment, 360° swivel and full pivot. Those figures are identical in Lenovo's specification for both models.
The Stand Is the Reason to Choose This Over an S-Series Monitor
Most monitors at this level are tilt-only. This one lifts 155 mm, swivels a full 360° — more than the 45° each way of the T-series — and pivots -90° to +90° into portrait. For a desk someone occupies all day, that is worth more than most panel specifications.
Built-In Speakers, and a Frugal 25 W
1.5 W x 2 integrated speakers — enough for calls and notifications — on a monitor drawing 25 W typical and 33 W maximum with an internal power supply, ENERGY STAR certified, EPEAT Gold registered and TCO Certified 8.0.
Lenovo ThinkVision E24-28 / E24-29 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision E24-28 / E24-29 |
| Part Number | 63ABMAR3WW |
| Machine Type | 63AB |
| Type | 23.8-inch Full HD business monitor with ergonomic stand |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
The One Unresolved Specification
| Model Identity | Our listing title says E24-28. Lenovo's PSREF indexes this part number, 63ABMAR3WW, under the E24-29. We are resolving this with our distributor |
| Panel Type | E24-28: In-Plane Switching (IPS). E24-29: Vertical Alignment (VA). We are not going to guess which is in the box |
| Contrast Ratio | E24-28: 1000:1 typical. E24-29: 3000:1 typical. Both publish 3,000,000:1 dynamic |
| What to Do | If the panel technology or the contrast ratio is decisive for your purchase, contact us before ordering. We will confirm which model this part number ships and put it in writing. If it is not decisive, everything else on this page is identical between the two |
Panel & Image — Identical on Both Models
| Screen Size | 23.8" |
| Backlight | WLED, 3-side NearEdgeless design |
| Resolution | 1920 x 1080 (Full HD), 93 dpi |
| Aspect Ratio | 16:9 |
| Max Viewing Area | 527.0 x 296.5 mm; pixel pitch 0.275 x 0.275 mm |
| Refresh Rate | 60 Hz |
| Response Time | 4 ms Extreme mode / 6 ms Normal mode |
| Brightness | 250 cd/m² |
| Dynamic Contrast | 3,000,000:1 typical |
| Colour Gamut | 72% NTSC (CIE 1931, per Lenovo's datasheet). Lenovo publishes no sRGB figure for either model |
| Colour Depth | 8-bit (6-bit + FRC), 16.7 million colours |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare |
| Bezel | 2.3 mm sides, 2.3 mm top, 20.5 mm bottom |
Connectivity
| Video Inputs | 1 x HDMI 1.4, 1 x DisplayPort 1.2, 1 x VGA |
| DisplayPort Out | None |
| USB Hub | None. Lenovo publishes no USB ports of any kind on this model — no hub, no upstream port, no USB-C |
| USB-C | None |
| Network | None |
| Speakers | Integrated, 1.5 W x 2 |
| Audio Out | Not published by Lenovo. There are speakers but no headphone jack listed — the reverse of most models in this range |
Stand & Ergonomics
| Tilt | -5° to +22° |
| Swivel | 360° left and right — more than the 45° each way offered by the T-series |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 155 mm |
| VESA | 100 x 100 mm |
Power & Certifications
| Power Consumption | 25 W typical / 33 W maximum |
| ENERGY STAR Power-On | 11.85 W (E24-28) / 12 W (E24-29); TEC 37.81 kWh (E24-28) / 39 kWh (E24-29) |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal — no external power brick |
| Certifications | ENERGY STAR certified; EPEAT Gold registered; RoHS; TCO Certified 8.0; TCO edge 2.0; TÜV Rheinland Eye Comfort; TÜV Rheinland Low Blue Light |
| EU Energy Label | Not published by Lenovo for this model |
Physical
| Dimensions with Stand | 540.4 x 185.7 x 336.3 mm at lowest; 462.1 mm high at highest |
| Head Only | 540.4 x 43.5 x 325.3 mm |
| Weight | 4.5 kg with stand; 2.9 kg head only |
| Packaged | 638 x 145 x 397 mm; 6.0 kg |
Compatibility & Fit
The model-number question, and how we are handling it. We would rather show you an open question than close it with a guess. Lenovo's PSREF database indexes part number 63ABMAR3WW under the ThinkVision E24-29; our listing title says E24-28. Every specification the two models share — and that is nearly all of them — is published above as fact. The two that differ, panel type and contrast ratio, are shown as two possibilities rather than one invented answer. We are confirming with our distributor and will correct the title. In the meantime, ask us and we will tell you exactly what is in the warehouse.
Does the difference matter to you? If the monitor is for documents, email, spreadsheets and line-of-business software, probably not — both panels are 250 nits at 178° viewing angles with the same colour coverage. Where it matters: VA at 3000:1 gives deeper blacks, which suits dark-mode work and dimmer rooms, while IPS at 1000:1 is generally more consistent off-axis. If a room full of these will be viewed from odd angles, or if dark-background applications dominate, tell us and we will make sure you get the right one.
The stand is genuinely unusual for this price. 155 mm of height adjustment, 360° of swivel and full pivot — a specification most of Lenovo's E and S range does not offer, and a swivel range wider than the T-series. If you are equipping desks where people sit all day and you cannot stretch to a T-series monitor, this stand is the strongest argument in this whole ordering table.
Speakers but no headphone socket. Lenovo publishes 1.5 W x 2 integrated speakers and no 3.5 mm audio-out for this model — the reverse of most monitors in this range, which have a jack and no speakers. Headphones connect to the PC.
One more thing our old page did badly. The previous version of this listing told visitors the product had been withdrawn and sent them to the E24-30, whose page sent them on again to the E24-40 — two dead ends in a row for anyone actually trying to buy something. Both pages have been rebuilt. Ask us about availability directly and we will give you a straight answer, including the current equivalent if this model is genuinely end-of-life for us.
Where the E and S series sit in Lenovo's own words. Lenovo positions the ThinkVision E series as "Comfortable Viewing for Everyday Users" and the S series as "Basic Displays for Simple Experiences", against "Enhanced Productivity" for the T series and "Best-in-Class Performance" for the P series. Lenovo publishes no expansion of what the letters stand for, so neither do we. In practice the difference that matters on a desk is the stand: most E and S models are tilt-only, while every T and P model offers 155 mm of height adjustment, swivel and pivot.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor with stand
- 1 x HDMI cable (1.8 m)
- 1 x power cable (1.8 m)
- Quick setup guide
No DisplayPort or VGA cable is supplied despite both ports being present. Ask us to add one.
ThinkVision Value and Specialist Monitor Ordering Information
| 62F7KAR4WW | ThinkVision E20-30 — 19.5" HD+ TN, tilt-only, HDMI + VGA |
| 64CBKAR6MY | ThinkVision S22-4e — 21.5" FHD IPS, 100 Hz, 10.5 W, tilt-only |
| 64B5KAR1MY | ThinkVision S24-4e — 23.8" FHD IPS, 100 Hz, tilt-only |
| 63DEKAR3WW | ThinkVision S24i-30 — 23.8" FHD IPS, 100 Hz, audio-out, tilt-only |
| 63ABMAR3WW (this listing) | ThinkVision E24-28 / E24-29 — 23.8" FHD, speakers, full ergonomic stand |
| 63EDMAR2WW | ThinkVision E24-30 — 23.8" FHD IPS, 100 Hz, 2 W speakers, ergonomic stand |
| 63DCKAR6WW | ThinkVision C24-40 — 23.8" FHD VA, 3000:1, 75 Hz, tilt-only |
| 63E0KAR4WW | ThinkVision S25e-30 — 24.5" FHD VA, 3000:1, 75 Hz, tilt-only |
| 64BEKAR1MY | ThinkVision S27-4e — 27" FHD IPS, 100 Hz, 300 nits, tilt-only |
| 63DFKAR4WW | ThinkVision S27i-30 — 27" FHD IPS, 100 Hz, two HDMI inputs, tilt-only |
| 63F1UAR3WW | ThinkVision 27 3D — 27" glasses-free 3D, 4K in 2D, Delta E<1 |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision E24-28 (PDF)
- Lenovo PSREF specification sheet — ThinkVision E24-29 (PDF)
- Lenovo ThinkVision E24-28 product datasheet (PDF)
We are linking both PSREF specification sheets, for the E24-28 and the E24-29, because Lenovo indexes this part number under the E24-29 while our listing title says E24-28. Compare the two and you will see they differ only in panel type and contrast ratio. Ask us and we will confirm in writing which model this part number ships before you order.
Frequently Asked Questions — Lenovo ThinkVision E24-28 / E24-29
Is this an E24-28 or an E24-29?
We are confirming that, and we are not going to guess. Our title says E24-28; Lenovo's PSREF indexes part number 63ABMAR3WW under the E24-29. They share a chassis, stand, ports, dimensions, power figures and warranty. They differ in panel: E24-28 is IPS at 1000:1 contrast; E24-29 is VA at 3000:1. Contact us before ordering if that difference matters and we will confirm which we hold in writing.
Which is better, the IPS or the VA panel?
Neither, in the abstract. VA at 3000:1 gives deeper blacks and suits dark-background applications and dimly lit rooms. IPS at 1000:1 is generally the more consistent performer when viewed off-axis. Both publish 178° viewing angles and 250 cd/m². Tell us how and where the monitor will be used and we will tell you which one you want.
Does the stand adjust for height?
Yes, and generously — 155 mm of height adjustment, 360° of swivel and -90° to +90° of pivot. That is a better stand than most monitors at this level offer and a wider swivel than the T-series. For a desk someone occupies all day it is the most valuable specification on this page.
Does it have speakers?
Yes — 1.5 W x 2 integrated. Note that Lenovo publishes no headphone jack for this model, which is the opposite of most monitors in this range. Sound comes out of the monitor; headphones go into the PC.
Does it have USB ports?
No. Lenovo publishes no USB ports of any kind on this model. If you need a monitor that also acts as a USB hub, or that docks a laptop over USB-C, the ThinkVision T-series and P-series are the ranges to look at — tell us what the desk needs and we will point you at the right one.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells comes with local Singapore warranty support and a GST invoice.
