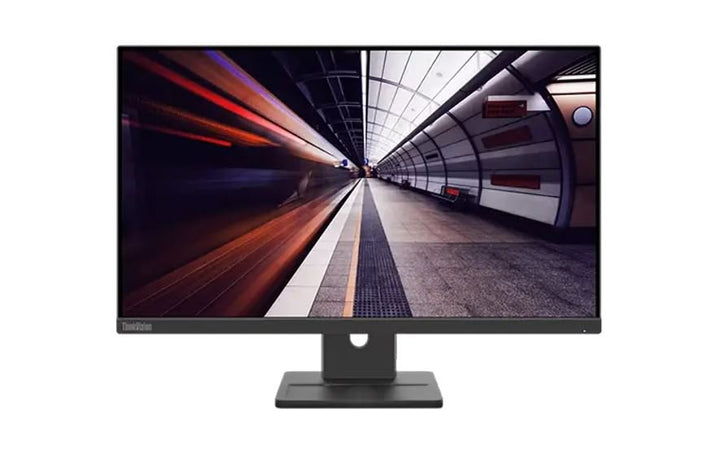

Lenovo ThinkVision E24-30 23.8" FHD Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision E24-30 (63EDMAR2WW) - 3 Years Local Warranty
23.8-Inch Full HD IPS at 100 Hz, With a Full Ergonomic Stand and Speakers
The ThinkVision E24-30 is the best-rounded monitor in this value group. 1920 x 1080 IPS at 100 Hz with 99% sRGB coverage and 1300:1 contrast, 2 W x 2 speakers, three video inputs including VGA, and a stand with 155 mm of height adjustment, 360° swivel and full pivot.
Only 12 W Typical, With a C-Class Energy Label
12 W typical and 29 W maximum, an ENERGY STAR power-on figure of 11 W and a TEC of 35.4 kWh, with a C-class EU energy label. It also carries ENERGY STAR, EPEAT Gold, TCO Certified 9.0, Eyesafe Certified 2.0 and three TÜV Rheinland certifications — a stronger sheet than the E24-28 generation it replaces.
The Slimmest Bezel and the Best Stand in This Group
A 1.8 mm side and top bezel with an 18.3 mm bottom, on a stand offering 155 mm of lift, 360° of swivel and -90° to +90° of pivot. For a multi-monitor array or a desk that has to suit different people, this is the specification that matters and most monitors at this price do not have it.
A Note on This Listing
Our previous version of this page told visitors the product had been withdrawn and sent them on to another model, whose page sent them on again — a dead end in both directions. This page has been rebuilt from Lenovo's specification. If availability is your question, ask us directly and we will tell you what we can actually ship.
Lenovo ThinkVision E24-30 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision E24-30 |
| Part Number | 63EDMAR2WW |
| Machine Type | 63ED |
| Type | 23.8-inch Full HD business monitor with ergonomic stand |
| Colour | Raven black |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 23.8" |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS), WLED backlight |
| Resolution | 1920 x 1080 (Full HD), 93 dpi |
| Aspect Ratio | 16:9 |
| Active Area | 527.0 x 296.5 mm; pixel pitch 0.275 x 0.275 mm |
| Refresh Rate | 100 Hz |
| Response Time | 4 ms Extreme mode / 6 ms Normal mode / 14 ms with overdrive off |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1300:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB coverage ratio. Lenovo states no CIE standard for this figure |
| Colour Depth | 8-bit (6-bit + FRC), 16.7 million colours |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare |
| Bezel | 1.8 mm sides, 1.8 mm top, 18.3 mm bottom — the slimmest in this group |
Connectivity
| Video Inputs | 1 x HDMI 1.4 (supports 1920 x 1080 at 100 Hz), 1 x DisplayPort 1.2, 1 x VGA |
| DisplayPort Out | None |
| USB Hub | None. Lenovo publishes no USB ports of any kind on this model — no hub, no upstream port, no USB-C |
| USB-C | None |
| Network | None |
| Speakers | Integrated, 2 W x 2 — the strongest in this value group |
| Audio Out | Not published by Lenovo for this model. As with the E24-28, there are speakers but no headphone jack listed |
Stand & Ergonomics
| Tilt | -5° to +22° |
| Swivel | 360° left and right |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 155 mm |
| VESA | 100 x 100 mm |
Power & Certifications
| Power Consumption | 12 W typical / 29 W maximum |
| ENERGY STAR Power-On | 11 W; TEC 35.4 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal — no external power brick |
| Certifications | ENERGY STAR certified; EPEAT Gold registered; TCO Certified 9.0; RoHS; Eyesafe Certified 2.0; TÜV Rheinland Eye Comfort; TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light (hardware solution) |
| EU Energy Label | C class |
Physical
| Dimensions with Stand | 539.4 x 178.6 x 342.2 mm at lowest; 497.2 mm high at highest |
| Head Only | 539.4 x 46 x 322 mm |
| Weight | 4.7 kg with stand; 3.1 kg head only |
| Packaged | 621 x 126 x 385 mm; 6.7 kg |
Compatibility & Fit
If you are buying one monitor from this ordering table, this is usually the one. It has the ergonomic stand that the S-series lacks, the 100 Hz IPS panel and 99% sRGB that the older E-series lacks, speakers, three inputs including VGA, the slimmest bezel of the group, and it draws just 12 W with a C-class energy label. Nothing else here combines all of that.
The stand, in detail. 155 mm of height adjustment puts the top of the screen at eye level for a tall or a short person on the same desk. 360° of swivel is more than the T-series offers and lets you turn the screen to show a colleague without moving the base. -90° to +90° of pivot gives portrait in either direction. On a monitor at this price, that stand is unusual.
What it still does not have. No USB ports of any kind, no USB-C docking, no Ethernet, and no headphone jack — though it does have 2 W x 2 speakers, the strongest in this group. If the desk needs a USB hub or single-cable laptop docking, the T-series is the range; tell us and we will quote appropriately.
Cables. An HDMI cable is supplied along with four mounting screws. There is no DisplayPort cable and no VGA cable despite both ports being present.
Where the E and S series sit in Lenovo's own words. Lenovo positions the ThinkVision E series as "Comfortable Viewing for Everyday Users" and the S series as "Basic Displays for Simple Experiences", against "Enhanced Productivity" for the T series and "Best-in-Class Performance" for the P series. Lenovo publishes no expansion of what the letters stand for, so neither do we. In practice the difference that matters on a desk is the stand: most E and S models are tilt-only, while every T and P model offers 155 mm of height adjustment, swivel and pivot.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor with stand
- 1 x HDMI cable (1.8 m)
- 1 x power cable (1.8 m)
- 4 x screws
- 1 x quick setup guide
No DisplayPort or VGA cable is supplied. Ask us to add one if you need it.
ThinkVision Value and Specialist Monitor Ordering Information
| 62F7KAR4WW | ThinkVision E20-30 — 19.5" HD+ TN, tilt-only, HDMI + VGA |
| 64CBKAR6MY | ThinkVision S22-4e — 21.5" FHD IPS, 100 Hz, 10.5 W, tilt-only |
| 64B5KAR1MY | ThinkVision S24-4e — 23.8" FHD IPS, 100 Hz, tilt-only |
| 63DEKAR3WW | ThinkVision S24i-30 — 23.8" FHD IPS, 100 Hz, audio-out, tilt-only |
| 63ABMAR3WW | ThinkVision E24-28 / E24-29 — 23.8" FHD, speakers, full ergonomic stand |
| 63EDMAR2WW (this listing) | ThinkVision E24-30 — 23.8" FHD IPS, 100 Hz, 2 W speakers, ergonomic stand |
| 63DCKAR6WW | ThinkVision C24-40 — 23.8" FHD VA, 3000:1, 75 Hz, tilt-only |
| 63E0KAR4WW | ThinkVision S25e-30 — 24.5" FHD VA, 3000:1, 75 Hz, tilt-only |
| 64BEKAR1MY | ThinkVision S27-4e — 27" FHD IPS, 100 Hz, 300 nits, tilt-only |
| 63DFKAR4WW | ThinkVision S27i-30 — 27" FHD IPS, 100 Hz, two HDMI inputs, tilt-only |
| 63F1UAR3WW | ThinkVision 27 3D — 27" glasses-free 3D, 4K in 2D, Delta E<1 |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision E24-30 (PDF)
- Lenovo ThinkVision E24-30 product datasheet (PDF)
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page unless the table says otherwise. PSREF publishes its spec sheets per model rather than per part number, so this SKU does not appear inside the PDF itself; a per-part-number detail page also exists at psref.lenovo.com and will render in a normal browser if you need this exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision E24-30
Does the stand adjust for height?
Yes — 155 mm of height adjustment, plus 360° of swivel and full -90° to +90° pivot. Most monitors in this value group are tilt-only, so this is the specification that most distinguishes the E24-30 from its neighbours in the ordering table.
Does it have speakers?
Yes — 2 W x 2, the strongest in this group. Note there is no headphone jack published for this model, so headphones connect to the PC.
Does it have USB ports?
No. Lenovo publishes no USB ports of any kind on this model. If you need a monitor that also acts as a USB hub, or that docks a laptop over USB-C, the ThinkVision T-series and P-series are the ranges to look at — tell us what the desk needs and we will point you at the right one.
How does it compare with the E24-28?
The E24-30 is the newer platform and better in most respects: 100 Hz instead of 60, 99% sRGB instead of 72% NTSC, 1300:1 contrast instead of 1000:1, 12 W instead of 25 W typical, TCO 9.0 instead of 8.0, Eyesafe 2.0 certification, a C-class energy label and a slimmer 1.8 mm bezel. It also has 2 W speakers against 1.5 W. Both share the same excellent stand.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells comes with local Singapore warranty support and a GST invoice.
