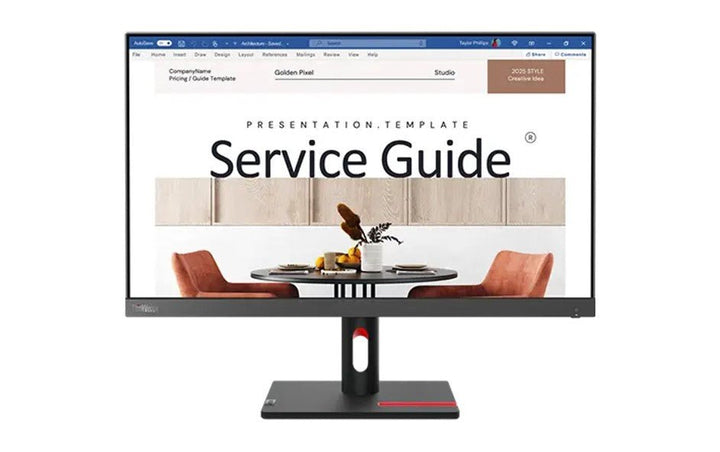

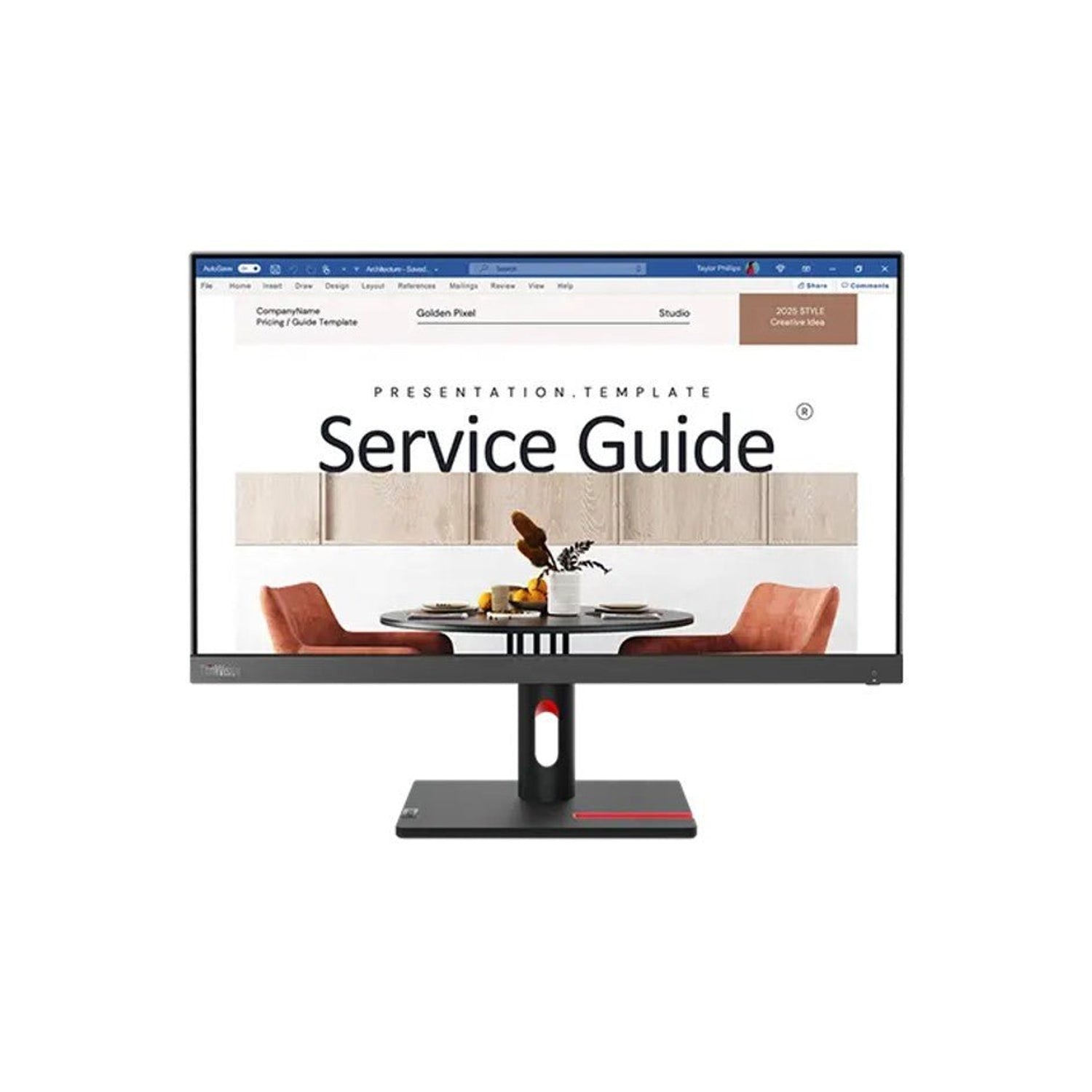

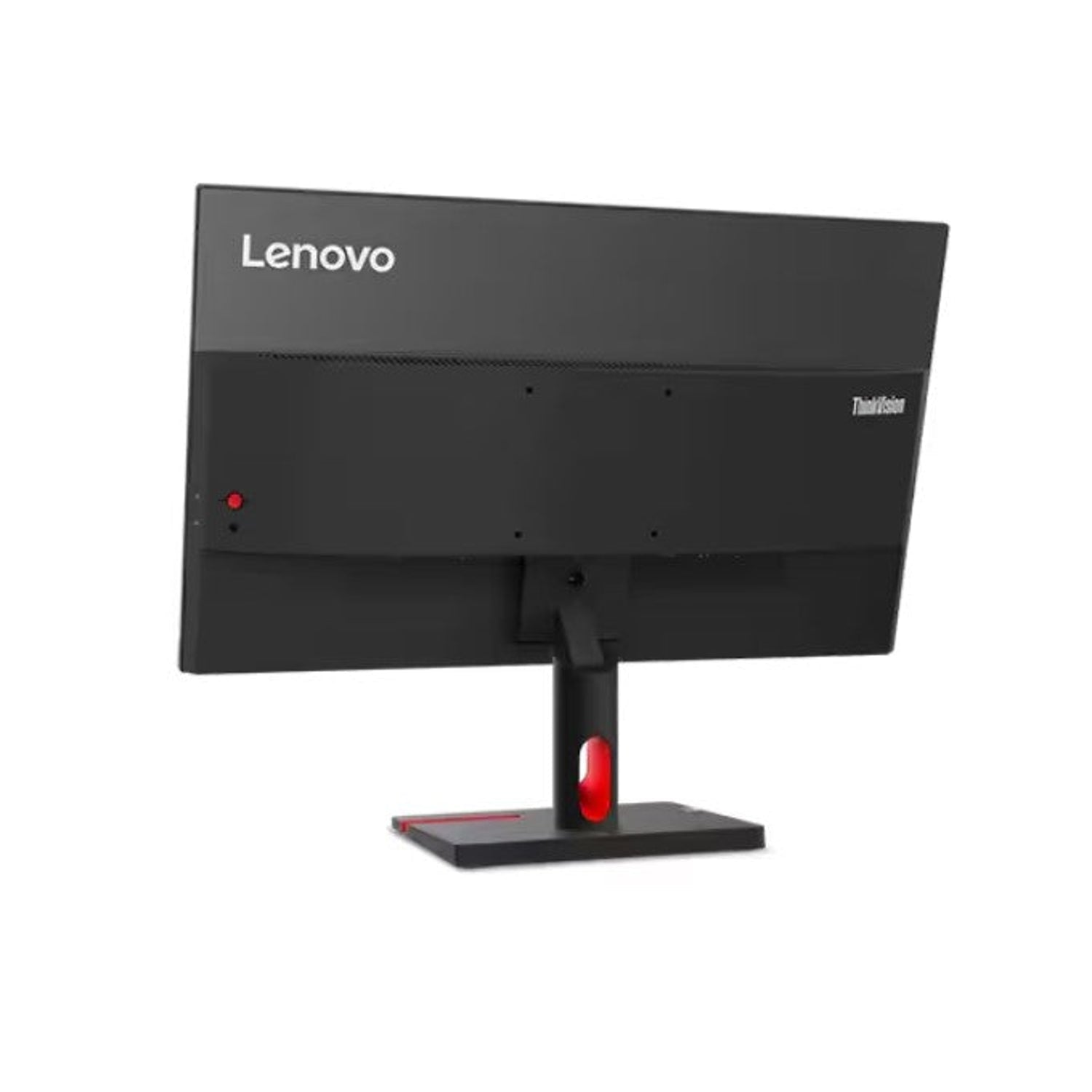

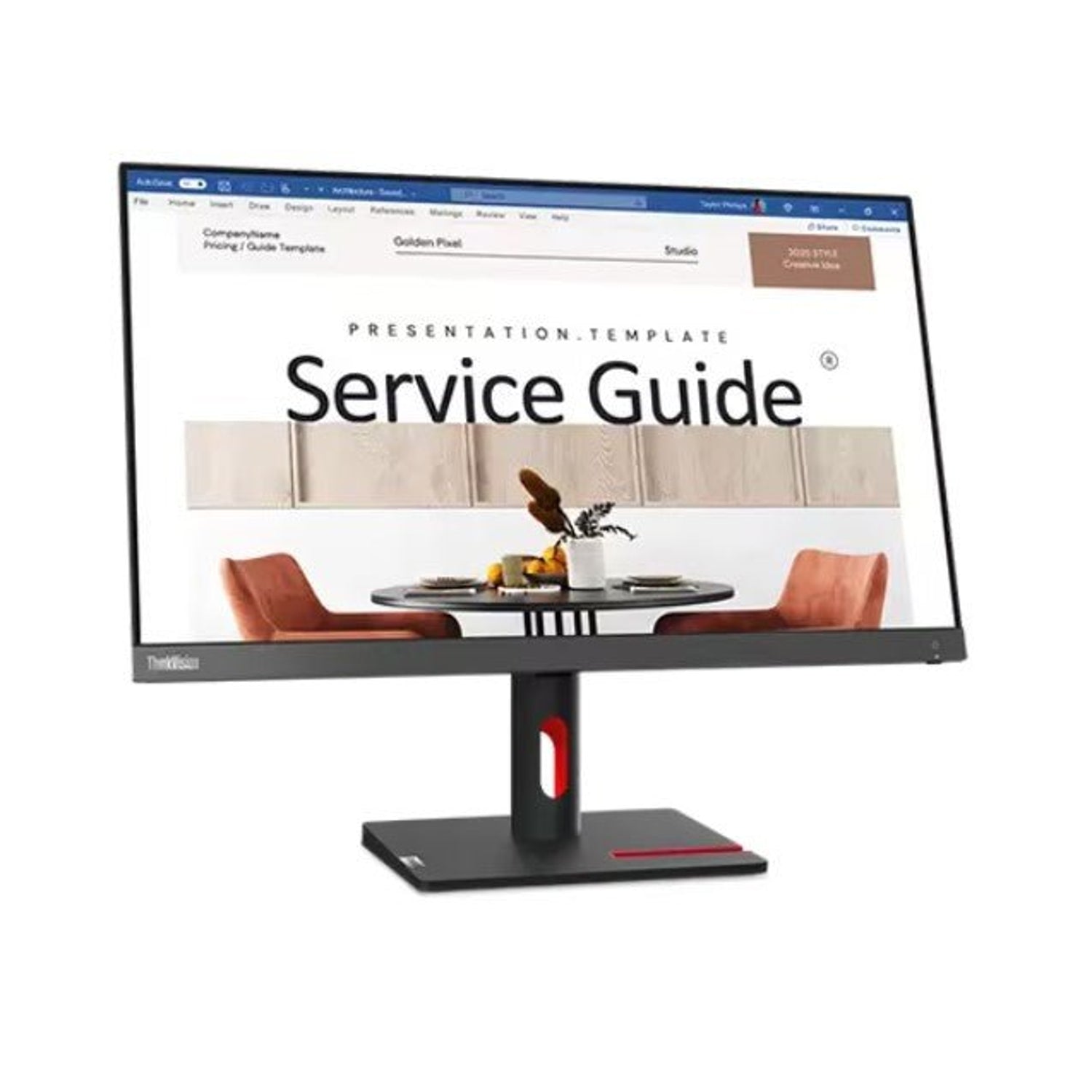

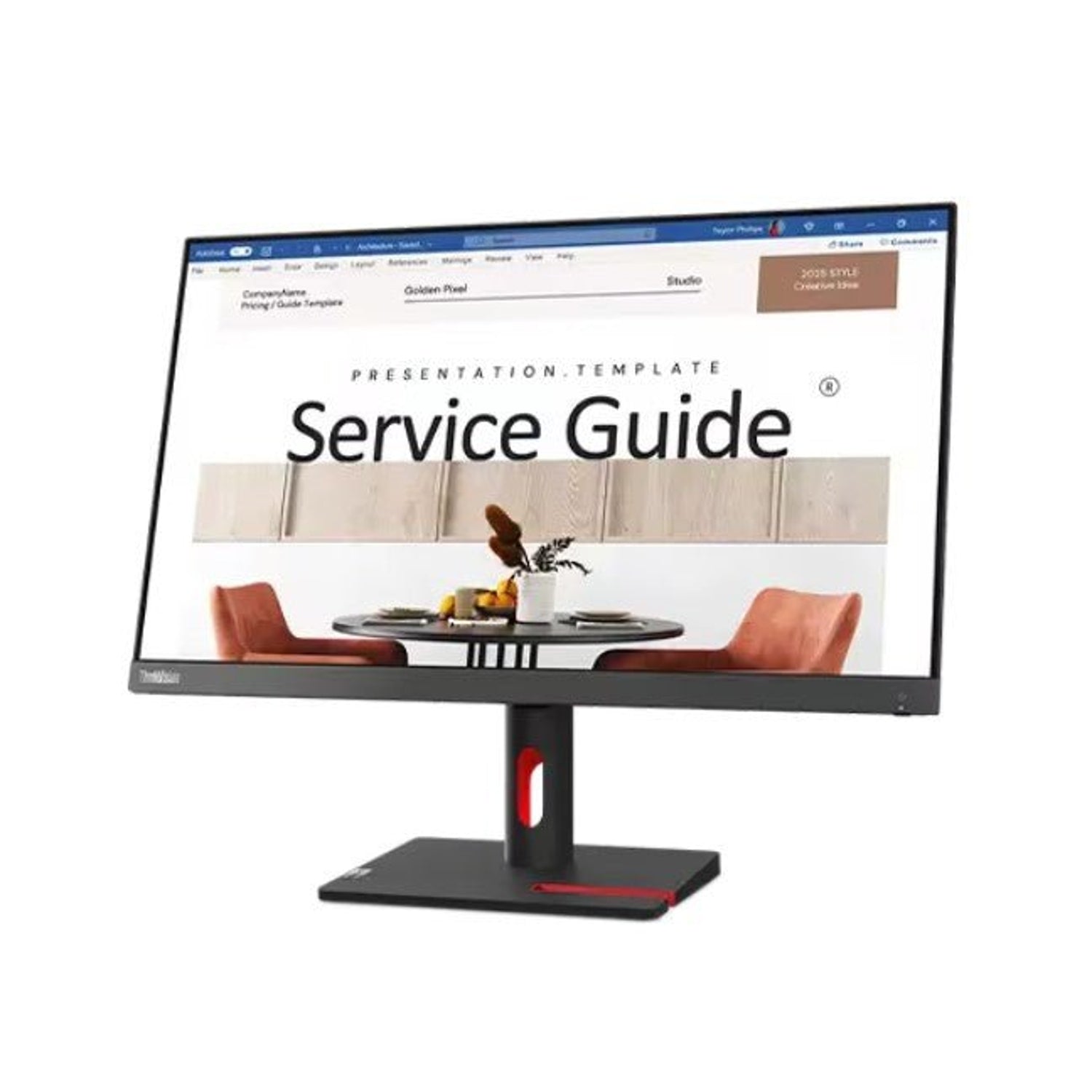

Lenovo ThinkVision S24i-30 23.8-inch Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision S24i-30 (63DEKAR3WW) - 3 Years Local Warranty
23.8-Inch Full HD IPS at 100 Hz, With an Audio Output
The ThinkVision S24i-30 is a 23.8-inch 1920 x 1080 IPS monitor running 100 Hz with 99% sRGB coverage and 1300:1 contrast. Unlike most of the value range it publishes a 3.5 mm audio-out, so a headset or powered speakers can connect to the monitor rather than the PC.
13.5 W Typical, EPEAT Gold, TCO 9.0, Eyesafe 2.0
A 13.5 W typical draw with an ENERGY STAR power-on figure of 12.9 W, and a certification list that clears most procurement checklists: EPEAT Gold, ENERGY STAR, TCO Certified 9.0 with TCO edge 2.0, Eyesafe Certified 2.0, a Volatile Organic Compound certification, TÜV Rheinland Eye Comfort and Low Blue Light, and an E-class EU energy label.
A Tilt-Only Stand, and No USB
State it plainly: this monitor has a fixed-height, tilt-only stand and no USB ports of any kind. Lenovo's own dimension table gives one height, not a range. It has a VESA 100 x 100 mm pattern, so an arm solves the ergonomics inexpensively if the desk needs it.
Our Previous Listing Was Too Thin to Be Useful
The earlier version of this page gave no brightness, no contrast, no refresh rate, no response time and no dimensions, and made an unsourced certification claim. Everything below now comes from Lenovo's PSREF specification sheet for this model, with the certifications named individually.
Lenovo ThinkVision S24i-30 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision S24i-30 |
| Part Number | 63DEKAR3WW |
| Machine Type | 63DE |
| Type | 23.8-inch Full HD monitor |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 23.8" |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS), WLED backlight |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 100 Hz |
| Response Time | 4 ms Extreme mode / 6 ms Normal mode |
| Brightness | 250 cd/m² typical |
| Contrast Ratio | 1300:1 typical. Lenovo publishes no dynamic contrast figure for this model |
| Colour Gamut | 99% sRGB. Lenovo states no CIE standard for this figure |
| Colour Depth | 8-bit (6-bit + FRC), 16.7 million colours |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare |
| Bezel | 2.0 mm sides, 2 mm top, 22 mm bottom |
Connectivity
| Video Inputs | 1 x HDMI 1.4 (supports 1920 x 1080 at 100 Hz), 1 x VGA. No DisplayPort |
| USB Hub | None. Lenovo publishes no USB ports of any kind on this model — no hub, no upstream port, no USB-C |
| USB-C | None |
| Network | None |
| Audio Out | 1 x 3.5 mm — one of the few monitors in this value group with one |
| Speakers | None. The audio-out is for headphones or powered speakers |
| Security | Kensington Security Slot (2.5 x 6 mm) |
Stand & Ergonomics
| Tilt | -5° to +22° |
| Height Adjustment | None. This is a fixed-height, tilt-only stand |
| Swivel | None |
| Pivot | None |
| VESA | 100 x 100 mm — use a monitor arm if you need height adjustment or rotation |
Power & Certifications
| Power Consumption | 13.5 W typical / 20.5 W maximum |
| ENERGY STAR Power-On | 12.9 W; TEC 40.5 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal — no external power brick |
| Certifications | ENERGY STAR certified; EPEAT Gold registered; RoHS (2011/65/EU); TCO Certified 9.0; TCO edge 2.0; Volatile Organic Compound certification; Eyesafe Certified 2.0; TÜV Rheinland Eye Comfort; TÜV Rheinland Low Blue Light (hardware solution). Lenovo's datasheet adds CCC and China Energy Efficiency Tier 1 |
| EU Energy Label | E class |
Physical
| Dimensions with Stand | 539.4 x 183.0 x 434.0 mm. Lenovo publishes a single height because the stand is fixed |
| Head Only | 539.4 x 43.0 x 326.2 mm |
| Weight | 3.8 kg with stand; 3.0 kg head only |
| Packaged | 592 x 110 x 415 mm; 5.7 kg |
Compatibility & Fit
The audio-out is the small thing that decides this model. Most monitors in this value group have no audio path at all — no speakers and no jack, so headphones go into the PC. This one publishes a 3.5 mm audio-out. On a desk where the tower lives on the floor or the laptop sits closed in a stand, being able to plug a headset into the screen in front of you is worth more than the specification sheet suggests.
Certifications, named rather than gestured at. Our earlier page claimed "ENERGY STAR and TCO" without specifics. Lenovo publishes: ENERGY STAR certified, EPEAT Gold registered, TCO Certified 9.0 with TCO edge 2.0, Eyesafe Certified 2.0, a Volatile Organic Compound certification, TÜV Rheinland Eye Comfort, TÜV Rheinland Low Blue Light, and an E-class EU energy label. If a tender asks for these line by line, that is the list.
The stand and the arm. Tilt only, -5° to +22°, fixed height. VESA 100 x 100 mm. For desks where someone will sit all day, budget an arm; it costs far less than moving to a T-series monitor and gives more adjustment than either. We can quote arms alongside.
Two inputs, HDMI and VGA. No DisplayPort. The HDMI cable is supplied; a VGA cable is not.
Where the E and S series sit in Lenovo's own words. Lenovo positions the ThinkVision E series as "Comfortable Viewing for Everyday Users" and the S series as "Basic Displays for Simple Experiences", against "Enhanced Productivity" for the T series and "Best-in-Class Performance" for the P series. Lenovo publishes no expansion of what the letters stand for, so neither do we. In practice the difference that matters on a desk is the stand: most E and S models are tilt-only, while every T and P model offers 155 mm of height adjustment, swivel and pivot.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor with stand
- 1 x HDMI cable (1.8 m)
- 1 x power cable (1.8 m)
- Quick setup guide
No VGA cable is supplied despite the VGA port.
ThinkVision Value and Specialist Monitor Ordering Information
| 62F7KAR4WW | ThinkVision E20-30 — 19.5" HD+ TN, tilt-only, HDMI + VGA |
| 64CBKAR6MY | ThinkVision S22-4e — 21.5" FHD IPS, 100 Hz, 10.5 W, tilt-only |
| 64B5KAR1MY | ThinkVision S24-4e — 23.8" FHD IPS, 100 Hz, tilt-only |
| 63DEKAR3WW (this listing) | ThinkVision S24i-30 — 23.8" FHD IPS, 100 Hz, audio-out, tilt-only |
| 63ABMAR3WW | ThinkVision E24-28 / E24-29 — 23.8" FHD, speakers, full ergonomic stand |
| 63EDMAR2WW | ThinkVision E24-30 — 23.8" FHD IPS, 100 Hz, 2 W speakers, ergonomic stand |
| 63DCKAR6WW | ThinkVision C24-40 — 23.8" FHD VA, 3000:1, 75 Hz, tilt-only |
| 63E0KAR4WW | ThinkVision S25e-30 — 24.5" FHD VA, 3000:1, 75 Hz, tilt-only |
| 64BEKAR1MY | ThinkVision S27-4e — 27" FHD IPS, 100 Hz, 300 nits, tilt-only |
| 63DFKAR4WW | ThinkVision S27i-30 — 27" FHD IPS, 100 Hz, two HDMI inputs, tilt-only |
| 63F1UAR3WW | ThinkVision 27 3D — 27" glasses-free 3D, 4K in 2D, Delta E<1 |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision S24i-30 (PDF)
- Lenovo ThinkVision S24i-30 product datasheet (PDF)
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page unless the table says otherwise. PSREF publishes its spec sheets per model rather than per part number, so this SKU does not appear inside the PDF itself; a per-part-number detail page also exists at psref.lenovo.com and will render in a normal browser if you need this exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision S24i-30
Does it have a headphone socket?
Yes — Lenovo publishes a 3.5 mm audio-out on this model, which several monitors in this value group lack entirely. There are no built-in speakers, so the jack is for headphones or powered speakers.
Does it have USB ports?
No. Lenovo publishes no USB ports of any kind on this model. If you need a monitor that also acts as a USB hub, or that docks a laptop over USB-C, the ThinkVision T-series and P-series are the ranges to look at — tell us what the desk needs and we will point you at the right one.
Does the stand adjust for height?
No. Lenovo publishes tilt only, -5° to +22°, on a fixed-height stand — there is no height adjustment, no swivel and no pivot. That is the main thing separating this monitor from the ThinkVision T-series, which offers 155 mm of lift. If getting the screen to eye level matters — and for anyone at a desk all day it should — budget for a VESA 100 x 100 mm monitor arm, which we can quote alongside.
Which certifications does it actually hold?
ENERGY STAR certified, EPEAT Gold registered, TCO Certified 9.0 with TCO edge 2.0, Eyesafe Certified 2.0, a Volatile Organic Compound certification, TÜV Rheinland Eye Comfort and TÜV Rheinland Low Blue Light, with an E-class EU energy label. Our earlier page said "ENERGY STAR and TCO" without naming a version; that has been replaced with Lenovo's actual list.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells comes with local Singapore warranty support and a GST invoice.
