Poly G7500 Video Conferencing System LAN Group
PRODUCT DESCRIPTION
Poly G7500 Video Conferencing System — LAN Group (7200-85860-102 / 7200-87310-102) - Local Warranty
Poly G7500 Video Conferencing System (LAN Group) — 4K Modular Video Conferencing
The Poly G7500 is HP's modular 4K room codec: a 349 x 140 mm, 952.5 g appliance that carries the whole room. HP specifies people video at 4K 30 fps from 2048 Kbps and 1080p 60 fps from 1740 Kbps, using H.264 AVC, H.264 High Profile and H.265, with dual display output and content input up to UHD 3840 x 2160. It is certified for Microsoft Teams and certified for Zoom, and it is the Poly platform to specify when a room needs a camera and microphone design chosen to fit the space rather than a fixed all-in-one bar. This listing groups the G7500 configurations SourceIT supplies for network-based room deployments, including the codec-only build (7200-85860-102) and the Studio E70 with TC8 kit build (7200-87310-102).
Microphones and Cameras Over Standard Structured Cabling
The reason integrators reach for the G7500 in a LAN-based design is the port layout: one 10/100/1G uplink plus three 10/100/1G LLN ports with PoE+/PSE. Poly IP table and ceiling microphone arrays connect and draw power over ordinary structured cabling, so microphone positions follow the cable trays that are already in the ceiling rather than needing a proprietary loom pulled to the codec.
Every Port a Large Room Design Needs
The G7500 carries 1 HDMI-in 1.4 for wired laptop content, 2 HDMI-out 1.4 for dual displays plus a separate HDMI-out 1.4 for audio, an HDCI camera port, 1 USB Type-C and 3 USB Type-A at 5Gbps signalling, audio-in, audio-out and RS-232 for control-system integration. Four Ethernet ports are provided — one 10/100/1G uplink plus three 10/100/1G LLN ports with PoE+/PSE — so Poly IP table and ceiling microphone arrays run over ordinary structured cabling instead of proprietary looms.
NoiseBlockAI, Acoustic Fence and Third-Party DSP
Poly NoiseBlockAI suppresses non-speech noise on the transmit side and Poly Acoustic Fence keeps sound from outside the intended meeting area out of the call — both useful in open-plan Singapore offices and glass-walled meeting rooms. Poly IP microphones give up to 20 ft (6.09 m) of pickup, and where a room already has a professional audio design, HP documents support for audio-conferencing processors such as QSC, Shure and Biamp over USB.
Sized and Supported for Singapore Deployments
The codec draws power from an external auto-sensing supply rated at 65 BTU/h, so it fits comfortably into a credenza or rack alongside existing AV. Fleet provisioning, firmware and room health run through Poly Lens. SourceIT supplies the G7500 with local Singapore warranty and a GST invoice, and can quote the matching cameras, IP microphone arrays, touch controllers and mounts as one deployment.
Poly G7500 Datasheet — Technical Specifications
General
| Model | Poly G7500 modular video conferencing codec |
| Part number | 7200-85860-102 (codec) / 7200-87310-102 (Studio E70 + TC8 kit) |
| Manufacturer | Poly (HP) |
| Colour | Black |
| Certifications | Certified for Microsoft Teams; Certified for Zoom |
| Warranty | Local Warranty (Singapore) |
Video & Codec
| Video standards | H.264 AVC; H.264 High Profile; H.265 |
| People video | 4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 60 fps from 1740 Kbps |
| Video frame rate | 5–60 fps (up to 4K resolution at 15 fps in call) |
| Content input | UHD (3840 x 2160); HD (1920 x 1080); WSXGA+; UXGA; SXGA; WXGA; XGA; SVGA |
| Content output | UHD; WUXGA; HD; WSXGA+; SXGA+; SXGA; XGA |
| Display support | Dual display |
Audio
| Audio technologies | Poly NoiseBlockAI; Poly Acoustic Fence |
| Microphone pickup | Up to 20 ft (6.09 m) with Poly IP microphones |
| Audio codecs | G.711; G.722; Polycom Siren 14; Polycom Siren 22 |
| Third-party DSP | Supports audio-conferencing processors such as QSC, Shure and Biamp over USB |
Connectivity
| Ports | 1 HDMI-in 1.4 (video and audio); 2 HDMI-out 1.4 (video); 1 HDMI-out 1.4 (audio); 1 HDCI; 1 USB Type-C 5Gbps; 3 USB Type-A 5Gbps; 1 audio-in; 1 audio-out; 1 RS-232 |
| Ethernet | 1 x 10/100/1G; 3 x 10/100/1G LLN with PoE+/PSE |
| Wireless | Bluetooth remote control included |
Design & Power
| Dimensions (W x H x D) | 349.2 x 38.1 x 139.7 mm (13.75 x 1.5 x 5.5 in) |
| Weight | 952.5 g (2.1 lb) |
| Power | External auto-sensing power supply; 65 BTU/h |
Poly Studio E70 camera
| Part number | 842F8AA |
| Sensors | Dual camera with 20-megapixel 4K sensors |
| Resolution | 2160p, 4K UHD (3840 x 2160) |
| Zoom | 7.3x digital zoom (no optical zoom) |
| Field of view (diagonal) | 78°; 140° |
| Field of view (horizontal) | 120°; 70° |
| Framing | Poly DirectorAI — speaker framing, people framing, group framing, DirectorAI perimeter |
| Privacy | Motorised, integrated electronic privacy shutter |
| Ports | 1 USB Type-C 5Gbps; 1 RJ-45 |
| Power | 100–240 VAC 50/60 Hz, 1.5 A input; 12 VDC, 5 A, 60 W output; or PoE 802.3af, 15.4 W, Class 3 |
| Dimensions (W x H x D) | 321 x 102 x 89.1 mm (12.63 x 4.02 x 3.51 in) |
| Weight | 907 g (2 lb) |
| Certifications | Certified for Microsoft Teams; Certified for Zoom |
Poly TC8 touch controller
| Part number | 2200-30760-001 / 875J0AA |
| Display | 20.3 cm (8 in) IPS touchscreen, WXGA (1280 x 800), 16:10 |
| Ports | 1 RJ-45 |
| Power | Power over Ethernet (PoE), IEEE 802.3af Class 3 |
| Dimensions (W x D x H) | 205 x 123 x 79 mm (8.07 x 4.84 x 3.11 in) |
| Weight | 812 g (1.79 lb) |
Compatibility & Software Support
Operating systems and room platforms
The Poly G7500 is an appliance-based room system running Poly Video OS — no separate room PC or compute appliance is required for its native modes. HP states that the G7500 is certified for Microsoft Teams and certified for Zoom, so a Teams Rooms on Android or Zoom Rooms Appliance experience runs natively on the codec itself once the corresponding licence is assigned.
Standards-based calling and interoperability
The codec supports standards-based video calling using H.264 AVC, H.264 High Profile and H.265, which allows it to interoperate with SIP and H.323 infrastructure and with third-party bridges. HP does not publish a Google Meet certification for the G7500, so SourceIT does not claim one; if Google Meet hardware certification is a requirement, please ask us to confirm the current certified model list before you order.
BYOD and USB device mode
The G7500 carries 1 USB Type-C and 3 USB Type-A ports at 5Gbps signalling, plus HDMI-in 1.4 for wired content sharing from a laptop. HP also documents support for third-party audio-conferencing processors such as QSC, Shure and Biamp over USB, which is what makes the G7500 the natural choice when a room needs to integrate into an existing DSP-based audio design.
Microphones and cameras over standard cabling
Three of the four Ethernet ports are LLN ports with PoE+/PSE, so Poly IP table and ceiling microphone arrays connect over ordinary structured cabling rather than proprietary runs — a practical advantage in Singapore fit-outs where cable paths are already installed.
Management
The G7500 is managed through Poly Lens, HP's cloud management and insights service, for provisioning, firmware updates, device health and room analytics across a fleet.
Package Contents & G7500 Ordering Information
In the box
- Poly G7500 codec
- AC power adapter
- Ethernet cable
- Bluetooth remote control
Contents shown are for the G7500 codec base configuration (7200-85860-102). The 7200-87310-102 configuration additionally includes the Poly Studio E70 camera, Poly TC8 touch controller, Poly IP microphone and cable bundle. Please confirm the exact configuration with us when ordering.
Poly G7500 systems and kits at SourceIT
| Poly G7500 UHD 4K Codec Base Unit | 7200-85860-102 / 83Z50AA |
| Poly G7500 Video System with EagleEye IV Camera | 7200-85760-102 / 83Z49AA |
| Poly G7500 with EagleEyeIV 12x Kit (No Radio or Power Cord) | 842U3AA |
| Poly G7500 Video Kit with TC8 & Studio E70 Camera | 7200-87310-102 |
| Poly G7500 Video Kit with TC10 & Studio E70 | 7200-88280-102 / 92L53AA |
| Poly G7500 Conferencing System with Studio E70 & TC10 Kit | 92L53AA |
| Poly G7500 Video Conferencing System LAN Group (this listing) | 7200-85860-102 / 7200-87310-102 |
Cameras, controllers, microphones and optics
| Poly EagleEye IV-12x Camera | 8200-64350-001 / 89L77AA |
| Poly Studio E70 Smart Conference Camera | 842F8AA |
| Poly Studio TC8 Video Conferencing Controller | 2200-30760-001 / 875J0AA |
| Poly TC10 Touch Controller (black) | 875K5AA |
| Poly TC10 Touch Controller (white) | 875J5AA |
| Poly GC8 Touch Controller | 2200-30780-001 / 875J6AA |
| Poly IP Table Microphone Array for G7500 | 2200-85250-001 / 874R3AA |
| Poly IP Ceiling Microphone Array (white) for G7500 | 2215-85360-001 / 875S1AA |
| Poly EagleEye IV 12x Wide Angle Lens | 875G8AA |
Datasheet & Downloads
- HP Poly G7500 product page (HP Singapore)
- HP product specifications — Poly G7500 Video Conferencing System (83Z50AA), PDF
- HP Poly Studio E70 product page (HP Singapore)
- HP product specifications — Poly Studio E70 Smart Camera (842F8AA), PDF
- HP product specifications — Poly TC8 Touch Controller (875J0AA), PDF
Frequently Asked Questions — Poly G7500
What does "LAN Group" mean on this listing?
It denotes the network-connected G7500 configurations rather than a distinct hardware model. The underlying codec is the same Poly G7500 sold as the G7500 UHD 4K Codec Base Unit (83Z50AA). Please confirm the exact configuration and part number with us before ordering.
Why are two part numbers shown?
This listing carries two configurations: 7200-85860-102, which is the codec base unit, and 7200-87310-102, which is the codec supplied with the Poly Studio E70 camera and Poly TC8 touch controller. Both are also sold individually — see the table above.
How do the IP microphones connect?
Over standard Ethernet. Three of the codec's four network ports are LLN ports with PoE+/PSE, powering and carrying Poly IP table and ceiling microphone arrays. Pickup is rated up to 20 ft (6.09 m) per array.
What camera options are available?

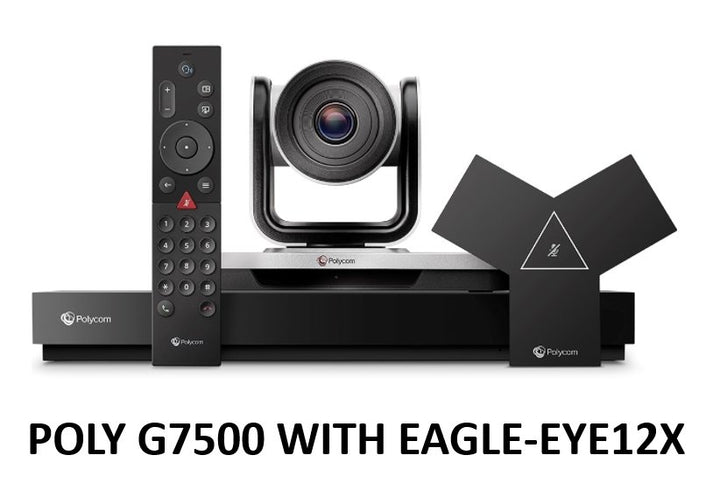

Either the wide-coverage Studio E70 (dual 20-megapixel 4K sensors, up to 140° diagonal field of view, DirectorAI framing, 7.3x digital zoom) or the optical-reach EagleEye IV-12x (1080p60, 12x optical zoom, 65° horizontal field of view).
Do we need a room PC or compute appliance?
No. The G7500 is an appliance running Poly Video OS and HP lists it as certified for Microsoft Teams and certified for Zoom. Only the room licence and resource account are needed.
Can it integrate with an existing Shure, QSC or Biamp DSP?
Yes — HP documents support for audio-conferencing processors such as QSC, Shure and Biamp over USB, using the codec's USB Type-C and Type-A ports.
Does this come with local Singapore warranty?
Yes. Every Poly G7500 sold by SourceIT comes with local Singapore warranty and a GST invoice.
